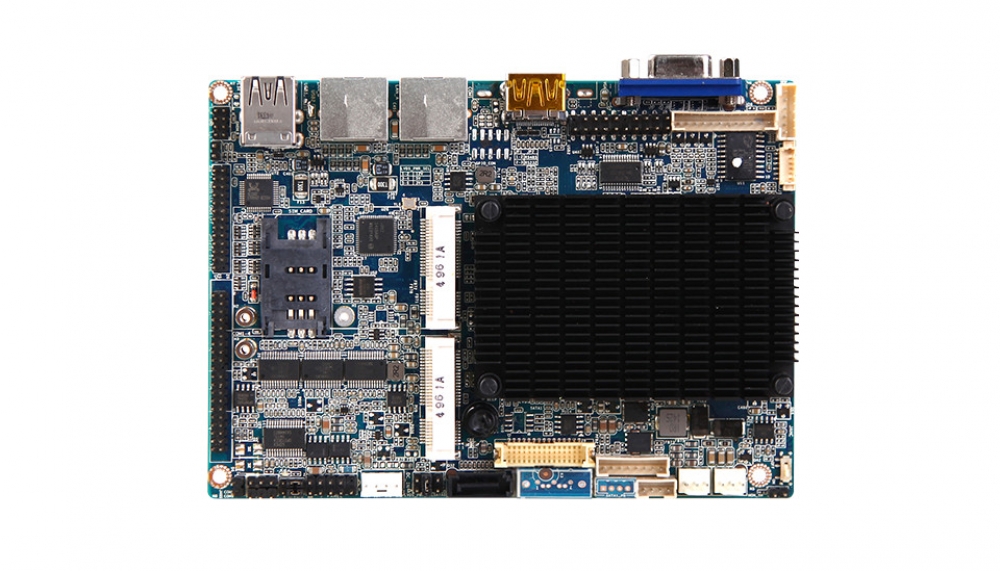

Giada EN-N2807DL
Long Life CycleIntel Bay Trail Platform
3.5 Inch Motherboard Baytrail Celeron® Processor
Long Life Cycle
Supporting Dual 1080p Display
Fanless Design
Medicina / Placas
-
3G
-
4G
-
Bluetooth
-
DC
-
Sin ventilación
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
| Processor | CPU |
Intel® Celeron® N2807 processor
|
|
Frequency
|
2.16 GHz
|
|
| Chipset | SoC | |
|
Processing Units
|
2 Cores
|
|
|
Scenario Design Power
|
4.3 W | |
|
Rear I/O
|
USB |
1 x USB3.2 Gen1, 1 x USB2.0
|
|
Display Interface
|
1 x HDMI (Max.2560 x 1600 @60 Hz)
1 x VGA (Max.2048 x 1536 @60 Hz)
|
|
| Ethernet Interface |
1 x RJ45
|
|
|
Internal I/O
|
USB
|
4 x USB2.0, signal by 2 x 9pin USB header
|
|
Display
|
1 x 12pin VGA_OUT
1 x 30pin dual channel 24bit LVDS (Max. 1920 x 1200@60 Hz)
|
|
|
Serial port
|
4 x RS232, signal by 4 x 10pin COM header
2 x RS232/RS485, signal by 2 x 3pin COM header
|
|
|
Power
|
1 x 4pin DC-IN header
|
|
|
Audio
|
1 x 10pin F_AUDIO
|
|
|
Others
|
1 x 36pin LPT
1 x 10pin GPIO 1 x 9pin F_PANEL
1 x 2pin CLR_CMOS
1 x 6pin INVERTER
1 x 8pin+4pin SATA_PWR
1 x 3pin SYS_FAN
1 x 3pin CPU_FAN
|
|
Network
|
Network Controller
|
2 x Intel I211 Gigabit Ethernet
|
|
Wi-Fi/BT
|
1 x Full-size Mini-PCIe for Wi-Fi/BT
|
|
|
Mobile Network
|
3G/4G colay with 1 x Mini-PCIe for Wi-Fi/BT
1 x SIM Slot
|
|
| System |
GPU
|
Intel® HD Graphics
|
|
Graphic Engine
|
DirectX 11, OpenGL 4.0, OpenCL 1.2
|
|
|
System Memory
|
Up to 8 GB, Onboard DDR3L-1333 MHz
|
|
|
Storage
|
1 x Full-size Mini-PCIe for MSATA
1 x 2.5” SATAIII
|
|
|
TPM
|
Optional: TPM2.0 | |
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes | |
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Remo on
|
NA
|
|
|
Power Requirement
|
DC-IN, 12 V | |
|
Dimensions
|
146 mm x 104 mm (5.74” x 4.09”)
|
|
| Fanless | Yes | |
|
Operating system
|
Windows 7 (64bit) /Windows 8 (64bit)
Windows 10 (64bit) / Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~114°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
