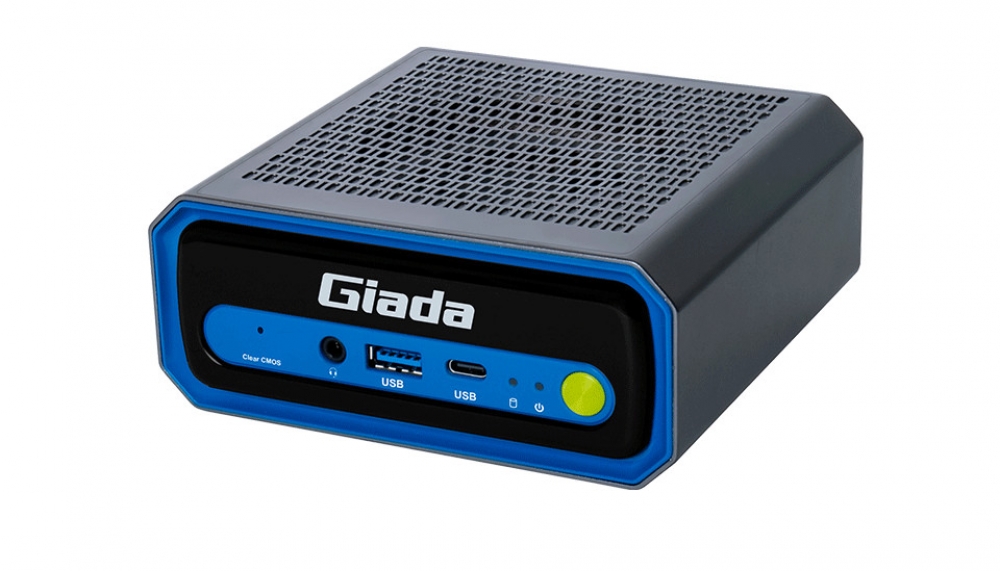

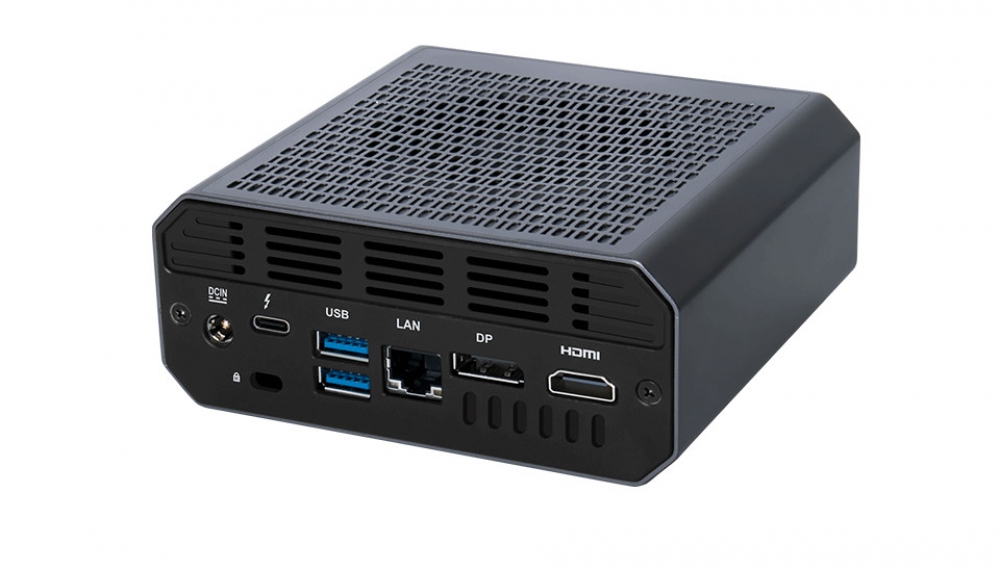

Giada N601
1.4GHz AI Boost NPUIntel Meteor Lake
Thunderbolt 4
Support Wi-Fi 7 Improving Workplace Efficiency, Privacy, and Security
Unmatched Image Quality
Unmatched Storage Flexibility
Revolutionizing Connectivity
Smoother Network Connection
Industria / Ordenadores industriales (IPC)
-
Bluetooth
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
| CPU | CPU |
Intel® Core™ Ultra 5 processor 125H
Intel® Core™ Ultra 7 processor 155H
|
|
Max Turbo Frequency
|
4.50 GHz /4.80 GHz
|
|
|
Chipset |
SoC | |
|
Processing Units |
14 Cores /16 Cores
|
|
| Base Power | 28 W /28 W | |
|
NPU
|
Intel AI Boost, 1.4 GHz
|
|
|
Frameworks Supported
|
OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
|
|
| Memory | Size | Up to 86 GB |
| Type |
2 x SO-DIMM DDR5-5600 MHz
|
|
| Storage | Socket 1 |
1 x M-Key M.2 (2280) PCIe5.0 X4 for SSD
|
| Socket 2 |
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
|
|
| Socket 3 |
1 x 2.5” SATAIII
|
|
| Display |
GPU |
Intel® Arc™ graphics |
|
Graphic Engine |
DirectX 12.2, OpenGL 4.6, OpenCL 3.0,
H.264 /H.265 /AV1 Hardware Encode /Decode, VP9 Bitstream & Decoding
|
|
| Display Interface |
1 x HDMI (Max.4096 x 2304 @60Hz)
1 x DP1.4 (Max.7680 x 4320 @60Hz)
|
|
|
Multi-display
|
Quad 4K@60Hz (2 via Thunderbolt 4 + 2 via HDMI/DP)
Dual 8K@60Hz (1 via Thunderbolt 4 + 1 via DP1.4)
|
| Network |
Network Controller
|
1 x Intel i226-V Gigabit Ethernet
|
|
Ethernet Interface
|
1 x 2.5GbE RJ45
|
|
|
Wi-Fi/BT
|
1 x E-Key M.2(2230) for Wi-Fi/BT, Support Wi-Fi 6, Wi-Fi 6E (CNVi), Wi-Fi 7
|
|
|
Mobile Network
|
NA | |
| I/O interface |
USB |
1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen 2, 2 x USB 3.2 Gen 1, 1 x Thunderbolt 4
|
|
Serial Port |
NA |
|
|
Audio |
1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Internal Wi-Fi Antenna |
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes
|
|
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Power Requirement
|
DC-IN, 19 V/6.32 A
|
|
|
Dimensions
|
126 mm x 117 mm x 50 mm (4.96” x 4.60” x 1.97”)
|
|
|
Construction
|
Metal, Grey. I/O Panel, Plastic
|
|
|
Operating System
|
Windows 11 (64bit) /Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 40°C (non-condensing)
|
|
|
Certifications
|
CE, FCC Class B, UKCA
|
