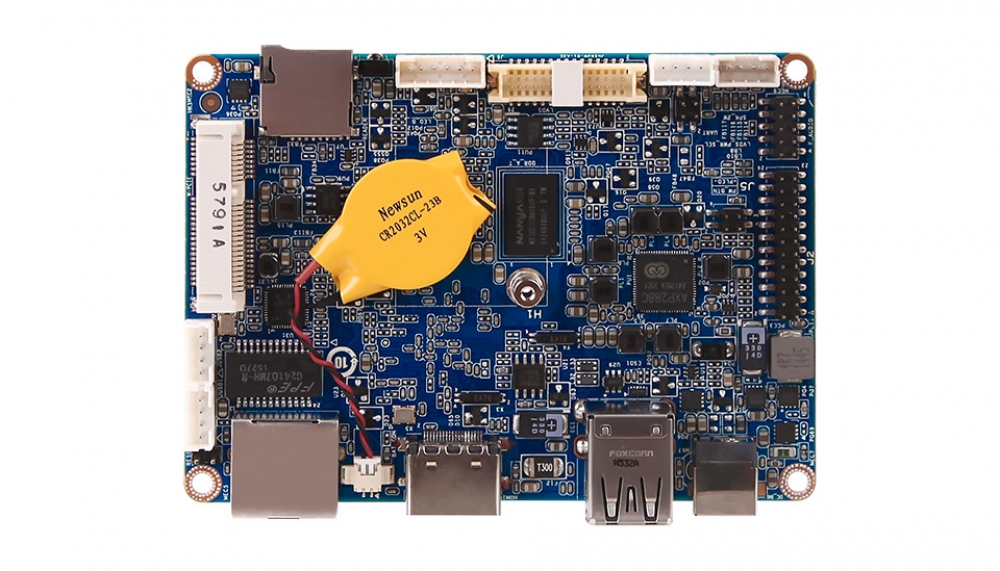

Giada NI-Z8350UL
2.5 Inch MotherboardIntel Cherry Trail Inside
Intel Cherry Trail Processor
Supporting Dual 1080p Display
Fanless Design
Industria / Placas
-
Android
-
Bluetooth
-
DC
-
Sin ventilación
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
USB
-
Wifi
-
Windows
Specifications
| Processor | CPU |
Intel® Atom® x5-Z8350 processor
|
|
Frequency
|
1.92 GHz
|
|
| Chipset | SoC | |
|
Processing Units
|
4 Cores
|
|
|
Scenario Design Power
|
2 W | |
|
Rear I/O
|
USB |
1 x USB3.2 Gen1, 1 x USB2.0
|
|
Display Interface
|
1 x HDMI (Max.2560 x 1600 @24 Hz) | |
| Ethernet Interface |
1 x RJ45
|
|
|
Internal I/O
|
USB
|
2 x USB2.0, signal by 2 x 4pin USB header
|
|
Display
|
1 x 30pin dual channel 24bit LVDS (Max. 1920 x 1200@60 Hz)
|
|
|
Serial port
|
1 x UART, signal by 1 x 4pin UART heade | |
|
Multiplexer
|
1 x 24pin MUX
|
|
|
Audio
|
1 x 10pin F_AUDIO, 1 x 4pin SPEAKER
|
|
|
Others
|
1 x 6pin INVERTER
|
|
Network
|
Network Controller
|
1 x Realtek RTL 8111H Gigabit Ethernet
|
|
Wi-Fi/BT
|
Onboard Wi-Fi/BT module
|
|
|
Mobile Network
|
1 x Mini-PCIe for 3G/4G
1 x SIM Slot
|
|
| System |
GPU
|
Intel® HD Graphics 400
|
|
Graphic Engine
|
DirectX 11, OpenGL 4.0, OpenCL 1.2
|
|
|
System Memory
|
2 GB, Onboard DDR3L-1333 MHz
|
|
|
Storage
|
32 GB, Onboard eMMC5.1
1 x TF Card Reader
|
|
|
TPM
|
Optional: TPM2.0 | |
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes | |
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Power Requirement
|
DC-IN, 12 V | |
|
Dimensions
|
100 mm x 72 mm (3.94” x 2.83”)
|
|
|
Operating system
|
Windows 8.1 (64bit) /Windows 10 (64bit)
Linux Ubuntu (64bit) /Android 5.1
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~140°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
