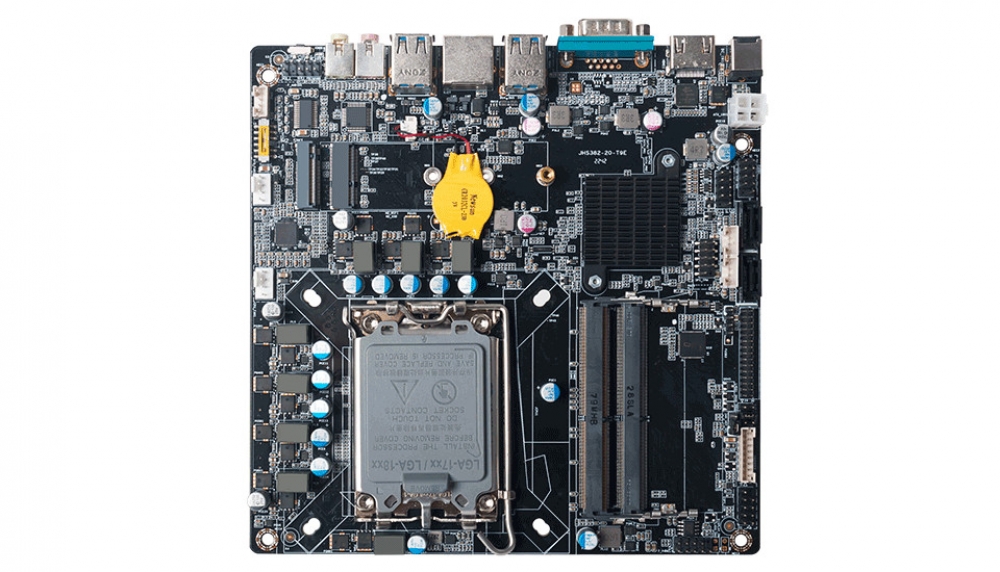

Giada PN612S4
Thin Mini-ITX MotherboardH610 Chipset
Intel 12th Gen. CPU
Intel® H610 Chipset
Supporting 4K Video Playback
Digital Signage / PlacasIndustria
Kiosk
-
Bluetooth
-
DC
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
| Processor | CPU |
Intel® LGA1700 Socket 12th Gen. processors
|
|
Frequency
|
by CPU
|
|
| Chipset | H610 | |
|
by CPU
|
by CPU
|
|
| TDP | ≤ 65 W | |
|
Rear I/O
|
USB |
4 x USB3.2 Gen1
|
|
Display Interface
|
1 x HDMI (Max.4096 x 2160 @60 Hz)
1 x VGA (Max.2048 x 1536 @60 Hz)
|
|
|
Audio
|
1 x MIC-IN, 1 x AUDIO-OUT
|
|
| Ethernet Interface |
1 x RJ45
|
|
|
Internal I/O
|
USB
|
4 x USB2.0, signal by 2 x 9pin USB header
1 x USB2.0, signal by 1 x 5pin USB header
|
|
Display
|
1 x 30pin dual channel 24bit LVDS (Max. 1920 x 1200@60 Hz)
|
|
|
Serial port
|
1 x RS232 colay with VGA
|
|
|
Power
|
1 x 4pin ATX PWR_IN, 2 x 4pin HDD_PWR
|
|
|
Audio
|
1 x 10pin FP_AUDIO, 1 x 4pin SPEAKER
|
|
|
Others
|
1 x 10pin F_PANEL
1 x 3pin CLR_CMOS
1 x 8pin BKL_CON
1 x 6pin INVERTER
1 x 4pin SYS_FAN, 1 x 4pin CPU_FAN
|
|
Network
|
Network Controller
|
1 x Realtek RTL 8111H Gigabit Ethernet
|
|
Wi-Fi/BT
|
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
|
|
|
Mobile Network
|
NA | |
| System |
GPU
|
Intel® UHD Graphics (by CPU)
|
|
Graphic Engine
|
DirectX 12.1, OpenGL 4.5, OpenCL 3.0
|
|
|
System Memory
|
Up to 32 GB, 2 x SO-DIMM DDR4-3200 MHz
|
|
|
Storage
|
1 x M-Key M.2 (2242/2280) for SSD
2 x SATAIII
|
|
|
TPM
|
Optional: TPM2.0 | |
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes | |
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Power Requirement
|
DC-IN, 19 V | |
|
Dimensions
|
Thin Mini-ITX, 170 mm x 170 mm (6.69” x 6.69”)
|
|
|
Operating system
|
Windows 11 (64bit) /Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~114°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
