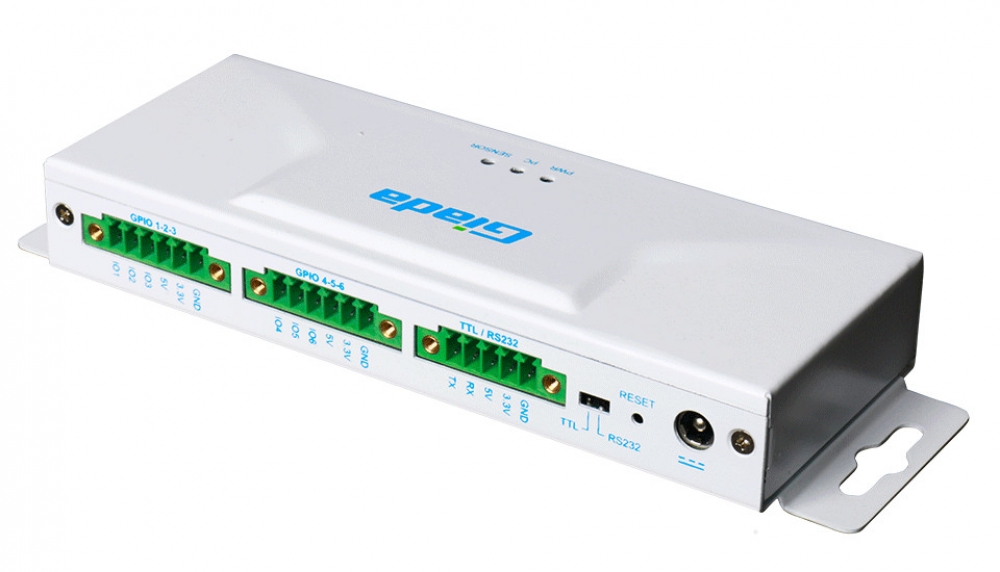

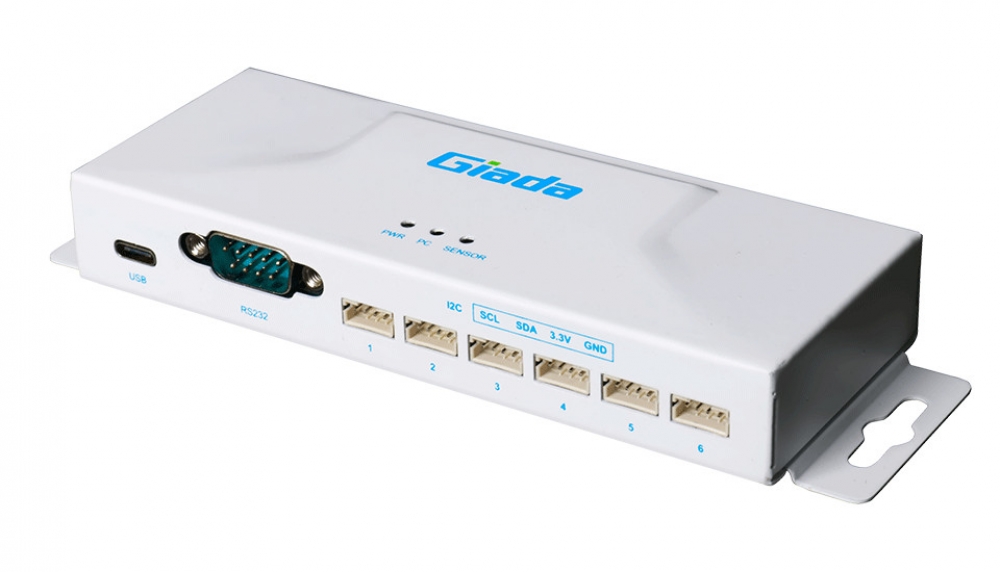

Giada RD01
ESP32-S3 Microcontroller Unit6 x GPIO, 6 x I2C
Based on ESP32-S3 Microcontroller Unit
Supporting 6 GPIOs and 6 I2C
Providing firmware for GPIO connected
Industria / IoT
-
DC
-
Serie
-
USB
Specifications
|
Specifications
|
Microcontrol Unit
|
ESP32-S3
|
|
Input Voltage
|
DC-IN, 5 V / 1A
|
|
|
Rear IO
|
1 x USB Type-C
1 x DB9 RS232
6 x 4pin I2 C grove
2 x 6pin GPIO
1 x 5pin serial port
|
|
|
LED
|
1 x Power supply, 1 x PC connect, 1 x IO signal
|
|
Button
|
1 x TTL/RS232 switch, 1 x RESET
|
|
Construction
|
Metal, White
|
|
Dimensions
|
168.5 mm x 55mm x 24mm (6.63" x 2.16" x 0.94")
|
|
Product Weight
|
232.6 g
|
|
Operating Temperature
|
0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
|
