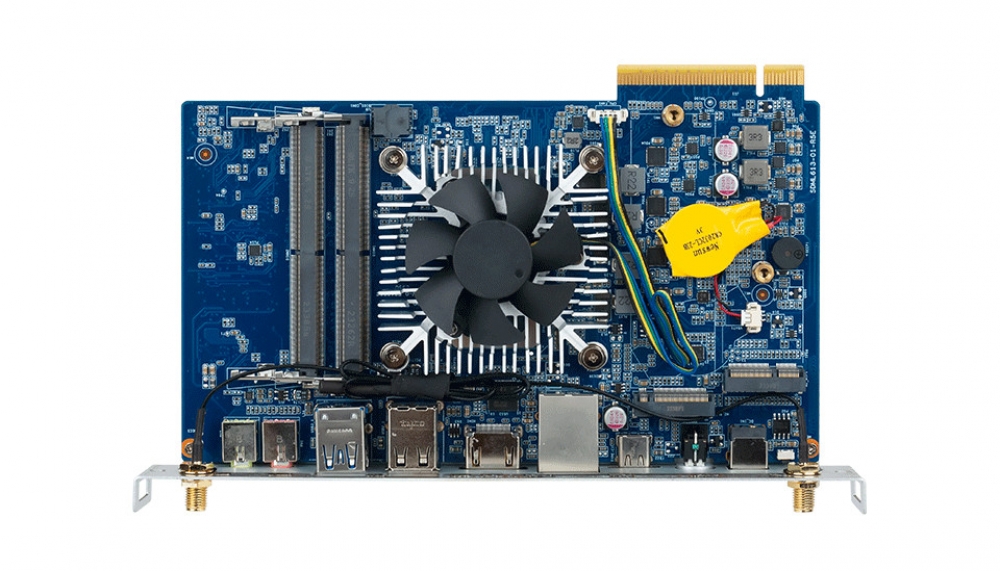

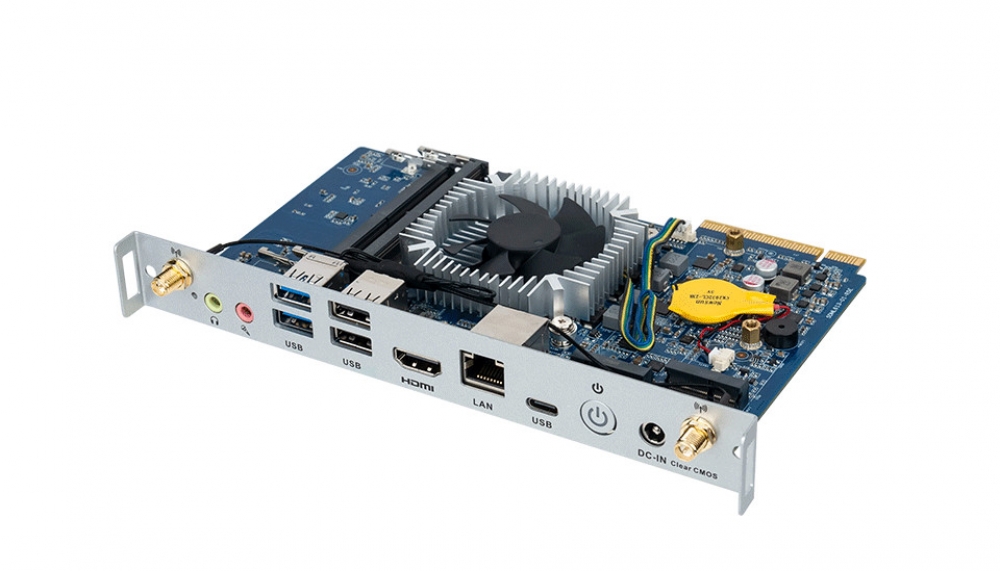

Giada SDM-L613
Raptor Lake-P (Intel 13th Gen.)Supporting 8K resolution
Supporting vPro technology
Intel® 13th Gen. Raptor Lake Processors
Supporting 8K Display
Intel® vPro Technology
Digital Signage / PlacasIndustria
-
Bluetooth
-
DC
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
| CPU | CPU |
Intel® Core™ i3-1315U processor
Intel® Core™ i5-1335U/i5-1345U processor
Intel® Core™ i7-1365U processor
|
|
Efficient Frequency
|
3.30GHz /3.40 GHz /3.50 GHz /3.70 GHz
|
|
|
Performance Frequency
|
4.50 GHz /4.60 GHz /4.70 GHz /5.00 GHz
|
|
|
Chipset |
SoC | |
|
Processing Units |
6 Cores /10 Cores /10 Cores /10 Cores
|
|
|
Configurable TDP-up |
15 W /215 W /15 W/ 15 W |
|
| Memory | Size | Up to 64 GB |
| Type | 2 x SO-DIMM DDR5-5200 MHz | |
| Storage | Socket 1 |
1 x M-Key M.2 (2280) PCIe4.0 X4 for SSD
|
| Display |
GPU |
Intel® UHD Graphics (Core i3)
Intel® IRIS® Xe Graphics (Core i5, Core i7)
|
|
Graphic Engine |
DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K60fps 12b 4:2:0 HEVC/VP9/SCC |
|
|
Display Interface |
1 x HDMI (Max.7680 x 4320 @60 Hz)
|
|
| Network |
Network Controller
|
1 x Intel® Ethernet Controller I225-LM
|
|
Ethernet Interface
|
1 x 2.5 GbE RJ45
|
|
|
Wi-Fi/BT
|
1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
|
|
|
Mobile Network
|
NA
|
| I/O interface |
USB |
1 x USB Type-C3.2 Gen1,
2 x USB3.2 Gen2, 2 x USB2.0
|
|
Serial Port |
NA |
|
|
Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
2 x Connector for Wi-Fi/BT |
|
|
SDM I/O
PCIe X8 Edge Connector |
HDMI (4096 x 2304 @60 Hz),
DP (4096 x 2304 @60 Hz),
USB3.2 Gen1, UART, GSPI, I2C, PCIe, SYS_FAN
|
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
JAHC
|
Watchdog Timer, Auto Power On, RTC
|
|
|
Power Requirement
|
DC-IN, 12 V/5 A
SDM IO: 12 V
|
|
|
Dimensions
|
175mm x 110mm (6.89” x 4.33” )
|
|
|
Operating System
|
Windows 11 (64bit) /Linux Ubuntu (64bit)
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~113°F) @0.7m/s Air Flow
|
|
|
Storage Temperature
|
-20°C ~75°C (-4°F~167°F)
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
