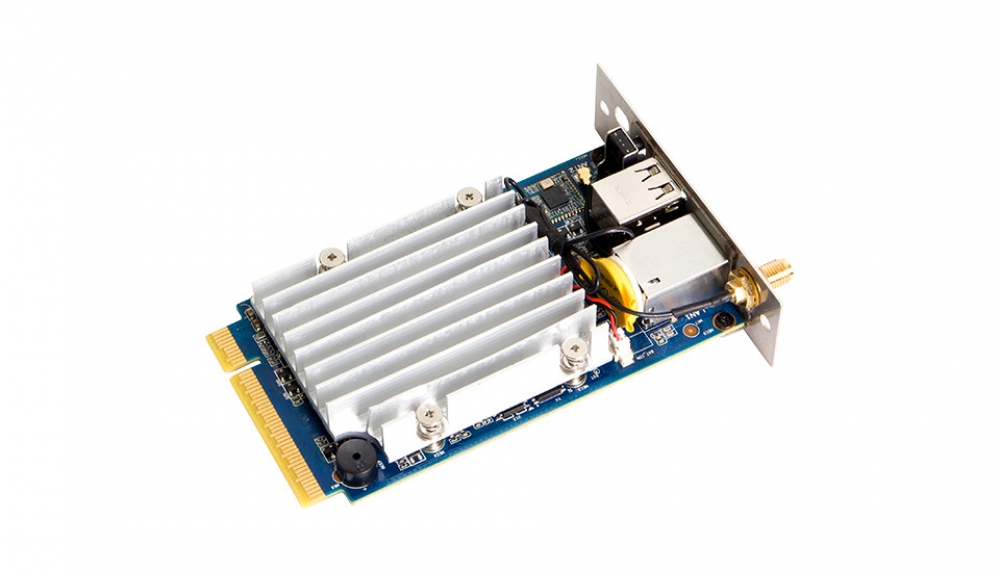

Giada SDM-S
Support Windows/Linux/AndroidIntel Cherry Trail Inside
Supporting Multiple Operating Systems
Supporting 4K Display
Fanless Design
Digital Signage / Placas
-
Android
-
Bluetooth
-
DC
-
Display Port
-
Sin ventilación
-
HDMI
-
Intel
-
Interfaz
-
Linux
-
Serie
-
USB
-
Wifi
-
Windows
Specifications
| CPU | CPU |
Intel® Atom x5-Z8350
|
|
Frequency |
1.92GHz
|
|
|
Chipset |
SoC | |
|
Processing Units |
4 Cores |
|
|
Configurable TDP-up |
2 W |
|
| Memory | Size | 2 GB |
| Type | Onboard DDR3L-1600MHz | |
| Storage | Onboard | 32GB , Onboard eMMC |
| Display |
GPU |
Intel® HD Graphics 400 |
|
Graphic Engine |
DirectX11, OpenGL4.0 and OpenCL 1.2 |
|
|
Display Interface |
NA |
|
| Network |
Network Controller
|
1 x Realtek RTL8111H Gigabit Ethernet
|
|
Ethernet Interface
|
1 x RJ45
|
|
|
Wi-Fi/BT
|
Onboard Wi-Fi/BT module
|
|
|
Mobile Network
|
NA
|
| I/O interface |
USB |
2 x USB2.0
|
|
Serial Port |
NA |
|
|
Audio |
NA |
|
|
Button |
1 x Power on, 1 x CLR-CMOS |
|
|
Antenna |
1 x Connector for Wi-Fi/BT |
|
|
SDM I/O
PCIe X8 Edge Connector |
HDMI, DP1.2, USB3.2 Gen1, UART, PCIe
|
|
|
System
|
TPM
|
Optional: TPM2.0
|
|
Watchdog Timer
|
Yes | |
|
Auto Power On
|
Yes
|
|
|
RTC
|
Set up independently every day, a week as a cycle
|
|
|
Power Requirement
|
DC-IN, 12 V/5 A
SDM IO: 12 V
|
|
|
Dimensions
|
109.9mm x 60mm(4.33" x 2.36") | |
|
Operating System
|
Windows 8 (64bit) /Windows 10 (64bit) /Linux Ubuntu (64bit) /Android 5.1
|
|
|
Operating Temperature
|
0°C ~60°C (32°F~113°F) @0.7m/s Air Flow
|
|
|
Humidity
|
95% @ 60°C (non-condensing)
|
