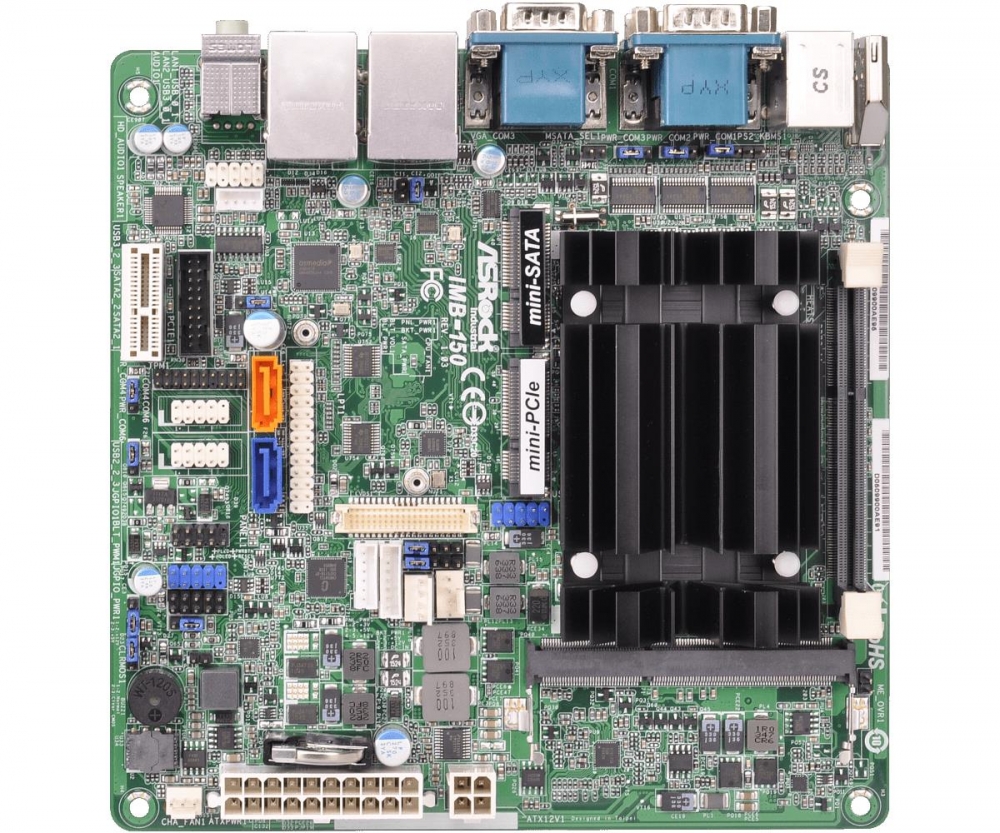

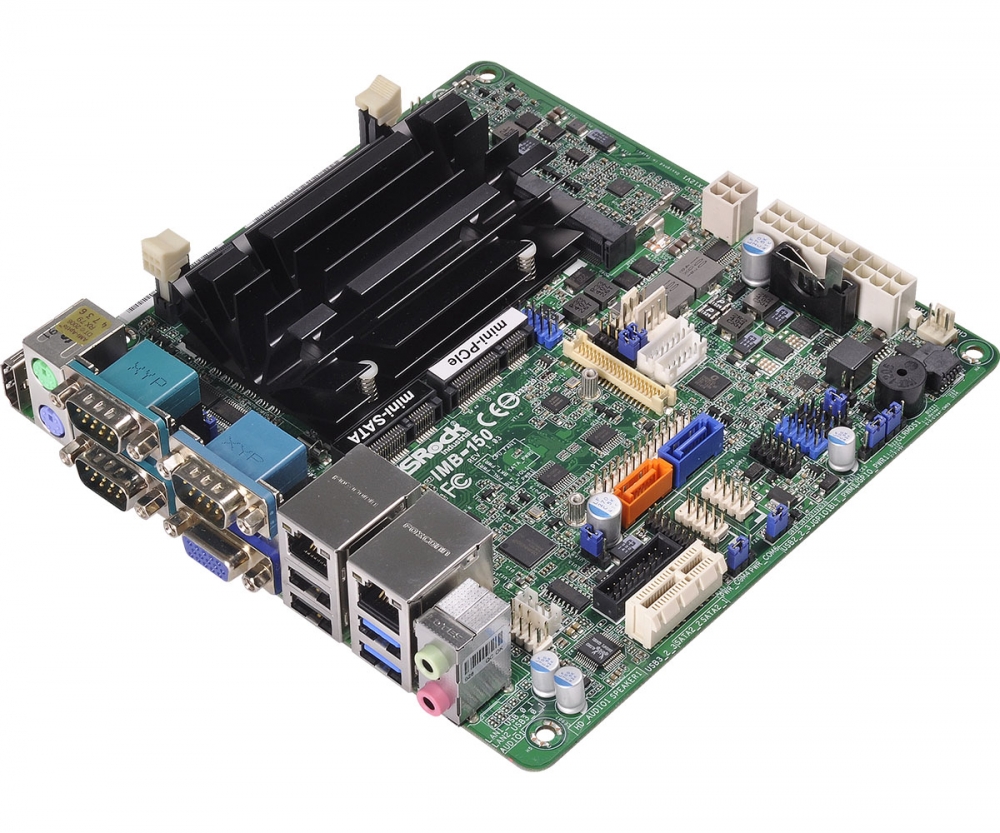

IMB-150
Mini-ITX intel J1900/N2930/N2920 (0ºC – 60ºC)- Intel® Celeron® Processor J1900/N2930/N2920
- IMB-150D (J1900)
- IMB-150N (N2930) - Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.2
- Supports Dual Channel DDR3L 1333MHz, 2 x SO-DIMM, up to 8GB system memory
- 3 x COM (RS-232/422/485), 2 x COM (RS-232)
- 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x mini-PCIe, 1 x mSATA(shared)
- Gigabit LAN : 2 x Realtek Lan
- 9~19 V DC-in / ATX Power Support
Gaming en
Kiosk en
![IMB-150](pics_fotosproductos/45/med_full_imb-150-i1.jpg)
![IMB-150](pics_fotosproductos/45/med_full_imb-150-2.jpg)
![IMB-150](pics_fotosproductos/45/med_full_imb-150-i2.jpg)
![IMB-150](pics_fotosproductos/45/med_full_asrockfondo-blanco.jpg)
![IMB-150](pics_fotosproductos/45/th_crop_imb-150-i1.jpg)
![IMB-150](pics_fotosproductos/45/th_crop_imb-150-2.jpg)
![IMB-150](pics_fotosproductos/45/th_crop_imb-150-i2.jpg)
![IMB-150](pics_fotosproductos/45/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel® AtomTM Baytrail-M/D Processor Supports Hyper-Threading Technology |
Chipset |
N/A |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (Half Size) |
mSATA |
1 |
PCIe |
1 |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Supports Dual Channel DDR3L 1333MHz SDRAM |
Max. |
8GB |
Storage |
SATA2 (3.0Gb/s) |
Graphics
Controller |
Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
Max. Resolution |
1920 x 1200@60Hz |
Ethernet

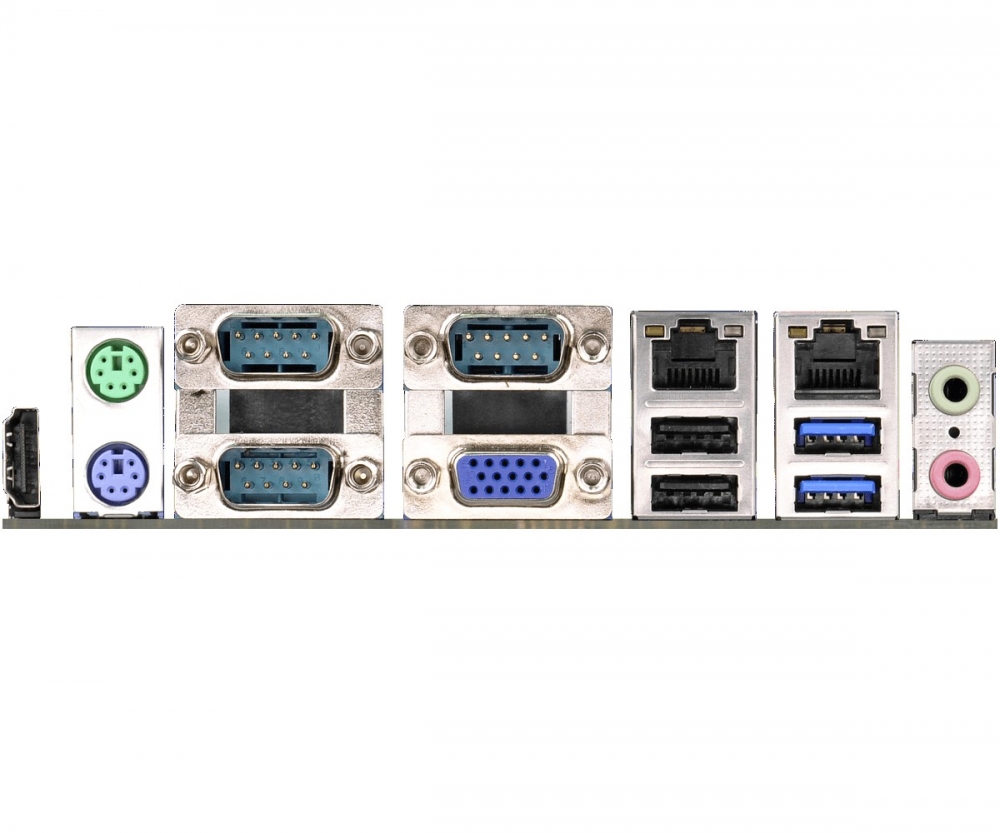

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
1 |
Display Port |
- |
Ethernet |
2 |
USB |
4 (2 x USB 3.0 compliant, 2 x USB 2.0 compliant) |
Audio |
2 (Mic-in, Line-out) |
Serial |
3 (RS-232/422/485) |
Internal connector
USB |
6 (2 x USB 3.0 compliant, 4 x USB 2.0 compliant) |
LVDS/Inverter |
1/1 |
Serial |
2 (RS-232) |
SATA |
2 x SATA2 (3.0Gb/s) |
mSATA |
1 (shared) |
Mini-PCIe |
1 |
GPIO |
4 x GPI + 4 x GPO |
SATA PWR |
1 |
SIM |
- |
Power requirement
Power Input |
9-19V DC-In (4-pin ATX PWR Con) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
