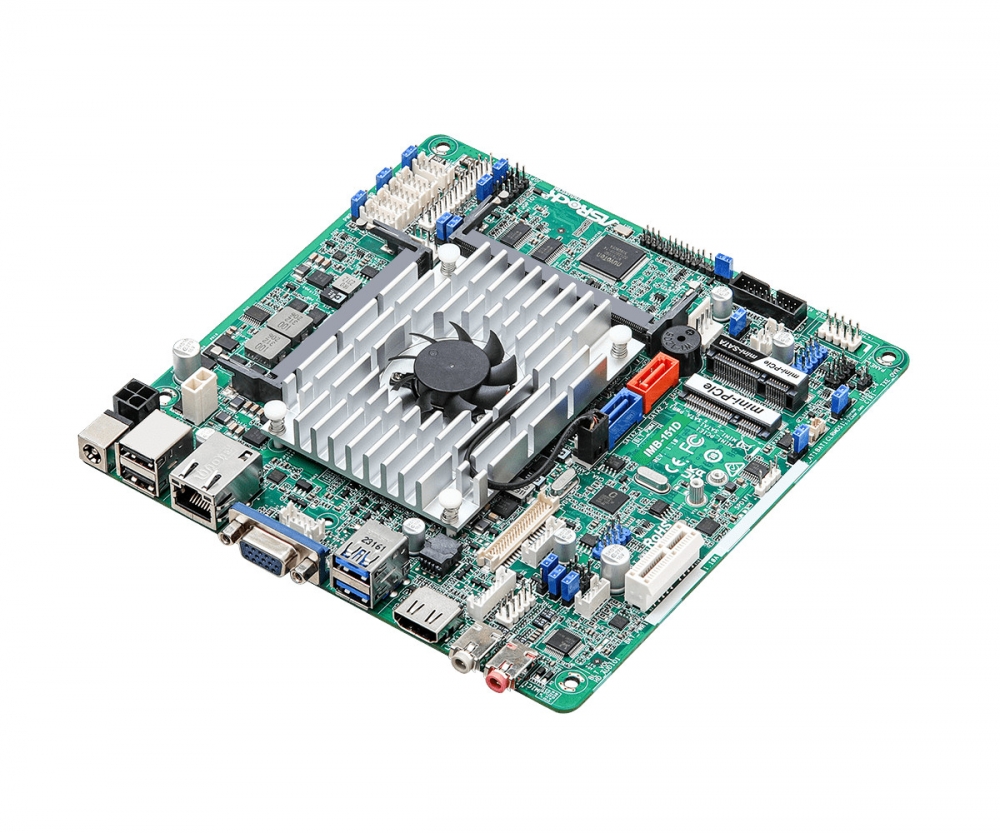

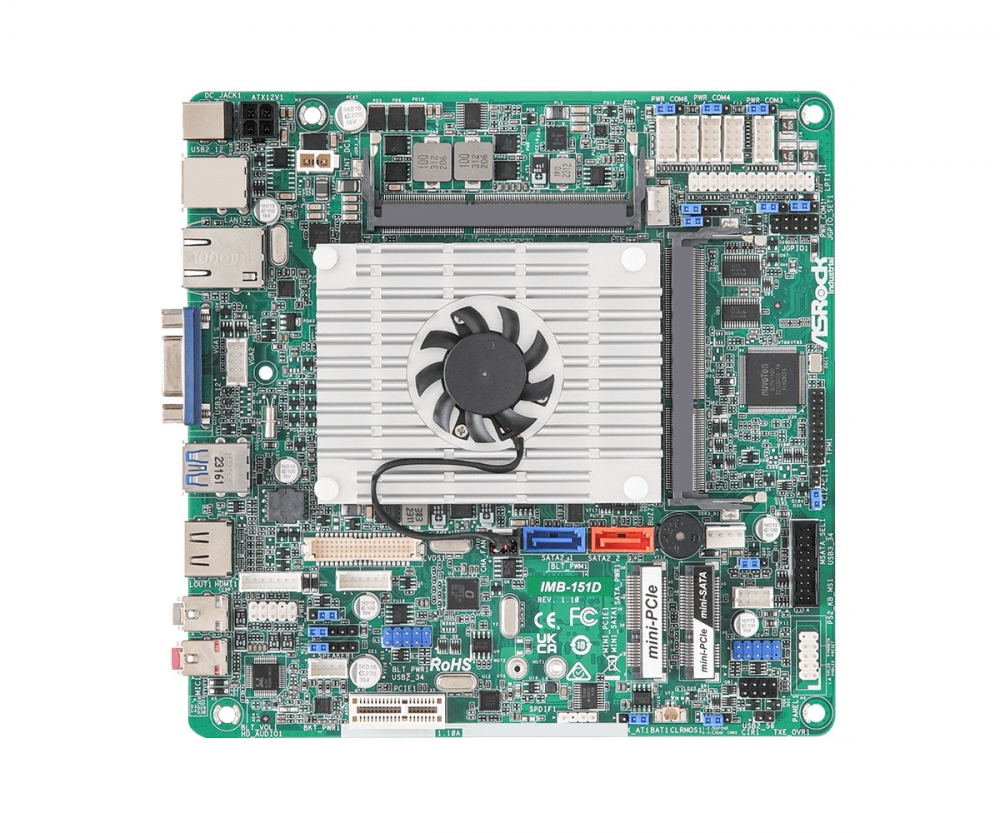

IMB-151
Mini-ITX intel Baytrail-J1900/N2930 (0ºC – 60ºC)- Intel® Atom™ Baytrail-J1900/N2930 Processor
-IMB-151D (J1900)
-IMB-151D-WF (J1900)
-IMB-151N (N2930) - Integrated Intel® Gen7 Intel® Graphics DX 11, OGL3.2
- Supports Dual Channel DDR3 1333MHz, 2 x SO-DIMM, up to 8GB system memory
- 1 x COM (RS-232/422/485), 4 x COM (RS-232)
- 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 4 xUSB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x mini-PCIe, 1x mSATA (shared)
- Gigabit LAN : 1 x Realtek Lan
- 9~19 V DC-in
Kiosk en
![IMB-151](pics_fotosproductos/46/med_full_imb-151-1.jpg)
![IMB-151](pics_fotosproductos/46/med_full_imb-151-2.jpg)
![IMB-151](pics_fotosproductos/46/med_full_imb-151-3.jpg)
![IMB-151](pics_fotosproductos/46/med_full_asrockfondo-blanco.jpg)
![IMB-151](pics_fotosproductos/46/th_crop_imb-151-1.jpg)
![IMB-151](pics_fotosproductos/46/th_crop_imb-151-2.jpg)
![IMB-151](pics_fotosproductos/46/th_crop_imb-151-3.jpg)
![IMB-151](pics_fotosproductos/46/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel® AtomTM Baytrail-J1900/N2930 Processor Supports Hyper-Threading Technology |
Chipset |
N/A |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (half size) + 1 (full size) shared |
mSATA |
1 |
PCIe |
1 |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR3 1333 MHz SDRAM |
Max. |
8GB |
Storage |
SATA2 (3.0Gb/s) |
Graphics
Controller |
Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
Max. Resolution |
1920 x 1200@60Hz |
Ethernet
Controller |
GbE LAN Realtek |
Connector |
1 x RJ 45 |

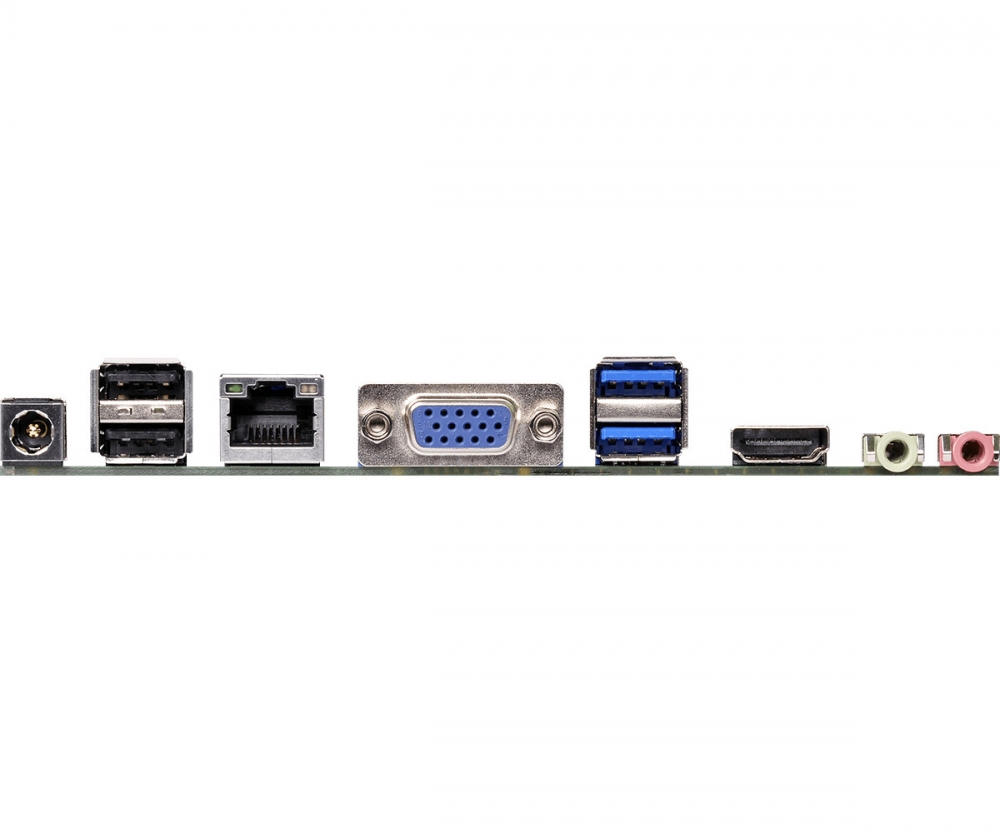

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
- |
Ethernet |
1 |
USB |
4 (2 x USB 3.0 compliant, 2 x USB 2.0 compliant) |
Audio |
2 (Mic-in, Line-out) |
Serial |
- |
Internal connector
USB |
6 (2 x USB 3.0 compliant, 4 x USB 2.0 compliant) |
LVDS/Inverter |
1/1 |
Serial |
5 ( 1 RS-232/422/485, 4 RS-232) |
SATA |
2 x SATA2 ( 3.0Gb/s) |
mSATA |
1 (shared) |
Mini-PCIe |
1 |
GPIO |
4 x GPI + 4 x GPO |
SATA PWR |
1 |
SIM |
- |
Power requirement
Power Input |
9~19V DC-In (2-pin PWR Con) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
