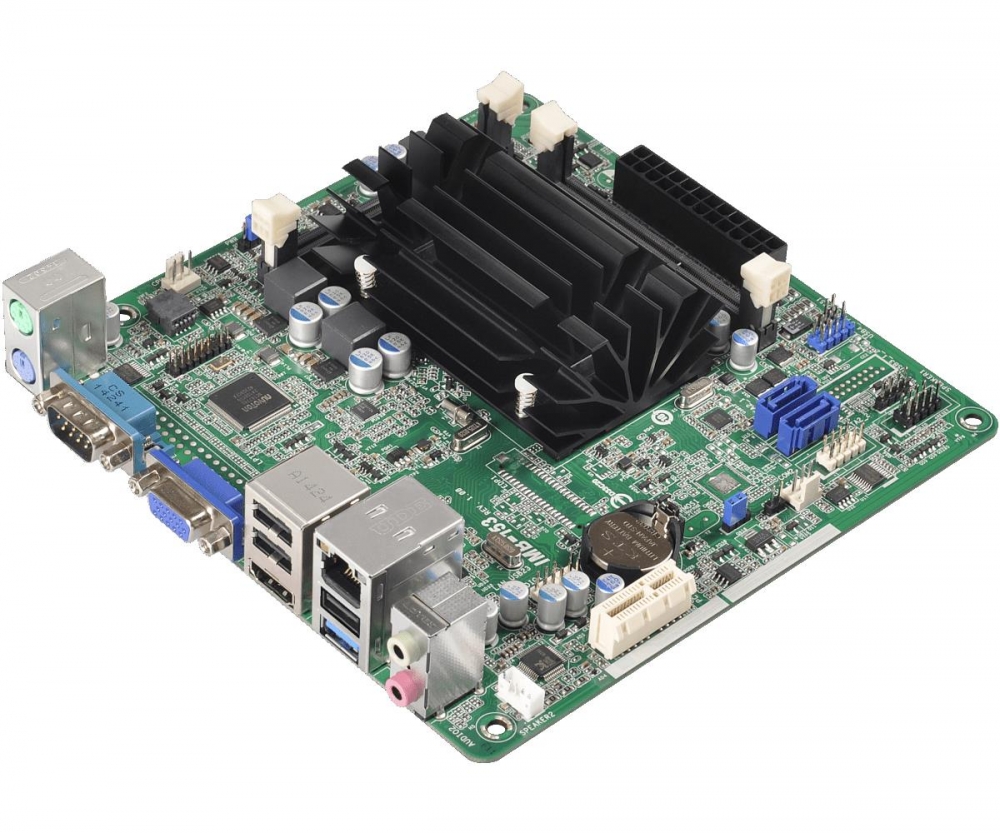

IMB-153
Mini-ITX intel Baytrail-D J1900 (0ºC – 60ºC)- Intel® Qual-Core Atom™ Baytrail-D Processor J1900
- Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.2
- Supports Dual Channel DDR3 1066/1333MHz, 2 x SO-DIMM, up to 8GB system memory
- 1 x HDMI, 1 x D-Sub,
- 1 xUSB 3.0, 5 x USB 2.0, 2 x SATA2
- 1 x PCIe x1
- Gigabit LAN : 1 x Realtek Lan
- ATX Power connector
Kiosk en
![IMB-153](pics_fotosproductos/48/med_full_imb-153-i1.jpg)
![IMB-153](pics_fotosproductos/48/med_full_imb-153-i2.jpg)
![IMB-153](pics_fotosproductos/48/med_full_imb-153-i3.jpg)
![IMB-153](pics_fotosproductos/48/med_full_asrockfondo-blanco.jpg)
![IMB-153](pics_fotosproductos/48/th_crop_imb-153-i1.jpg)
![IMB-153](pics_fotosproductos/48/th_crop_imb-153-i2.jpg)
![IMB-153](pics_fotosproductos/48/th_crop_imb-153-i3.jpg)
![IMB-153](pics_fotosproductos/48/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel® Quad-Core AtomTM Baytrail-M J1900 Supports Hyper-Threading Technology |
Chipset |
N/A |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
- |
mSATA |
- |
PCIe |
1 |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR3 1066/1333 MHz SDRAM |
Max. |
8 GB |
Storage |
SATA2 (3.0Gb/s) |
Graphics
Controller |
Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
Max. Resolution |
1920x1200 |
Ethernet
Controller |
GbE LAN: 1x Realtek RTL 8111GR |
Connector |
1 x RJ 45 |

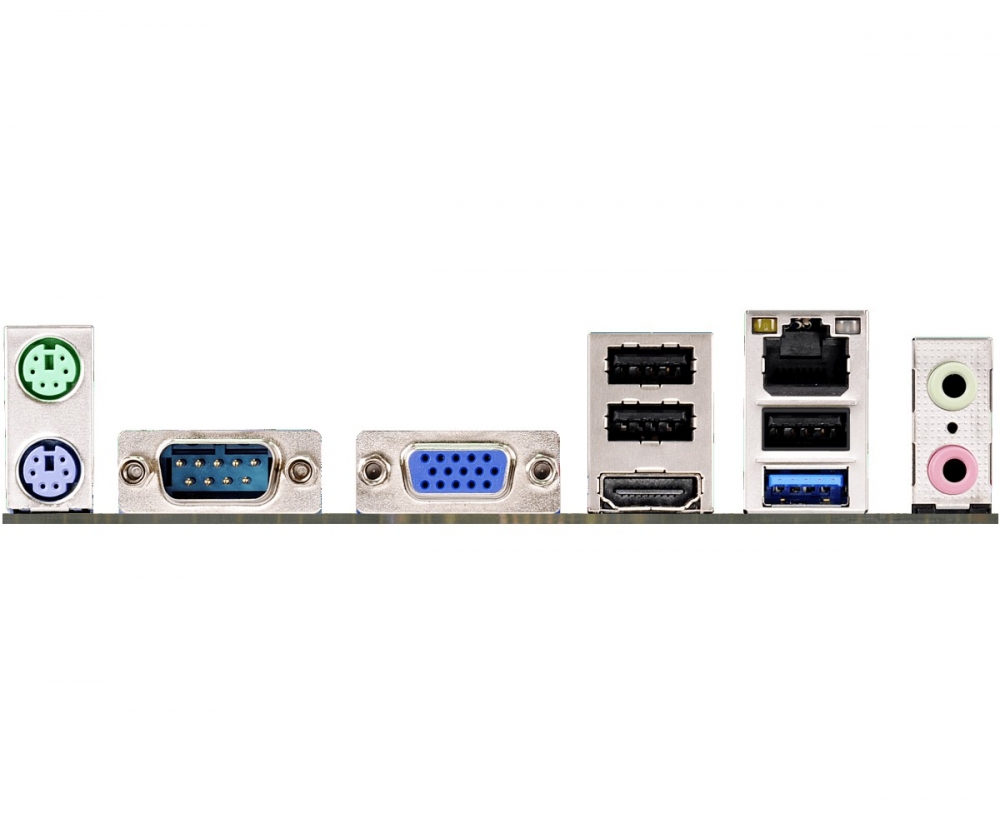

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
- |
Ethernet |
1 |
USB |
4 (1 x USB 3.0 compliant, 3 x USB 2.0 compliant) |
Audio |
2 (Mic-in, Line-out) |
Serial |
1 |
Internal connector
USB |
2 (2 x USB 2.0 compliant) |
LVDS/Inverter |
- |
Serial |
1 x RS-232 |
SATA |
2 x SATA2 ( 3.0Gb/s) |
mSATA |
- |
Mini-PCIe |
- |
GPIO |
- |
SATA PWR |
- |
SIM |
- |
Power requirement
Power Input |
ATX (24-pin PWR Con) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
