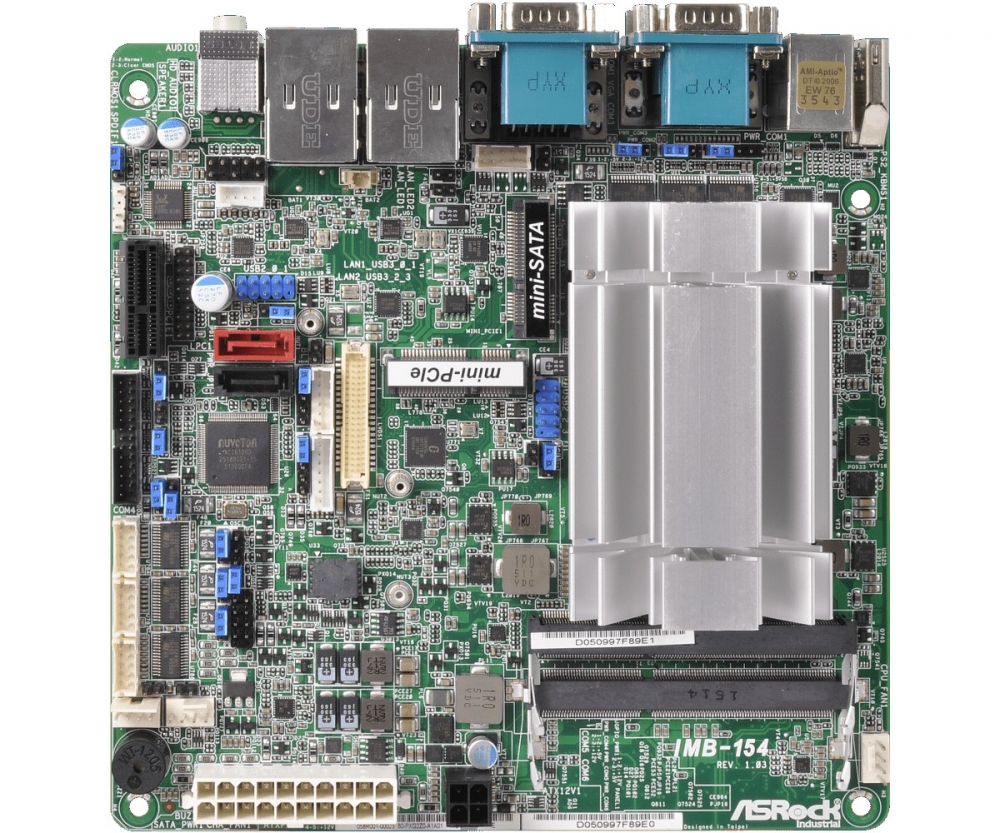

IMB-154
Mini-ITX intel Braswell SoC (0ºC – 60ºC)- Intel® Pentium®/Celeron® Braswell SoC Processor
- IMB-154B (N3160) - Integrated Intel® Gen8 Intel® Graphics DX 11*, OGL3.2
- Supports Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
- 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS/eDP
- 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x mini-PCIe, 1 x mSATA(shared)
- Gigabit LAN : 2 x Realtek Lan
- 1 x TPM Header
- 12V or 19~24V DC in
/ Kiosk en
-
DC
-
HDMI
-
Intel
-
Interface
-
LAN
-
SSD
-
USB
-
VGA
-
Wifi
Specifications
Processor system
|
CPU |
Intel® Pentium/Celeron Braswell SoC Supports Hyper-Threading Technology Default N3150 Quad core 6W processor |
|
Chipset |
(By CPU) |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (full/half size,supports PCIe x1 and USB device) |
|
mSATA |
1 (full size,supports SATA and USB device) |
|
PCIe |
1 x PCIe x1 slot |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3L 1333/1600 MHz SDRAM 2 x SO-DIMM |
|
Max. |
8GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® Gen8 Intel Graphics DX 11*, OGL3.2 |
|
Max. Resolution |
1920 x 1200@60Hz |
Ethernet
|
Controller |
2 x Realtek RTL8111G |
|
Connector |
2 x RJ-45 |
Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
3 x RS-232 (COM1/COM2 support RS-422/485) |
Internal connector
|
USB |
4 ( 2*2.54 pitch header USB 2.0 compliant) |
|
LVDS/Inverter |
1/1 |
|
Serial |
3* 2.0 pitch header RS-232 |
|
SATA |
2 x SATA3 (6.0Gb/s) |
|
mSATA |
1(Share with SATA2) |
|
Mini-PCIe |
1 |
|
GPIO |
8 x GPI + 8 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12V or 19~24V DC in (4-pin ATX PWR Con) / ATX |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
Mini-ITX |
|
Dimensions |
6.7-in x 6.7-in |
|
Weight |
- |
|
Construction |
- |
