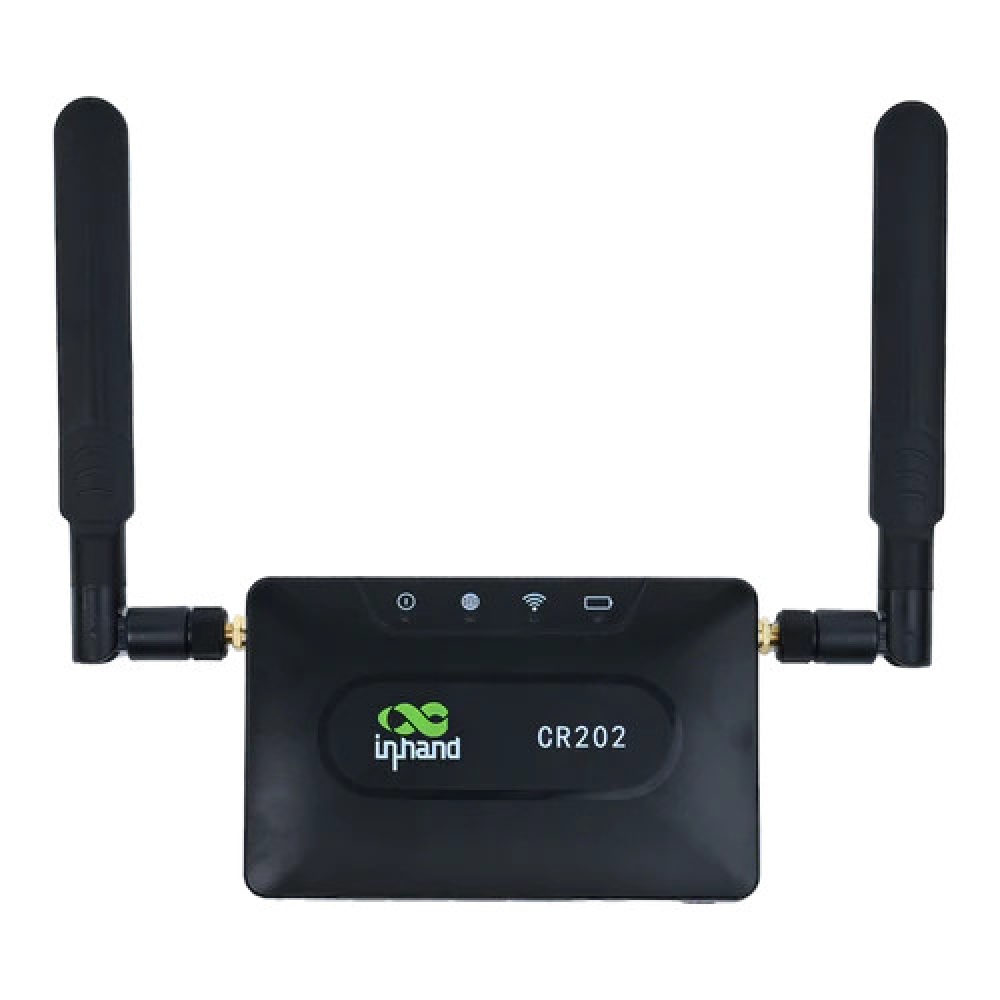

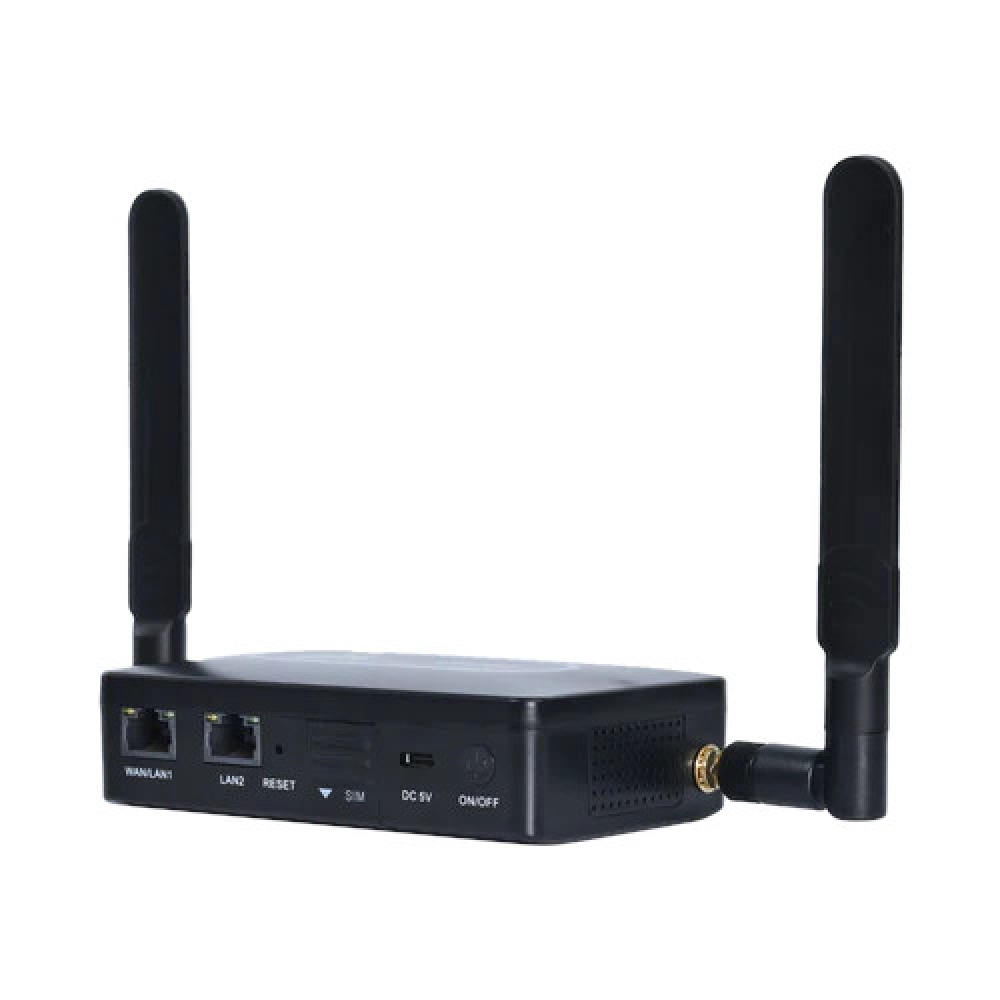

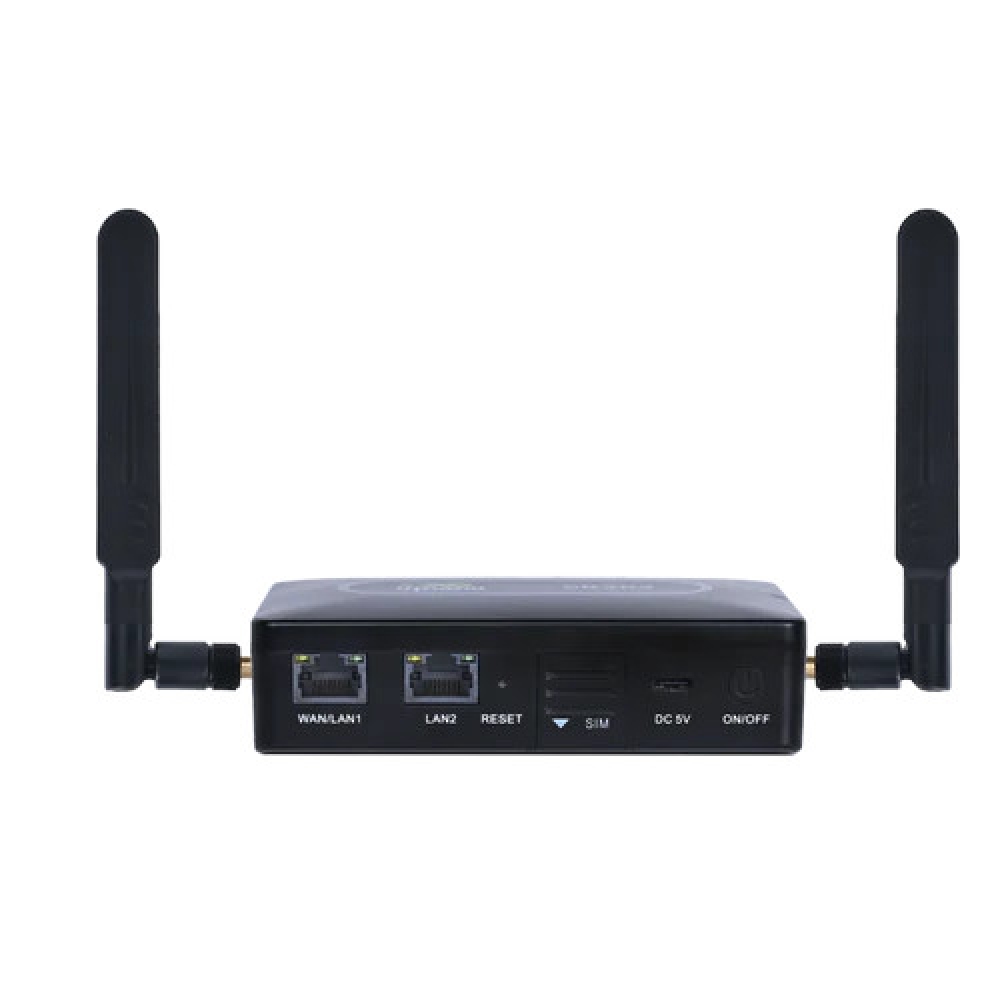

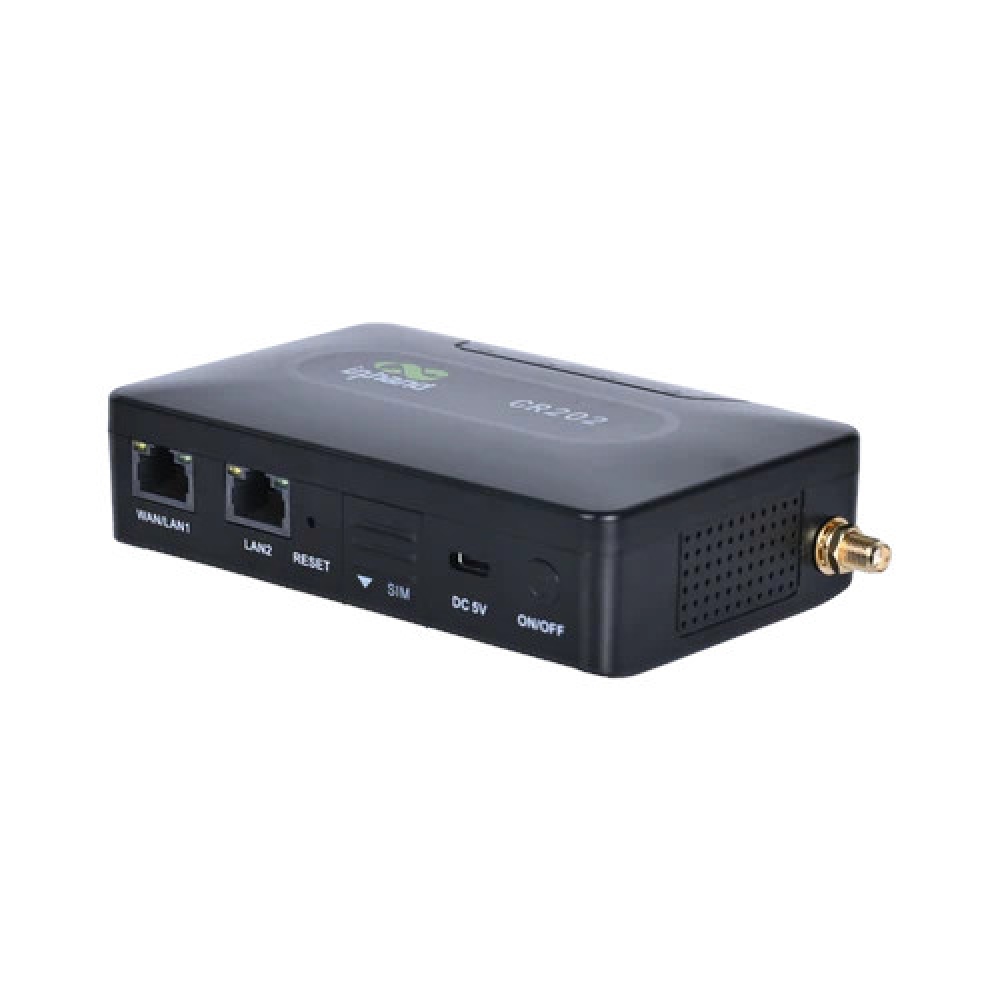

InHand Networks CR202-NAC6-WLAN-B

CR202 4G LTE CAT6 Pocket Portable Wi-Fi Router,Smart VPN router,Travel Hotspot, Access Point, 5000 mAh battery The portable 4G cellular router is designed for people who are on the go and need to connect to the Internet when they are away from the office or home with a reliable and stable network connection. At the same time, it guarantees the connections of small businesses and medium-sized branches and self-service terminal scenarios. It also performs the functions of a wireless access point. The link detection mechanism can effectively ensure that the network is not interrupted. The powerful built-in battery also allows you to work anytime, anywhere with a lightweight design.
Industria / IoT
  • 4G
    4G
  • Sin ventilación
    Sin ventilación
  • HDMI
    HDMI
  • Interfaz
    Interfaz
  • Lte
    Lte
  • Wifi
    Wifi

Specifications

CR202 Hardware Specifications
Hardware Platform
CPU MT7628NN
RAM 128MB
FLASH 32MB Flash
Recommended Users 30
Interfaces
Cellular 4G LTE CAT6
300 Mbps (DL)/50 Mbps (UL)
Ethernet Port 1*WAN
1*LAN
WAN/LAN switchable, Dual-LAN
SIM 1*eSIM*
1*SIM
Nano 4FF SIM slot
RESET Reset button
ON/OFF ON/OFF button
Antenna Interface 2* 4G Cellular SMA
Lights Battery / Power /4G / Signal /Wi-Fi
Wi-Fi
Radio Frequency Single band 2.4GHz
Max Transmission Bandwidth 300Mbps
Transfer Protocol 802.11 b/g/n
Operating Model AP/STA mode
Power Supply
Power TYPE-C
Power Consumption 5V/2A
Battery
Battery Capacity 5000mAh
Lasts up 8 hours
Mechanical Features
Installation Panel Mounting, Wall mounting
Dimensions 119*75*33mm
Weight 205.5g
Housing ABS+PC
Cooling Fanless
Environment
Working Temperature -10°C to 50°C (14℉ to 122°F)
Storage Temperature -20°C to 60°C (-4℉ to 140°F)
Protection Level IP30
Certificates
Certificates FCC, CE, PTCRB, UN38.3, IC, VZW, ATT, T-MOBLIE
Warranty 1 year




Certificates
Certificates FCC, CE, PTCRB, UN38.3, IC, VZW, ATT, T-MOBLIE
Warranty 1 year

CR202 Software Specifications
Device Management
Device Manager Centralized management platform
Simple and intuitive dashboard
User-friendly management
Multidimensional visual management
Network Connection
Network Access APN
Access Authentication CHAP/PAP
LAN Protocol ARP
WAN Protocol PPP, PPPoE, DHCP
Network Protocols
IP Application Ping, RouteTrace, DHCP Server, DHCP Client, DNS relay, DDNS, Telnet statistics
IP Routing Static routing
NAT Supports network address translation
Security
Network Security Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, ACL;
Content URL filter, port mapping, virtual IP mapping, IP-MAC binding
Reliability
Link Detection Sends heartbeat packets to detect, auto redials when disconnected
Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
Network Management
QoS Management Bandwidth limit, IP speed limit
Traffic Management Supports data traffic threshold, traffic statistics and traffic
Alarm System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, power status, modem status, network connection status, and routing status
