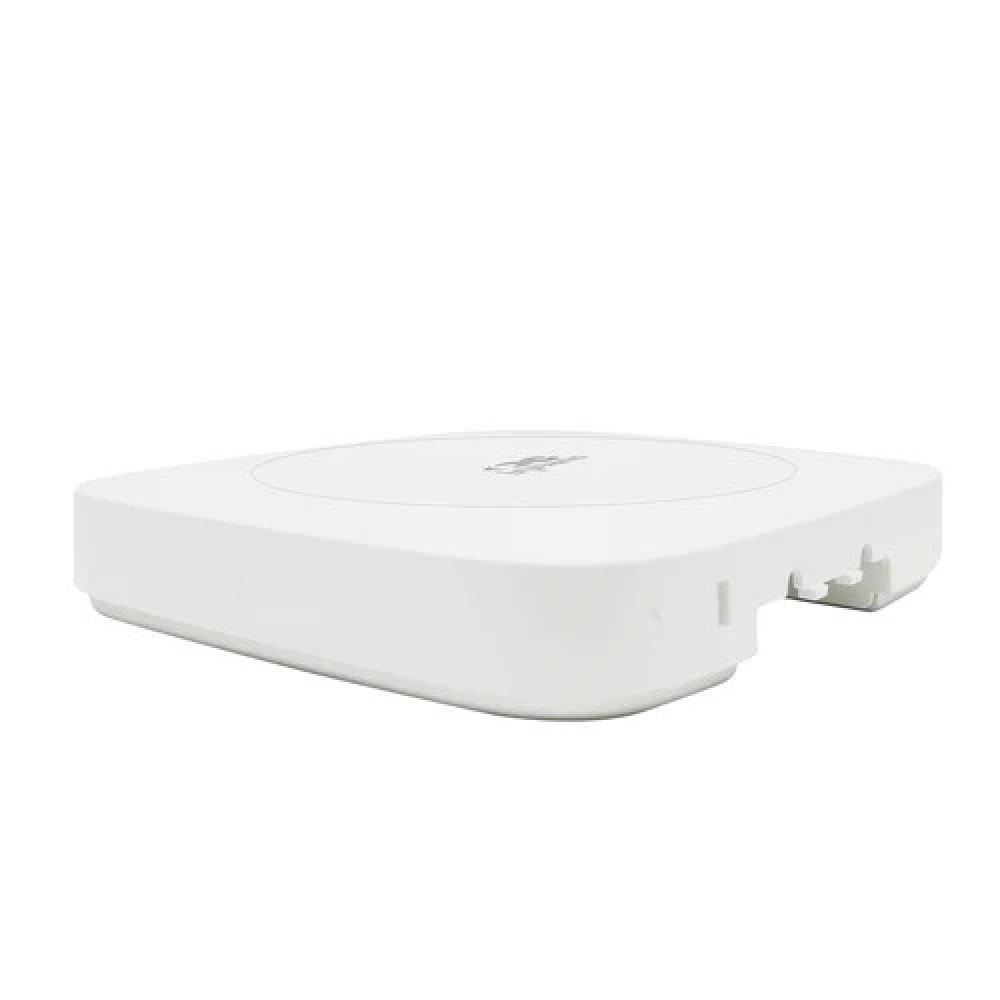

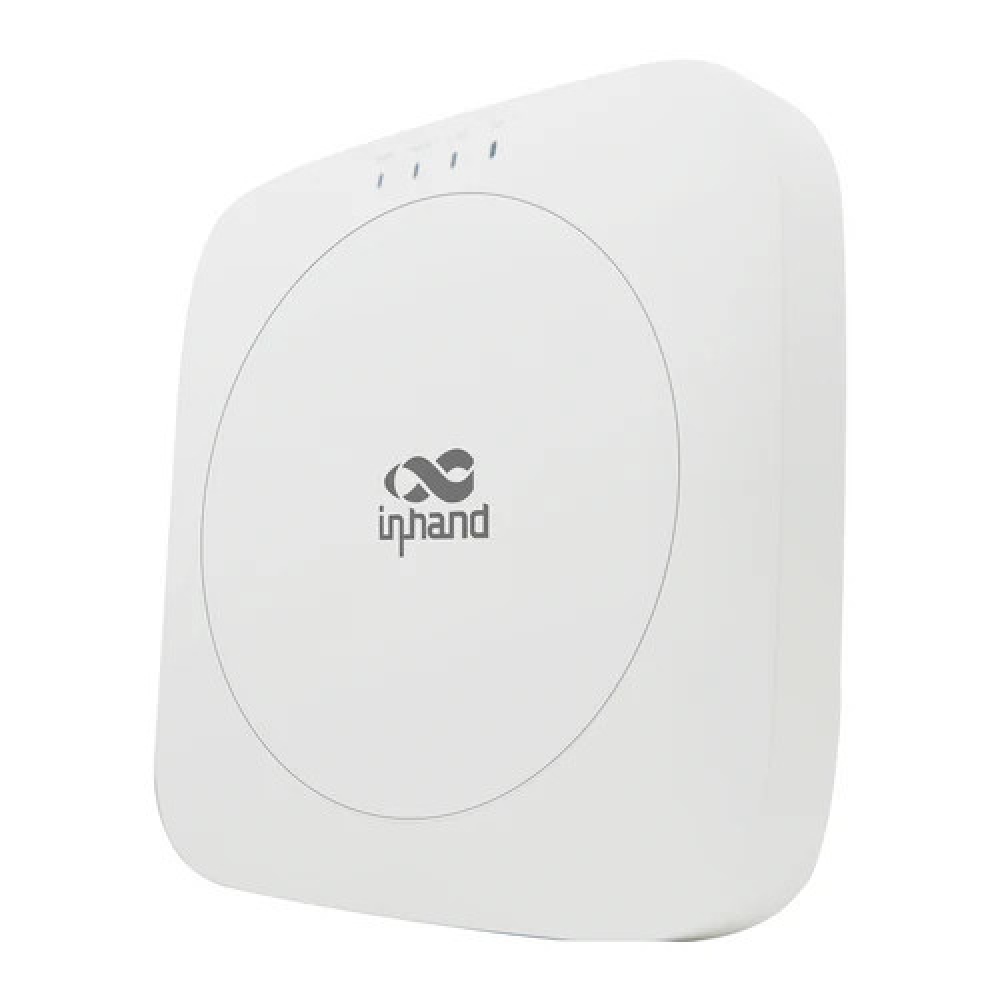

InHand Networks EAP600-LITE

EAP600 Enterprise Access Point Indoor Wi-Fi6 AP（Global version The EAP600 is a high-performance indoor dual-band Wi-Fi6 AP product. With the powerful network access capability of Wi-Fi6, it provides highspeed and convenient wireless network access for small businesses, enterprise branches, hotels and other scenarios requiring wireless coverage.Comprehensive security features and intelligent software services provide secure and reliable service data links for wireless scenarios.
Industria / IoT
  • 4G
    4G
  • 5G
    5G
  • AC
    AC
  • Display Port
    Display Port
  • DVI
    DVI
  • HDMI
    HDMI
  • Rango extendido de temperatura
    Rango extendido de temperatura
  • Wifi
    Wifi

Specifications

EAP600 Software Specifications
Cloud Management
InCloud Manager Unified device access zero-touch remote deployment bulk upgrades, configuration deployment SD-WAN networking, Connector remote maintenance Two-factor authentication
Access Mode
Network access Static IP /DHCP
Network&Security
IP Protocol IPv4/IPv6*
BSSID Each band supports 8 SSIDs
VLAN&IP Support for custom Wi-Fi network IP address or VLAN ID
Wi-Fi Security WPA-PSK，WPA/Enterprise* （WAP/WAP2/WPA3）
Radio Setting Set the bandwidth and transmit power of the radio
Guest Access Provide visitors network designed for temporary users
Portal* Supports portal authentication modes such as Radius,mobile phone and facebook
MAC Filtering Support MAC address filtering based on black and white list
Mesh Support Mesh networking between APs
Visualization
Dashboard Overview of device information,interface status,traffic statistics,client access and alarms
Topology* Displays the AP upstream/downstream topology connection status
Client List Collect statistics on the traffic and connection duration of the client connected to the AP
Wi-Fi Experience Wi-Fi client quality analysis
Mode
Work Mode FAT-Routing Mode/ FAT-Bridge Mode



EAP600 Hardware Specifications
Position
Site High-performance indoor Wi-Fi6.The recommended access number is 150 and the coverage radius is 15 meters
Hardware Platform RAM 5
RAM 512 MB
FLASH 128 MB NAND

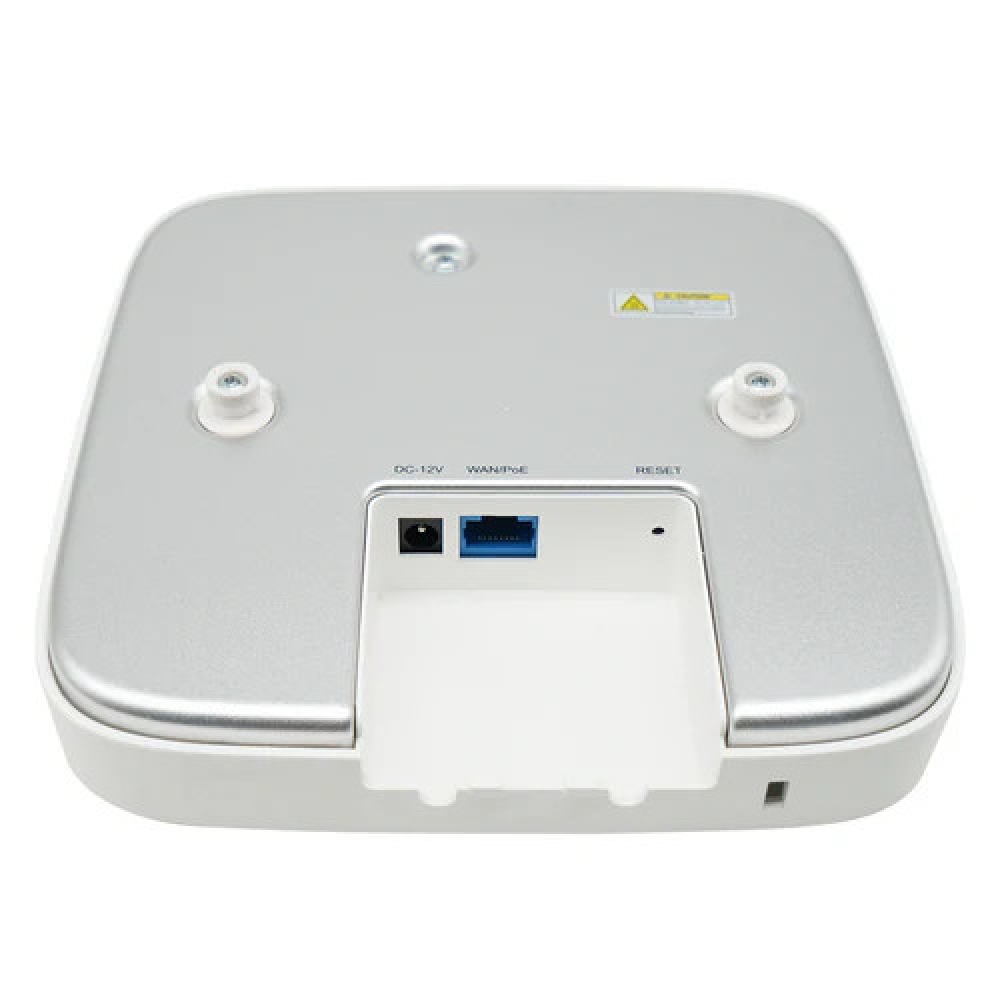

Ethernet Port 1* Gigabit Ethernet port
Bluetooth No
Button 1* Reset button
LED 4*LED（PWR/WAN/2.4G/5G）
Antenna 2*built-in dual-frequency antenna
Power
Power Supply 12V/1A DC;802.3 af PD
Radio Specs
Radio 2 x 2 MU-MIMO, dual-band concurrent maximum rate 2974Mbps 2.4GHz (802.11b/g/n/ac/ax), maximum speed 574Mbps 5GHz (802.11a/n/ac/ax) with a maximum speed of 2.4Gbps
Parameter 2.4G Radio: 802.11b:1,2,5.5 and 11 Mbps 802.11g:6,9,12,18,24,36,48 and 54Mbps 802.11n:HT20/ HT40: MCS0~MCS15 (400/ 800ns GI) 802.11ac VHT20/VHT40: MCS0 ~ MCS9(400/ 800ns GI) 802.11ax HE2
5G Radio: 802.11a:6, 9, 12, 18, 24, 36, 48 and 54Mb/s 802.11n:HT20/ HT40: MCS0~MCS15(400/ 800ns GI) 802.11ac :VHT20/VHT40/VHT80: MCS0 ~ MCS9(400/ 800ns GI) 802.11ax :HE20/ HE40/HE80/HE160: MSC0 ~ MCS11(800/ 1600ns GI)
Transmit Power 2.4GHz/5GHz:20 dBm
Dimensions & Installation
Dimensions 158mm * 158mm * 28mm
Installation Desktops, ceilings
Environment
Storage Temp -40 ℃~ 70℃
Operating Temp 0℃~ 45℃
Humidity 5~ 95%
IP Level IP30
Certification
CE,IC,FCC
