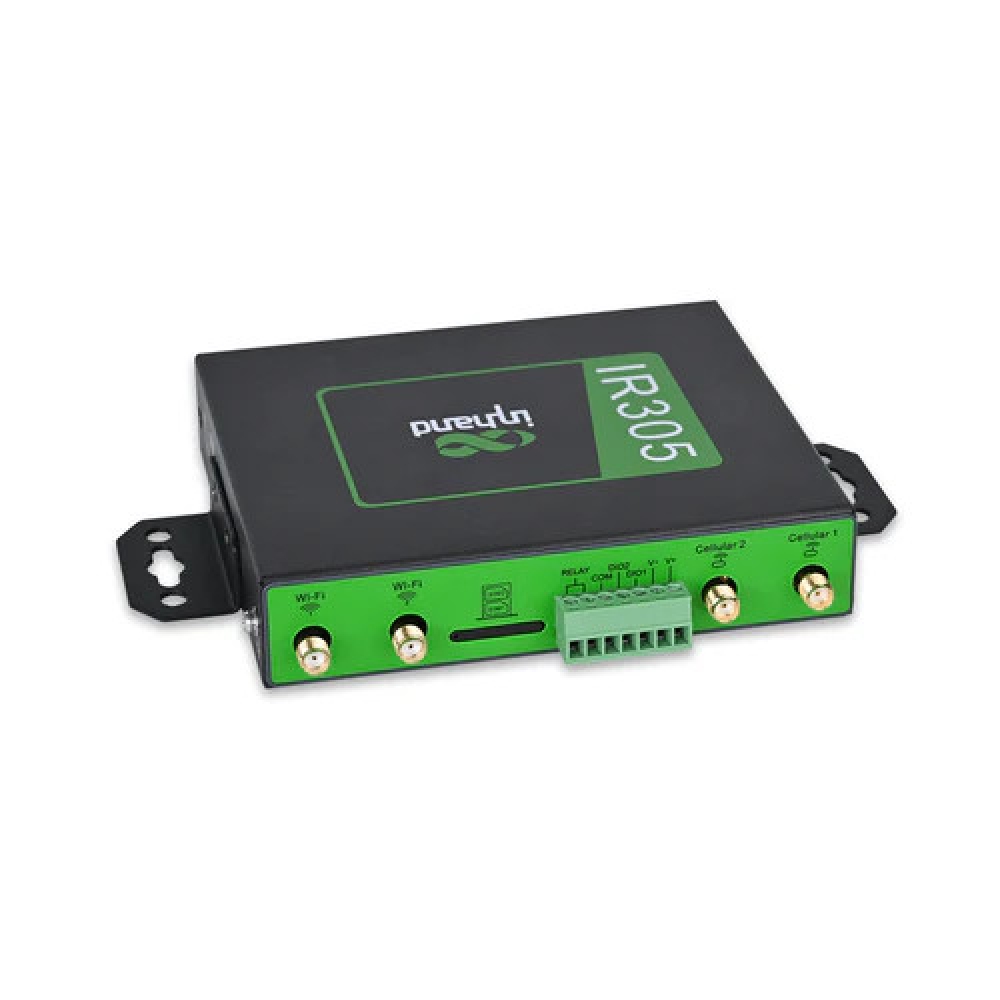

InHand Networks IR305-FQ39
InRouter305 Industrial LTE M2M Router with 5 Ports The InRouter305 (IR305) is a dual-SIM cellular router with 5 Ethernet ports, and I/O or serial ports, integrated 4G LTE (CAT 6/4/1) and WiFi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. It supports two operation modes, 4G Router mode and Wireless Router mode to provide uninterrupted multiple network access capabilities. The comprehensive security and intelligent software services, efficient and secure network of IR305 is suitable for commerce, energy, smart city, manufacturing, medical, etc.
Industria / IoT
-
DC
-
Sin ventilación
-
Interfaz
-
LAN
-
Lte
-
POE
-
Serie
-
Rango extendido de temperatura
-
Wifi
Specifications
| InRouter 305 Hardware Specifications | |
| Hardware Platform | |
| CPU Platform | 580MHz |
| RAM | 128MB DDR2 |
| Flash | 64MB SPI |
| Interface | |
| Ethernet Port | 5* 10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection |
| Power Supply | DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal block |
| Reset Button | Pinhole reset button |
| I/O ( *Optional ) | Support 4*IO (DO or DI can be configured) |
| Serial Port(*Optional) | 1*RS232+1*RS485 |
| SIM Card | Drawer-type slot*1, supports dual-NANO SIM |
| Wi-Fi (Optional) | IEEE 802.11b/g/n, 300Mbps |
| Antenna Connector | 4G: SMA x 1; Wi-Fi: RP-SMA x 1 Note: North America models: 2 x SMA 4G antenna connectors. |
| Ground Terminal | Supports |
| Mechanical Specs | |
| Dimensions (mm) | 120 x 99 x 25mm |
| Weight (g) | 354g |
| Installation Method | Panel mounting, rail mounting |
| Protection Rating | IP30 |
| Housing | Metal |
| Cooling | Fanless |
| Power Rate | |
| Working Power | 150-320mA@12V |
| Standby Power | 120-200mA@12V |
| Peak Power | 320mA@12.0V |
| Wi-Fi Transmit Power | |
| Transmit Power | 802.11b: 16dBm +/-2dBm (11Mbps) 802.11g: 16dBm +/-2dBm (54Mbps) 802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7) 802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7) |
| Ambient Environment | |
| Storage Temperature | -40 ~ 85℃ |
| Operating Temperature | -20 ~ 70℃ |
| Ambient Humidity | 5 ~ 95% (non-condensing) |
| Indicator | |
| LED | Power, Status, Cellular, Wi-Fi |
| EMC | |
| Static | EN61000-4-2, level 3 |
| Radiation Electric Field | EN61000-4-3, level 3 |
| Pulsed Electric Field | EN61000-4-4, level 3 |
| Surge | EN61000-4-5, level 3 |
| Conducted Disturbance Immunity | EN61000-4-6, level 3 |
| Shock Wave Resistance | EN61000-4-12, level 3 |
| Power Frequency Magnetic Field Resistance | EN61000-4-8, horizontal /vertical 400A/m (>level 2) |
| Physical Specs | |
| Shockproof | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free Fall | IEC60068-2-32 |
| Certificate | |
| CE, FCC, CB, E-MARK, PTCRB, IC, VZW, RCM, AT&T |
| InRouter305 Software Specifications | |
| Network Connection | |
| Network Access | APN, VPDN |
| Access Authentication | CHAP/PAP |
| LAN Protocol | ARP |
| WAN Protocol | PPP, PPPoE, DHCP |
| Network Type | GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/ FDD LTE (Please refer to the Ordering Guide for frequencies.) |
| Network Protocol | |
| IP Application | Ping, Route Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, SSH |
| IP Routing | Static routing, OSPF dynamic routing |
| NAT | Supports network address translation |
| Security | |
| Network Security | Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, Access Control List (ACL); Content URL filter, port mapping, virtual IP mapping, IP/MAC binding |
| Data Security | Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OpenVPN protocols Supports CA digital certificate |
| Reliability | |
| Hot Backup | VRRP hot backup |
| Link Detection | Sends heartbeat packets to detect, auto redials when disconnected |
| Dual SIM Failover | Supports dual SIM failover |
| Embedded Watchdog | The device runs self-detection, auto recovers from malfunctions |
| WLAN (optional) | |
| Protocol | IEEE 802.11b/g/n |
| Rate | Up to 300Mbps |
| Mode | AP, STA and WDS modes |
| Security | Open system, shared key, WPA/WPA2 certification WEP/TKIP/AES encryption |
| Transmission Distance | 80 meters by the line of sight (Actual transmission distance depends on the environment of the site.) |
| Intelligence | |
| Integrated DTU Functions | TCP, UDP transparent transmission mode, TCP Server mode Supports conversion of Modbus RTU to Modbus TCP bridge; Supports DCUDP, DCTCP mode |
| Network Management | |
| QoS Management | Bandwidth limit, IP speed limit |
| Configuration | Telnet, web, ssh, and console |
| Upgrade Method | Web, Device Manager |
| Log | Local system logs, remote logs, and serial export of logs. Power down saving of important logs. |
| SMS Functions | Status query, restart |
| Dial-on-demand | Dial-on-demand, data / SMS activation |
| Network Management | Supports InHand DeviceManager, batch management Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services. |
| SNMP | SNMP v1/v2c/v3, support SNMP TRAP |
| Traffic Management | Supports data traffic threshold, traffic statistics and traffic alarm |
| Alarms | System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc. |
| Maintenance Tools | Ping, route tracking, network speed test |
| Status Query | System status, modem status, network connection status, and routing status |
