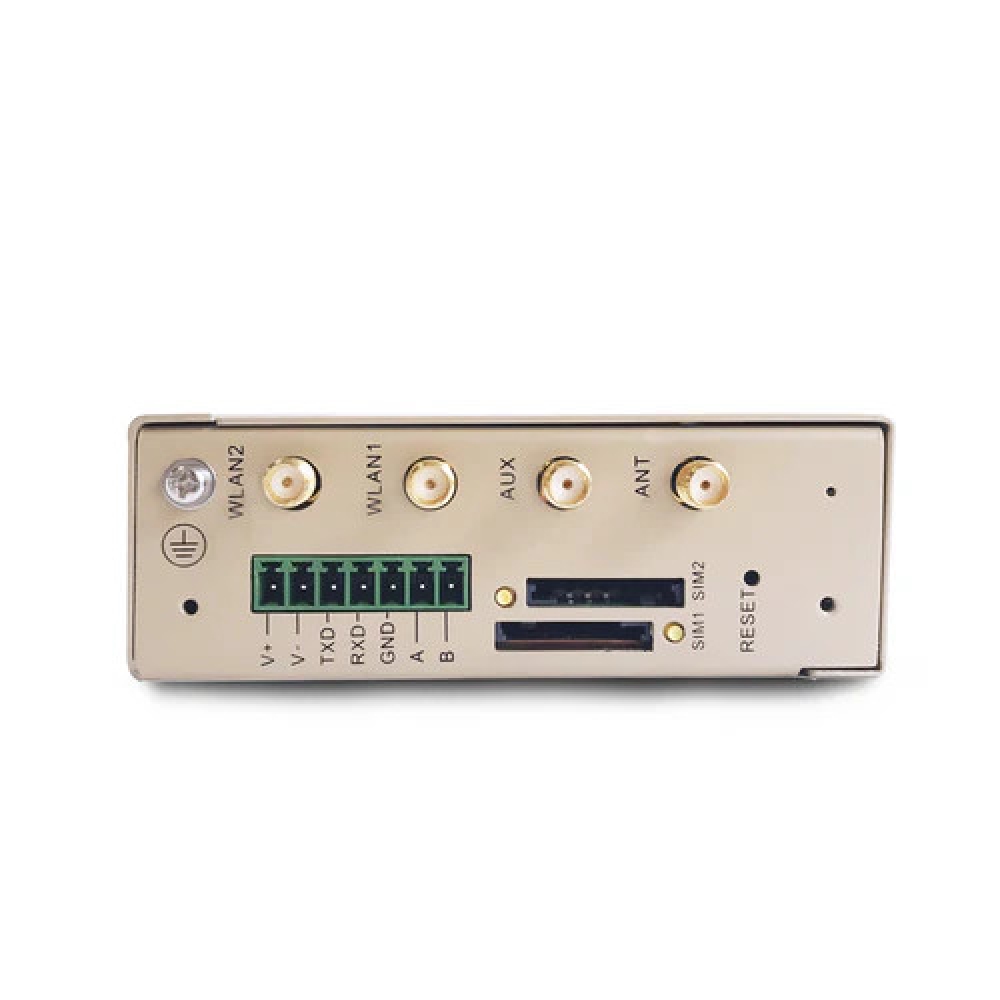

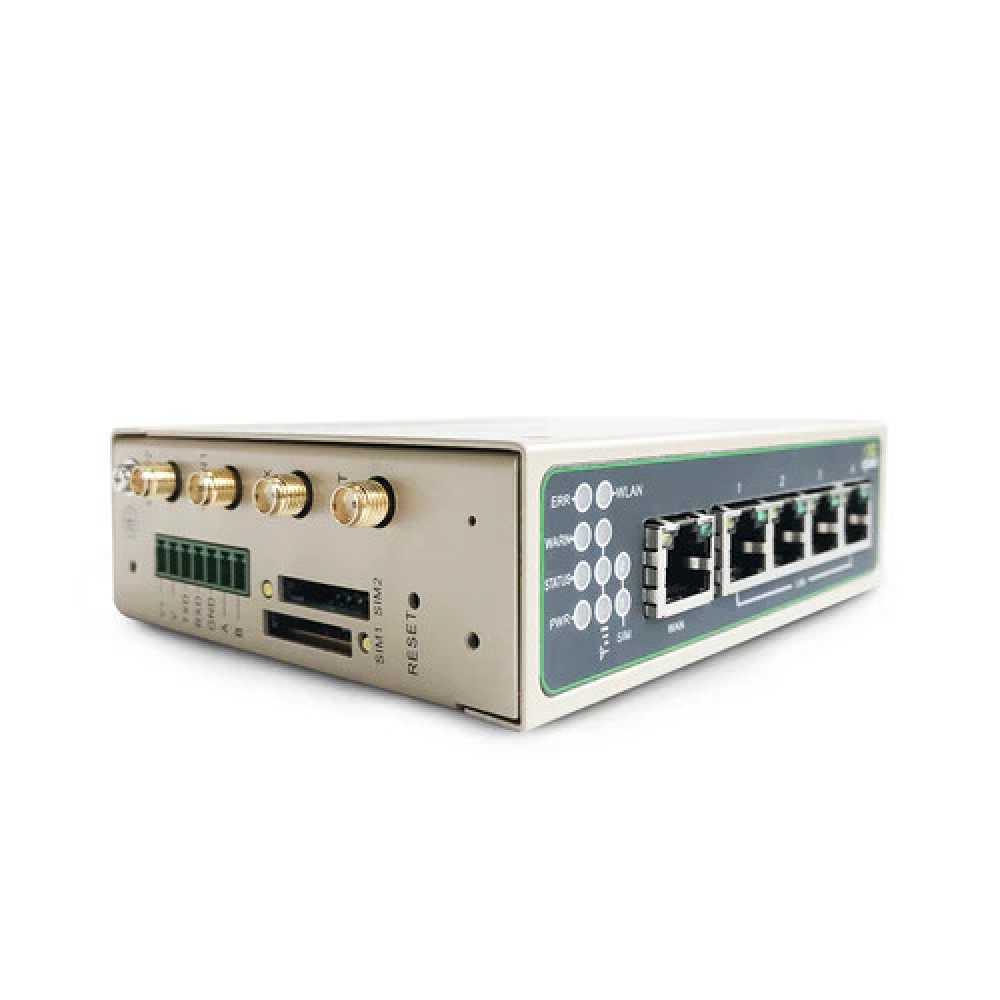

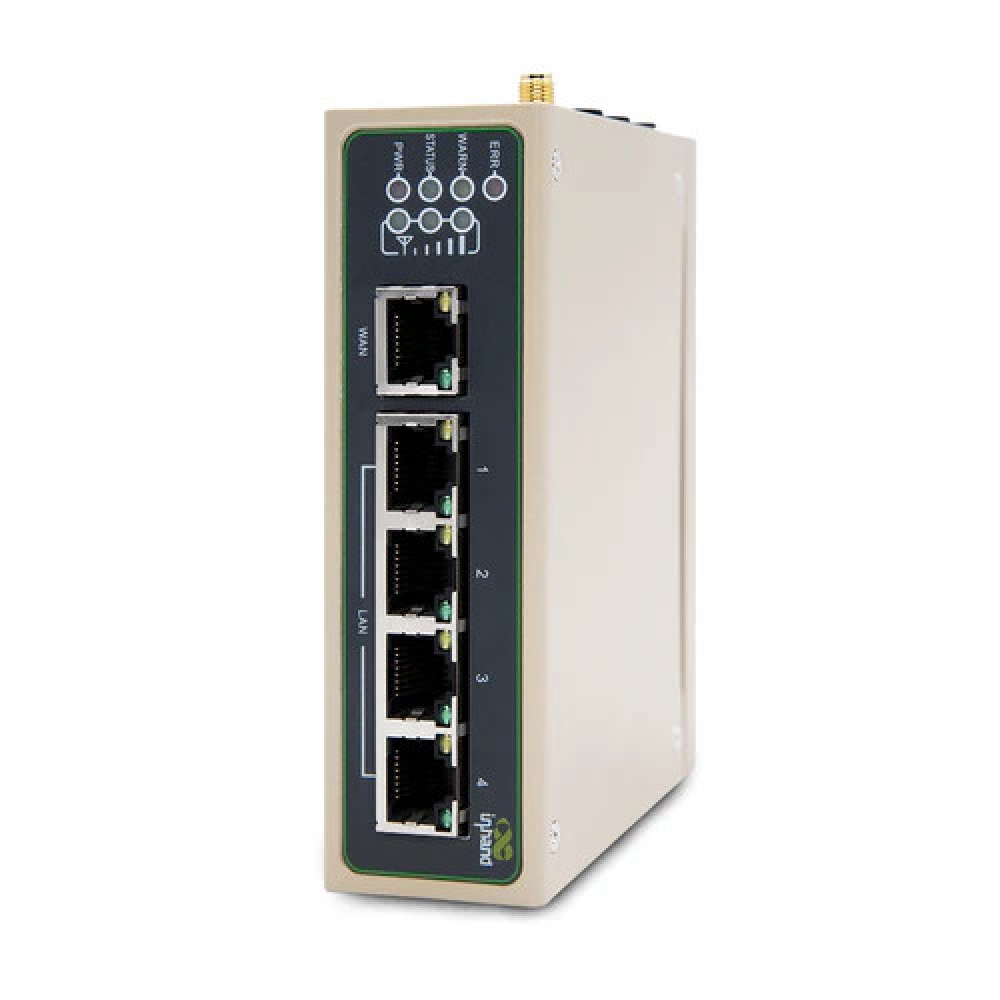

InHand Networks IR615-S-FS39
InRouter615-S Industrial Cellular LTE CAT 6 Router with WiFi and Serial Port InRouter615-S (also IR615-S) is a professional industrial 4G wireless router with fast connection up to LTE CAT 6. The industrial router is equipped with 5 Ethernet ports, serial port RS-232/485, and WiFi interface. Quick to deploy, easy to manage and flexible for applications across the most demanding market sectors. The industrial router will ensure stable connectivity with Dual SIM 4G failover and 3G, 2G fallback.
Industria / IoT
-
2G
-
3G
-
4G
-
DC
-
Sin ventilación
-
Interfaz
-
LAN
-
Lte
-
Serie
-
Rango extendido de temperatura
-
Wifi
Specifications
| InRouter615-S Hardware Specifications | |
| Interface | |
| Ethernet Port | 1*10/100Mbps fast Ethernet WAN port 4*10/100Mbps fast Ethernet LAN ports 1.5KV network isolation protection |
| Power Supply | DC9-26V, 36V expandable |
| Industrial Serial Port | RS-232/485 x 1 (DB9) ESD protection: 15KV |
| SIM Card | Drawer-type card slot x 1 Part models: Drawer-type card slot x 2 |
| Reset | Pinhole reset button |
| Antenna Connector | 3G/4G: SMA x 1 WLAN: RP-SMA x 2 |
| Ground Terminal | Has ground terminal |
| Mechanical Specs | |
| Dimensions (mm) | 127x108.2x35mm |
| Weight (g) | 440g |
| Installation Method | DIN-Rail Optional: Lugs/wall mounting |
| Protection Rating | IP30 |
| Housing | Metal housing |
| Cooling | Fanless |
| Power Rate | |
| Working Power | 150mA-320mA@12V |
| Standby Power | 120mA-200mA@12V |
| Peak Power | 320mA@12.0V |
| WiFi Transmit Power | |
| Transmit Power | 802.11b:16dBm+/-2dBm(11Mbps) 802.11g:16dBm+/-2dBm(54Mbps) 802.11n@2.4GHz: 16dBm+/-2dBm(HT20MCS7) 802.11n@2.4GHz:16dBm+/-2dBm(HT40MCS7) |
| Ambient Environment | |
| Storage Temperature | -40 ~ 85℃ |
| Operating Temperature | -20 ~ 70℃ |
| Ambient Humidity | 5 ~ 95% (non-condensing) |
| Indicator | |
| LED | POWER, STATUS, WARN, ERROR, WLAN, LINK, signal indicator |
| EMC Index | |
| Static | EN61000-4-2, level 3 |
| Radiation Electric Field | EN61000-4-3, level 3 |
| Pulsed Electric Field | EN61000-4-4, level 3 |
| Surge | EN61000-4-5, level 3 |
| Conducted Disturbance Immunity | EN61000-4-6, level 3 |
| Power Frequency Magnetic Field Resistance | EN61000-4-8, horizontal / vertical 400A/m (>level 3) |
| Shock Wave Resistance | EN61000-4-12, level 3 |
| Physical Specs | |
| Shockproof | IEC60068-2-27 |
| Vibration Resistance | IEC60068-2-6 |
| Free Fall | IEC60068-2-32 |
| Certificate | |
| CE, FCC, PTCRB, IC, IMDA, RCM, Class I Division 2, Verizon, AT&T, T-Mobile, Sprint, E-Mark, JATE/TELEC |
| InRouter615-S Software Specifications | |
| Network Connection | |
| Network Access | APN, VPDN, supports dual-APN access |
| Access Authentication | CHAP/PAP authentication |
| LAN Protocol | ARP, Ethernet |
| WAN Protocol | Static IP, DHCP, PPPoE, PPP |
| Network Type | GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/FDD LTE |
| IP Application | Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, IPPT |
| IP Routing | Static routing, OSPF |
| NAT | Support network address translation |
| Network Security | |
| Firewall | Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping packet, Access Control List (ACL); Content URL filter, port mapping, virtual IP mapping, IP/MAC binding |
| Data Security | IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA digital certificate |
| Reliability | |
| Backup | Dual-SIM mutual backup, VRRP hot backup, link backup |
| Link detection | Send heartbeat packets, auto redial when disconnected |
| Embedded Watchdog | Device operation self-detection, auto recover from malfunctions |
| WLAN (Optional) | |
| Protocol & Standard | IEEE 802.11b/g/n |
| Transmission Rate | Up to 300Mbps |
| Working Mode | AP and STA modes |
| Security | Open system, shared key, WPA/WPA2 certification WEP/TKIP/AES encryption |
| Transmission Distance | 100m (actual transmission distance depends on site environment) |
| Intelligence | |
| Integrated DTU Functions | TCP, UDP transparent transmission mode, TCP Server mode; Supports conversion of Modbus RTU to Modbus TCP bridge; Supports DCUDP, DCTCP mode; Support for up to 15 data centers |
| Network Management | |
| QoS Management | Supports bandwidth limit, IP speed limit |
| Configuration Method | Telnet, web, ssh, and console |
| Upgrade Method | Web, Device Manager |
| Logs | Local system logs, remote logs, and serial export of logs. Power down saving of important logs. |
| SMS Functions | Status query, configuration, restart |
| Dial-on-demand | Dial-on-demand, data / SMS activation |
| Network Management | Supports InHand DeviceManager, batch management |
| Simple Network Management | SNMP v1/v2c/v3，support SNMP TRAP |
| Traffic Management | Supports data traffic threshold setting, supports traffic statistics and traffic alarm |
| Alarms | System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc. |
| Maintenance Tools | Ping, route tracking, network speed test |
| Status Query | System status, modem status, network connection status, and routing status |
