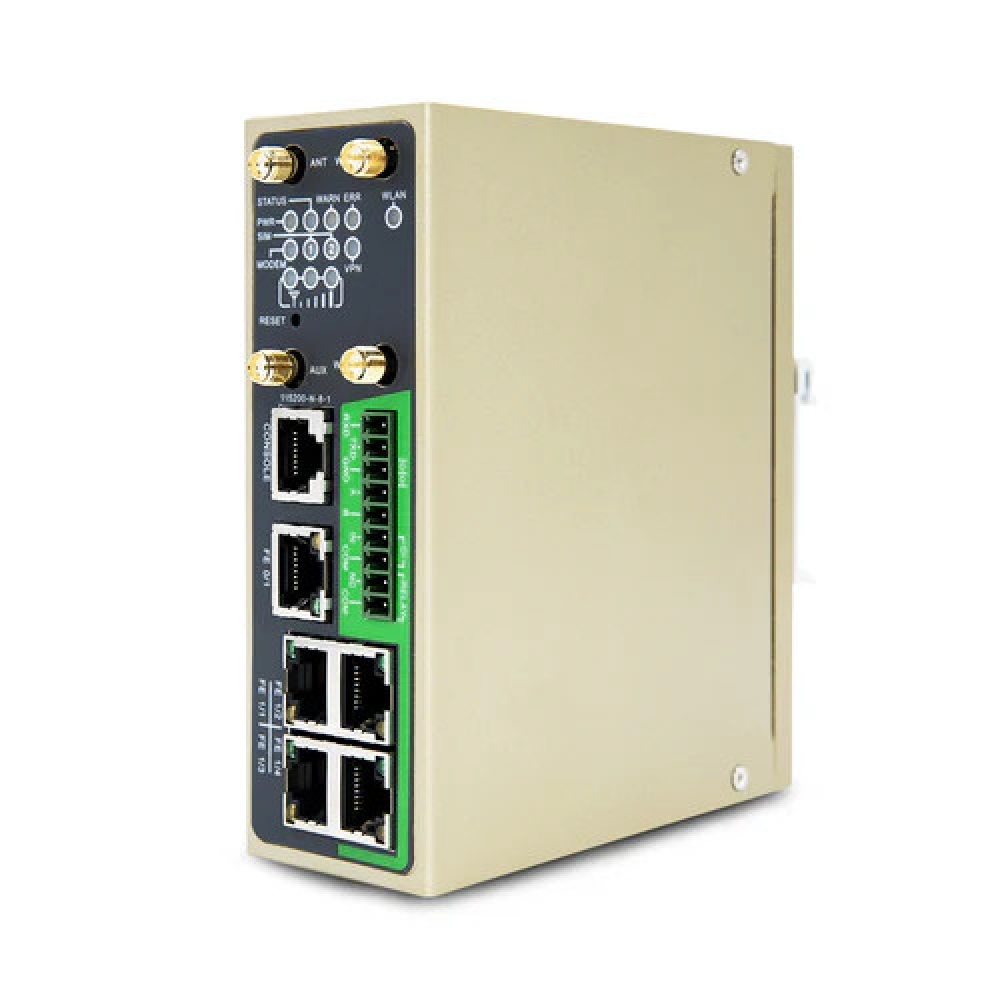

InHand Networks IR915L-FQ39-W-S-GPS

InRouter915 High-Performance 4G Industrial Router with WiFi and GPS Featuring an industrial design, Wifi, GPS, 4G LTE & 3G connectivity with intelligent software functions, the InHand InRouter915 is a full-featured industrial IoT M2M Cellular router developed for mission-critical IoT applications. With dual SIM, VRRP and VPN, the InRouter915 provides best-in-class reliability and security protection for remote devices, helping enterprise customers to achieve efficient large-scale deployment and management.
Industria / IoT
  • 3G
    3G
  • 4G
    4G
  • ARM
    ARM
  • DC
    DC
  • Sin ventilación
    Sin ventilación
  • GPS
    GPS
  • Interfaz
    Interfaz
  • LAN
    LAN
  • Lte
    Lte
  • Serie
    Serie
  • Rango extendido de temperatura
    Rango extendido de temperatura
  • Wifi
    Wifi

Specifications

IR915 Hardware Specifications
Hardware
CPU ARM Cortex-A8 600MHz
Memory 128MB
FLASH 128MB
Interface

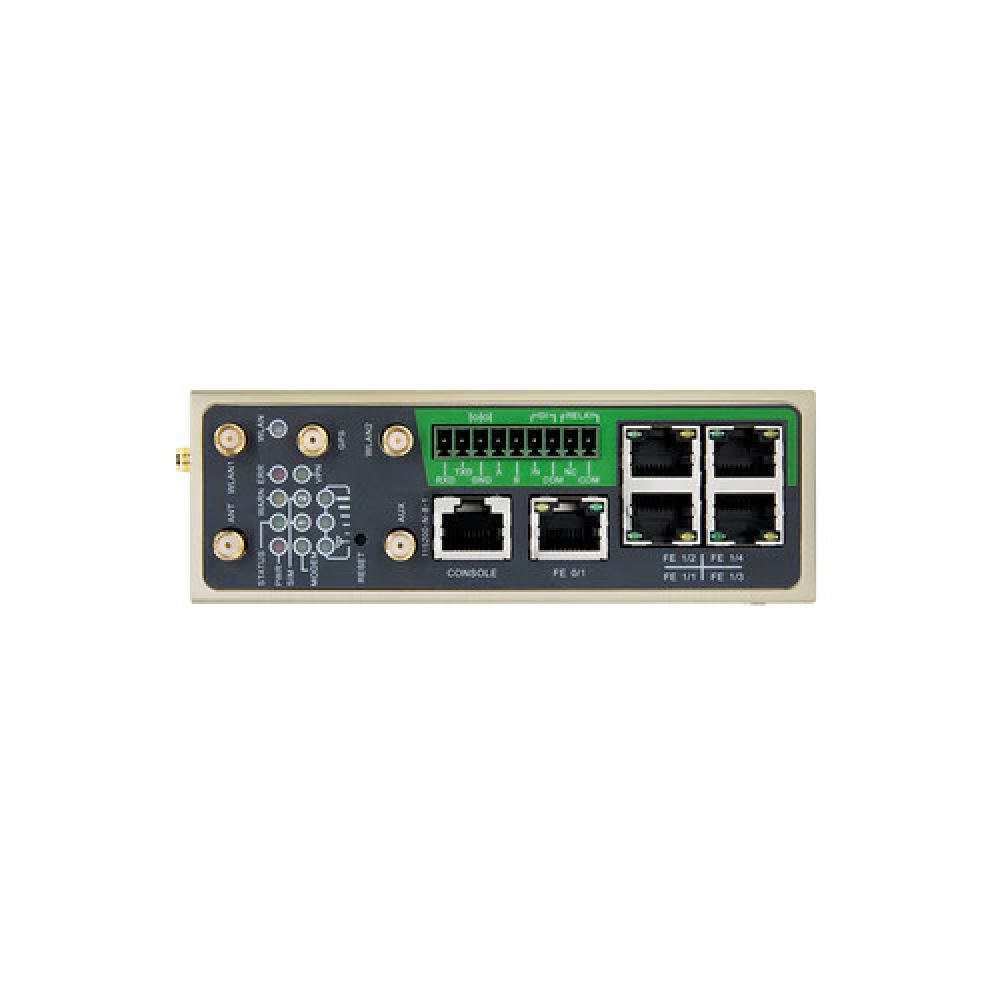

Ethernet Port 5*10/100Mbps, WAN/LAN; support VLAN
Serial Port 2 Serial: RS232 x1, RS485 x1
RS-232 signal: TXD, RXD, GND
RS-485 signal: A, B, GND
ESD Protection: 15KV
Console RS-232 x1, RJ45 Serial Port

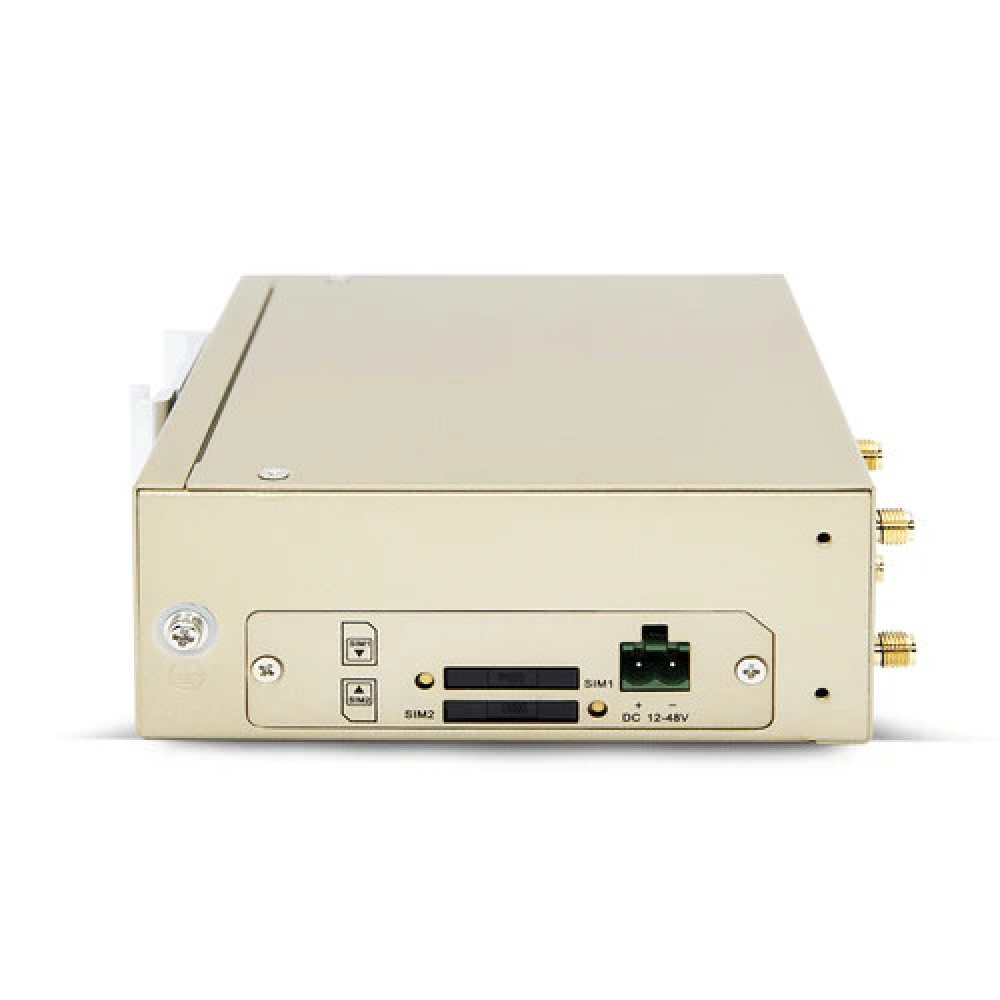

SIM Holder 2 Push-type SIM Card Holders
Reset Pinhole Reset Button
Ground Terminal Supported
Wi-Fi Optional 802.11b/g/n
Antenna 3G/4G: SMA Female Connector x 2,
WLAN: RP-SMA x 1
DI/DO (IR915 only) 1*DI, galvanic isolation,
Status “1”:+10~+30V
Status “0”:-30~+3V”
1 relay output, 2A@30VDC
GPS (optional) GPS: SMA x 1
Mechanical
Installation Din-ail, wall mount
IP Level IP30
Cooling Fanless
Housing Metal
Dimensions 132.6 x 112.8 x 45mm
Clock Embedded RTC
Weight 590
Power
Power Supply DC12-48V
Interface 2-pin 5.08mm industrial
Standby 160mA@24V(HSPA+)
Working 220mA@24V(HSPA+)
Peak 230mA@24V(HSPA+)
Wi-Fi Transmit Power
Transmit Power 802.11b:13dBm +/-2dBm(11Mbps)
802.11g:13dBm +/-2dBm(54Mbps)
802.11n@2.4GHz:13dBm +/-2dBm(HT20 MCS7)
802.11n@2.4GHz:13dBm +/-2dBm(HT40 MCS7)
Environment
Storage -40 ~ 85℃
Working -25 ~ 70℃
Humidity 5 ~ 95% (non-condensing)
Indicators
LED POWER, STATUS, WARN, ERROR, MODEM, SIM, VPN, Signal
EMC
ESD EN61000-4-2, level 4
RFI EN61000-4-3, level 4
EFT EN61000-4-4, level 4
Surge EN61000-4-5, level 3
Conducted Disturbances EN61000-4-6, level 4
Oscillatory Wave EN61000-4-12,level 4
Frequency Magnetic Field EN61000-4-8, horizontal/vertical 400A/m (>level 4)
Mechanical
Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Approvals and Compliance
CE, FCC, UL, PTCRB, CCC, Verizon, AT&T, E-MARK, IC, IMDA, RCM



IR915 Software Specifications
Network Connection
Operator Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
Cellular LTE, WCDMA (HSPA+), EDGE, GPRS
LAN ARP, Ethernet
WAN Static IP, DHCP, PPPoE
Protocol
IP Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, Dynamic DNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
IP Routing Static Routing, RIP, OSPF, IGMP Proxy, BGP V4
Security
Firewall Stateful Packet Inspection (SPI), Anti-DoS Attack
Filtering Multicast/Ping package, Access Control List (ACL)
NAT, PAT, DMZ, Port Mapping, Virtual Server
Multi-Level Authority Two-level authority: Full Authority and Read-Only User
AAA Local Authentication, Radius, TACACS+, LDAP
CA Certificate PEM, PKCS12, SCEP
Data Security IPsec VPN, L2TP, PPTP, GRE, OPENVPN, DMVPN, CA
Others Anti-ARP, DMZ, MAC Filtering
Reliability
Link Backup Floating Route, WAN Link Backup
Auto-Recover Various Heartbeat Package, Automatic Recover from Failure
Watchdog Self-diagnostic, Automatic Recover from Failure
GPS
Support GPS Supports VLAN and Port Mirroring
QoS
Bandwidth Limiting maximum bandwidth
Data Priority Support Protocol-based data control
WLAN
Standard IEEE 802.11b/g/n
Security WPA/WPA2, WPA-PSK, Support Open System, Shared KeyWEP/TKIP/AES Encryption
Mode Supports both AP and Client Mode
Intelligence
DTU TCP, UDP transparent transmission, TCP Server, DC
Bridge 101-104, Modbus RTU -Modbus TCP
Intelligence
Configuration Configured via HTPP, HTTPS, Serial Port, Telnet, SSH
Firmware Upgrade WEB, Serial Port, TFTP, FTP, SFTP server, Device Manager
Log Local sys log, remote lot, export log via Serial Port
Important Log Backup in Flash Memory
SMS SMS to Inquiry Status, Reboot
On-Demand Dial Up Activated by data, Activated by SMS, Scheduled Online/Offline
SNMP SNMP v1/v2c/v3, InHand MIBs
DM Remote management via InHand Device Manager (DM)
AAA Local/Radius/TACACS+/LDAP
Multilevel Authority Multiple Levels of User Authority
Diagnostic Ping, Traceroute, Sniffer
