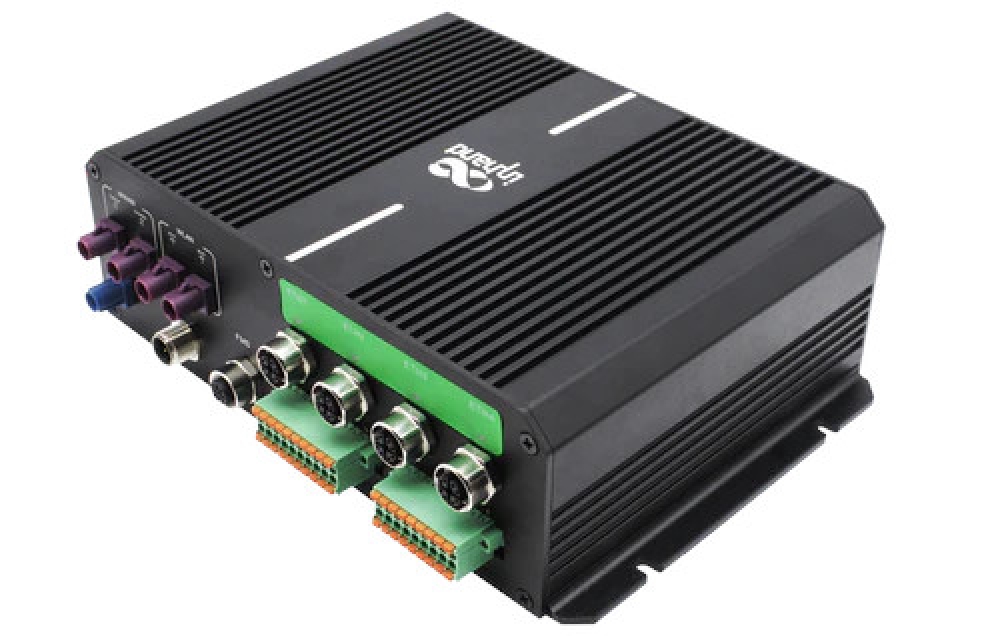

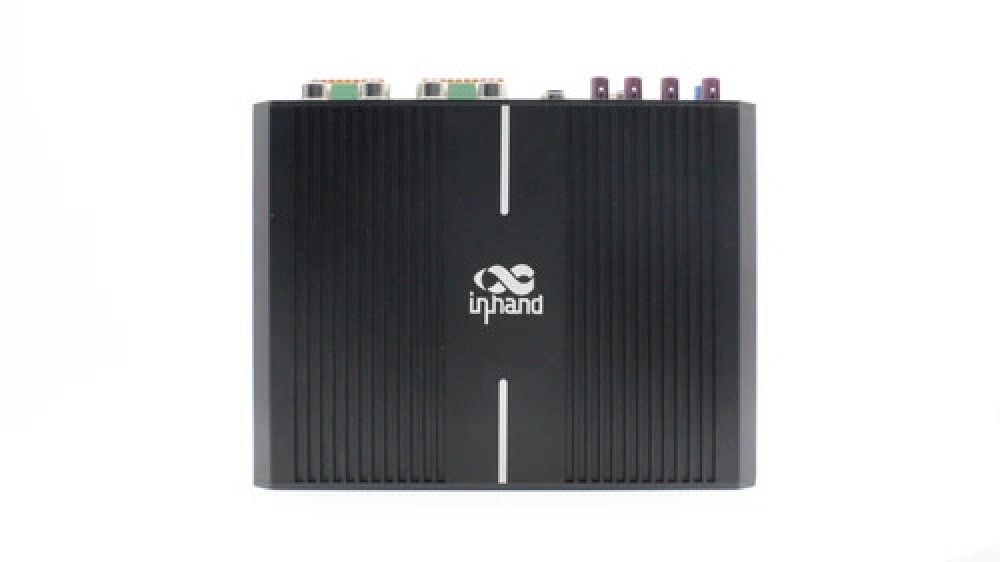

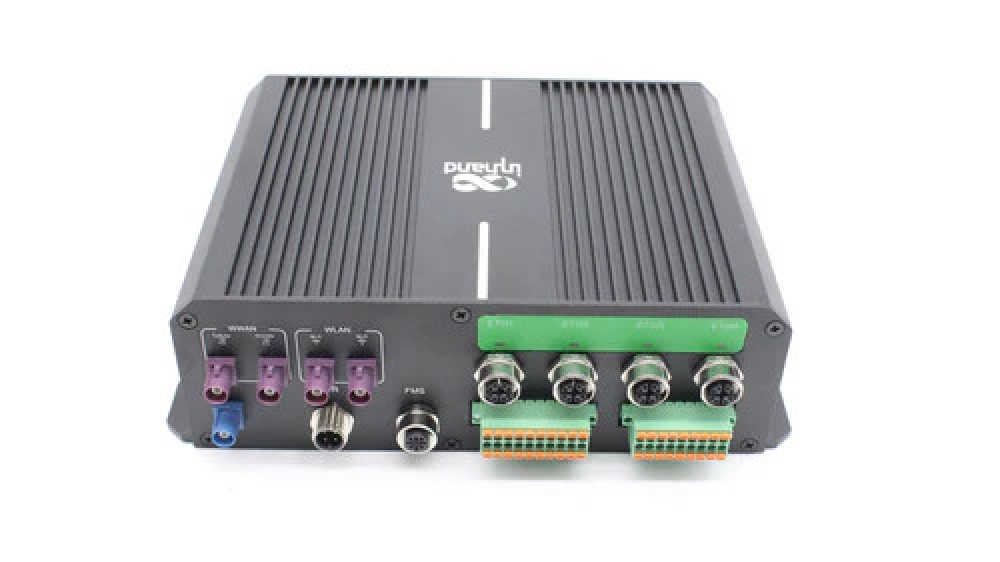

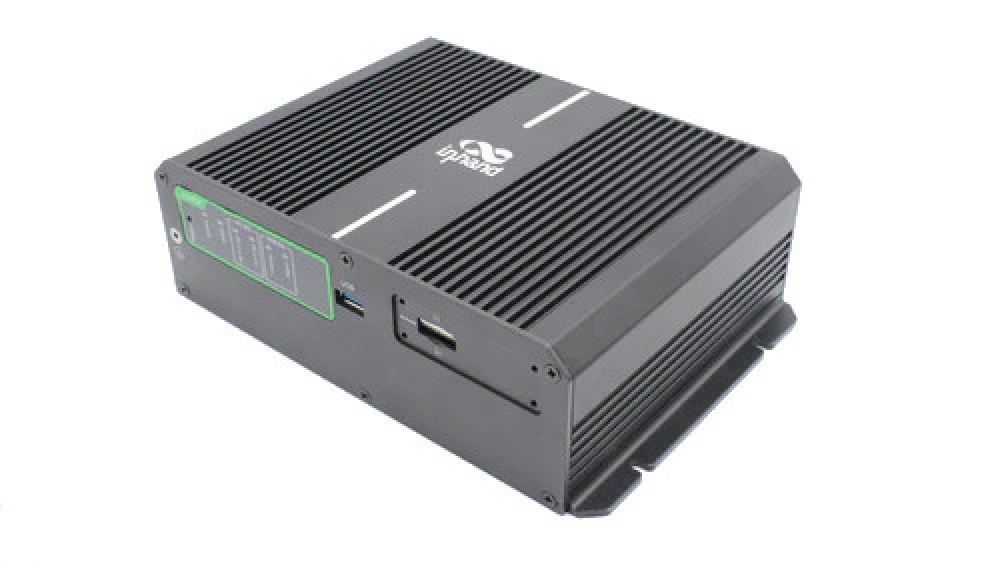

InHand Networks VG814-NRQ3-W-G-V
InVehicle G814 All-in-one Vehicle Gateway for Public Transport (Road and Bus version) The InVehicle G814 is a series of high-performance vehicle gateway that delivers highly reliable and interoperable vehicle networking in public transport. With high-speed and stable Internet access and powerful cloud ecosystems, the VG814 helps improve operation and management efficiency for the Internet of Vehicles (IoV). The ITxPT compliant FAKRA RF connectors and M12 connectors are designed for plug & play ITxPT applications.
Industria / IoT
-
2G
-
5G
-
ARM
-
Sin ventilación
-
GPS
-
Interfaz
-
LAN
-
Lte
-
USB
-
Wifi
Specifications
| InVehicle G814 For Railway Software Specifications | |
| Network Connection | |
| Network Access | APN, VPDN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAP V2 |
| VLAN | Supported VIDs: 1-127 |
| Network Protocols | |
| IP Applications | Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, MQTT |
| IP Routing | Static routing, RIP, OSPF, BGP |
| Network Security | |
| Firewall | SPI, DoS attack defense, multicast/Ping probe filter, ACLs Supports NAT, PAT, DMZ, port mapping, virtual server |
| User Level | 2 levels: administrator; read-only user |
| AAA | Local authentication, Radius, Tacacs+, LDAP |
| Certificate | LPEM, PKCS12, SCEP, CRL |
| VPN | IPsec VPN, OPENVPN, L2TP, GRE |
| ITxPT | |
| Services | Inventory, Time, GNSS, FMStoIP, MQTT broke |
| Reliability | |
| Redundancy | Floating static routing, VRRP, interface backup |
| Link Detection | Configurable target reachability detection to aid failover |
| Watchdog | Auto recovery from device faults |
| Offline Storage | Records key data to built-in storage when network is unavailable |
| WLAN | |
| Protocol | IEEE 802.11 ac/a/b/g/n |
| Security | Shared key, WPA/WPA2 Personal/Enterprise authentication, WEP/TKIP/AES encryption |
| Network Management | |
| Configuration | HTTP, HTTPS, Telnet, SSH |
| Upgrade | WebUI, Device Manager |
| Network Diagnostics | Ping, traceroute, tcpdump, speed test |
| Edge Computing Framework | |
| Edge Computing Platform | Integrates network, computing, storage, runtime and application hosting |
| Edge Computing Engine | Python & Docker |
| SDK | Standard Python 3 SDK, Docker SDK and Azure IoT Edge SDK |
| IDE | Visual Studio Code for APP development and debugging |
| Application Programming Interface | FlexAPI over MQTT/HTTP/TCP |
| Cloud Integration | MS Azure, AWS IoT and other third-party platforms supported |
| Application Services | |
| Fleet Management | All in one design yet programmable with open interfaces. It's one stop hardware & software solution for your Fleet Management |
| Vehicle Telemetics | Rich interfaces and data such as GNSS, OBD-II, J1939, Modbus, I/O for vehicle telematics and asset tracking |
| Passenger Wi-Fi & Infotainment | Increase passenger satisfaction by high speed and stable Internet connectivity for content delivery, along with seamless Wi-Fi experience |
| Public Transport ITS | Ensure passenger and driver safety, improve operational efficiency and emission reduction to form a green, safe and sustainable society |
| InVehicle G814 For Railway Hardware Specifications | |
| Core | |
| CPU | ARM Cortex A7 (quad-core) |
| Frequency | 717MHz |
| RAM | 1GB DDR3L |
| FLASH | 8GB eMMC |
| Cellular | |
| UE Category | LTE CAT6/CAT4 |
| SIM | 2 x SIM 2FF |
| MIMO | 2 x 2 |
| Antenna Conenctor | FAKRA D-coded male |
| GNSS | |
| GNSS Receiver | GPS, GLONASS, Galileo, Beidou |
| Antenna Connector | TFAKRA D-coded male |
| Dead Reckoning | Supported with built-in sensors (accelerometer and gyroscope) |
| Accuracy | 2.5m CEP |
| Sensitivity | 160dBm |
| Location Update Rate | MAX 10Hz |
| Wi-Fi | |
| Frequency | 2.4G / 5GHz Dual-band |
| Protocol | Wi-Fi 5 |
| Maximum Output | 2.4G: 17dBm; 5G: 17dBm |
| Working Mode | AP / Client |
| MIMO | 2 x 2 Mu-MIMO |
| Antenna Connector | FAKRA D-coded male |
| Ethernet | |
| Ports | 4 x Gigabit Ethernet |
| Connector | M12 X-coded female |
| CAN bus FMS | |
| Standard | 1 x CAN 2.0B |
| Connector | M12 A-coded female |
| USB | |
| Standard | 1 x USB 3.0 |
| Connector | Type A |
| IO | |
| DO | 7 x digital output |
| Network Diagnostics | Ping, traceroute, tcpdump, speed test |
| Additional Interfaces | |
| CAN bus | 1 x CAN 2.0B |
| RS485 | 1 |
| RS232 | 1 |
| LED | |
| indicator | System, Cellular, Signal, GNSS, Wi-Fi 2.4G, Wi-Fi 5G |
| Power Supply | |
| Power Connector | M12 A-coded male |
| Pin Definition | V+, V-, Ignition, NC (4 pins) |
| Input Voltage | 9-48VDC |
| Mechanical | |
| Mounting | Wall mounting |
| Ingress Protection | IP40 |
| Cooling | Fanless cooling |
| Enclosure | Aluminum |
| Dimensions (W x H x D) | 223 x 66.5 x 181.36 mm |
| Weight | 1340g |
| Environmental | |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | 40℃ ~ +85℃ |
| Humidity | 95% RH @ 40℃ |
| Compliance | |
| Vehicle Standard | ECE R10*, ECE R118* |
| Certification | CE, RoHS, E-Mark, ITxPT* |
| Others | EN50155, EN50121-3-2, EN61373, EN45545-2 |
