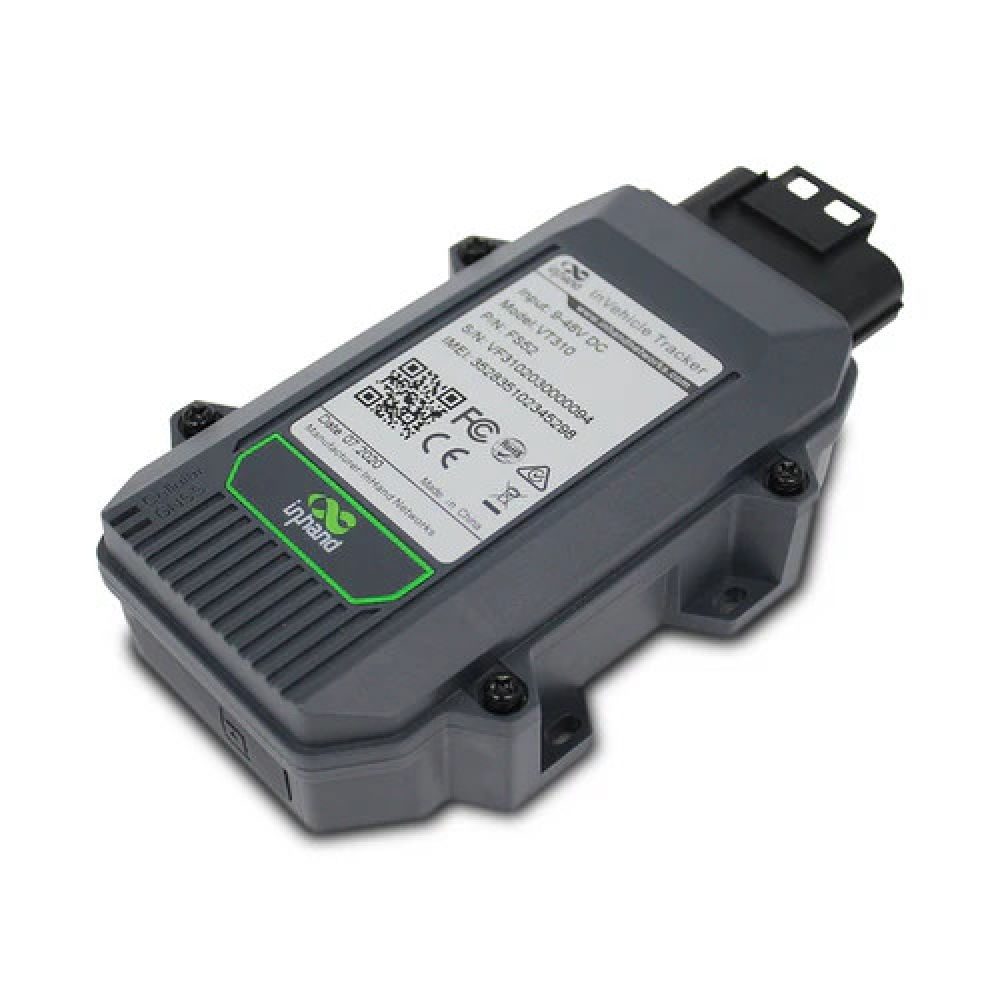

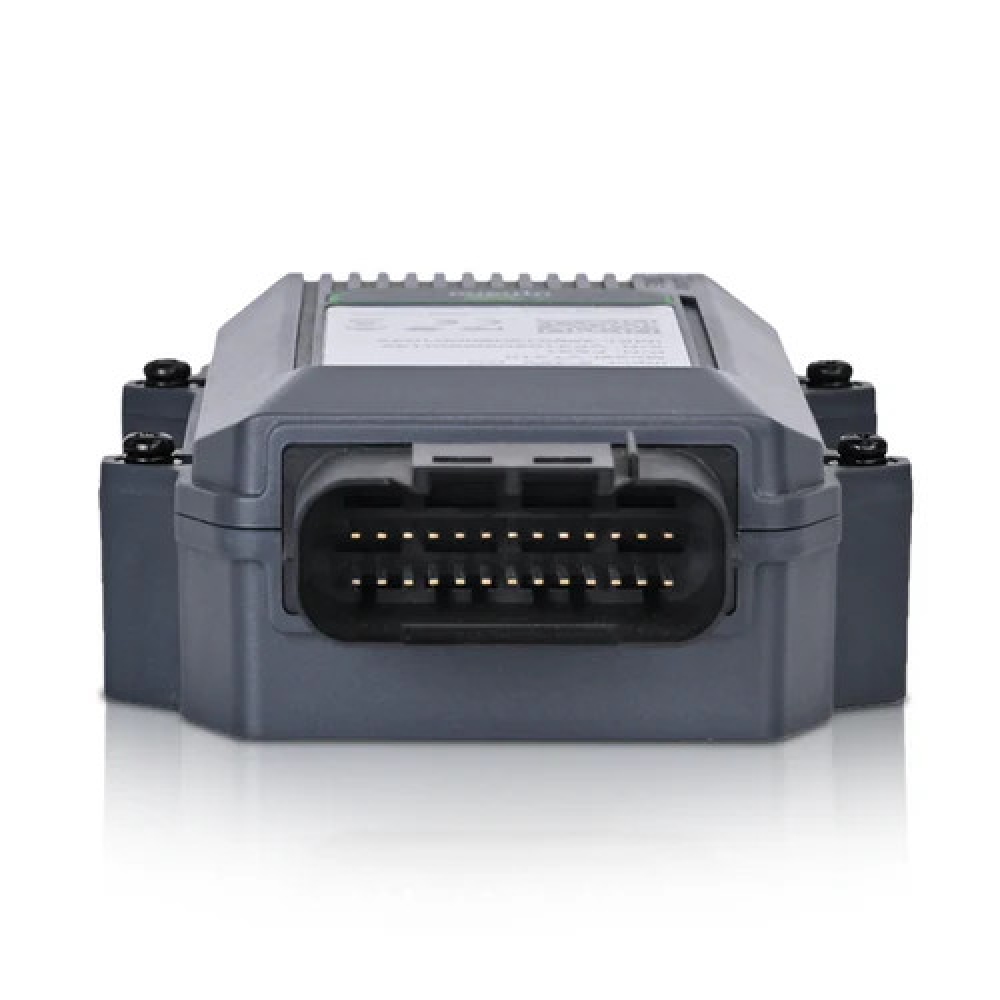

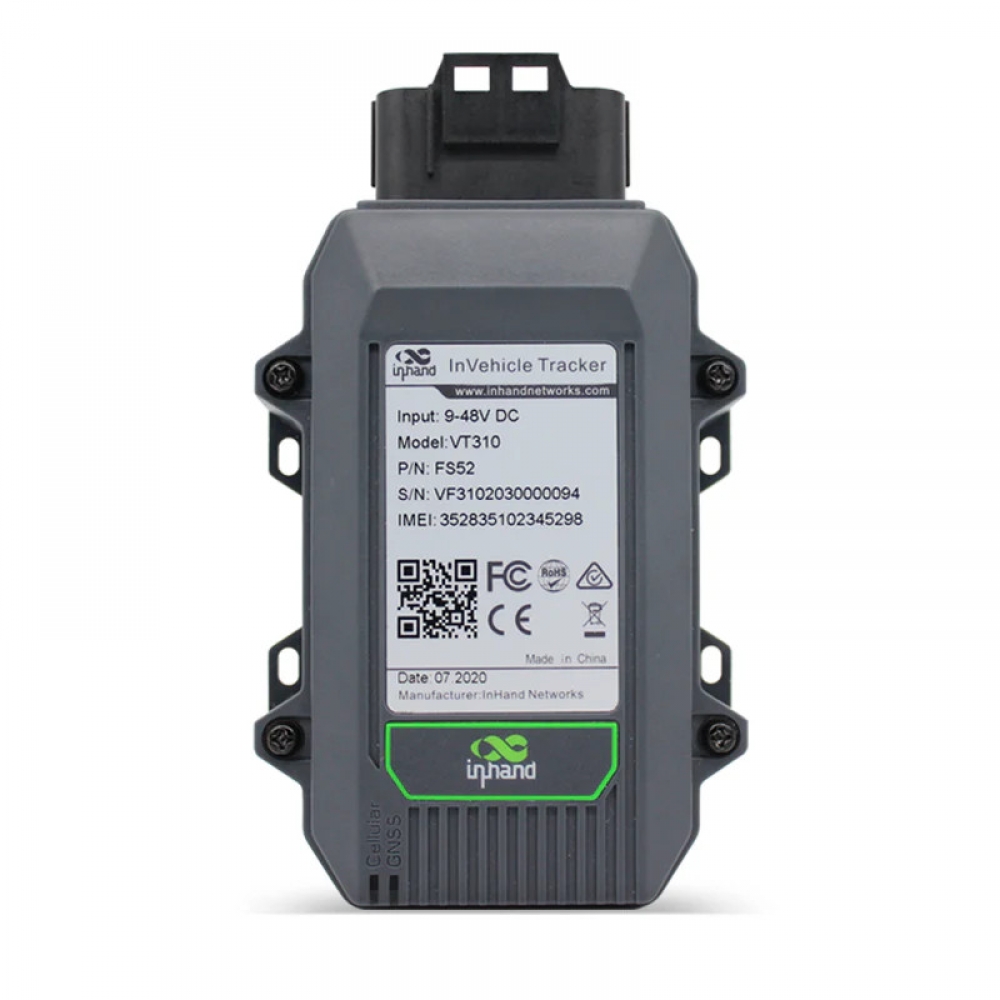

InHand Networks VT310-FS52-B-2
VT300 Series Vehicle Tracking Gateway Cellular CAT 1 GPS Tracker with CAN Bus (OBD2, J1939), J1708 The VT300 is a high-precision, functionally capable vehicle tracking gateway with multiple interfaces. The gateway tracks the vehicle by GNSS precise location for monitoring the status of vehicles and drivers in industries such as logistics transportation, engineering vehicle monitoring, etc. Equipped with the cloud-based remote fleet management platform, it offers remote vehicle management to save costs and improve the efficiency of a fleet.
Industria / IoT
-
Bluetooth
-
DC
-
GPS
-
Interfaz
-
IP6X
-
IPX6
-
Serie
Specifications
| InVehicle T310 Specifications | |
| Network Type | LTE CAT-M / CAT1 / CAT4 |
| Antenna | LTE FPC built-in antenna |
| GNSS Bluetooth Antenna | Ceramic built-in antenna |
| Bluetooth | Bluetooth 4.1 |
| GNSS (Global Navigation Satellite System) | |
| Satellite Support | GPS/GNSS/A-GNSS |
| Channel | 31 channels |
| Sensitivity | -162 dBm, initial positioning time 32s |
| Collection Sensitivity | -156 dBm (hot start); -148 dBm (cold start) |
| Location Accuracy | 2.5m (CEP50) |
| Update Frequency | 1Hz by default, max. 10Hz |
| Low Power Consumption | Continuous operation: <15ma 3="" 3v="" single="" system="" positioning="" td=""> |
| Inertial Sensor | |
| Acceleration | Measurement range: ±2 / ±4 / ±8 / ±16g |
| Angular Velocity | Measurement range: ±125 / ±250 / ±500 / ±1000 / ±2000dps |
| Electrical Features | |
| Working Voltage | 9-48V DC |
| Power Consumption |
0.45W 0.55W 0.77W |
| Electrical Features | |
| Capacity | 1200mAh |
| Rated Voltage | 3.7V |
| Cut-off Voltage | 4.2V |
| Battery Material | Lithium-ion battery |
| Working Temperature | Charging: 0 ~ 45 °C; Discharging: -20 ~ 60 ° C |
| Storage Temperature | For 1 month: -20 ~ 45 °C; For 6 months: -10 ~ 35 °C |
| Environment | |
| Operating Temperature |
-40 ~ 85 ℃ (Connected to main power) -20 ~ 60 ℃ (Powered by internal battery) |
| Humidity | 95% RH @ 50 °C non-condensing |
| ESD | IEC 61000-4-2 (4KV test) |
| Mechanical Features | |
| Shell Material | Engineering plastic + engineering plastic alloy (PC + ABS) |
| Dimensions | Approximately 141 x 82 x 35 mm |
| Weight | 152g |
| Protection Rating | IP66 |
| Vehicle Features | |
| CANBus |
2 channels |
| J1708/RS485 | 1 channel |
| Serial Port | RS232 |
| I/O | |
| Ignition Signal | 1 channel |
| Digital Input | 4 channels |
| Digital Output | 3-channels (max. 300 mA) |
| 1-Wire | 1 channel, 4 sensor |
| Analog Input | 1 channel |
| Analog Output | 1 channel |
| External Interfaces | |
| SIM Card Slot | 2FF, push-in slot |
| I/O | 26 PIN |
| LED Indicator | 2 LED indicators: cellular status, GNSS status |
| Software Service | |
| Cloud platform | AWS IoT, Azure IoT, Aliyun IoT, Wialon, Traccar, GPSWox, WhiteLable Tracking, ThingsBoard, Customer platform |
| Transport protocol | TCP, UDP, HTTP, MQTT |
| Vehicle Data | OBD-II, J1939, J1708 |
| RS232/RS485 | Transparent, Modbus protocol data acquisition |
| Event Alarm | Collision detection, motion detection, overspeed, IO change, ignition signal detection, etc. Report support SMS or FlexAPI over TCP/UDP/MQTT |
| ELD | Forward vehicle data via BLE |
| Config | |
| Configuration Tool | RS232 or Bluetooth |
| Certificate | |
| CE, FCC, PTCRB, IC, CTA, E-Mark |
