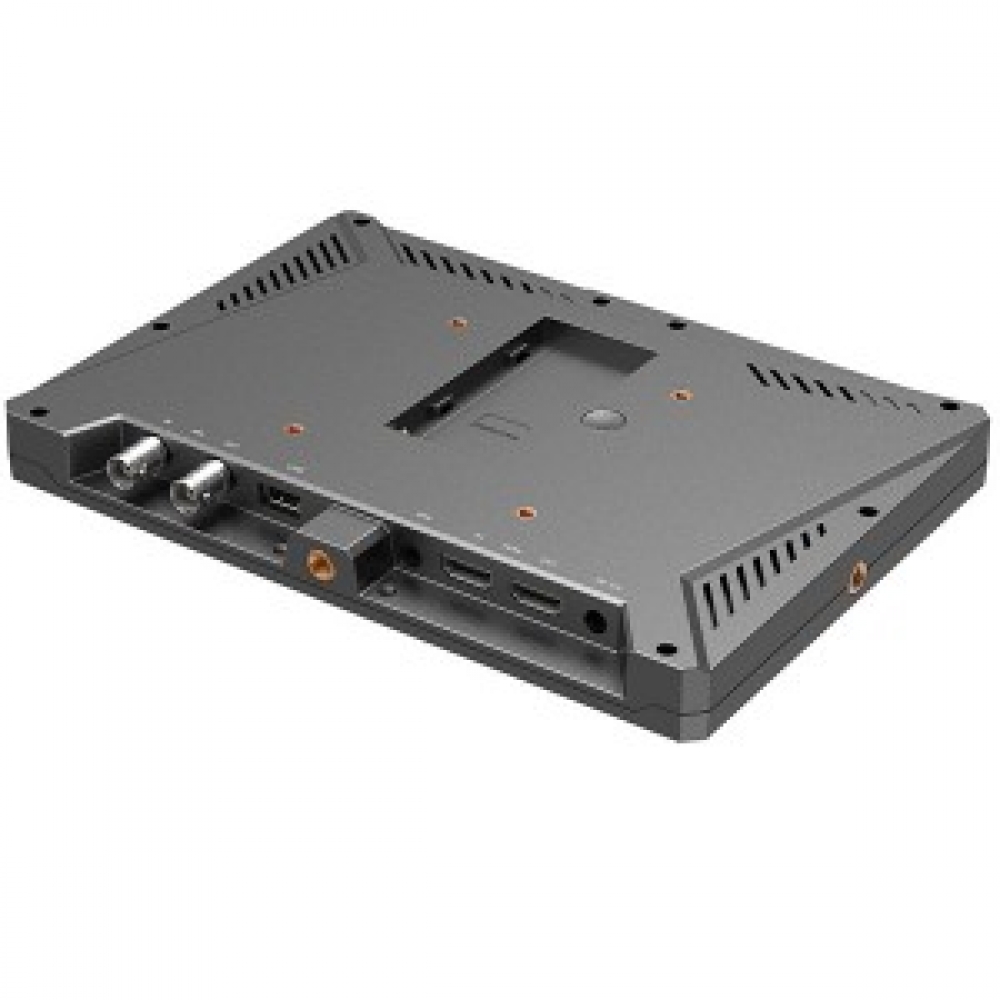

Lilliput A8s
8.9 inch 4K Camera-top monitorA8s is an 8.9inch 4K input monitor with1920 x 1200 LCD screen features 350 cd/m² brightness, 800:1 contrast ratio, and 170° viewing angle.It is with HDMI 1.4 input which is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K video at 30 fps. It features a loop-through HDMI output for additional displays. It also has a 3G-SDI input and a 3G-SDI loop output.
- Model:
- A8S
- Physical resolution:
- 1920×1200
- Input:
- 1×3G-SDI, 1×HDMI 1.4
- Output:
- 1×3G-SDI, 1×HDMI 1.4
- Feature:
- 3D-LUT
Industria / Display
-
3G
-
DC
-
HDMI
-
Interfaz
-
USB
Specifications
| Display | |
| Size | 8.9” |
| Resolution | 1920 x 1200 |
| Brightness | 350cd/m² |
| Aspect ratio | 16:10 |
| Contrast | 800:1 |
| Viewing Angle | 170°/170°(H/V) |
| Supported Log formats | Sony SLog / SLog2 / SLog3… |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Video Input | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Video Loop Output | |
| SDI | 1×3G |
| HDMI | 1×HDMI 1.4 |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60，2160p 24/25/30 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm - 2ch 48kHz 24-bit |
| Built-in Speakers | 1 |
| Power | |
| Operating power | ≤12W |
| DC In | DC 7-24V |
| Compatible batteries | NP-F Series |
| Input voltage (battery) | 7.2V nominal |
| Environment | |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Other | |
| Dimension(LWD) | 182×124×22mm |
| Weight | 405g |
