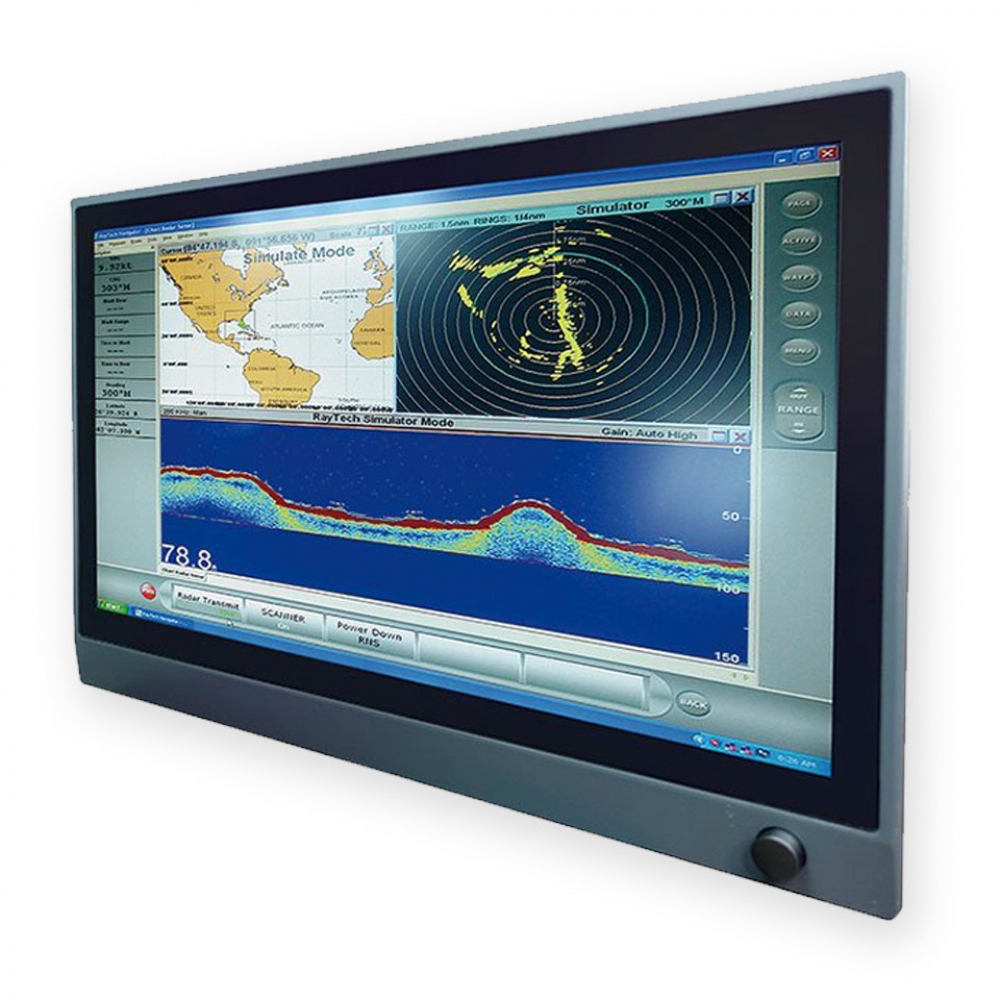

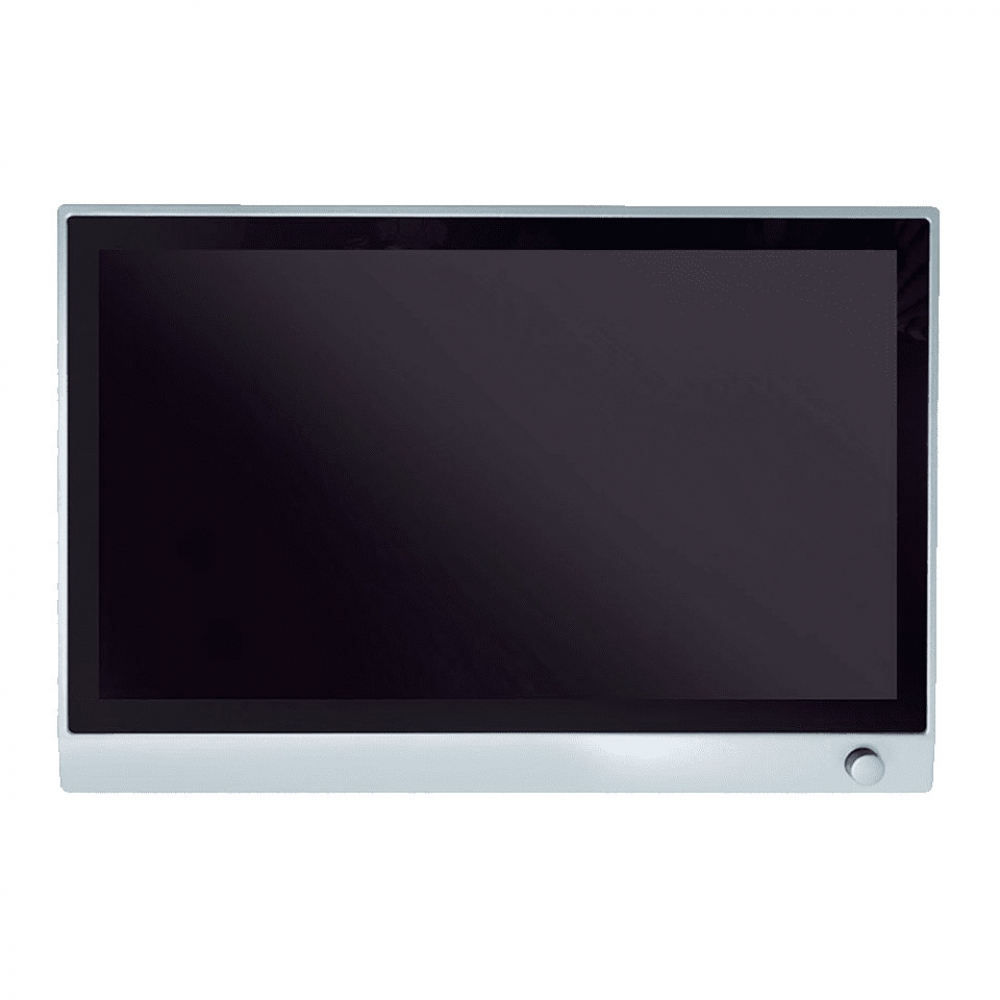

Litemax NPD2706
27" IP65 Sunlight Readable PCT Multi-Touch Marine Display
- 1200 nits Sunlight Readable LCD
- Long Life, Low Power Consumption LED Backlight
- Rotary and push knob (OSD MENU)
- Wide Operating Temperature
- Advanced Optical Bonding (AOT)
- High Shock & Vibration Resistance
- Projected Capacitive Multi-Touch Support
- Full Flat Design
- IP65 Facial Waterproof
- Isolation Power 9-36V DC Input
Energía / DisplayIndustria
-
DC
-
Display Port
-
DVI
-
HDMI
-
Interfaz
-
IP6X
-
USB
-
VGA
Specifications
| Model name | NPD2706 |
| Description | 27" IP65 Sunlight Readable PCT Multi-Touch Marine Display |
| Size | 27" |
| Display area | 597.6(H) x 336.15(V) |
| Brightness | 1200 cd/m² |
| Resolution | 1920x1080 |
| Aspect ratio | 16:9 |
| Contrast ratio | 3600:1 |
| Pixel pitch (mm) | 0.311(H) x 0.311(V) |
| Pixel per inch (PPI) | 81 |
| Viewing angle | 178°(H),178°(V) |
| Display colors | 16.7M |
| Response time (Typical) | 12ms |

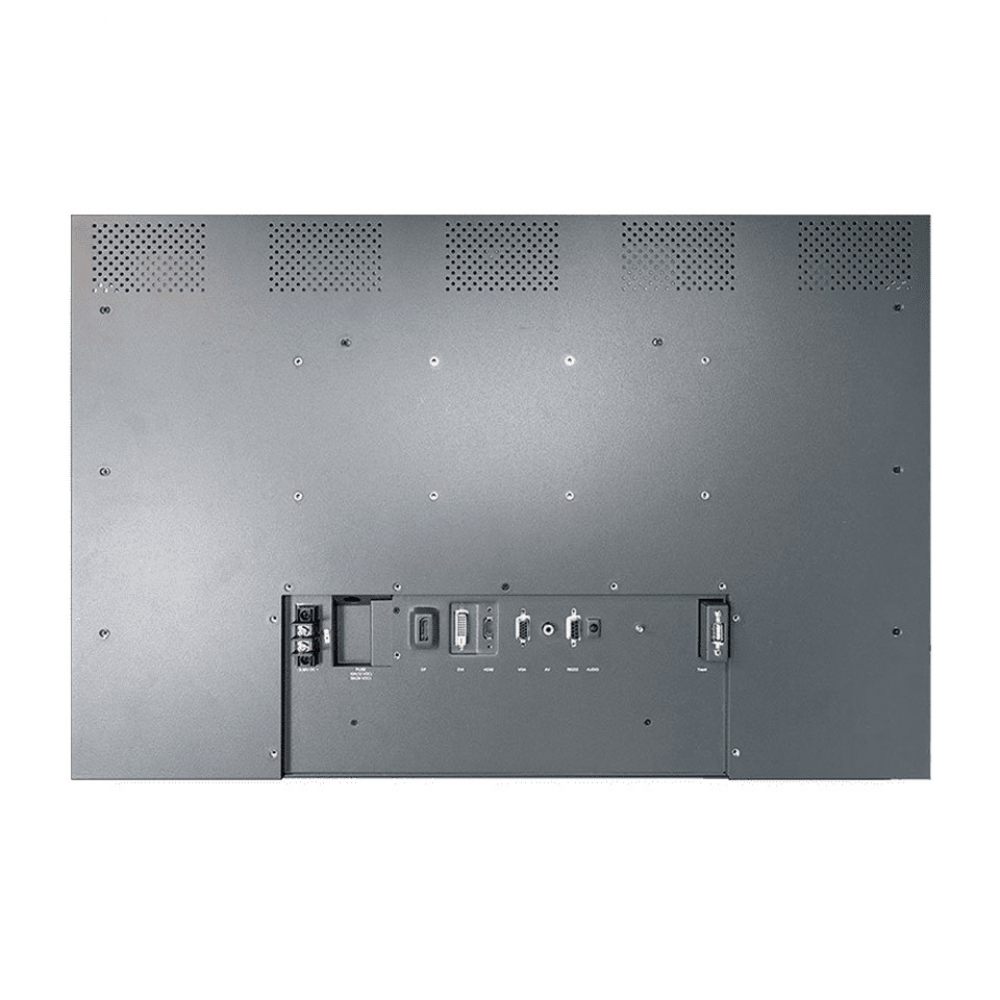

| Video interface | VGAx1, DVI-Dx1, HDMIx1, DPx1, Compositex1, RS232x1, USBx1 |
| Input power | DC input 9~36V |
| Power consumption | 62W |
| Dimensions (mm) | 660(W)x445(H)x67(D) |
| Weight (Net) | 12.5Kg |
| Mounting | Panel (Flush) mount, VESA mount |
| Operating temperature | -10˚C~50˚C (-14℉~122℉) |
| Storage temperature | -20˚C~70˚C (-4℉~158℉) |
| Product approval | CE/FCC |
| IP rating | IP65 waterproof (facial) with console mounted |
| Construction | Rugged SPCC Chassis |
| Optional | □Glass □Resistive Touch □PCT Touch |
