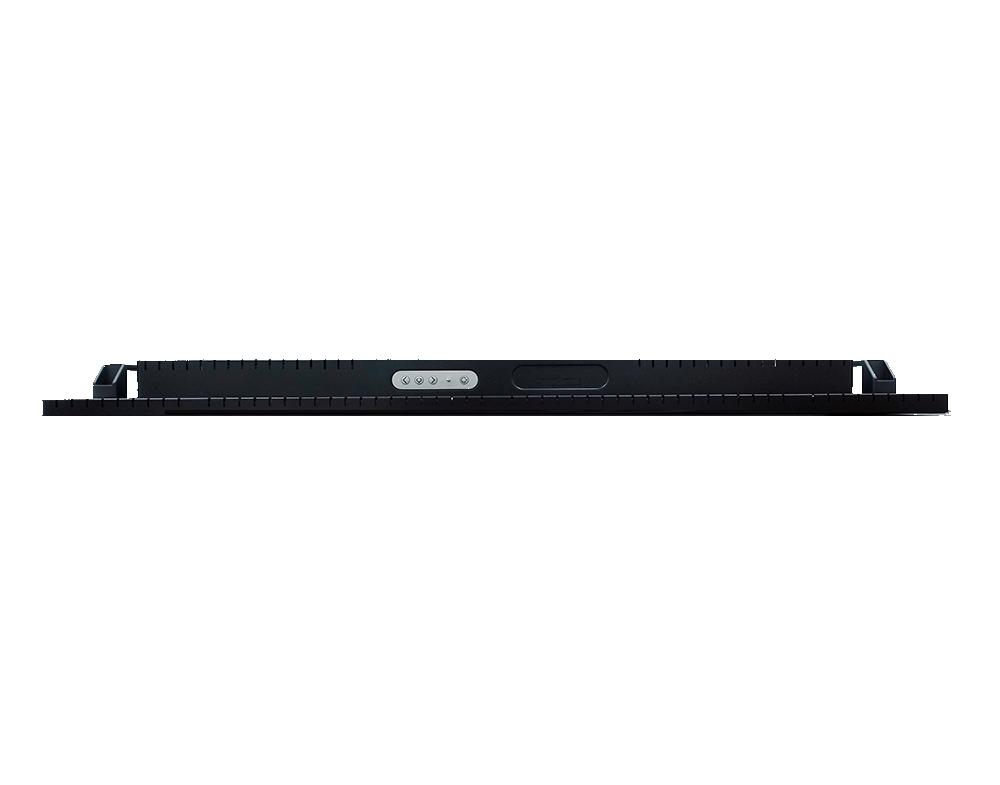

Litemax SSD3588-I
35.8" Resizing LCD, 1600 nits LED backlight, 1920x534- 35.8" resizing LCD
- Resizing display (aspect ratio of 16:4.4)
- Sunlight readable, high brightness (1,600 nits)
- Resolutions: 1920 x 534
- Wide viewing angle of 178° (H), 178° (V)
- Low power consumption
- BL MTBF: 100,000 hours
Digital Signage / DisplayGaming
Industria
Kiosk
Smart City
Transporte
-
Alto brillo
-
DC
-
Display Port
-
DVI
-
HDMI
-
VGA
-
Gran angulo de visión
Specifications
Model name
SSD3588-I
Description
35.8" Resizing LCD, 1600 nits LED backlight, 1920x534
Size
35.8"
Display area (mm)
878.1(H) x 240(V)
Brightness
1600 cd/m²
Resolution
1920x534
Aspect ratio
16:4.4
Contrast ratio
10000:1
Pixel pitch (mm)
0.4494 (H) x 0.4494
Pixel per inch (PPI)
55
Viewing angle
178° (H), 178° (V)
Color saturation (NTSC)
80%
Display colors
16.7M
Response time (Typical)
8.5ms
Video interface
VGA, DVI-D, HDMI, DP
Input power
DC 12V
Power consumption
64w
Dimensions (mm)
902x273.3x62.2
Bezel size (U/B/L/R)
13.3/13.3/9.9/9.9
Weight (Net)
9.2kg
Mounting
VESA 300x75
OSD key
4 keys (Power switch, menu, +, -)
OSD control
Brightness, color, contrast, H/V position… etc
Operating temperature
0°C ~ +50°C
Storage temperature
-20°C ~ +60°C
Product approval
CE, FCC
