Litemax SSH2405-Y

24” LCD, 1000nits LED backlight, 1920 x 360 ultra-wide aspect ratio 16:3
  • Ultra-Wide Screen (16 : 3)
  • High Brightness
  • Sunlight Readable
  • LED Backlight
  • Low Power ConsumptionBL MTBF: 100,000 hours
Gaming / Display
Industria
Kiosk
Smart City
Transporte
  • Alto brillo
    Alto brillo
  • DC
    DC
  • DVI
    DVI
  • HDMI
    HDMI
  • VGA
    VGA
  • Gran angulo de visión
    Gran angulo de visión

Specifications

Model name

SSH2405-Y

Description

24” LCD, 1000nits LED backlight, 1920 x 360 ultra-wide aspect ratio 16:3

Size

24”

Display area (mm)

597.8(H) x 112.1(V)

Brightness

1000 cd/m²

Resolution

1920x360

Aspect ratio

16 : 3

Contrast ratio

850 : 1

Pixel pitch (mm)

0.3114(H) x 0.3114(V)

Pixel per inch (PPI)

81

Viewing angle

178°(H),178°(V)



Color saturation (NTSC)

81%

Display colors

16.7M

Response time (Typical)

30ms

Video interface

VGA, DVI-D, HDMI

Input power

DC12V

Power consumption

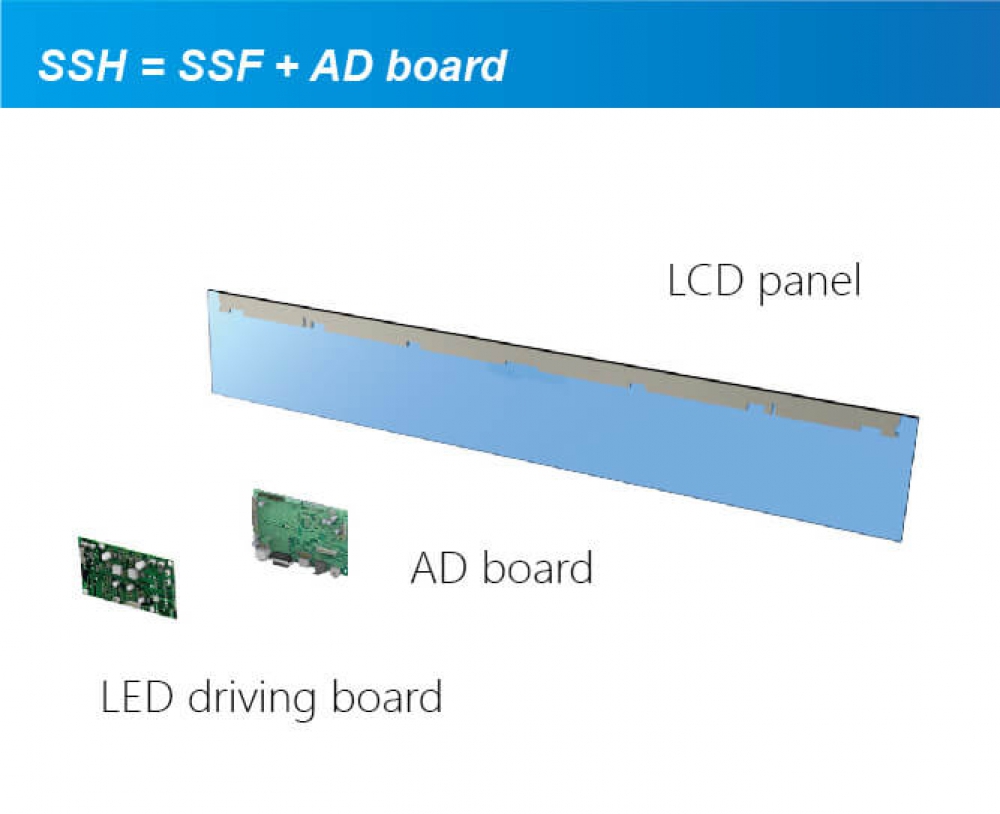

21W / (27.5W with AD board)

Dimensions (mm)

612.7x 132.1 x 12.8

Bezel size (U/B/L/R)

11/6/6/6 mm

Weight (Net)

1.23 kg

Operating temperature

0 ˚C ~ 50 ˚C

Storage temperature

-20 ˚C ~ 60 ˚C
