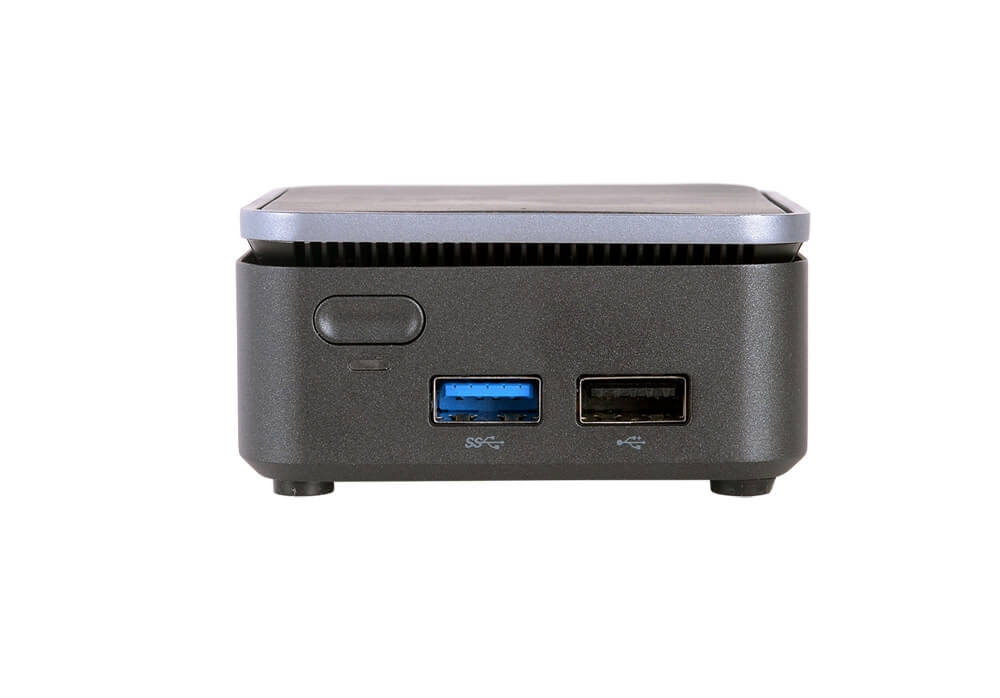

LIVA-Q
Intel Apollo Lake SoC N4200/N3350- Ultra Tiny PC measuring 70 x 70 x 31.4mm.
- Powered By The Latest Intel®Apollo Lake SOC
- Silent and reliable ultra-low-power consumption PC
- Support up to *HDMI 2.0 4K@60fps with higher quality video playback
- RJ45 Ethernet connection for more reliable and faster internet connection
- Support Dual Band WiFi & BT 4.1
- Support microSD card slot to expand storage
- Support Windows 10
/ IPC(Industrial PC)Kiosk en
-
AC
-
HDMI
-
Intel
-
Interface
-
LAN
-
USB
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Intel® Apollo Lake Pentium® N4200 SOC |
|
Chipset |
- |
|
BIOS/OS Support |
- |
|
Watchdog |
- |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
LPDDR4 2GB/4GB |
|
Max. |
4 GB |
|
Storage |
eMMC 64GB/32GB |
Graphics
|
Controller |
- |
|
Max. Resolution |
- |
Ethernet
|
Controller |
- |
|
Connector |
1 x Gigabit LAN |
Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
1 |
|
USB |
2 |
|
Audio |
- |
|
Serial |
- |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
- |
|
Serial |
- |
|
SATA |
- |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
- |
Power requirement
|
Power Input |
AC 100-240V |
Environment
|
Operating temp. |
- |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
- |
|
Dimensions |
70 x 70 x 31.4 mm |
|
Weight |
260g |
|
Construction |
- |
