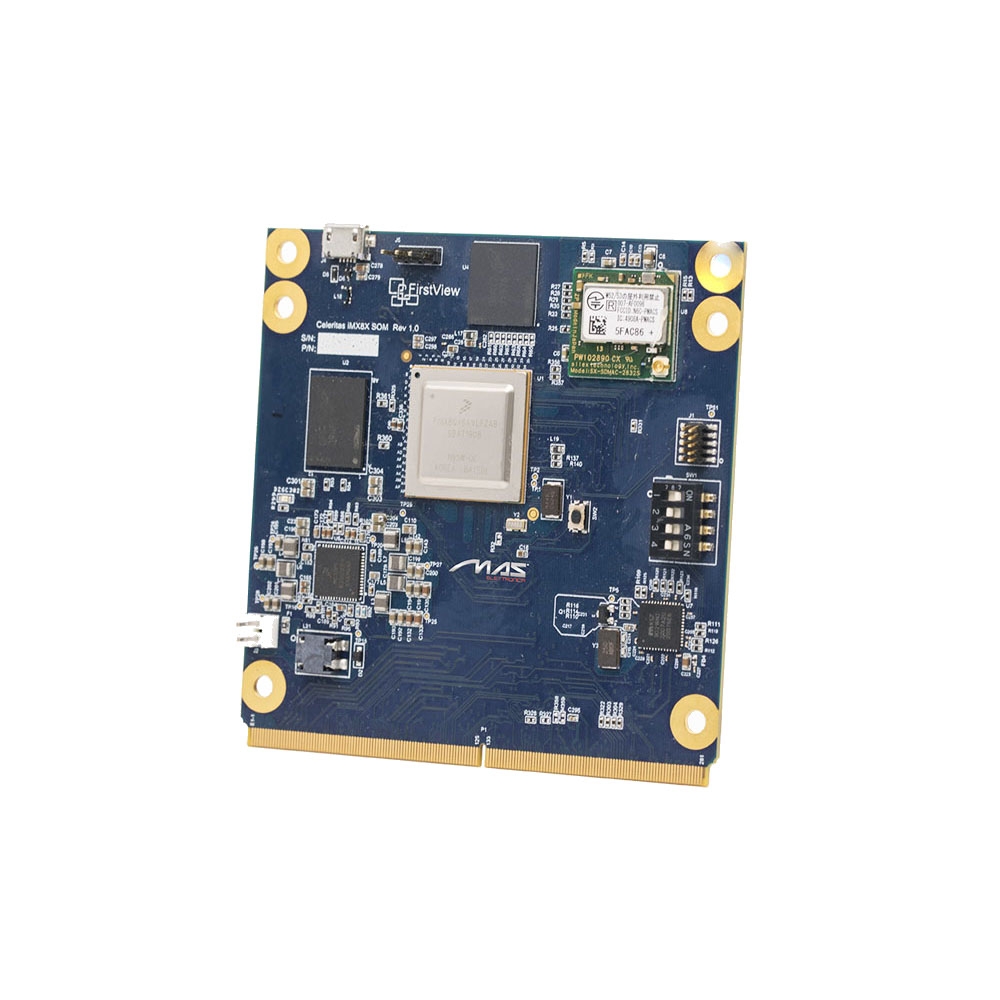

MasElettronica CPU CELERITY IMX8X
SETTORE APPLICAZIONE: Medical, Industrial, Automotive. FirstView together with MAS Elettronica follows up on the success of i.MX6 Series SOM offering with a rugged, reliable and low cost i.MX8X Version. Celerity is an embedded single board module optimized for performance and power with a life cycle that removes concerns for obsolescence. The board is designed to be paired with a custom carrier board to fit specific applications in a wide range of environments.
Industria / PlacasMedicina
-
Bluetooth
-
DC
-
Interfaz
-
Wifi
Specifications

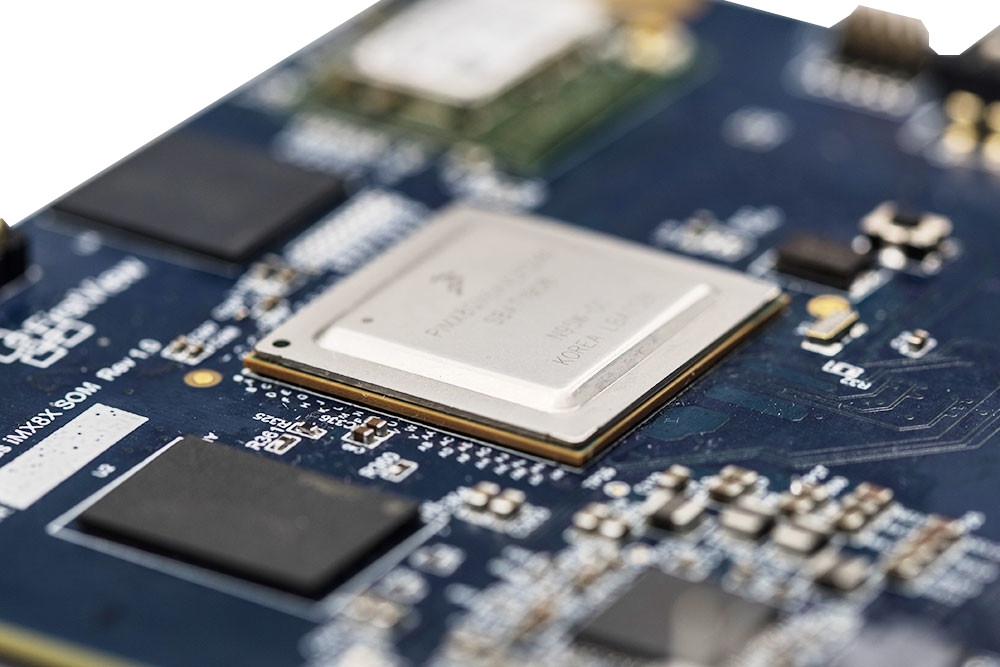

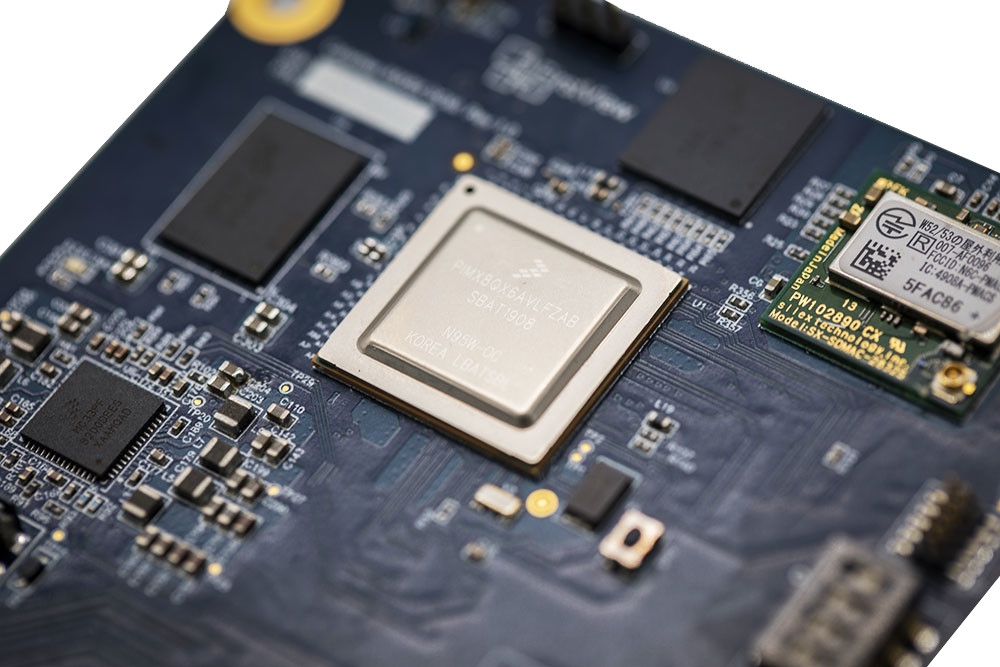

| CPU | CPU: i.MX8QuadXPlus Type: Cortex™-35 up to 1,2Ghz Cores x4 Core x1 Cortex M4F Up to 266Mhz CPU Clock (Max) 1200Mhz |
| DSP | Tensilica® HiFi 4 DSP core for real-time processing 640 MHz |
| STORAGE | 8-64Gbyte eMMC; 128Mbyte NOR SPI |
| MEMORY | 1-4 Gbyte DDR4L 1200Mhz |
| MULTIMEDIA | 2x-4x Vec4-Shader GPU, OpenGL® ES 3.1, OpenCL™ 1.2 EP, OpenVG™ 1.1, Vulkan® Video: 4K H.265 dec | 1080p H.264 enc / dec |
| PERIPHERALS | uSD MMC x1 2 x USB Host, 1x USB 3.0 UART x 2 I2C x3 QSPI x2 RTC x1 (ON CPU) Gigabit Ethernet x 1 GPIOs on connector 1V8 On board Serial console over uUSB 6x ADC Input 2x DSI/LVDS Interface up to 1080P 1x Display Parallel WIFI BT MODULE 3x CAN 2.0 1x MIPI CSIx4 1x PARALLEL MIPI 1x WIFI 802.11 a/b/g/n/ac Wave 2 MU-MIMO, BT 4.2 h 4.2 BR/EDR/LE Smart Ready 1x PCIe 3.0 |
| SOFTWARE SUPPORT | LINUX kernel 5.4.3; Yocto Zeus; Ubuntu 20.04 LTS |
| MECHANICAL SPECIFICATIONS | Dimensions: 102 x 146 mm |
| ELECTRICAL SPECIFICATIONS | Power Sypply: 5VDC Consumption: TBD |
| TEMPERATURE SPECIFICATIONS | -20 to 125°C |
| LONGEVITY | 2036 |
