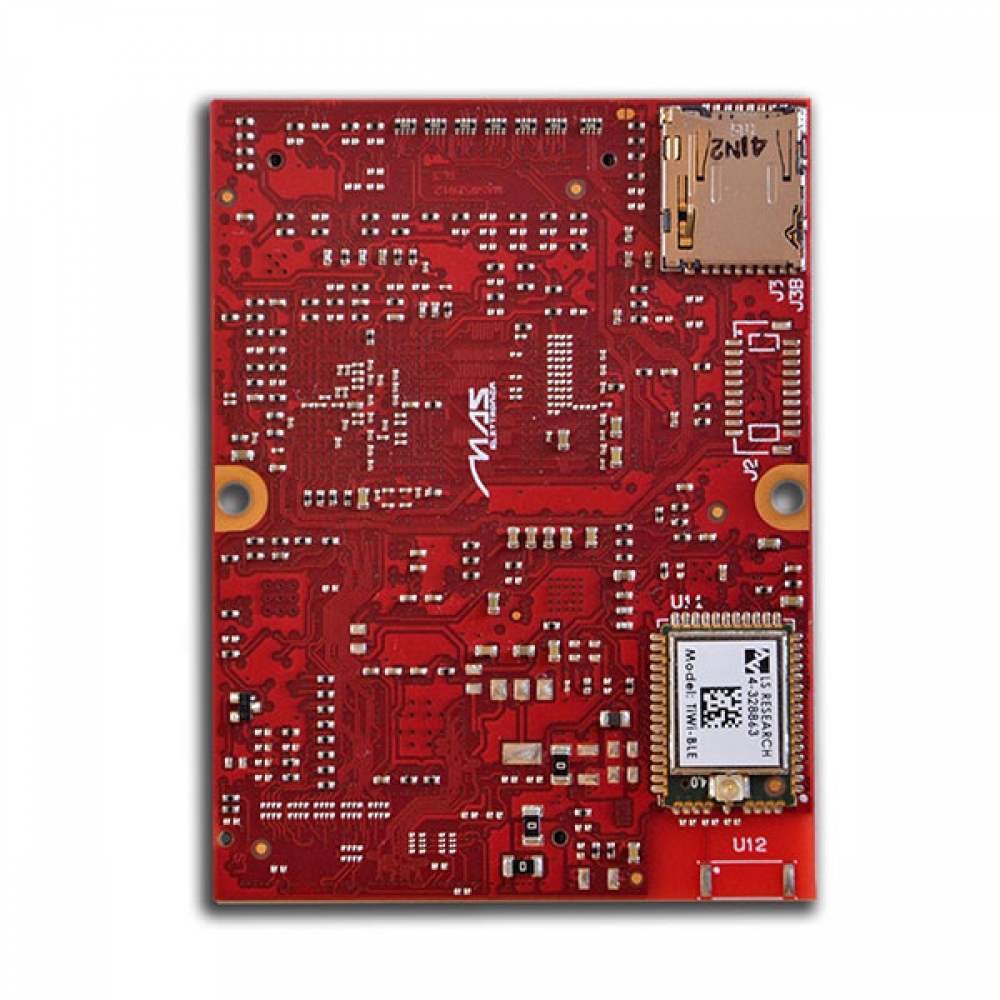

MasElettronica CPU FIAMMA – AM335X
APPLICATION AREA : Industrial. FIAMMA is designed to support applications ranging from industrial, home automation and communication systems, representing an excellent compromise between reliability, cost and performance. The processor used is from the Sitara™AM335x ARM Cortex™-A8 family of Texas Instruments, with clocks reaching 1Ghz and with 2D/3D PowerVR SGX graphics accelerator™, DDR3 Memory, Wi-Fi and Bluetooth, double CAN Bus. The connection to the carrier board is made with high-reliability connectors. Due to its PRU-ICSS (Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem) peripherals, we are able to offer a linux system with a hard real-time with a single board.
Industria / Módulos
-
Android
-
ARM
-
Bluetooth
-
DC
-
Interfaz
-
Linux
-
USB
-
Wifi
Specifications
| CPU | CPU : Texas Instruments AM335x Sitara™ Family Type: ARM® Cortex™-A8 Cores: x1 CPU Clock (Max): up to 1 GHz PRU: Available with the AM3359. |
| DISPLAY | Video Out: TTL RGB 24bit, up to 2048 x 2048 pixel clock up to 126MHz Touch Pannel: Resistive4 wires. |
| AUDIO | Headphone Output: Using the integrated, audio codec. Mic Input: Using the integrated, audio codec. |
| RAM AND STORAGE | Cache: L1: 32KB instruction and 32KB Data- L2: 256KB with ECC RAM: 512MB – 1GB – DDR3 – 606Mb/s FLASH: 256, 512 MByte – NAND |
| MULTIMEDIA | Graphics 2D/3D with PowerVR SGX530 accelerator |
| NETWORKING | Ethernet: x1 Fast Ethernet (10/100), x1 Gbit Ethernet (10/100/1000) RGMII Wi-Fi: 2,4 / 5GHz, 802.11 b,g,n, chip antenna on board or external esterna Bluetooth: 2.1+EDR class 1.5, BlueTooth 4.0 BLE ANT ready |
| PERIPHERALS | SD / MMC x1 uSD, 192Mbit/sec, bootable USB Host / Device x1 USB 2.0 HS Host, x1 OTG I2C x2 CAN x2 UART x1 RS232 Linux Console, x2 TTL fino a 3,6 Mbps SPI x2 RTC: integrated, backup battery support Extrenal Bus: External Memory Interface – General Purpose Memory Controller (EMIF-GPMC) Analog inputs up to 6, sharde with the Touch Panel I/O Digital: available shard with other peripherals PRU-ICSS: Programmable Real-Time Unit Subsystem and Industrial Communication SubSystem when AM3358 o AM3359 is used |
| SOFTWARE SUPPORT | OS: Android kit kat; Linux 3.14 Yocto Graphics: QT Embedded |
| MECHANICAL SPECIFICATION | Dimentions (W x L x H): 60 x 80 x 7 mm |
| ELECTRICAL SPECIFICATION | Power supply: 5VDC |
| TEMPERATURE SPECIFICATIONS | Temp. commercial(0 to 70°C): Available Temp. industrial (-40 to 85°C): Available |
| LONGEVITY | Min: 2024 |
