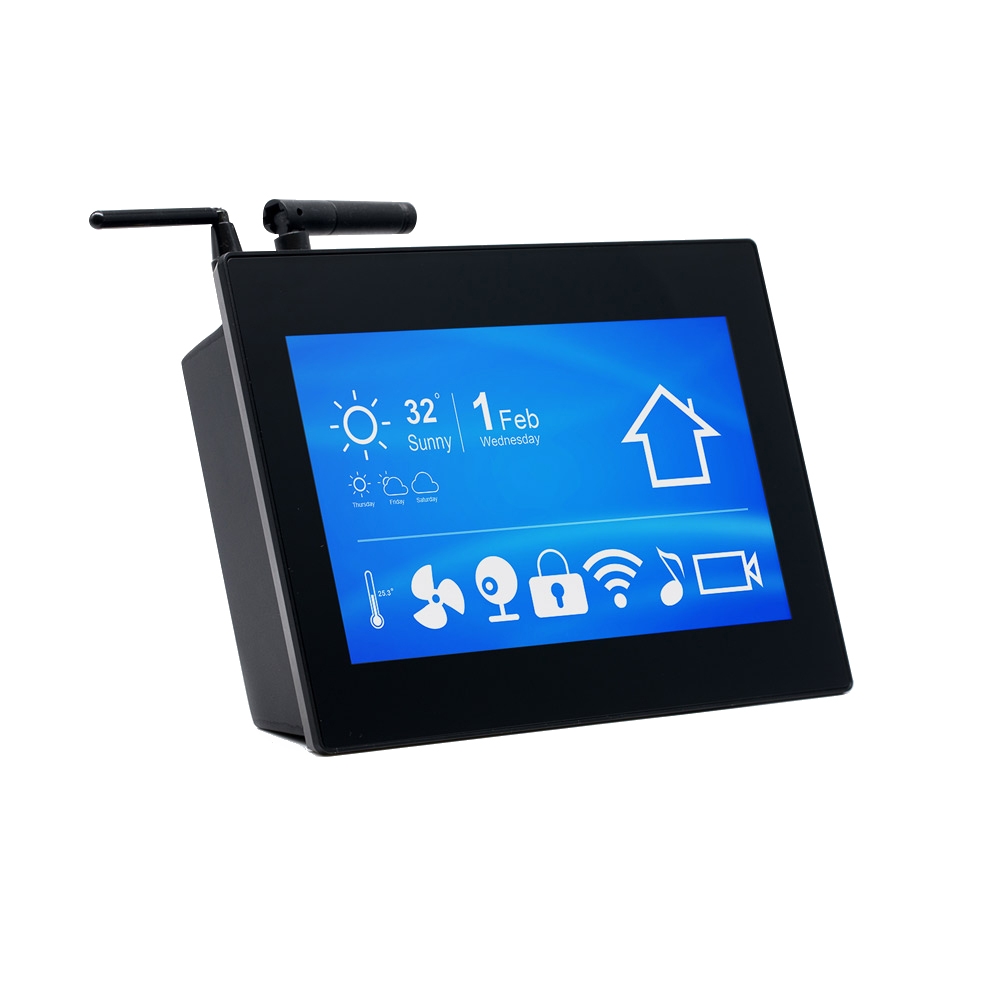

MasElettronica HMI PLUS 10,1″ & 7″ MAS

Designed to work in Industrial, Automotive and medical environment. The HMI PLUS MAS family is a quality and high performance product based on IMX8M technology.
Industria / Display
Seguridad
  • 4G
    4G
  • ARM
    ARM
  • HDMI
    HDMI
  • Interfaz
    Interfaz
  • Linux
    Linux
  • Lte
    Lte

Specifications

CPU x1: i.MX8MSolo
x2: i.MX8MDual
x4: i.MX8MQuad”
CPU nome: ARM Cortex – A53 ARM, Cortex M4 400 Mhz
CPU Clock (Max): 1800Mhz
DISPLAY UP to 1024 x 600
24-bit LVDS
Full HD 1080P HDMI
TOUCH SCREEN Capacitive Touch FT5526
MULTIMEDIA 8/16 Gbyte eMMC
MEMORIE Up to 4Gbyte LPDDR4 memory | 3200 MT/s
MULTIMEDIA 1x GC NanoUltra 3D Graphics
SECURITY TPM Trusted Platform Module compliant 2.0 integrated.



PERIPHERALS uSD MMC x1
2x 480 Mbit/s Host (Type A), 1x 480 Mbit/s OTG (Type Micro-AB)
Up to 4x RS-485 (Full duplex) from internal board 2x RS-232 (RX/TX/CTS/RTS) from internal board
I2C x2
SPI x2
RTC x1
Ethernet x1 10/100/1000Mbit/s
GPIOs x30
1x Debug UART (3V3 TTL)
2 USB Host ports
EXPANTION SLOT 1x Slot Minipcie for wireless boards
1x Slot Minipcie 4G/LTE boards
SOFTWARE SUPPORT LINUX kernel Yocto
MECHANICAL SPECIFICATIONS Dimensions: 264.3 x 181.1 x 37.7 mm
ELECTRICAL SPECIFICATIONS VOLTAGE: 9-36VDC
CONSUMPTION: 600mA
TEMPERATURE SPECIFICATIONS Commercial temperature (-20° a 70°)
LONGEVITY Minimum: 2036
