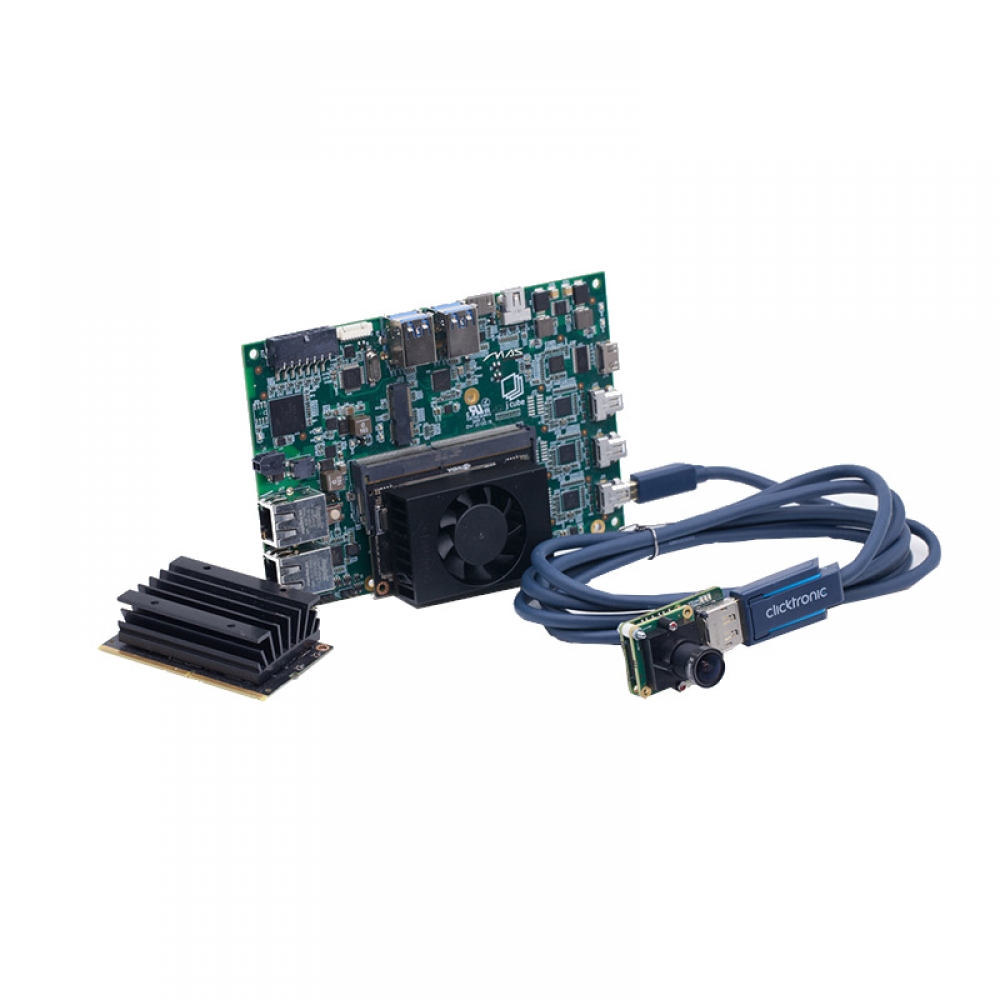

MasElettronica NVIDIA SBC Lightfront® AI

APPLICATIONS AREAS: Industrial, Medical, Automotive. MAS Elettronica is proud to announce the Lightfront AI SBC by JCUBE powered by nVidia. This SBC board hosts the nVidia Jetson NANO and XAVIER SOMs which have the performance and capabilities needed to run modern AI workloads, making it possible to add advanced AI to any product. NVIDIA® SOMs brings AI to a world of new embedded and IOT applications, including entry-level network video recorders (NVRs), home robots, and intelligent gateways with full analytics capabilities. Support for both the Jetson Nano and the Jetson Xavier NX SOM, the world’s smallest AI supercomputer for embedded and edge systems, is possible.
Industria / Placas
Medicina
  • Bluetooth
    Bluetooth
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Interfaz
    Interfaz
  • Linux
    Linux
  • Serie
    Serie
  • USB
    USB
  • Wifi
    Wifi

Specifications

CPU nVidia Jetson Nano
Type: Cortex™-57 up to 1,43Ghz
Cores: x4
CPU Clock (Max): 1430Mhz
GPU Maxwell GPU 128-core GPU at 921Mhz
STORAGE 16Gbyte eMMC HS400
MEMORY 4 Gbyte 64 BIT DDR4L 1600Mhz
MULTIMEDIA Video Decode
H.265 (Main, Main 10): 2160p 60fps | 1080p 240fps
H.264 (BP/MP/HP/Stereo SEI half-res): 2160p 60fps | 1080p 240fps
H.264 (MVC Stereo per view): 2160p 30fps | 1080p 120fps
VP9 (Profile 0, 8-bit): 2160p 60fps | 1080p 240fps
VP8: 2160p 60fps | 1080p 240fps
VC-1 (Simple, Main, Advanced): 1080p 120fps | 1080i 240fps
MPEG-2 (Main): 2160p 60fps | 1080p 240fps | 1080i 240fps

Video Encode
H.265:2160p 30fps | 1080p 120fps
H.264 (BP/MP/HP): 2160p 30fps | 1080p 120fps
H.264 (MVC Stereo per view): 1440p 30fps | 1080p 60fps
VP8: 2160p 30fps | 1080p 120fps
JPEG (Decode and Encode): 600 MP/s
AUDIO HDMI audio support
USB audio Codec
Analog audio input over analog mic
Analog output with PA 4W (4/8/16 ohm)
PERIPHERALS uSD MMC x1
1 x USB OTG,
4x USB 3.0



SERIAL PORTS 2x Medium bandwidth (5Mbps), high-concurrency (low latency), native UART RS485
4x High bandwidth (20Mbps) UART RS485 serial over PCIe with automatic hardware half-duplex switch
1x TTL Serial port for console
1x TTL Serial port for general purpose
ETHERNET 2X 10/100/1000Base-TX ON RJ45
GPIO GPIOs on connector 26 pin connector 1V8
DISPLAY INTERFACE HDMI 2.0 x 1, DP 1.4 x1
VIDEO INPUT CSI-2: 3 x CSI x4 input through Display port connector Up to 4K UHD (3840×2160) @38fps, YUV422. Up to 2K 1080p (1920×1080) @60fps, YUV422
HDMI: 1 x mHDMI input for Profetional camera support Up to 1080p (1920×1080) @60fps, YUV422.
WIRELESS: M.2. PCIe support WiFi/Bluetooth over PCIe WLAN-AC. Suggested with 8265 INTEL
SOFTWARE SUPPORT Linux kernel 4.9.x, Ubuntu 18.04 LTE Jet Pack 4.4.1
MECHANICAL SPECIFICATIONS Dimensions: 99 x 147 mm
ELECTRICAL SPECIFICATIONS Power supply: 9-36VDC
Consumption: 9-15W
TEMPERATURE SPECIFICATIONS -25 TO 97°C
-20 to 125°C
LONGEVITY 2036
