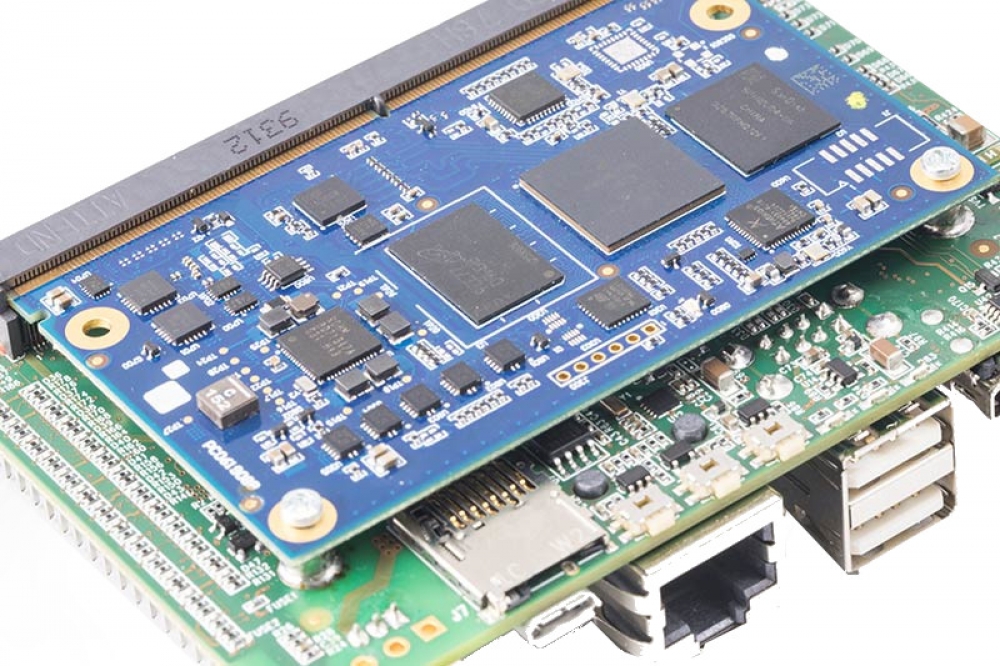

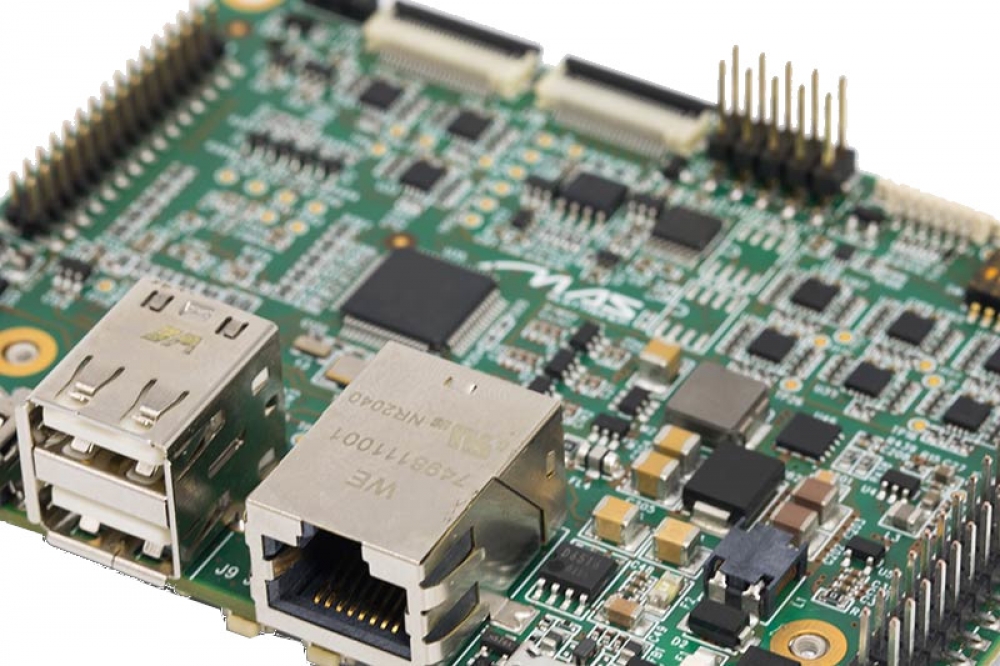

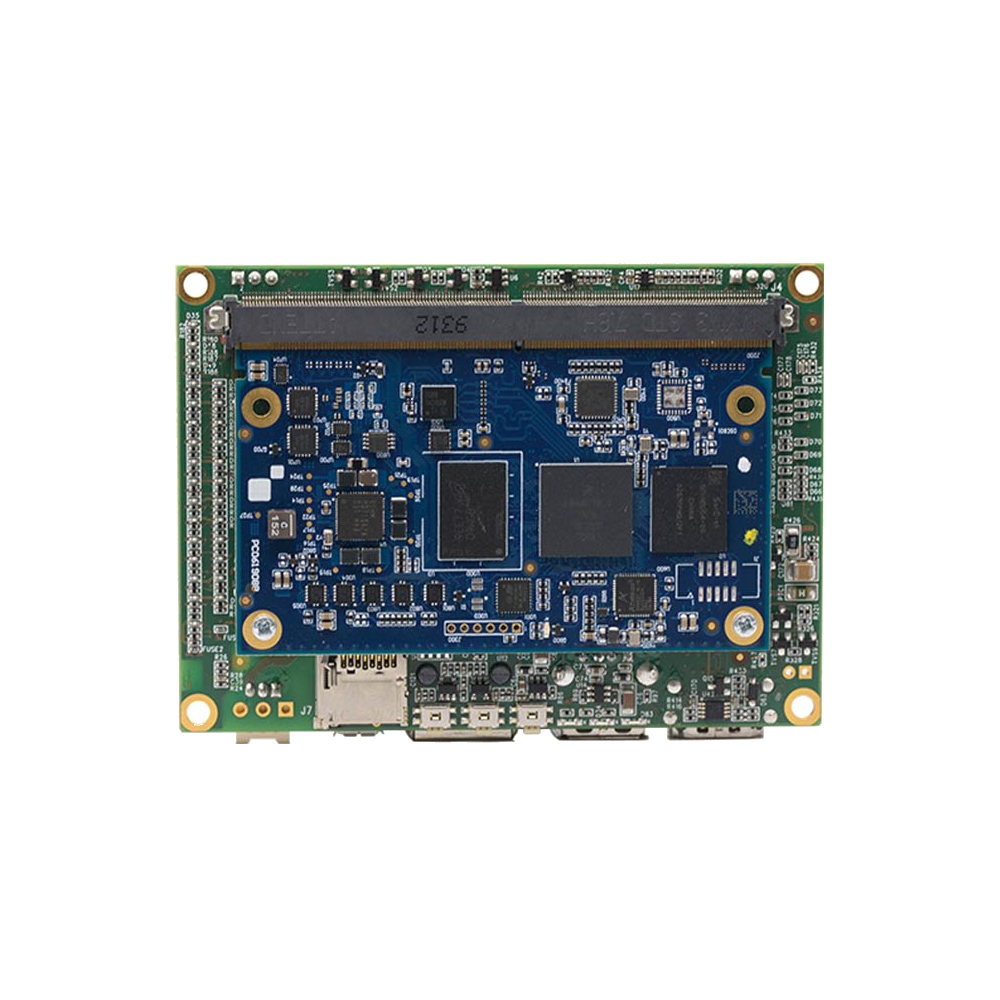

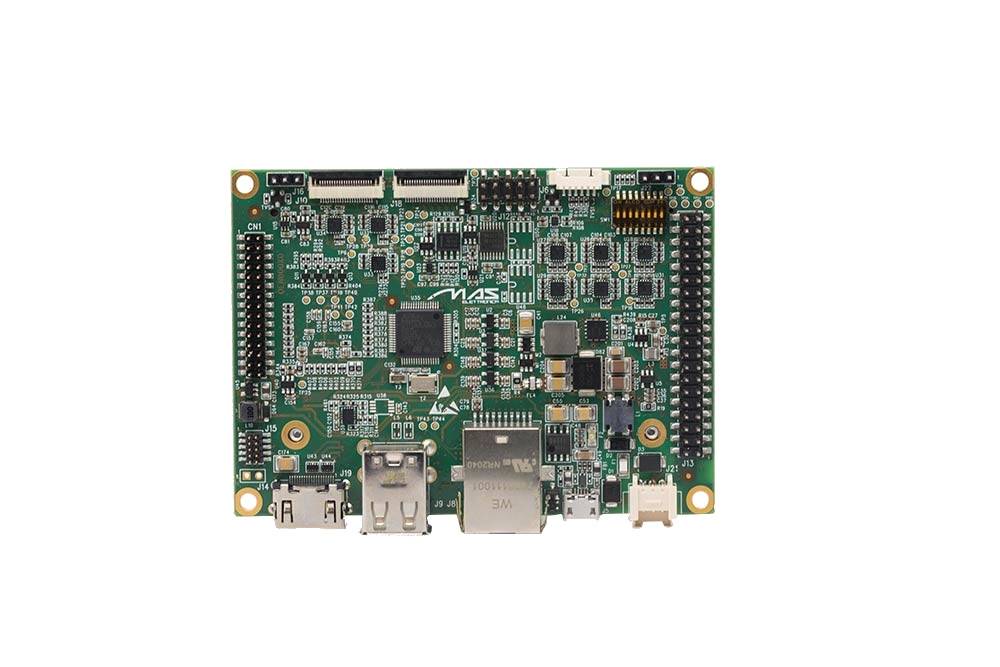

MasElettronica SBC FRIDA – IMX8M Mini/Nano
APPLICATION AREAS: Industrial, Medical, Automotive.FRIDA Single Board Computer SBC based on the NXP integrated multicore Arm A53 i.MX 8M Family. The standard form factor PICO ITX and SMARC 2.0 ensures the complete modularity of the solution.
- Meccanical dimentions Pico ITX (100x72mm)
- Low power microcontroller integrated ideal for low power applications
- CPU: IMX8M Mini/Nano/PLUS
- TPM security module to protect the integrity and autenticity of your embedded system.
- 1x Gigabit Ethernet
- 1xRS485 1x RS232
- 1x LVDS + 1x HDMI
- 1x CAN 2.0
- 2x CSI x4
- SW Yocto Hardknott
- SWUpdate integrated
Industria / PlacasMedicina
-
ARM
-
HDMI
-
Interfaz
-
Linux
-
USB
Specifications
| CPU | CPU: IMX8M Mini/Nano/PLUS CPU type: Cortex™-53 Cores: x4 Core: x1 Cortex M4/M7 CPU Clock (Max): 1800Mhz |
| MAS CPU SUPPORT | Anita IMX8M Mini Anita IMX8M Nano Aurora IMX8M PLUS |
| STORAGE | 8-64Gbyte eMMC 128Mbyte NOR SPI |
| MEMORY | 1-4 Gbyte LPDDR4 |
| MULTIMEDIA | See the characteristics of the processor equipped |
| PERIPHERALS | uSD MMC x1 4X PWM 1X RS232, 1X RS485 I2C x2 SPI x2 RTC x1 Gigabit Ethernet x 1 GPIOs x36 1x Debug UART TTL 2 USB Host 1x LVDS Connettore 1x HDMI Connettore 1xuSD Connettore 1x CAN 2.0 1x MIPI CSIx4 Connettore 1xDSI Display 1x 40 pin Raspberry Pi I/O Connector compliant 1xIMU Sensor (9 axis accellerometro/Girscopio/Magnetometro) 1x CPU Low Power Cortex M0 |
| SOFTWARE SUPPORT | LINUX kernel 5.4.3; Yocto Hardknott |
| MECHANICAL SPECIFICATIONS | Dimensions: 100 x 72 mm |
| ELECTRICAL SPECIFICATIONS | Power Sypply: 9-36VDC Consumption: 200mA |
| POWER CONSUMPTION | Power Sypply: 9-36VDC Consumption: 200mA |
| TEMPERATURE SPECIFICATIONS | Extended Temperature (-20° a 70°) |
| LONGEVITY | Min : 2036 |
| SECURITY | TPM Trusted Platform Module compliant 2.0 integrated. |
