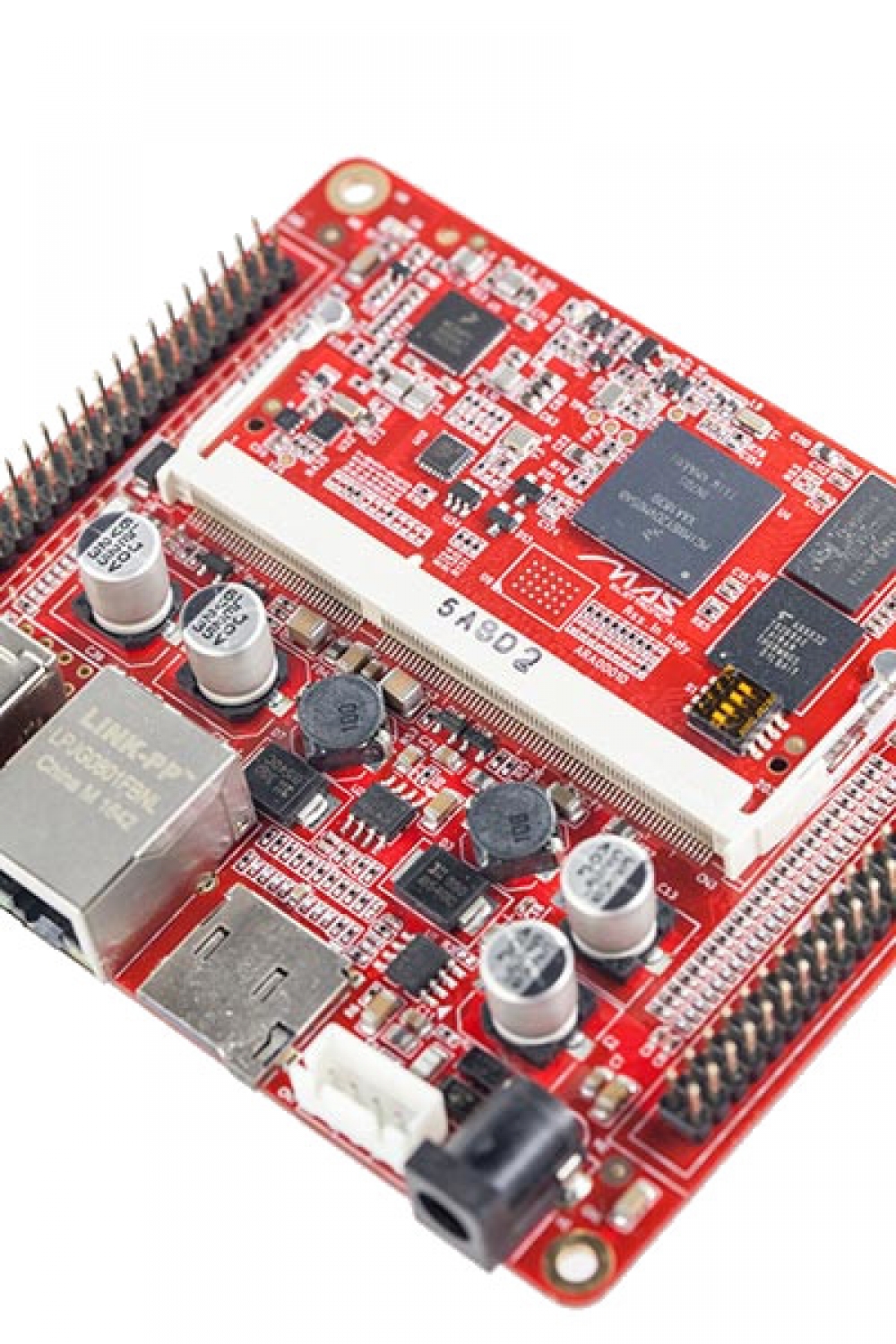

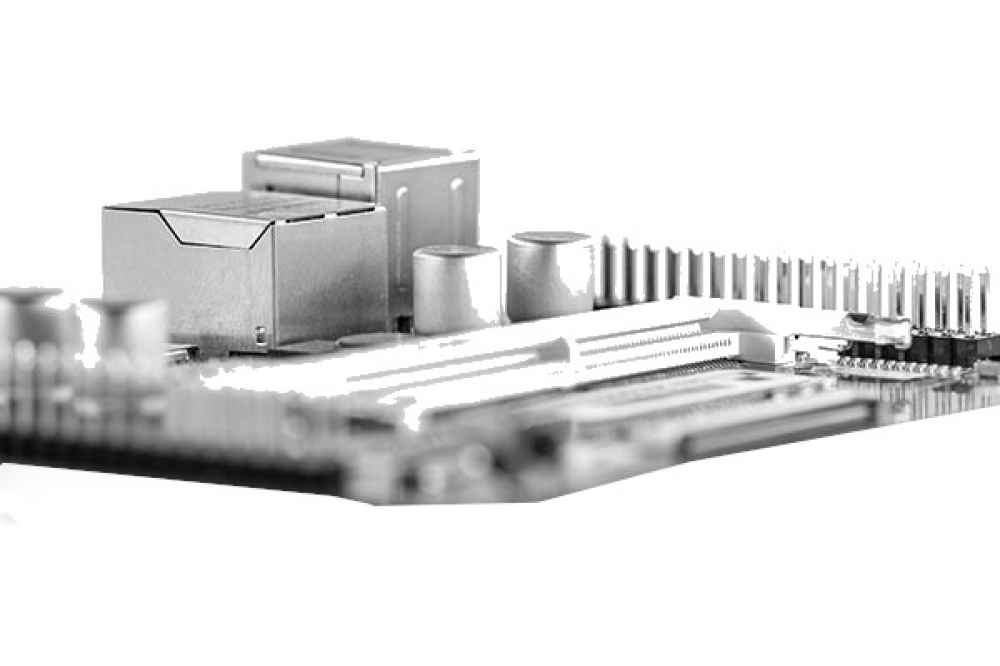

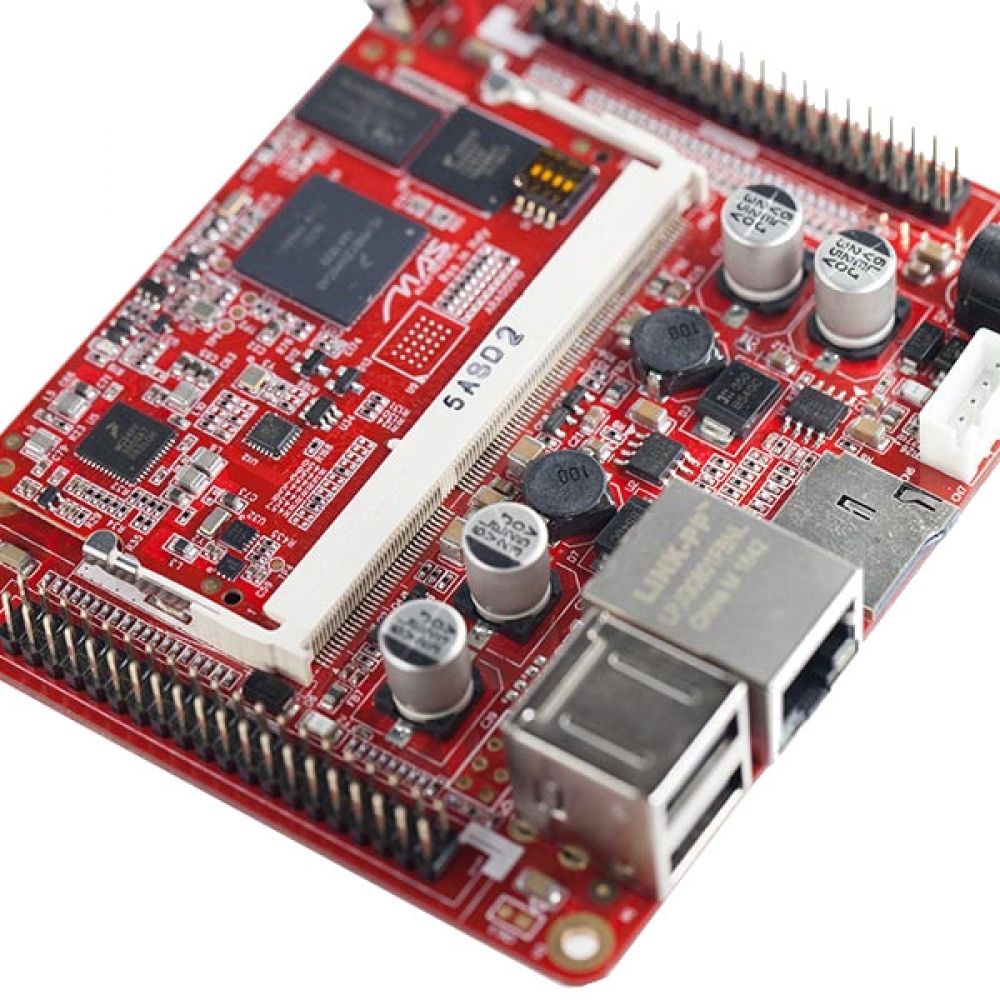

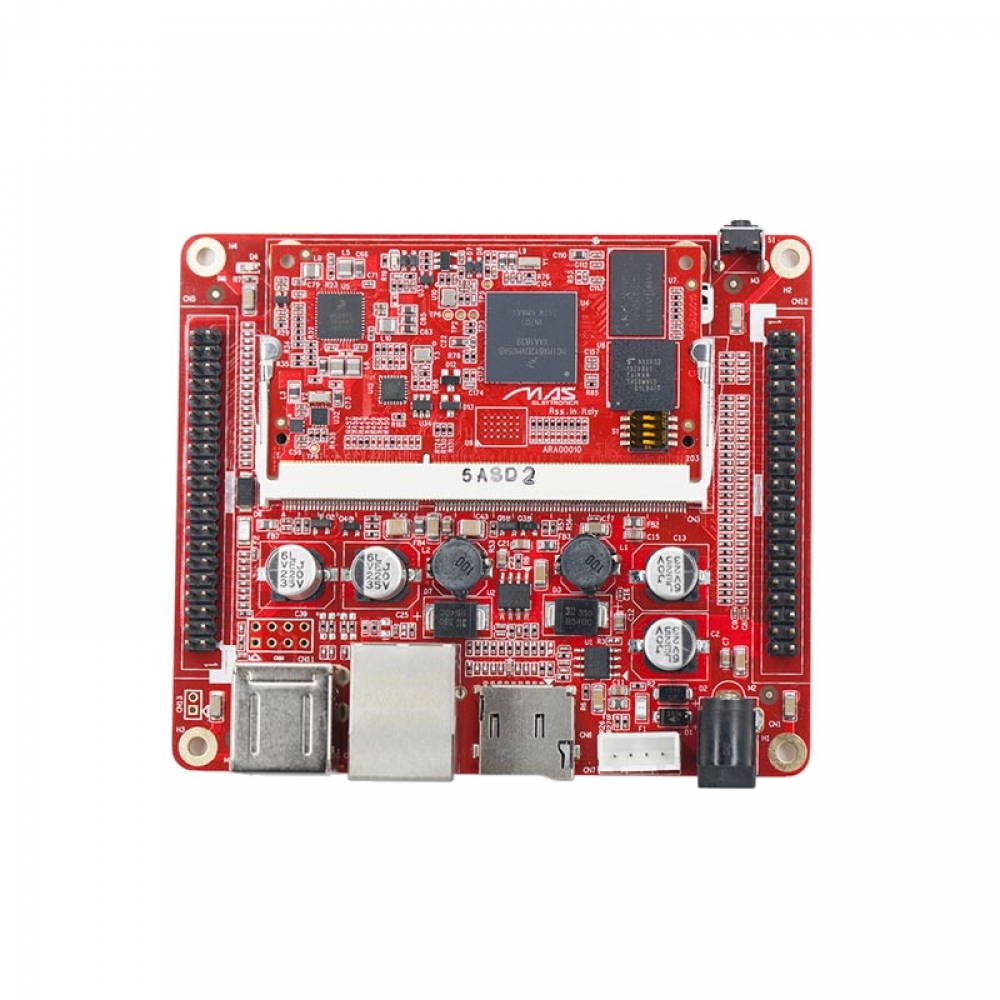

MasElettronica SBC SARA – iMX6ULL
APPLICATION AREAS: Medical, IndustrialSARA is an SBC based on NXP IMX6ULL CPU (SARA) technology. Its compact size and its flexibility make it the ideal product for applications requiring low consumption and high connectivity.
SARA targets a wide range of applications, including: small HMIs, Medical Devices, Industrial IOT and Ambiental datalogging.
- CPU: NXP i.MX6UL/ULL/ULZ
- CPU Clock (Max): 900 MHz
- DMIPS: Fino a 1,710
- ETHERNET 1x 10/100 Mbps;
- 1xRTC integrated
- TPM security module to protect the integrity and autenticity of your embedded system.
- Up to 1024 Mbyte RAM DDR3L
- 2 Canbus
- SWUpdate integrated
- Secure Boot
Industria / PlacasMedicina
-
DC
-
Interfaz
-
IPX6
-
Linux
-
USB
Specifications
| CPU | CPU: AURA NXP i.MX6UL/ULL/ULZ Type: Cortex™-A7 Cores x1 CPU Clock (Max): 900Mhz |
| VIDEO | UP to 1366 x 768 16-bit TTL |
| STORAGE AND RAM | RAM: 128 – 1024 MB DDR3L |
| MULTIMEDIA | 2D pixel acceleration engine (PxP) |
| PERIPHERALS | uSD MMC x1 USB Host/ device x2 2 USB Host, 1x USB OTG UART x 4 TTL up to 5 Mbps I2C x2 SPI x2 RTC x1 Ethernet x1 10/100Mbit/s GPIOs x30 1x Debug UART (3V3 TTL) |
| SOFTWARE SUPPORT | LINUX kernel 5.4.3; Yocto ZEUS |
| MECCANICAL SPECIFICATION | Dimension: 130 x 103.5 mm |
| ELECTRICAL SPECIFICATION | Voltage: 12VDC Power Consuption: 50mA, in supsend to RAM 8mA |
| TEMPERATURE SPECIFICATION | Commercial temperature (0° a 70°): Available Extended temperature (-20° a 70°): Available Industrial temperature (-40° a 85°): Available |
| LONGEVITY | Minimum: 2030 |
