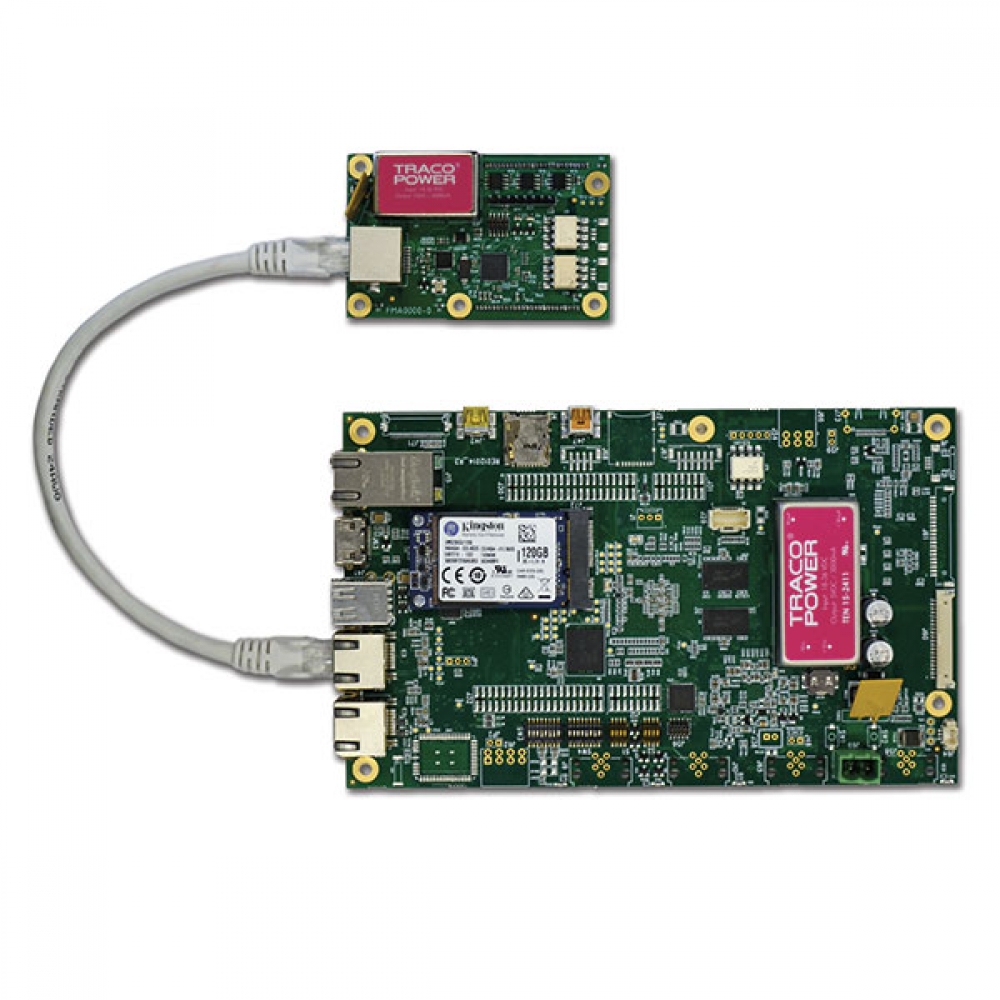

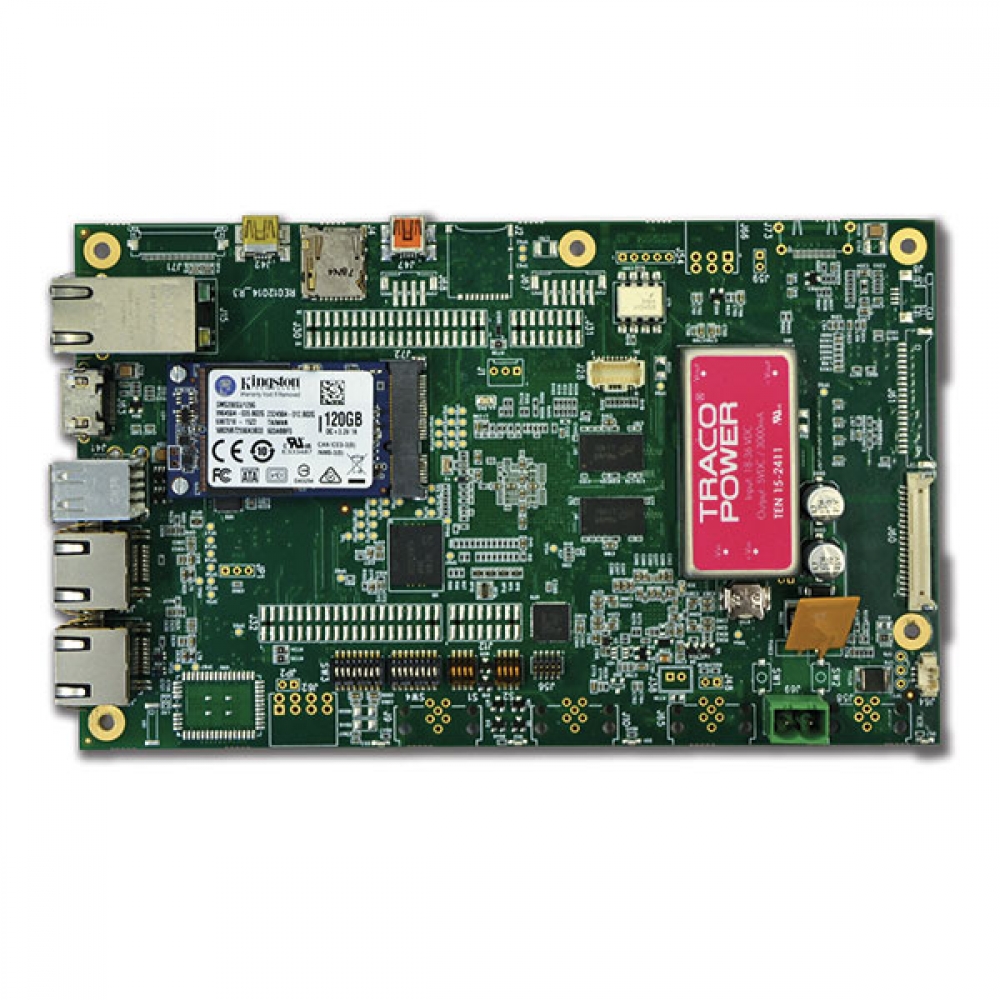

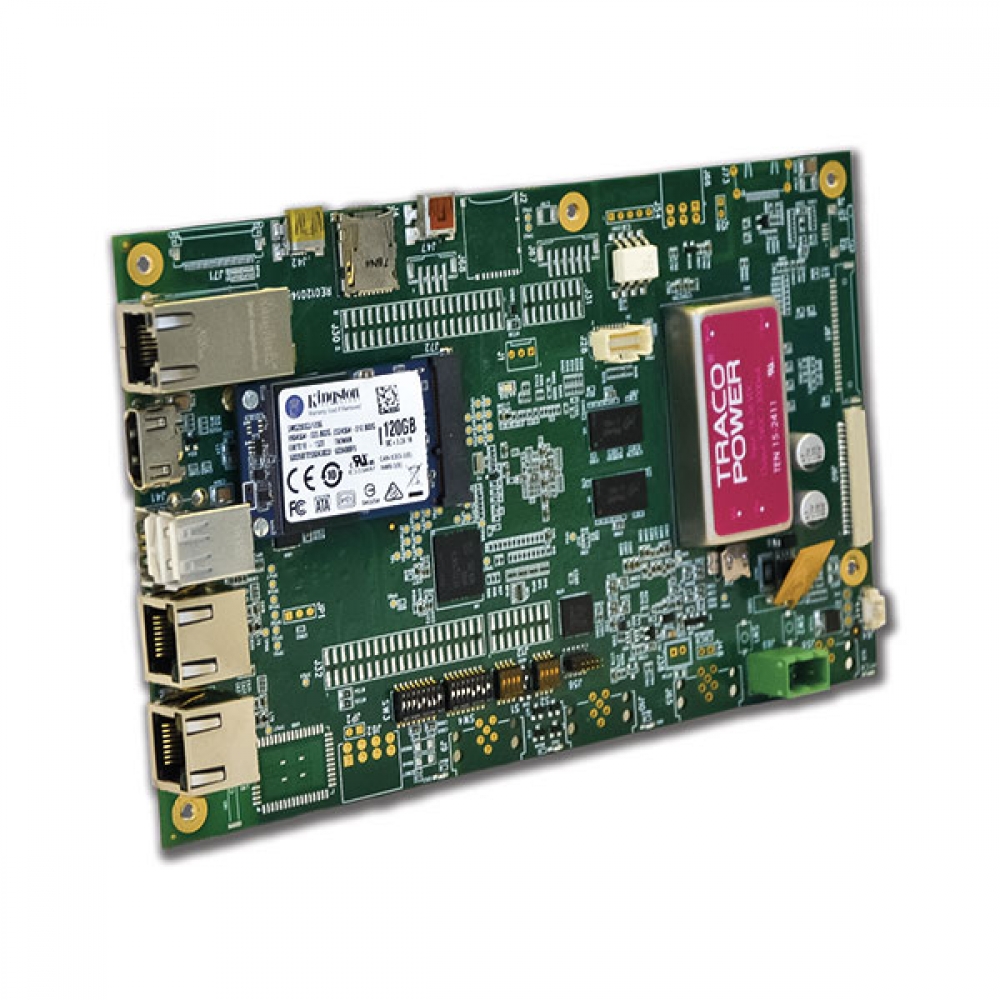

MasElettronica SBC STELLA – IMX6Q
APPLICATION AREAS: Industrial, Medical. STELLA supports i.MX6 Quad / Dual / DualLite / Single core ARM Cortex-A9. It processes data and communicates very effectively thanks to its multi-core processing, it connects to the Cloud and Internet of Things (IOT) through the MQTT protocol. Robustness and reliability, especially in high stress environmental conditions, effective from -40 to 85 ° C temperature range and Dual CAN the ideal support for industrial and medical applications; 1080p video and graphics accelerator make it suitable even for intensive multimedia applications.
Industria / PlacasMedicina
-
Android
-
Bluetooth
-
HDMI
-
Interfaz
-
Linux
-
USB
-
Wifi
Specifications
| CPU | CPU: i.MX6 NXP Type: Cortex™-A9 MPCore™ up to Single/Dual e Quad core Clock (max): 1.2 GHz |
| DISPLAY | HDMI: v1.4 1920 x 1080 LVDS: Dual 1920 x 1200 24 Bit TTL: 24 Bit |
| MEMORY | NAND FLASH: up to 8 Gbyte RAM: DDR3 up to 4 Gbyte eMMC: up to 64 Gbyte |
| MULTIMEDIA | 3D Grafic accelerator: GPU 3D Vivante™ Camera Interface: 1x CSI, 2x CPI Audio: Codec integrated/ Amplified Video Encode / Decode: 1080p60 H.264 Decode, 1080p30 H.264 Encode |
| PERIPHERALS | SD/MMC x2 USB Host / Device USB 2.0 : 1x Host, 1x OTG UART x4, fino a to 3.6 Mbps I2C x2 SPI x2 M SATA II Interface up to 3.0 Gbps RTC with battery Wi-Fi 802.11 b/g/n Bluetooth 4.0 BLE GPIO variable shared with other peripherals |
| SOFTWARE SUPPORT | LINUX: 4.9 Yocto ANDROID: 7.1 NOUGAT Ubuntu: 12.04 LTS |
| MECHANICAL SPECIFICATION | Dimentions: 189 x 116mm |
| ELECTRICAL SPECIFICATION | Power Supply: 5V o 18-3 6V Consumption: 6-8W |
| TEMPERATURE SPECIFICATIONS | (-40 to 85°C) available |
| LONGEVITY | Min: 2028 |
