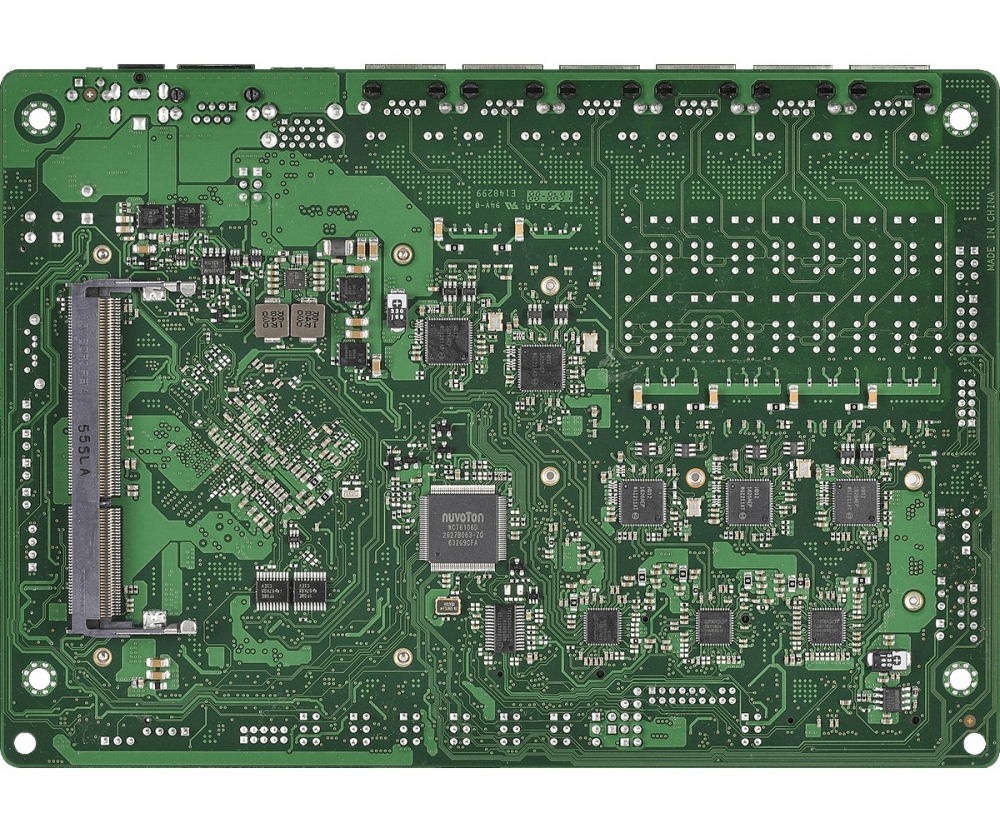

NAB-9602
200x140mm Intel Apollo Lake SoC (0ºC – 60ºC)- Intel® Apollo Lake SoC Processor
- Supports Single Channel DDR3L up to 1867MHz, 1 x SO-DIMM, up to 8GB system memory
- 1 x VGA
- 2 x USB 3.0
- 1 x M.2 (Key E) , 1 x M.2 (Key M)
- Gigabit LAN : 6 x Intel® LAN
- Supports Bypass Function
- 1 x MiniPCIe with SIM socket for WiFI/3G/LTE
- 1 x TPM
- 12V DC-in Jack / 4-pin ATX PWR Con
/
-
3G
-
Bluetooth
-
DC
-
Intel
-
Interfície
-
LAN
-
Linux
-
Lte
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
Specifications
Processor system
|
CPU |
Intel® Apollo Lake SoC Processor |
|
Chipset |
(By CPU) |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (full/half size, supports PCIex1 and USB device) |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module 1 x M.2 Slot (Key M), supports type 2242/2280 M.2 for SATA only |
Memory
|
Technology |
Single Channel DDR3L up to 1600 MHz 1 x SO-DIMM |
|
Max. |
8GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® HD Graphics |
|
Max. Resolution |
- |
Ethernet

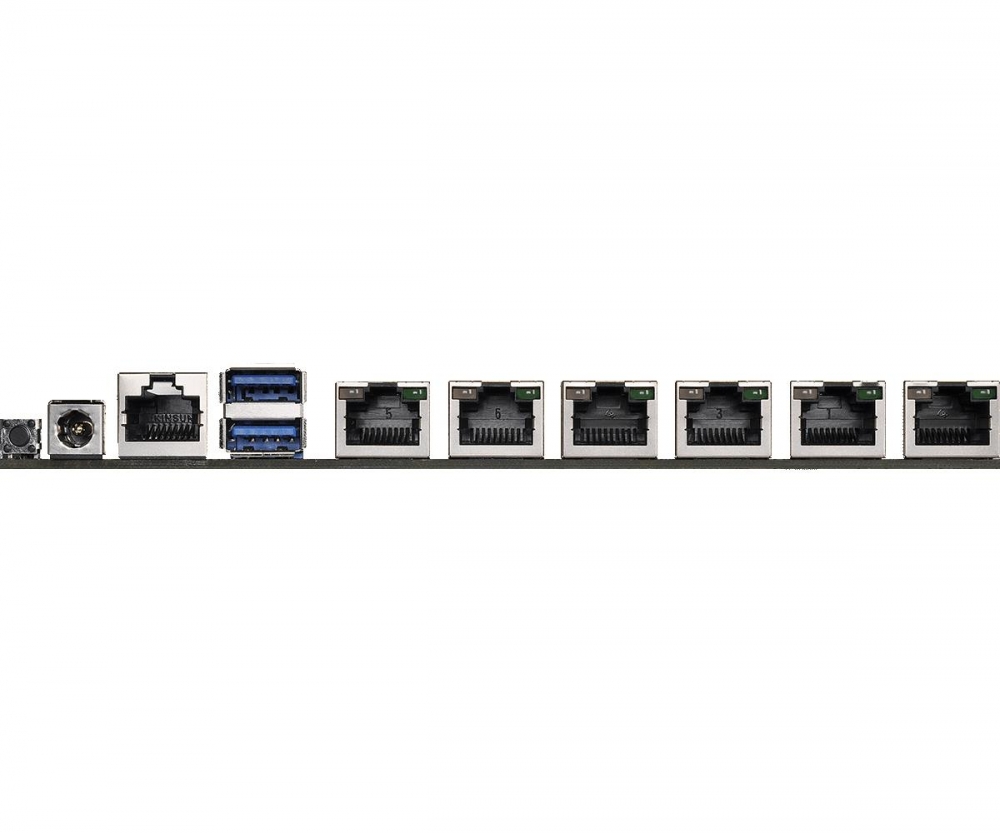

Rear I/O
|
VGA |
- |
|
HDMI |
- |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
6 x RJ45 |
|
USB |
2 x USB 3.0 |
|
Audio |
- |
|
Serial |
1 x RJ45 (No LED) COM port |
Internal connector
|
USB |
2 x USB 2.0 |
|
LVDS/Inverter |
- |
|
Serial |
1 |
|
SATA |
1 |
|
mSATA |
- |
|
Mini-PCIe |
1 |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12V DC-in Jack / 4-pin ATX PWR Con. |
Environment
|
Operating temp. |
0ºC–60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
