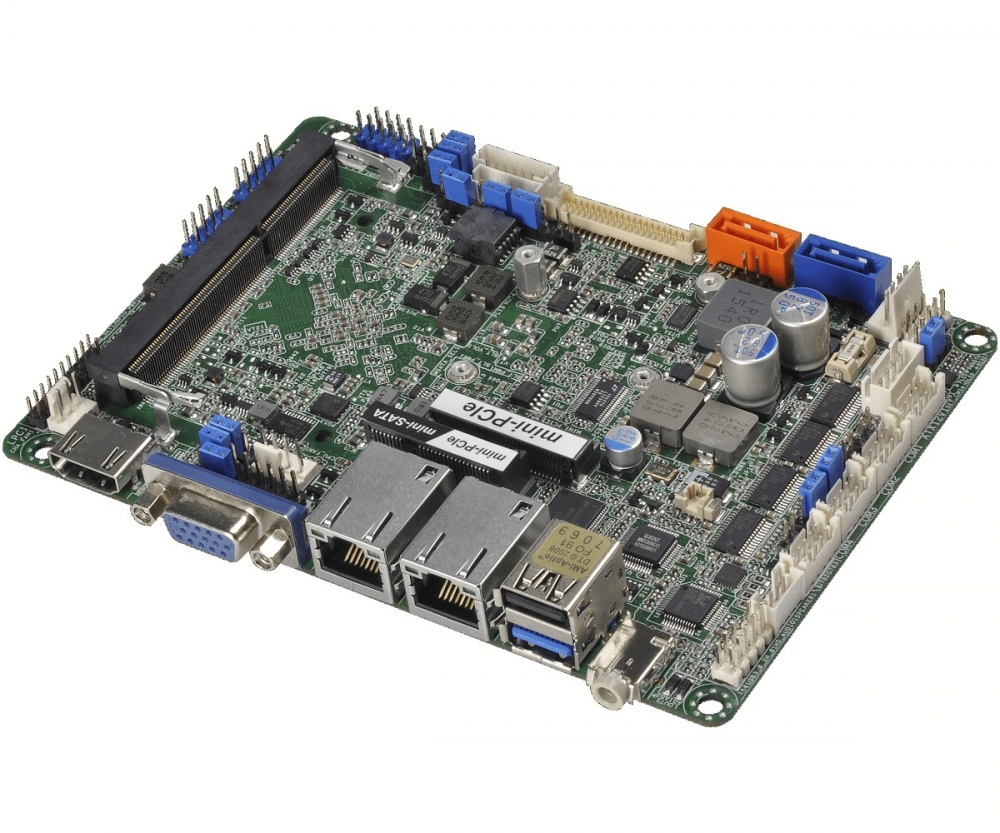

SBC-212-WT
- Intel® Atom™ Baytrail-I E3800 Series
- Integrated Intel® Gen7 Intel® Graphics DX 11, OGL3.2
- Supports Single Channel DDR3L 1333MHz, 1 x SO-DIMM, up to 8GB system memory
- 1 x COM (RS-232/422/485), 3 x COM (RS-232)
- 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x mini-PCIe, 1x mSATA (shared)
- Gigabit LAN : 2 x Intel® LAN
- 1 x TPM Header
- 9~36 V DC-in
Gaming en
Kiosk en
![SBC-212-WT](pics_fotosproductos/14/med_full_sbc-212-wtl1.jpg)
![SBC-212-WT](pics_fotosproductos/14/med_full_sbc-212-wtl2.jpg)
![SBC-212-WT](pics_fotosproductos/14/med_full_sbc-212-wt-3.jpg)
![SBC-212-WT](pics_fotosproductos/14/med_full_asrockfondo-blanco.jpg)
![SBC-212-WT](pics_fotosproductos/14/th_crop_sbc-212-wtl1.jpg)
![SBC-212-WT](pics_fotosproductos/14/th_crop_sbc-212-wtl2.jpg)
![SBC-212-WT](pics_fotosproductos/14/th_crop_sbc-212-wt-3.jpg)
![SBC-212-WT](pics_fotosproductos/14/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel® new AtomTM Baytrail-I E3800 Series Supports Hyper-Threading Technology |
Chipset |
N/A |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (Half Size) + 1 (Full Size) shared with mSATA |
mSATA |
1 (Full Size) shared with SATA2 |
PCIe |
- |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Single Channel DDR3L 1333 MHz SDRAM |
Max. |
8GB |
Storage |
SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel® Gen7 Intel® Graphics DX 11, OGL3.2 |
Max. Resolution |
1920 x 1200@60Hz |
Ethernet

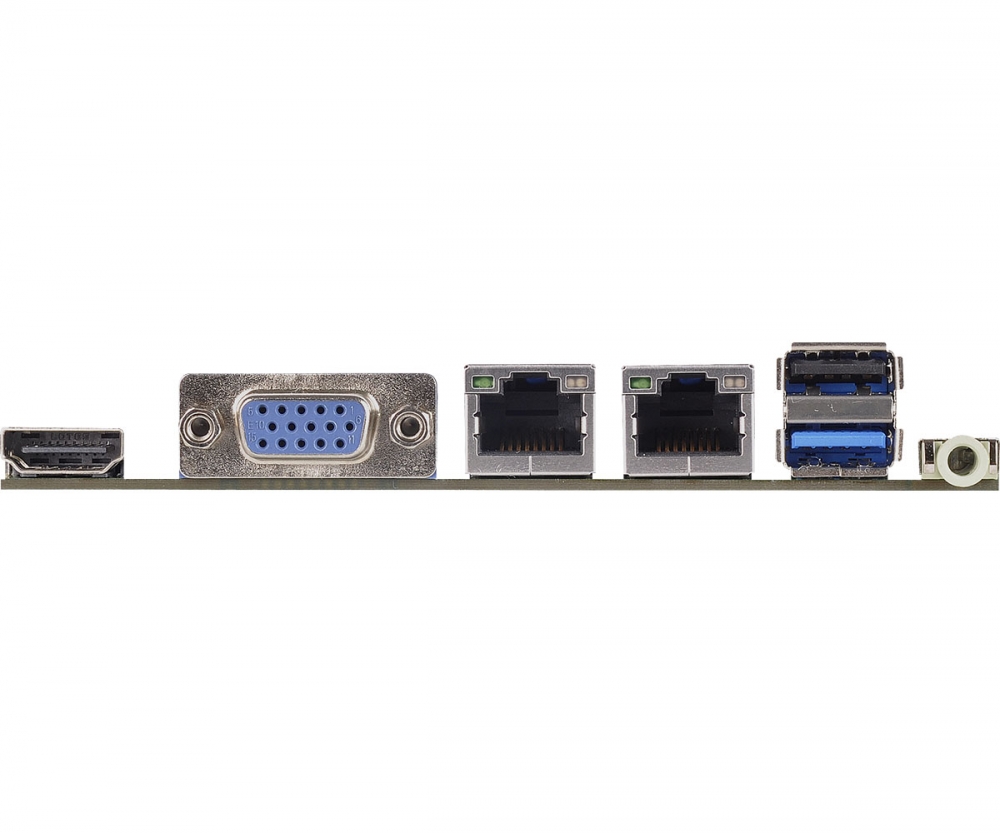

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
- |
Ethernet |
2 |
USB |
1 x USB3.0 , 1 x USB2.0 |
Audio |
1 (Line out) |
Serial |
- |
mSATA |
- |
Mini-PCIe |
- |
GPIO |
- |
SATA PWR |
- |
SIM |
- |
Internal connector
USB |
6 (3 x 2.54 pitch header USB 2.0 compliant) |
LVDS/Inverter |
1/1 |
Serial |
1 x COM1 (RS-232/422/485) , 3 x COM (RS-232) |
SATA |
2 x SATA2 ( 3.0Gb/s) |
mSATA |
1 (shared) |
Mini-PCIe |
1 |
GPIO |
4 x GPI + 4 x GPO |
SATA PWR |
1 |
SIM |
- |
Power requirement
Power Input |
9-36V DC-In using 4-pin ATX PWR Con |
Environment
Operating temp. |
-20ºC – 75ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
Format factor |
3.5” SBC |
Dimensions |
5.8-in x 4.0-in / 148 x 102mm |
Weight |
- |
Construction |
- |
