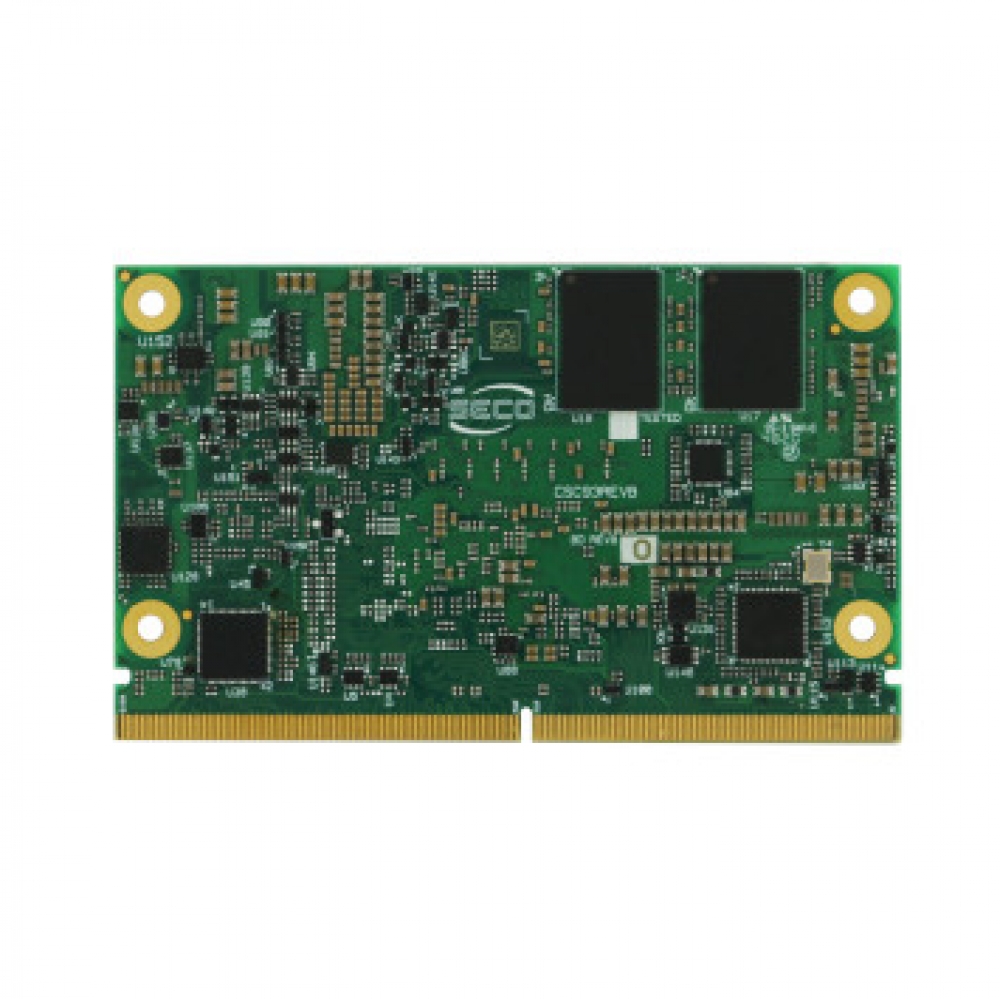

Seco SOM-SMARC-EHL

SMARC® Rel. 2.1.1 module with Intel® Atom® x6000E series and Intel® Pentium® and Celeron® N and J series processors (Codename: Elkhart Lake) for FuSa applications. (HALLEY - C93)
  • Intel® Atom® x6000E Series and Intel® Pentium® and Celeron® N and J Series processors
  • Integrated Gen11 UHD Graphics controller supporting 3 independent displays
  • 2x GbE with precision time protocol IEEE 1588, optional SERDES for external 3rd Ethernet, 6x USB 2.0, 3x USB 3.1, up to 4x PCI-e
  • Quad Channel LPDDR4x Soldered Down with IBECC
Digital Signage / Módulos
Energía
Gaming
Industria
Kiosk
Medicina
Seguridad
Smart City
Transporte
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • LAN
    LAN
  • Linux
    Linux
  • Serie
    Serie
  • USB
    USB
  • Windows
    Windows

Specifications

Description Computer on Module (CoM) SMARC® Rel. 2.1.1 with Intel® Atom® x6000E series and Intel® Pentium® and Celeron® N and J series processors (formerly Elkhart Lake) for FuSa applications
Cpu Intel® Atom™ x6000E, Pentium® and Celeron® N and J Series “Elkhart Lake” CPUs:

• Celeron® J6413 Quad Core @ 1.8GHz (3.0GHZ Turbo) 10W TDP - Comm. Temp. Range
• Celeron® N6211 Dual Core @1.2GHz (3.0GHZ Turbo) 6.5W TDP - Comm. Temp. Range
Pentium® J6426 Quad Core @2GHz (3.0GHZ Turbo) 10W TDP - Comm. Temp. Range
  • Pentium® N6415 Quad Core @1.2GHz (3.0GHZ Turbo) 6.5W TDP - Comm. Temp. Range
  • Atom™ x6211E Dual Core @1.3GHz (3.0GHZ Turbo) 6W TDP w/ IBECC and IHS - Ind. Temp. Range
  •  Atom™ x6413E Quad Core @1.5GHz (3.0GHZ Turbo) 9W TDP w/ IBECC and IHS - Ind. Temp. Range
  •  Atom™ x6425E Quad Core @2GHz (3.0GHZ Turbo) 12W TDP w/ IBECC and IHS - Ind. Temp. Range
  •  Atom™ x6212RE Dual Core @1.2GHz (non-Turbo) 6W TDP w/ IBECC, IHS and TCC - Ind. Temp. Range
  •  Atom™ x6414RE Quad Core @1.5GHz (non-Turbo) 9W TDP w/ IBECC, IHS and TCC - Ind. Temp. Range
  •  Atom™ x6425RE Quad Core @1.9GHz (non-Turbo) 12W TDP w/ IBECC, IHS and TCC - Ind. Temp. Range
  •  Atom™ x6427FE Quad Core @1.9GHz (non-Turbo) 12W TDP w/ IBECC, IHS and TCC, FuSa Certified - Ind. Temp. Range
  •  Atom™ x6200FE Dual Core @1.0GHz (no Turbo) 4.5W TDP no Graphics w/ IBECC, IHS and TCC, FuSa Certified - Ind. Temp. Range
(*) IHS: Integrated Heatspreader; TCC: Time Coordinated Computing
(**) FuSa Certified: Atom™ SKUs compliant to IEC 61508 and ISO 13849 requirements for Functional Safety and Safety Integrity levels
Max cores 4
Memory 32-bit LPDDR4x Soldered Down Memory
Up to 16GB Quad Channel with In-Band Error Correction Code (IBECC, Safety Related feature) supported
1GB or 2GB Single Channel, 4GB Dual Channel, 8GB or 16GB Quad Channel supported
Speed: 4267MT/s single rank (1GB / 2GB / 4GB / 8GB), 3733MT/s dual rank (16GB



Graph Up to 3 independent displays
Integrated Gen11 UHD Graphics controller with up to 32 EU
4K HW decoding and encoding of HEVC (H.265), H.264, VP8/VP9, WMV9/VC1 (decoding only)
DirectX 12.1, OpenGL ES 3.1, OpenGL 4.5, OpenCL™ 1.2, Vulkan 1.0
Video interfaces eDP 1.3 or Dual Channel 18/24bit LVDS interface (factory options)
2 x DP++ 1.4 or 1x DP++ 1.4 and 1x HDMI 1.4 interfaces
Video resolution Up to 4096x2160 @60Hz
Mass storage 1 x external S-ATA Gen3 Channel
SDIO interface
Optional eMMC 5.1 drive soldered on-board (Safety Related)
Networking 2x Gigabit Ethernet PHY with precision clock synchronization and synchronous Ethernet clock output for IEEE 1588 (Safety Related – Black channel)
Optional SERDES (SGMII) Interface for additional third Gigabit Ethernet (factory option, alternative to fourth PCI-e lane)
Usb 6 x USB 2.0 Host Ports
2 x USB 3.1 Gen2 Ports
PCI Up to 4 x PCI-e Gen3 Lanes
Audio HD Audio interface
Serial ports 2 x HS-UARTs (Safety Related)
2 x UARTs
Other interfaces SM Bus
Power Management Signals
I2C Bus
1x SPI interface for boot
1x General Purpose SPI or eSPI (Factory Alternatives)
Electrical power supply +5VDC and +3.3V_RTC
OS Microsoft® Windows 10 Enterprise (64-bit)
Linux Yocto 64-bit
Operating temperature -40°C ÷ +85°C (Industrial version)
*Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider application specific
cooling solutions for the final system to keep the heatspreader temperature in the indicated range.
Dimensions 50x82mm
