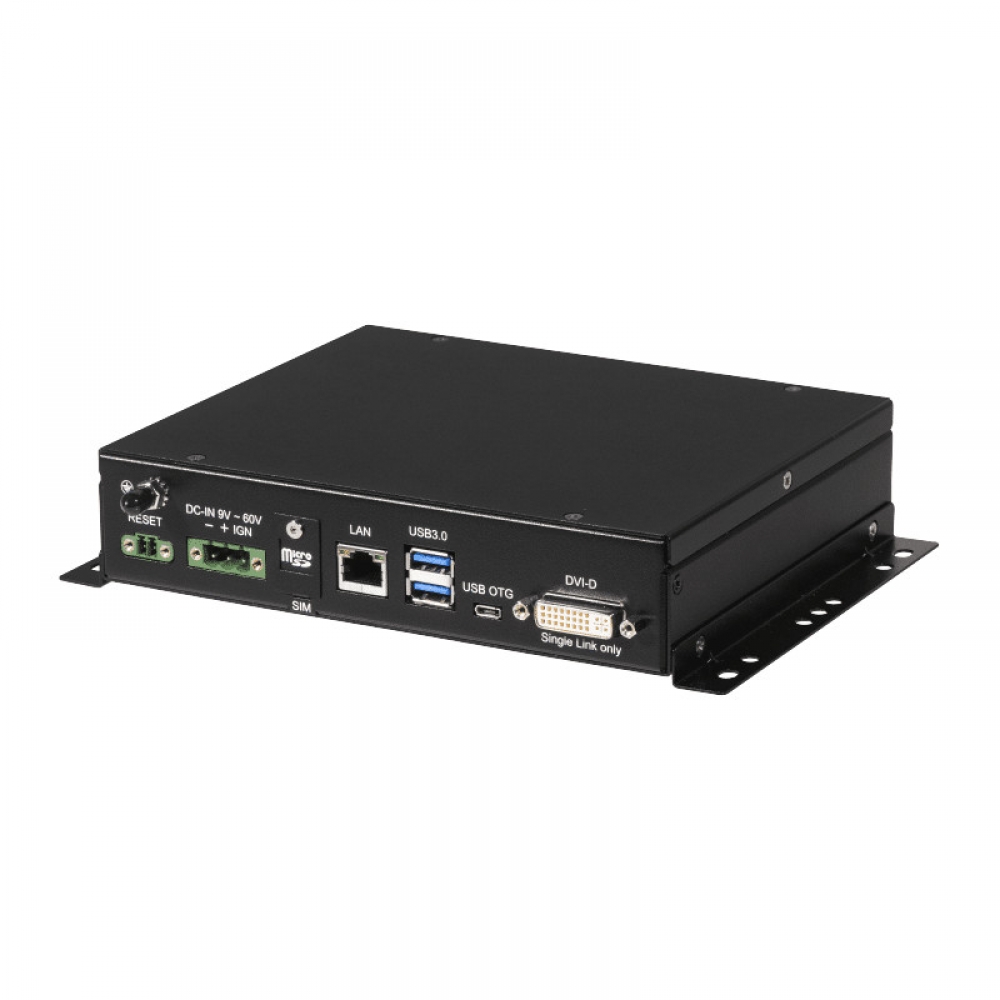

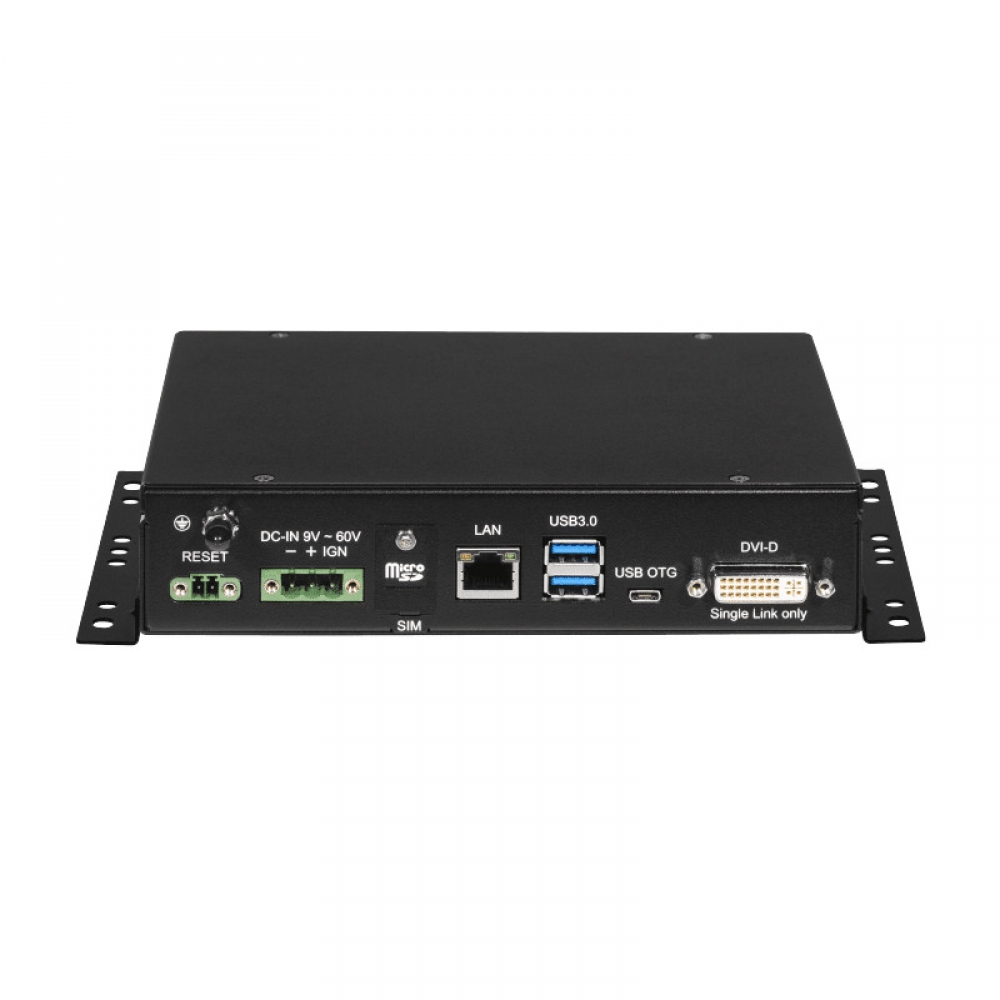

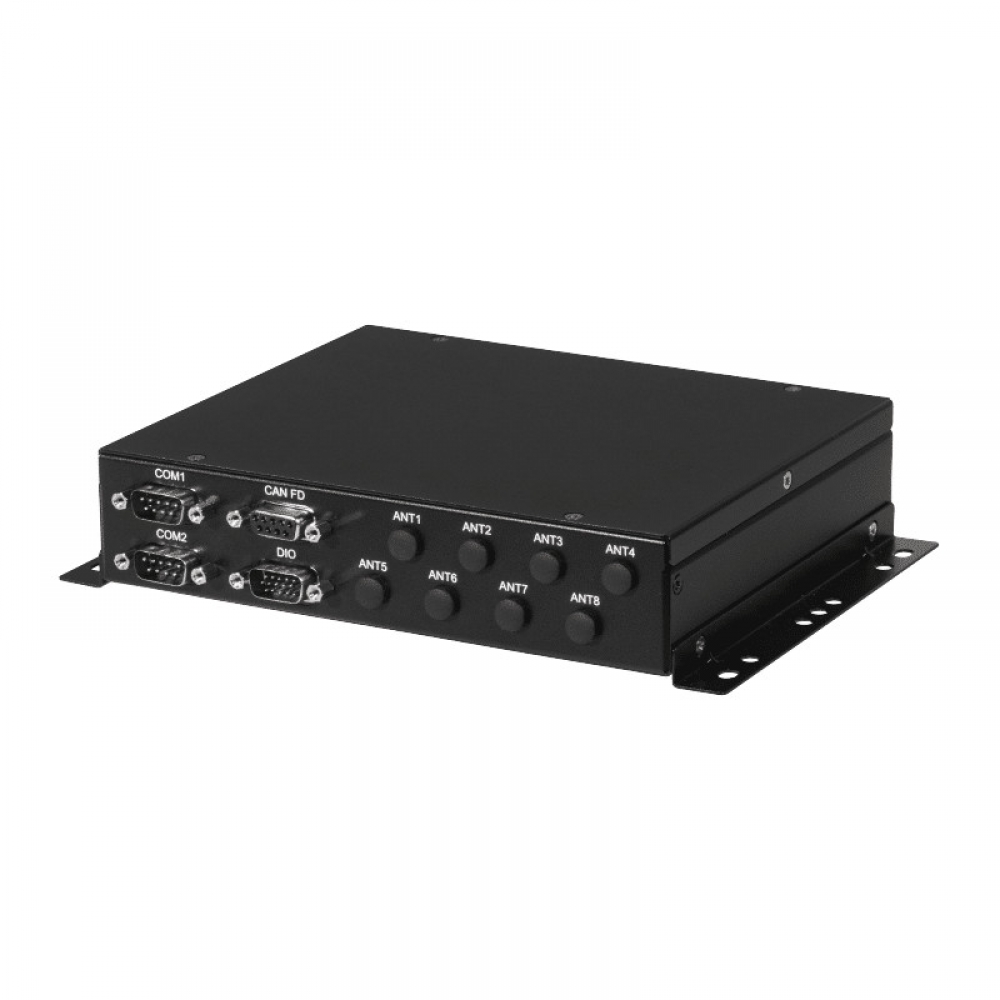

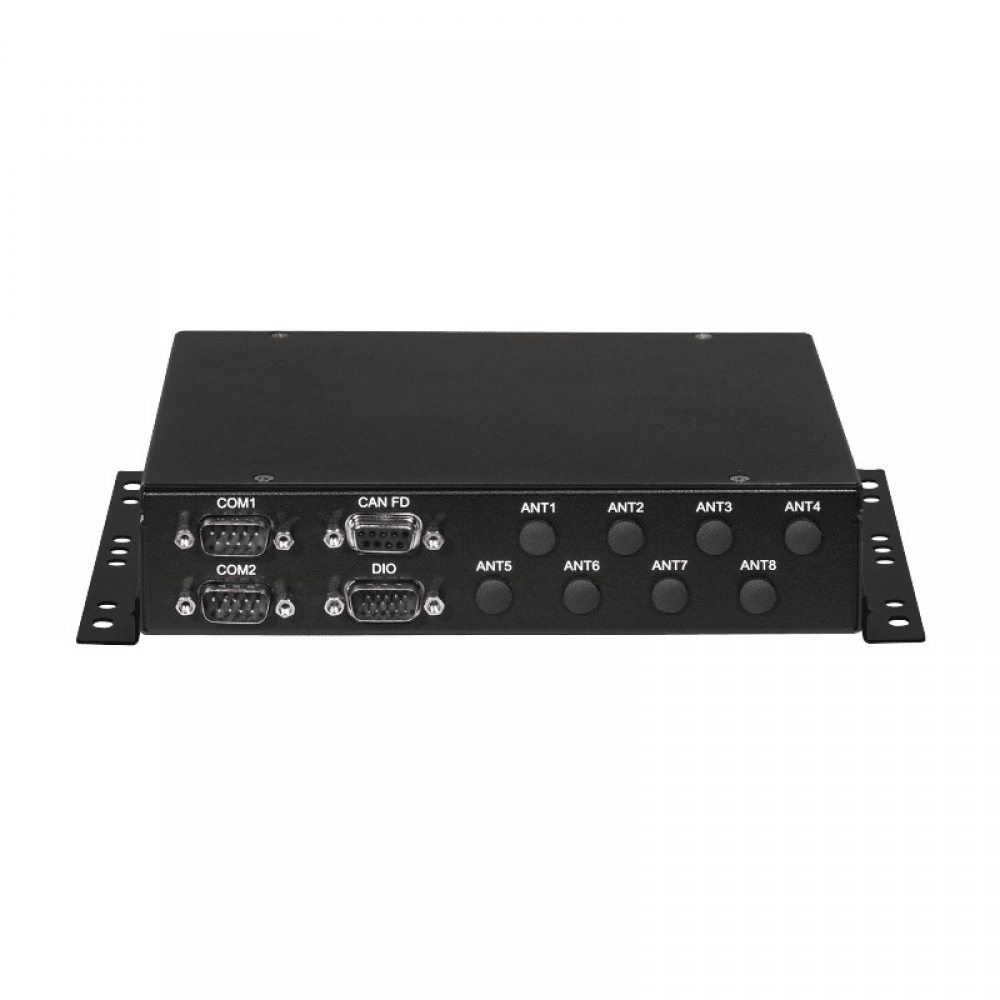

Sintrones IBOX-500
Fanless Industrial Computer for EV Smart Cockpit
NXP® i.MX 8 QuadXPlus Automotive Grade SoC/ On-board LPDDR4 3GB/ On-board eMMC 5.1 32GB/ 1 x GbE/ 2 x RS-232/ 1 x DVI-D Single-Link/ 2 x USB 3.2
- NXP i.MX 8 QuadXPlus Automotive Grade Soc ( AEC-Q100 Grade 3)
- On-board LPDDR4 3GB and eMMC 5.1 32GB
- Built-in Accelerometer, Gyroscope, and Magnetics Sensor
- 3 x CAN/ CAN FD
- 1 x DVI-D Single-Link (Sintrones proprietary pin define)
- 8 x DI, and 4 x DO and 2 x RS-232
- 1 x M.2 3042/3052 Key B, 1 x M.2 2242 Key B, 1 x M.2 Key A-E
- 1 x Micro-SD Slot
- 9-60V DC Power Input
- Operating Temp.: -40 ~ 70°C
Transporte
![Sintrones IBOX-500](pics_fotosproductos/2010/med_full_sintrones-ibox-500-1.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/med_full_sintrones-ibox-500-2.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/med_full_sintrones-ibox-500-3.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/med_full_sintrones-ibox-500-4.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/med_full_sintronesfondo-blanco.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/th_crop_sintrones-ibox-500-1.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/th_crop_sintrones-ibox-500-2.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/th_crop_sintrones-ibox-500-3.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/th_crop_sintrones-ibox-500-4.jpg)
![Sintrones IBOX-500](pics_fotosproductos/2010/th_crop_sintronesfondo-blanco.jpg)
Specifications
SYSTEM
Processor
NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3)
Integrated 4 x Arm Cortex@-A35 Cores Up to 1.2 GHz
1 x Am Cortex@-M4F Core Up to 264 MHz
Chipset
N/A
Memory
On-board LPDDR4 3 GB
Sensor
Built-in Accelerometer, Gyroscope, and Magnetic Sensor
Watchdog
1 ~ 255 Level Reset
GRAPHICS
Graphics Engine
CPU 1 x GC7000Lite with 4 x Vec4 shader cores
(16 execution units)
DVI-I
1 x Single Link
(SINTRONES proprietary pin define)
Max Resolution
Max Resolution (DV-D Single Link) : 1920×1080 @60Hz
ETHERNET
LAN
1 x RJ-45 for GbE
I/O
Serial Port
1 x RS-232
1 x RS-232/422/485
USB
2 x USB 3.2 5 Gbps
1 x USB 2.0 OTG
DIO
8x DI (5~60VDC)
4 X DO (5VDC, 100mA)
STORAGE
Type
Onboard eMMC 5.1 32 GB
1 x Micro SD Slot
EXPANSION
M.2
1 x M.2 3042/3052 Key B for WWAN w/ 1 x nano SIM Slot
1 x M.2 2242 Key B for GPS
1 x M.2 Key A-E for Wi-Fi
POWER
Power Input
9V -60V Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Power-off Delay Control
Vehicle Power Ignition for Variety Vehicle
Power Off Control
Power off Delay Time Setting by Software
MECHANICAL
Dimension
214(L) x 150(W) x 43(H) mm
Weight
1,000g (Barebone)
Construction
Steel
Mounting
Wall-mount
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40 ~ 70°C
Storage Temp.
-40 ~ 85°C
Vibration & Shock
IEC 60068-2-64, Random, 2.5G@5~500Hz. 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure, Trucks and semi-trailers=15G (11ms) with SSD
CERTIFICATION
Certification
CE, FCC, Class A, E13, ECE, R118
OPERATIONAL SYSTEM
Linux
Yocto Linux
ORDERING INFORMATION
Model No.
IBOX-500
Description
NXP i.MX 8QuadXPlus Automotive Grade SoC/ Onbaord LPDDR4 3GB/ Onboard eMMC 5.1 32GB/ 1 x GbE / 2 x RS-232/ 1 x DVI-D Single Link
/ 2 X USB 3.2
State of Origin
Made in Taiwan
Optional Accessory
Storage
MicroSD Card 64/128/256GB 3D TLC WT
Wi-Fi
M.2 2230 Key A-E/ IEEE 802.11 a/b/g/n/ac, Wi-Fi 6E
Modem
M.2 3042 Key B 5G & LTE Module
GPS
M.2 GPS Module
