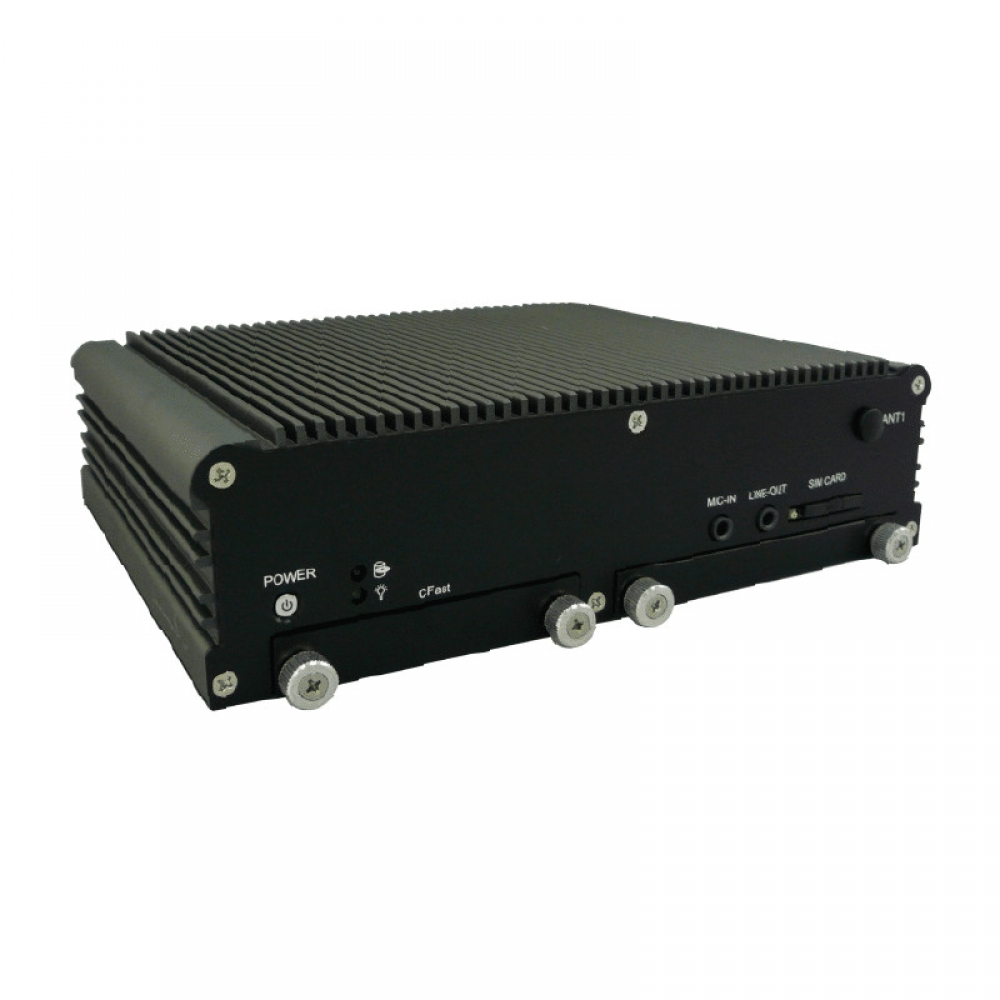

SINTRONES MBOX-6000
Intel D2550 Dual Core 1.86GHz Marine Box ComputerIntel Cedarview D2550 (-25 ~ 70°C, ambient w/ air)
- Intel Cedarview Atom D2550 Dual Core 1.86GHz
- Dual Intel GbE LAN port - RJ45 and 4xUSB ports
- 1 x VGA and 1 x DVI-I display output
- 1 x RS232/485 and 1xRS232/422/485
- 4 x digital isolated inputs (4-20mA)
- 4 x Digital isolated open-collector outputs
- IEC60945 Maritime Certified
![SINTRONES MBOX-6000](pics_fotosproductos/111/med_full_sintrones-mbox-6000-eol-1.jpg)
![SINTRONES MBOX-6000](pics_fotosproductos/111/med_full_sintronesfondo-blanco.jpg)
![SINTRONES MBOX-6000](pics_fotosproductos/111/th_crop_sintrones-mbox-6000-eol-1.jpg)
![SINTRONES MBOX-6000](pics_fotosproductos/111/th_crop_sintronesfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel Cedarview Atom™ D2550 Dual Core 1.86 GHz |
Chipset |
Intel NM10 |
BIOS/OS Support |
- |
Watchdog |
1 ~ 255 Level Reset |
Expansion slot
PCI |
- |
Mini-PCIe |
- |
mSATA |
- |
PCIe |
- |
Cfast |
- |
M.2 |
- |
Memory
Technology |
1 x DDR3-1066 SO-DIMM |
Max. |
4GB |
Storage |
1 x CFast socket, external removable OPTION: 1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD, external removable |
Graphics
Controller |
Intel GMA3650 |
Max. Resolution |
- |
Ethernet
Controller |
2 x Intel i210-AT Gigabit Ethernet |
Connector |
2 x RJ45 Ports for GbE, support WOL, PXE and Teaming connectors can be changed to 2 x M12 on rear side |
Rear I/O
VGA |
1 x VGA Connector Output |
HDMI |
- |
DVI-I/D |
1 x DVI-I* Female Connector, |
Display Port |
- |
Ethernet |
2 |
USB |
4 x USB 2.0 Ports |
Audio |
1 x Mic-In and 1 x Line-Out |
Serial |
1 x RS232/422/485 and 1 x RS-232/RS-485 ( optional up to 5 Serial port) |
Internal connector
USB |
- |
LVDS/Inverter |
- |
Serial |
- |
SATA |
- |
mSATA |
- |
Mini-PCIe |
- |
GPIO |
- |
SATA PWR |
- |
SIM |
SIM for 3G Module |
Power requirement
Power Input |
+9V to 32VDC input with “maritime / industrial” surge protection (reverse polarity) |
Environment
Operating temp. |
-25 ~ 70ºC, ambient w/ air |
Storage temp. |
-30 ~ 80ºC |
Humidity |
10 ~ 95% @ 40ºC (non-condensing) |
Mechanical
Format factor |
- |
Dimensions |
200 (W) x 160 (D) x 55 (H) mm |
Weight |
1200 g (Barebone), TBD |
Construction |
Aluminum Alloy |
