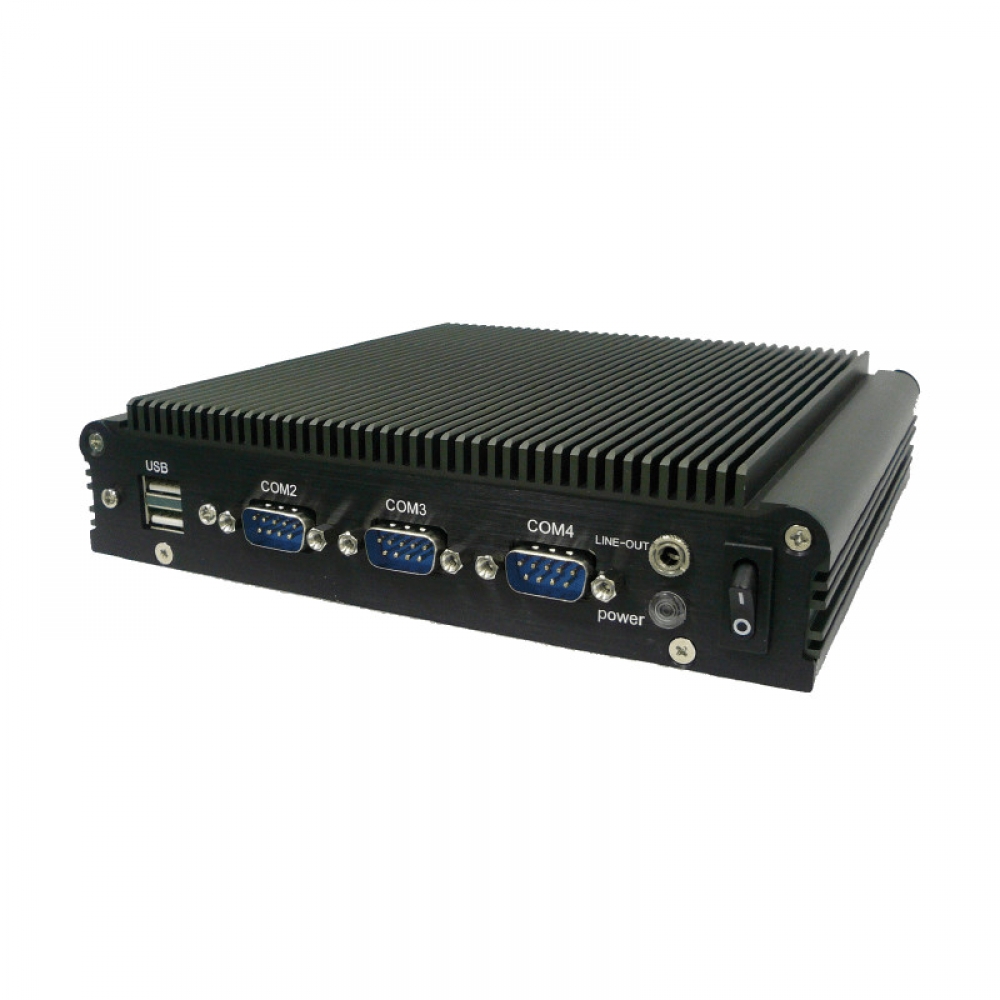

Sintrones SBOX-2150 (EOL)
Fanless Industrial Computer
Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with Dual GbE LAN / DVI-I / 4 x RS-232 / DC Input Fanless Box PC
- Dual Gigabit Ethernet and 4 x RS-232
- Wide Range Operating Temperature -20~60ºC
- Ultra Slim(40mm), Compact Size and Fanless Design
- DC 12V Power Input
Industria / Ordenadores industriales (IPC)
-
DC
-
DVI
-
Sin ventilación
-
HDD
-
Interfaz
-
LAN
-
Linux
-
Serie
-
SSD
-
USB
-
Rango extendido de temperatura
Specifications
SYSTEM
Processor
Intel Cedarview AtomTM D2550 Dual Core 1.86GHz
Chipset
Intel NM10
Memory
1 x DDR3-1066 SO-DIMM up to 4GB
Watchdog
1 ~ 255 Level Reset
GRAPHICS
Graphics Engine
Intel GMA3650
DVI-I
1 x DVI-I Female Connector for DVI-D and VGA Output
AUDIO
Line-out
1
Mic-in
Optional)
ETHERNET
LAN Chipset
2 x Realtek 8111E Gigabit Ethernet
LAN
2 x RJ45 Ports for GbE
I/O
Serial Port
Support 3 x RS-232 Ports and 1 x RS232/422/485
USB
4 x USB 2.0 Ports
GPIO
Support 4 In and 4 Out GPIO Ports (Share with 1 x RS232)
STORAGE
Type
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD
1 x SATA DOM
EXPANSION
Mini-card Slot
2
POWER
Power Input
DC 12V Input
MECHANICAL
Dimensions
182 x 167.6 x 40 mm
Weight
1200g (Barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount, VESA-mount, Din Rail Mounting Kit
ENVIRONMENT
Relative Humidity
10 ~ 95% @ 40oC (non-condensing)
Operating Temp.
-20 ~ 60C, ambient w/ air
Storage Temp.
-40 ~ 85C
CERTIFICATION
CERTIFICATION
CE, FCC Class A
OPERATIONAL SYSTEM
Model No.
762150011001
Description
Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU with DVI-I Display, Dual GbE Lan, 4 x RS-232 and DC 12V Input Fanless Box PC
