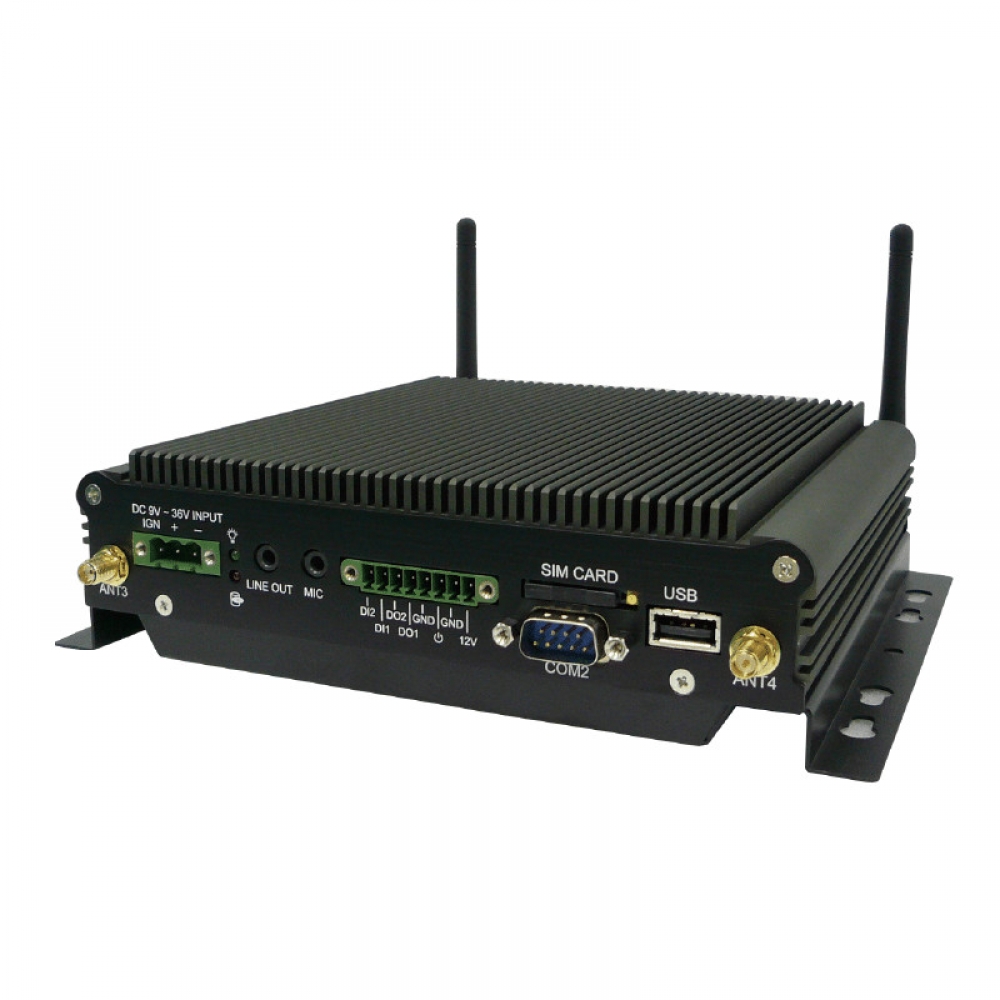

Sintrones SBOX-2160 (EOL)
Fanless Industrial Computer
Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU Fanless BOX PC with 9~32V DC Input
- Intel Cedarview Atom D2550 Dual Core 1.86GHz
- Wireless support 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 9V – 32V DC Power Input
- Support 2 x RS-232 (COM1 with 232/422/485)
- Support 2 x DI / 2 x DO with Relay 12V / 100mA
Industria / Ordenadores industriales (IPC)
-
Bluetooth
-
DC
-
Sin ventilación
-
GPS
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Serie
-
SSD
-
USB
-
Windows
Specifications
SYSTEM
Processor
Intel Cedarview AtomTM D2550 Dual Core 1.86GHz
Chipset
Intel NM10
Memory
1 x DDR3-1066 SO-DIMM up to 4GB
Watchdog
1 ~ 255 Level Reset
ATA
2 x Serial ATA 2.0 Ports
GRAPHICS
Graphics Engine
Intel GMA-3650 GFx Core Integrated in D2550
DVI-I
1 x DVI-I Female Connector for DVI-D and VGA Output
AUDIO
Line-out
1
Mic-in
1
ETHERNET
LAN Chipset
2 x Realtek 8111E Gigabit Ethernet
LAN
2 x RJ45 Ports for GbE
I/O
Serial Port
Support 2 x RS-232 (COM1 with RS-232/422/485)
USB
3 x USB 2.0 Ports
GPIO
Support 2 In and 2 Out with Relay 12V / 100mA
STORAGE
Type
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD
1 x SATA DOM
EXPANSION
Mini-card Slot
3, 1 with Card Socket
POWER
Power Input
9V – 32V DC Power Input
MECHANICAL
Dimensions
182(L) x 167.6(W) x 54(H) mm
Weight
1205 g
Construction
Aluminum Alloy
Mounting
Supports Both of Wall-mount/VESA-mount
ENVIRONMENT
Relative Humidity
10 ~ 90% (non-condensing)
Operating Temp
-20 ~ 60oC (SSD), ambient w/ air
Storage Temp.
-40 ~ 80C
CERTIFICATION
CERTIFICATION
CE, FCC Class A
OPERATIONAL SYSTEM
Windows
Windows XP, Windows 7, WES 7, WES 2009
Linux
Linux 3.1.X
ORDERING INFORMATION
Model No.
762160011000
Description
Intel Cedarview Atom D2550 Dual Core 1.86GHz CPU Fanless BOX PC with 9~32V DC Input
