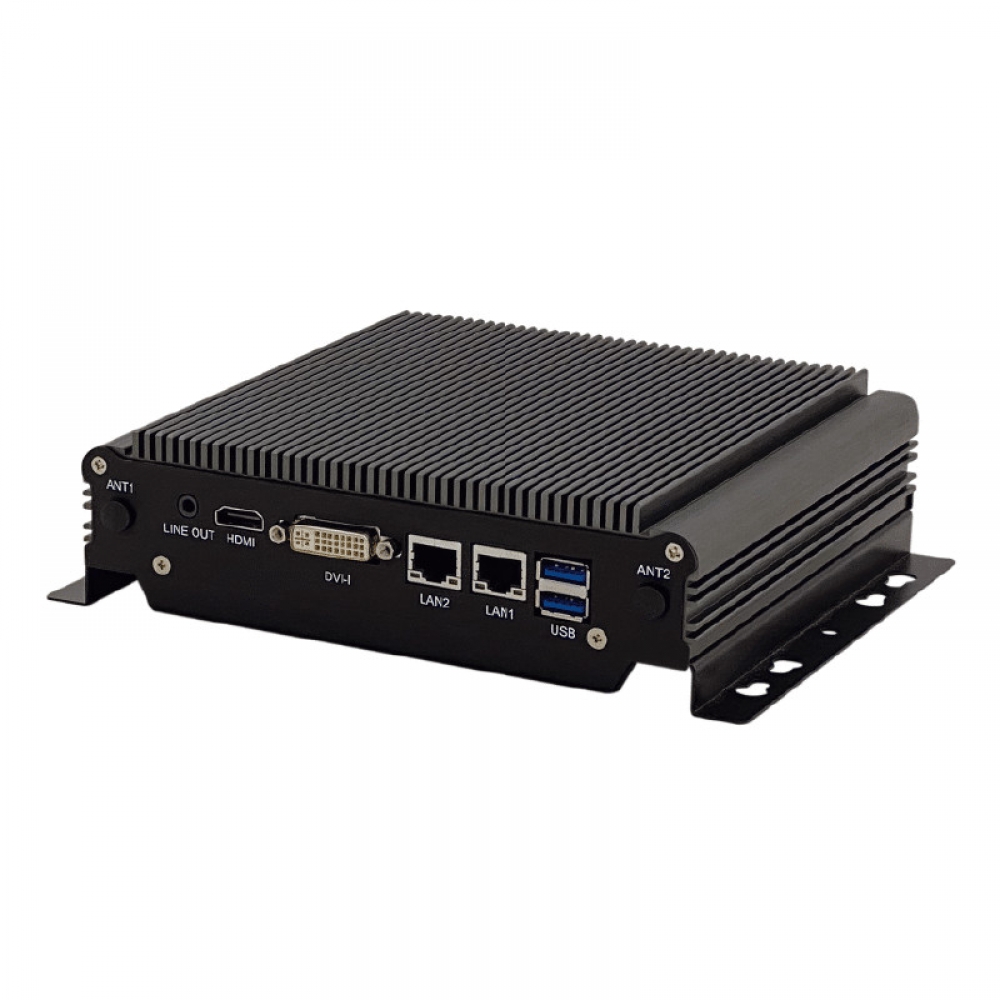

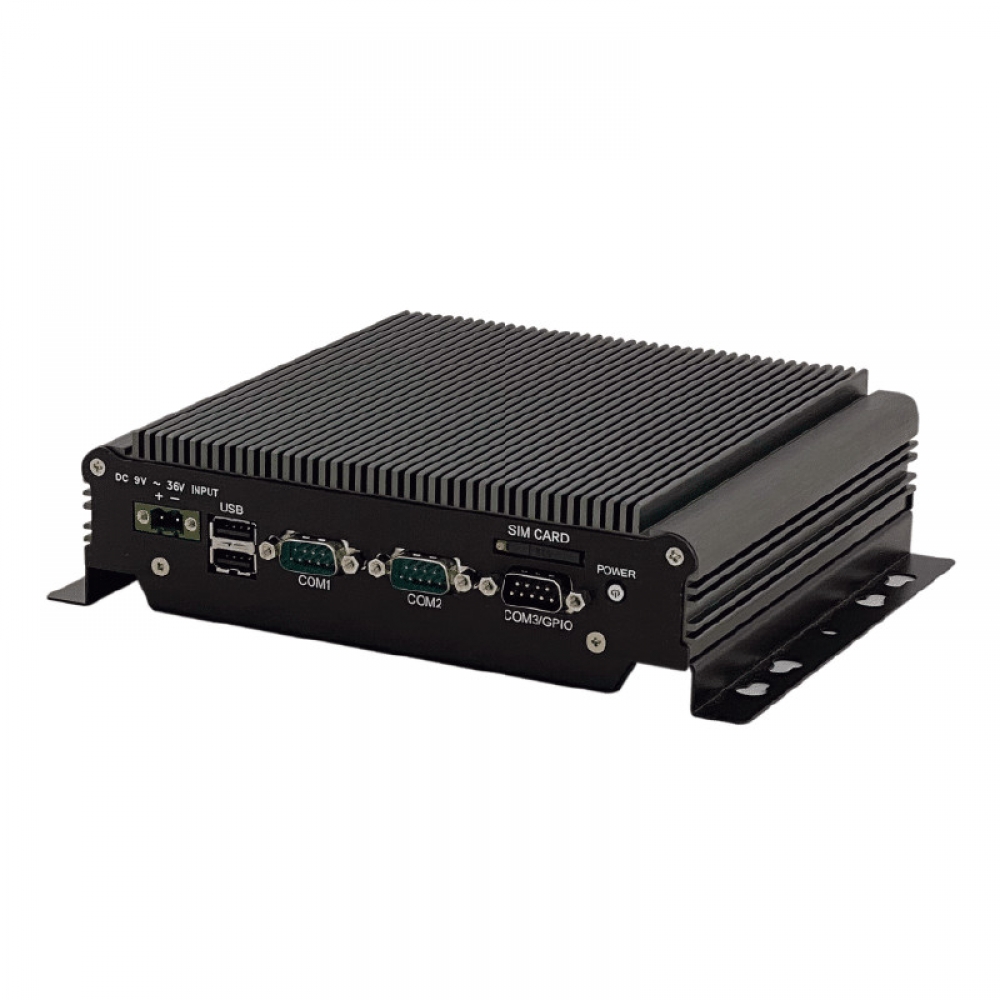

Sintrones SBOX-2320
Fanless Box PC for Industrial Automation
Intel® Celeron® Processor N Series with 2xLAN/ HDMI®/ DVI/ VGA DC 9-36V Fanless Box PC
- Intel® Celeron® Processor N Series
- Triple Display Output (DVI-I / HDMI® / VGA)
- Dual Gigabit Ethernet and 2 x RS-232
- Wide Range Operating Temp. : -30~60ºC
- Ultra Slim (54mm), Compact Size and Fanless
- 9-36VDC Power Input
Digital Signage / SistemasIndustria
Smart City
Transporte
-
DC
-
DRAM
-
DVI
-
Sin ventilación
-
GPS
-
HDD
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Lte
-
MLC
-
Serie
-
SSD
-
TLC
-
USB
-
VGA
-
Rango extendido de temperatura
-
Wifi
-
Windows
Specifications
SYSTEM
Processor
Intel® Pentium® Processor N3710 (N3710) up to 2.56 GHz
Intel® Celeron® Processor N Series (N3160) up to 2.24 GHz
Intel® Celeron® Processor N Series (N3060) up to 2.48 GHz
Memory
1 x DDR3L-1600 SO-DIMM up to 8GB
ATA
2 x Serial ATA ports with 6Gb/s HDD Transfer Rate
Watchdog
1 ~ 255 Level Reset
GRAPHICS
Graphics Engine
Intel HD Graphics
HDMI
1
DVI-I
1
VGA
1 (Through DVI-I )
Use only with Single Link DVI Cables.
AUDIO
Line-Out
1
ETHERNET
LAN Chipset
2 x Intel i210-AT Gigabit Ethernet
LAN
2 x RJ45 Ports for GbE
I/O
Serial Port
2 x RS-232/422/485 (Optional Max. 4 x RS-232)
USB
2 x USB 2.0 and 2 x USB 3.0 port
GPIO
4 In and 4 Out GPIO Ports (5V Level)
STORAGE
Type
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD
1 x SATA DOM
EXPANSION
Mini-card Slots
3 (one with SIM for LTE/3G Only)
POWER
Power Input
9-36VDC Input w/ Reverse Polarity OCP and OVP Protection
MECHANICAL
Dimensions
182 x 167.6 x 54 mm
Weight
1,200g (Barebone)
Construction
Aluminum Alloy
Mounting
Wall-mount, VESA-mount, Din Rail Mounting Kit
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-30 ~ 60°C, ambient w/ 0.6m/s airflow
Storage Temp
-40 ~ 85°C
CERTIFICATION
CERTIFICATION
CE, FCC Class A
OPERATIONAL SYSTEM
Windows
Windows
*The supported version depends on the Microsoft® announcement.
Linux
Ubuntu 16.04 64bit
Ordering Information
Model No.
SBOX-2320-000
Description
Intel® Celeron® Processor N Series (N3060)/ 2 x LAN/ HDMI®/ DVI/ VGA/ DC 9-36V Fanless Box PC
State of Origin
Made in Taiwan
Optional Accessories
DRAM
SO-DIMM max.DDR3L 1600, 2GB~8GB,0~70°C/-40~85°C
SATA SSD
2.5inch MLC/TLC 64GB~1TB 0~70°C/-40~85°C
SATA DOM
MLC 8GB~128GB, 0~70°C/-40~85°CC
Wifi
Wi-Fi mini PCIe half size card 802.3a/b/g/n/ac
Modem
LTE mini PCIe card
GPS
GPS mini PCIe card
Power adapter
Power Adapter 12V/5A 60W Jack
