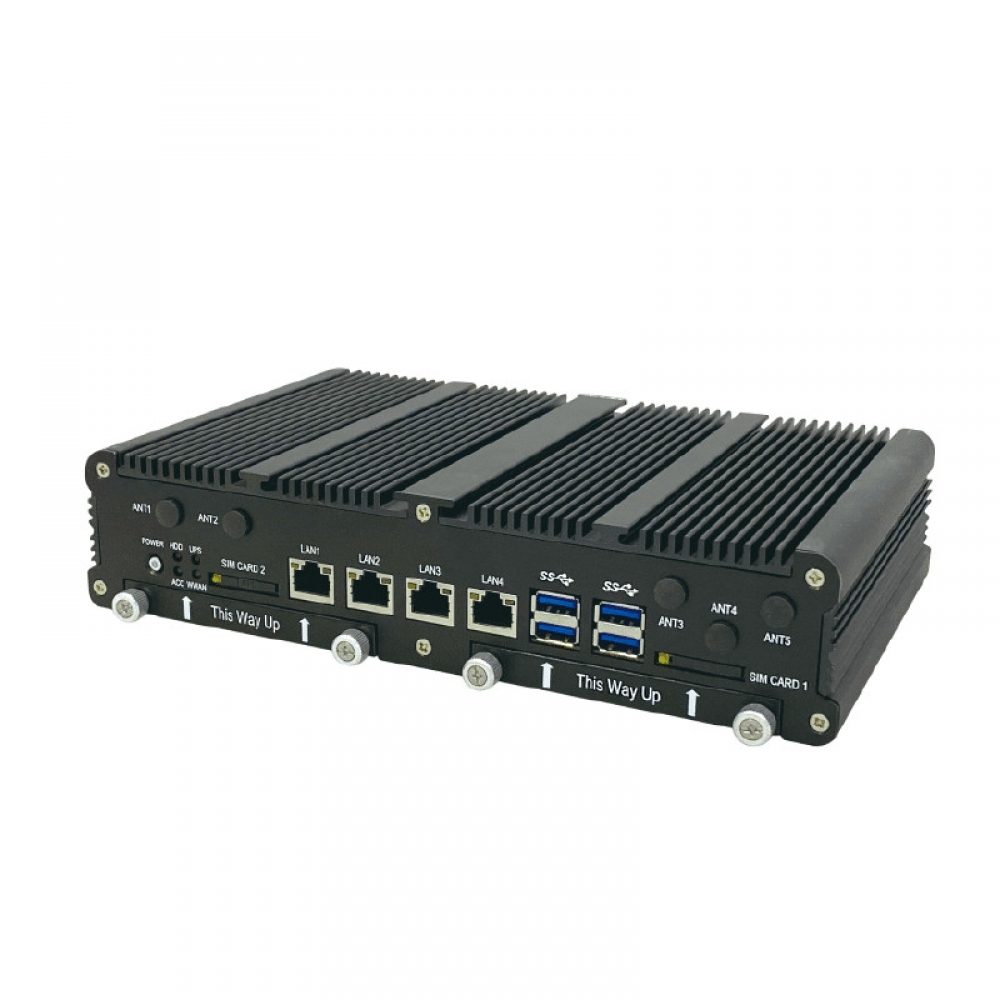

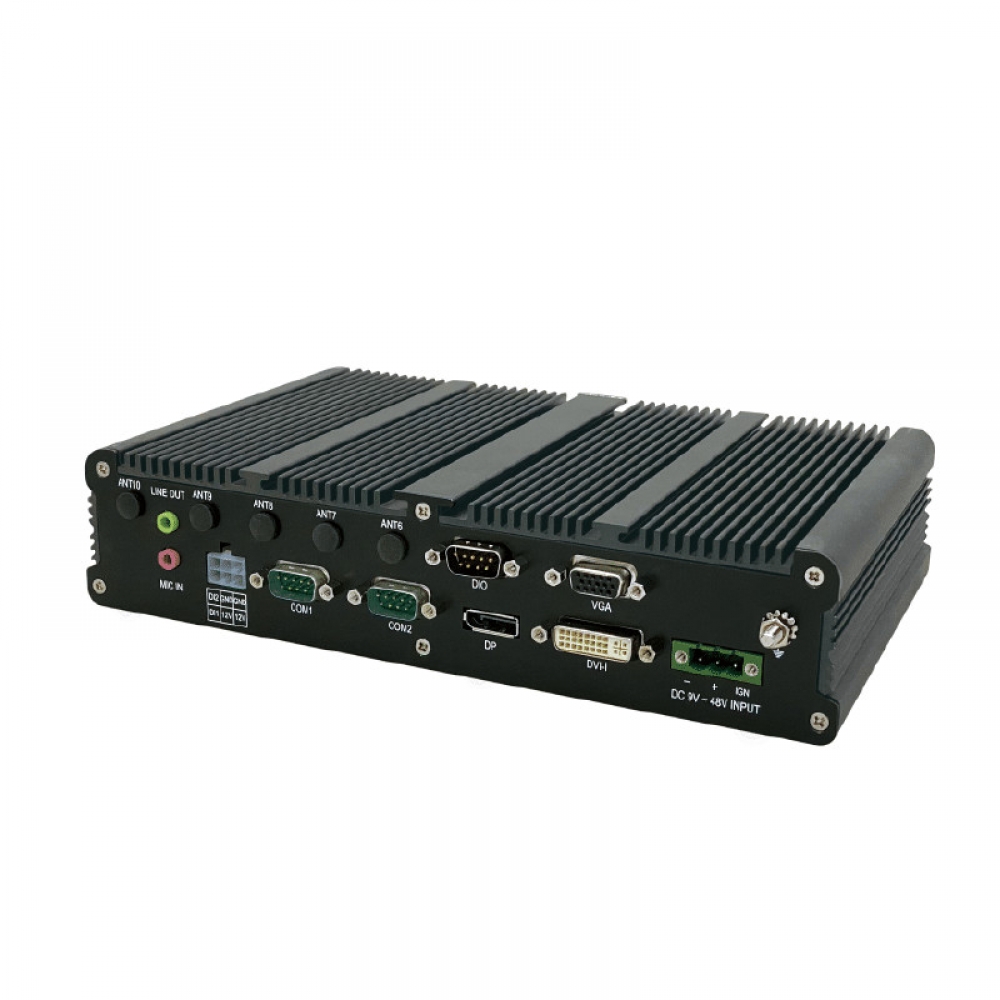

Sintrones VBOX-3611-4L-D5G
On-Board Computer for Fleet ManagementIntel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer with Dual 5G Modem Capability
- Intel Core i7-6600U
- Wireless support Dual 5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT (Optional)
- 9V~48V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- Dual Hot Swappable SATA Storage, RAID 0, 1, 5
- 1 x CAN Bus 2.0B (Optional)
- E13 and EN50155 certified
Digital Signage / SistemasIndustria
Seguridad
Transporte
-
5G
-
Bluetooth
-
DC
-
Display Port
-
DVI
-
GPS
-
HDD
-
Intel
-
Interfaz
-
LAN
-
POE
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
Specifications
SYSTEM
Processor
Intel Gen 6 (Skylake-U) Core i7-6600U CPU
Intel Gen 6 (Skylake-U) Core i5-6300U CPU
Intel Gen 6 (Skylake-U) Core i3-6100U CPU
Intel Gen 6 (Skylake-U) Celeron 3955U CPU
CPU Socket type : FCBGA1356
Chipset
Intel 6th Generation Core SoC Processor
Memory
Supports up to 2 x SO-DIMM DDR4 2133MHz up to 32GB
Watchdog
Watchdog Timer Support, Offer 1 – 255 Step
TPM
2.0
GRAPHIC
Graphics Engine
Intel UHD Graphics 520 (for i7, i5, and i3)
Intel UHD Graphics 510 (for Celeron)
DisplayPort
1 X DP 1.2
DVI
1 x DVI-I Single link
VGA
1
Resolution
N/A
AUDIO
Audio Codec
Realtek HD Codec Onboard
Line-out
1
Mic-in
1
Line-in
N/A
ETHERNET
LAN Chipset
3 x Intel i210-AT GbE Controllers
1 x i219LM (support iAMT and PXE support) GbE Controller
LAN
4 x RJ-45 for GbE (LAN 1 with iAMT and PXE support)
Optional 4 x M12 X-code for GbE (LAN 1 with iAMT and PXE support)
PoE
N/A
I/O
Serial Port
2 x RS 232/422/485 (with RS-422/485 Auto Direction Control)
USB
4 x USB 3.2 Gen1 Type A
DIO
4 x DI (5~48VDC)
4 x DO (12VDC, 100mA)
AIO
N/A
SIM Socket
2 x SIM Card Sockets (for M.2 WWAN modem only)
Antenna
N/A
STORAGE
SSD/HDD
2 x 2.5″ Drive Bay for SATA Type
mPCIe
N/A
mSATA
N/A
M.2
1 x M.2 M key 2280 slot supports M.2 SATA SSD
RAID
0, 1 , 5
EXPASION
Mini PCI Express
2 x Full Mini-PCIe (full function)
M.2
1 x M.2 2230 A-E Key
2 x M.2 3042/52 B Key (USB 3.0 only)
POWER
Power Input
9V -48V DC Power Input
Power Protection
Automatics Recovery Short Circuit Protection
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power-off Delay Control
Power off Delay Time Setting by Software and BIOS
Backup Battery Solution
Patented Battery Kit
MECHANICAL
Dimension
250 x 150 x 55 mm
Weight
2160g (bare-bone)
Construction
Aluminum Alloy
Mounting
N/A
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40ºC ~ 70ºC, ambient w/ 0.6m/s airflow
Patent No. : M448011 – Thermal Cooling
Storage Temp.
-40 ~ 85°C
Vibration & Shock
N/A
IP Rating
N/A
CERTIFICATION
Certification
CE, FCC Class A, E13, EN50155, EN45545-2 (R25)
Patent
M447854, M448011
ORDERING INFORMATION
Model No.
VBOX-3611-4L-D5G, option for i7/i5/i3/C1
Description
Intel Gen 6 Core i7-6600U CPU with 4 x GbE LAN On-Board Computer with Dual 5G Modem Capability
State of Origin
Made in Taiwan
