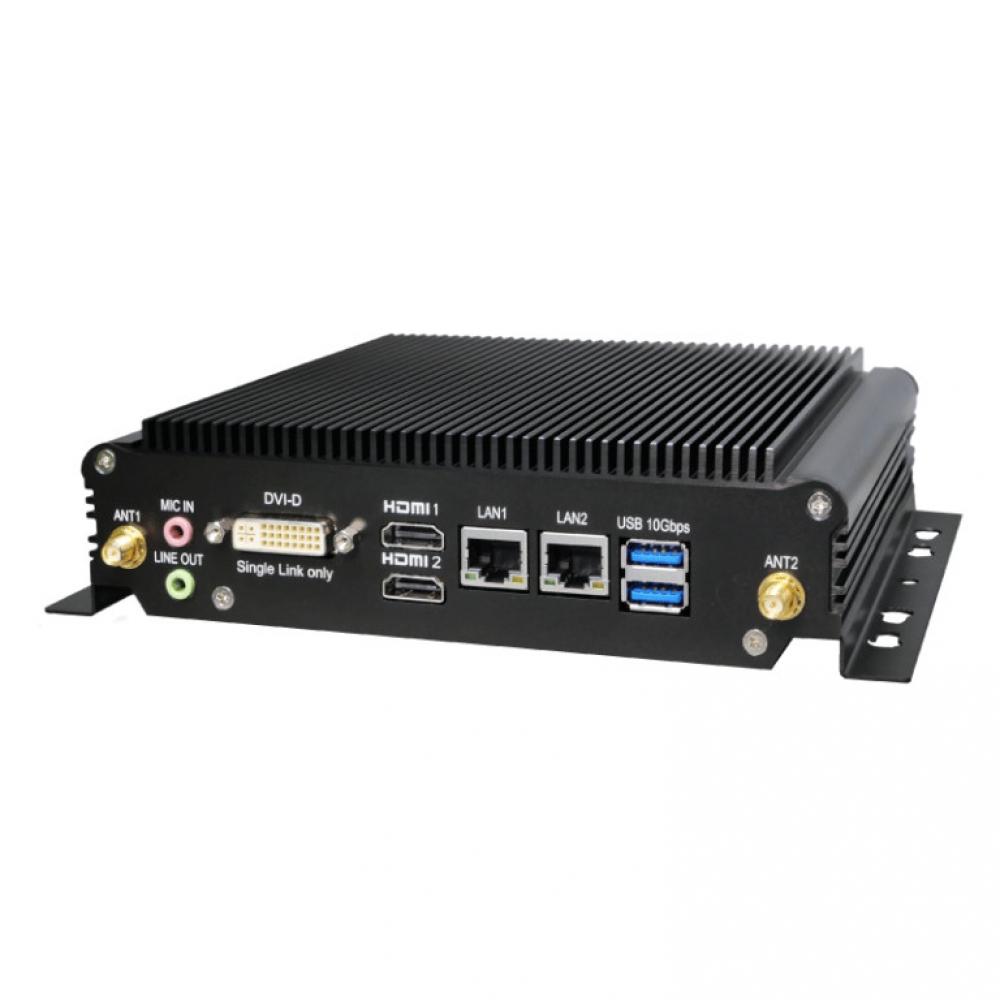

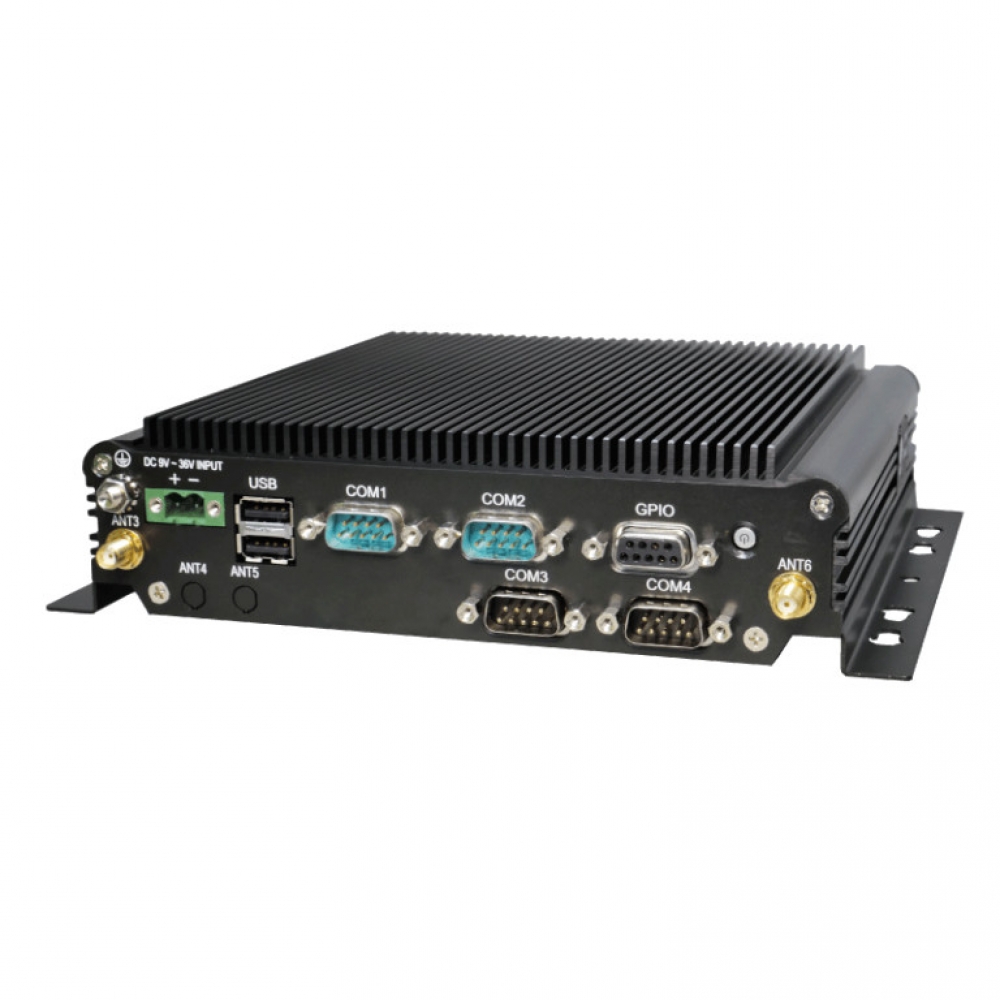

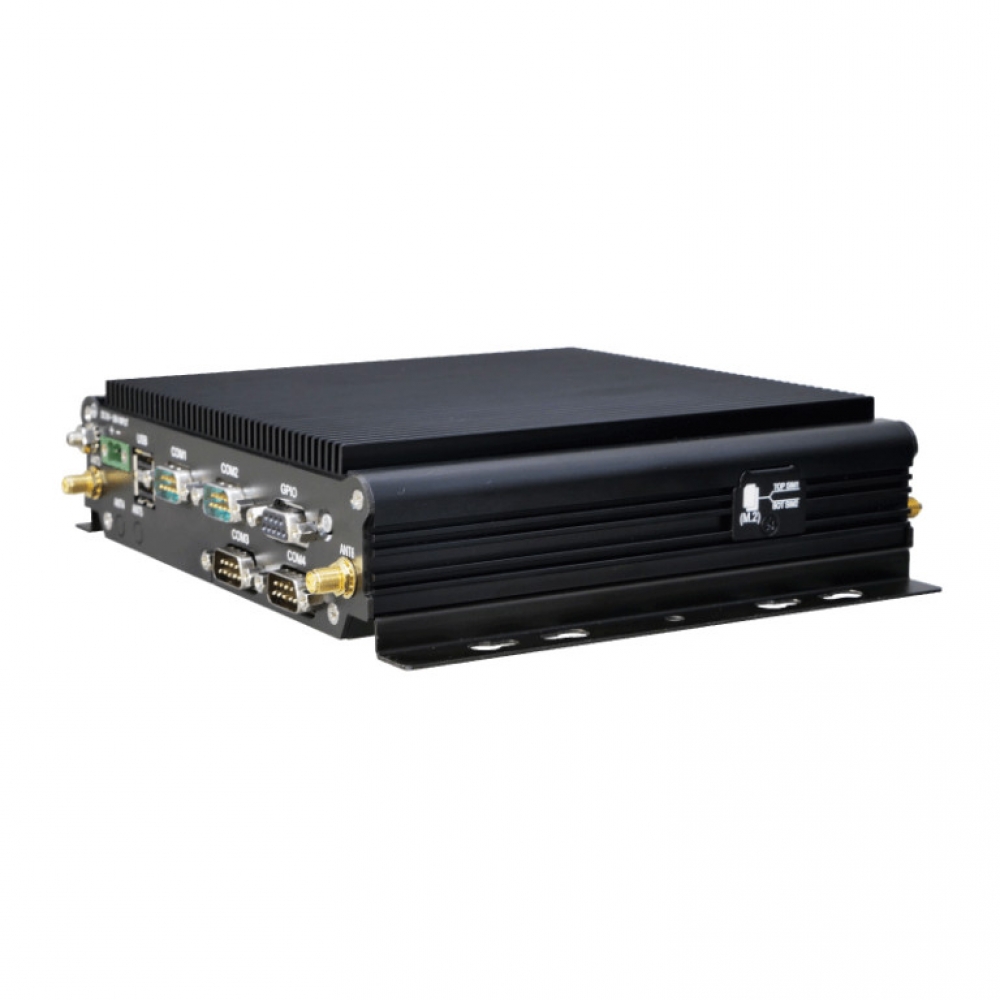

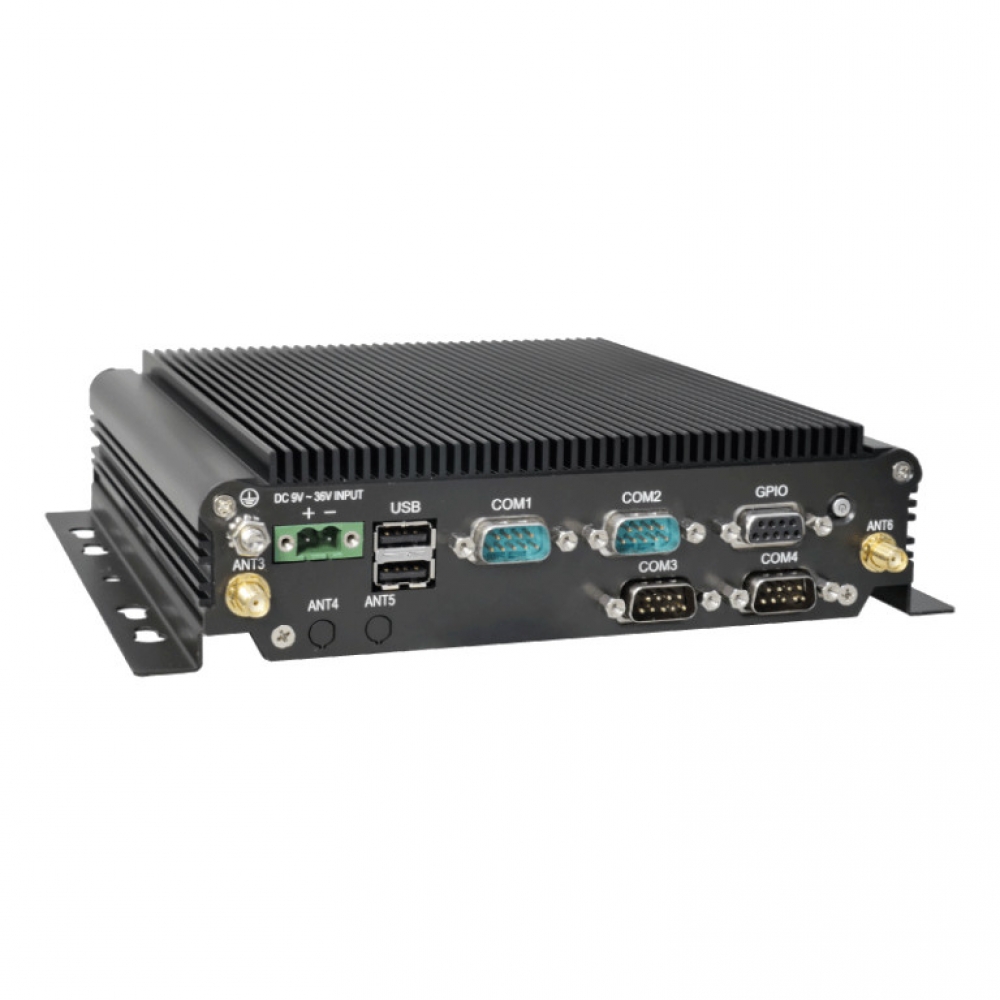

SINTRONES VBOX-3611-V4
Intel 6600U/6300U/6100U/3955U (-40 ~ 70°C (Default CPU 17Watt))- Intel Core i7-6600U
- Wireless support LTE, 3.5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning & G-Sensor, GSM/GPRS, BT
- 9V - 36V DC Input Smarter Vehicle Power Ignition
- 4 Channel D1 Resolution @120fps for Analog Cameras
- 2 IP Digital Cameras
- Dual Hot Swappable SATA Storage, RAID 0, 1, 5
- 1 x CAN Bus 2.0B (Optional)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/med_full_sintrones-sbox-2623-r2312-1.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/med_full_sintrones-sbox-2623-r2312-2.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/med_full_sintrones-sbox-2623-r2312-3.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/med_full_sintrones-sbox-2623-r2312-4.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/med_full_sintronesfondo-blanco.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/th_crop_sintrones-sbox-2623-r2312-1.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/th_crop_sintrones-sbox-2623-r2312-2.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/th_crop_sintrones-sbox-2623-r2312-3.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/th_crop_sintrones-sbox-2623-r2312-4.jpg)
![SINTRONES VBOX-3611-V4](pics_fotosproductos/133/th_crop_sintronesfondo-blanco.jpg)
Specifications
Processor system
CPU |
Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i3-6100U 2.3GHz |
Chipset |
- |
BIOS/OS Support |
- |
Watchdog |
Offer 1 – 255 Step |
Expansion slot
PCI |
- |
Mini-PCIe |
- |
mSATA |
- |
PCIe |
- |
Cfast |
- |
M.2 |
- |
Memory
Technology |
2 x DDR4 2133 MHz SO-DIMM |
Max. |
32GB |
Storage |
2 x 2.5” Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 1 x SATA DOM |
Graphics
Controller |
- |
Max. Resolution |
720x480x30FPS |
Ethernet
Controller |
- |
Connector |
2 x RJ45 Ports for GbE |
Rear I/O
VGA |
1 |
HDMI |
- |
DVI-I/D |
1 |
Display Port |
1 |
Ethernet |
2 x RJ45 |
USB |
2 x USB 3.0 Ports, 2 x USB 2.0 Ports |
Audio |
1 x Line-out and 1 x Mic-in (Line-in Optional) |
Serial |
4 x RS-232 |
Internal connector
USB |
- |
LVDS/Inverter |
- |
Serial |
- |
SATA |
- |
mSATA |
- |
Mini-PCIe |
- |
GPIO |
- |
SATA PWR |
- |
SIM |
2 x SIM Card Sockets Supported Onboard with eject |
Power requirement
Power Input |
9V - 36V DC Power Input |
Environment
Operating temp. |
-40 ~ 70ºC (SSD), ambient w/ air |
Storage temp. |
-40 ~ 80ºC |
Humidity |
10 ~ 95% (non-condensing) |
Mechanical
Format factor |
- |
Dimensions |
250 x 150 x 55 mm |
Weight |
1780 g (Barebone) |
Construction |
Aluminum Alloy |
