SKM-U
Intel 6650U/6360U/6100U/3955U- Intel Skylake (15W) (Celeron / i3 / i5 / i7)
- DDR4 2133 / Max 32GB / 2x SO-DIMM Slots
- 2x M.2 (2280 & 2230) For SSD & WLAN Module
- USB 3.1 Type A w/ BC1.2 (5V/1.5A) & Type C (5V/3A)
- Dual Display w/ 4K2K Supported by HDMI(1.4b) & miniDP(1.2)
- Support Windows 10
- Extendable Devices:
3D Camera (Intel RealSense SR300)
Wireless Charging (15W)
NFC Reader
HDD Box (Support 2.5” SATA HDD)
POS BOX (Support 6x COM Ports & 4x USB 2.0)
/
-
AMD
-
Display Port
-
Interface
-
LAN
-
USB
Processor system
|
CPU |
6th Generation Intel® Core I (Skylake U 2+3e) Intel® Core™ i7-6650U Processor Intel® Core™ i5-6260U Processor Intel® Core™ i3-6100U Processor Intel® Celeron® Processor 3955U |
|
Chipset |
- |
|
BIOS/OS Support |
- |
|
Watchdog |
- |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
2 |
Memory
|
Technology |
Support DDR4 2133 2x SO-DIMM |
|
Max. |
32GB |
|
Storage |
- |
Graphics
|
Controller |
- |
|
Max. Resolution |
4K |
Ethernet
|
Controller |
Realtek 8111H 10/100/1000Mbps |
|
Connector |
1x RJ-45 |

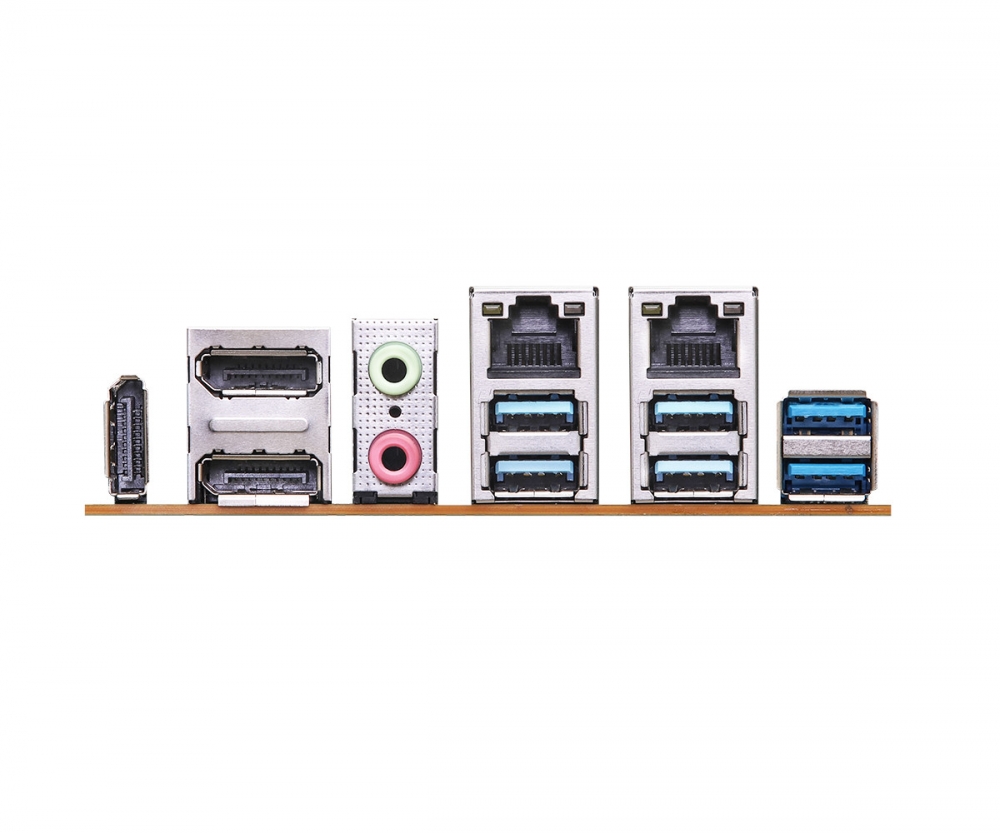

Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
1x mini-DP |
|
Ethernet |
1 |
|
USB |
2x USB 3.0 Type A, 1 x USB 3.1 Type C (5V/3A), 1x USB 3.1 Type A w/ BC1.2 (5V/1.5A)
|
|
Audio |
1x Audio Combo Jack |
|
Serial |
- |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
- |
|
Serial |
- |
|
SATA |
- |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
- |
Power requirement
|
Power Input |
- |
Environment
|
Operating temp. |
- |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
- |
|
Dimensions |
116.6 x 112 x 65.2 mm |
|
Weight |
- |
|
Construction |
- |
