SOM-P101
PICO-ITX intel Apollo Lake SoC BGA1296 (0ºC – 60ºC)- BGA1296 for Intel® Apollo Lake SoC
- SOM-P101D (N4200)
- SOM-P101L (N3350) - Intel® HD Graphics 505
- Supports Single Channel DDR3L 1333/1600/1867 MHz, 1 x SO-DIMM, up to 8GB system memory
- 1 x HDMI
- 1 x USB 3.0 compatible with USB 2.0 , 1 x SATA3
- 1 x MIOe , 1 x Mini PCIe and mSATA combo
- 1 x M.2(Key E)
- Gigabit LAN : 1 x Intel® LAN
- 12V DC-in

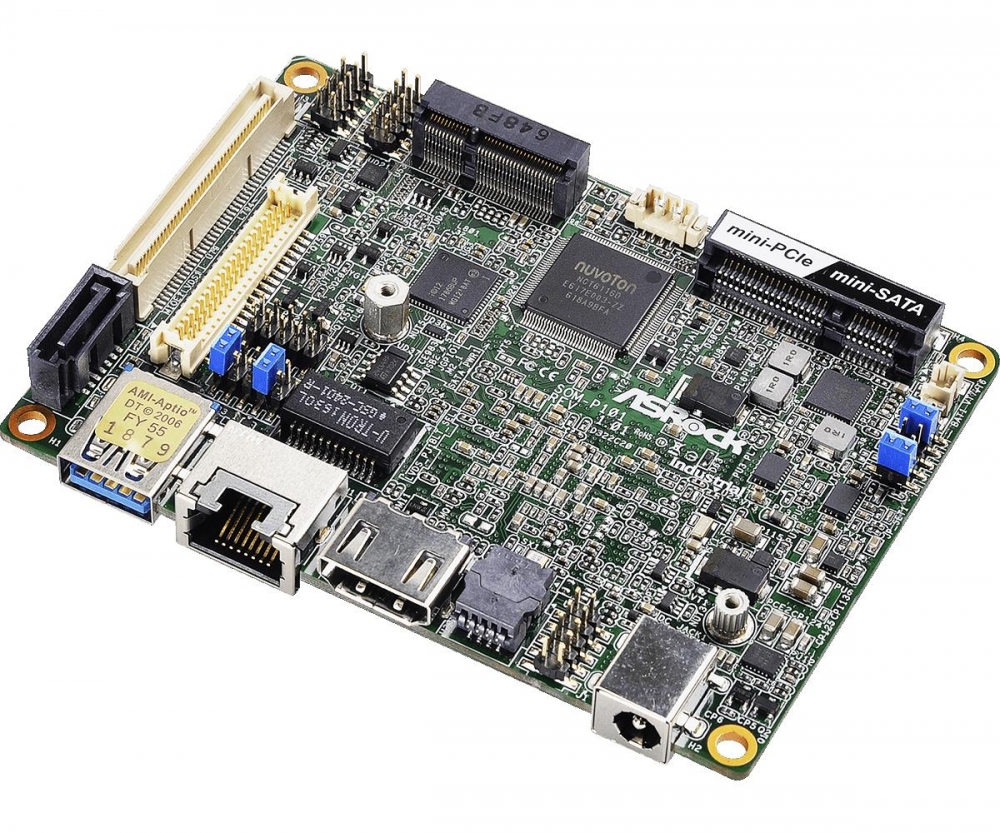

![SOM-P101](pics_fotosproductos/106/med_full_som-p101-i1.jpg)

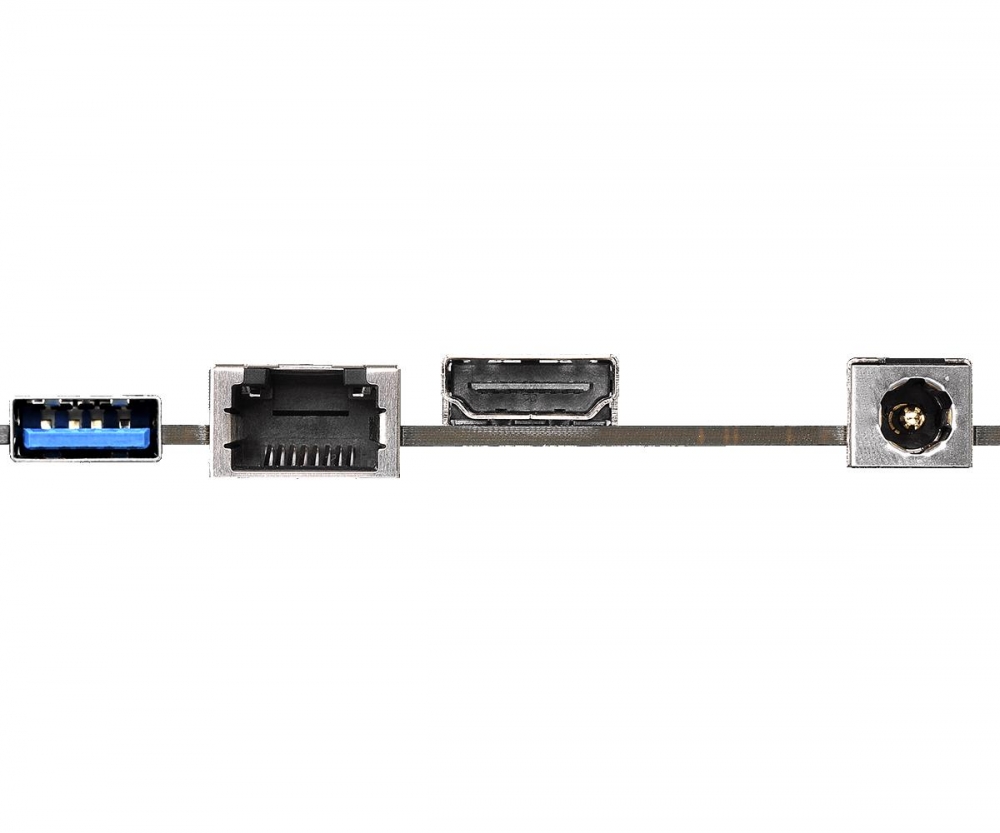

![SOM-P101](pics_fotosproductos/106/med_full_som-p101-i2.jpg)
![SOM-P101](pics_fotosproductos/106/med_full_som-p101-i3.jpg)
![SOM-P101](pics_fotosproductos/106/med_full_asrockfondo-blanco.jpg)
![SOM-P101](pics_fotosproductos/106/th_crop_som-p101-i1.jpg)
![SOM-P101](pics_fotosproductos/106/th_crop_som-p101-i2.jpg)
![SOM-P101](pics_fotosproductos/106/th_crop_som-p101-i3.jpg)
![SOM-P101](pics_fotosproductos/106/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
BGA1296 for Intel® Apollo Lake SoC |
Chipset |
(By CPU) |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (combo with mSATA , full size , Mini PCIe mode supports PCIe x1 and USB device) |
mSATA |
1 (combo with Mini PCIe , full size , mSATA mode supports SATA and USB device) |
PCIe |
- |
Cfast |
- |
M.2 |
1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module |
Memory
Technology |
DDR3L 1333/1600/1867 MHz |
Max. |
8GB |
Storage |
SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel® HD Graphics 505 |
Max. Resolution |
4096 x 2160@30Hz |
Ethernet
Rear I/O
VGA |
- |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
- |
Ethernet |
1 |
USB |
1 x USB 3.0 compatible with USB 2.0 |
Audio |
- |
Serial |
- |
Internal connector
USB |
2 x USB 2.0 (1 x 2.00 pitch header) |
LVDS/Inverter |
1/1 |
Serial |
2 x COM (COM1 supports RS-232/422/485 , COM2 supports RS232 only) |
SATA |
1 |
mSATA |
1 (combo with mPCIe) |
Mini-PCIe |
1 (combo with mSATA) |
GPIO |
4GPI + 4GPO |
SATA PWR |
1 |
SIM |
- |
Power requirement
Power Input |
12V DC-in |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
