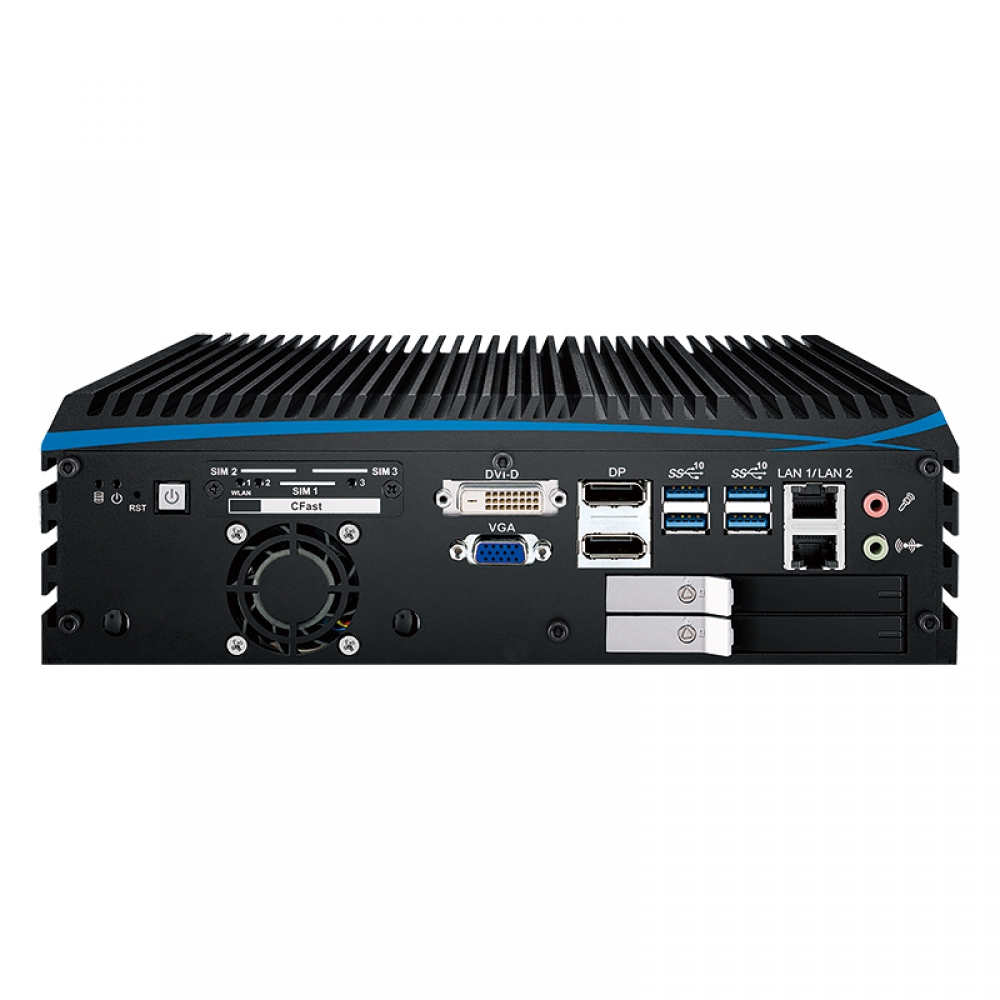

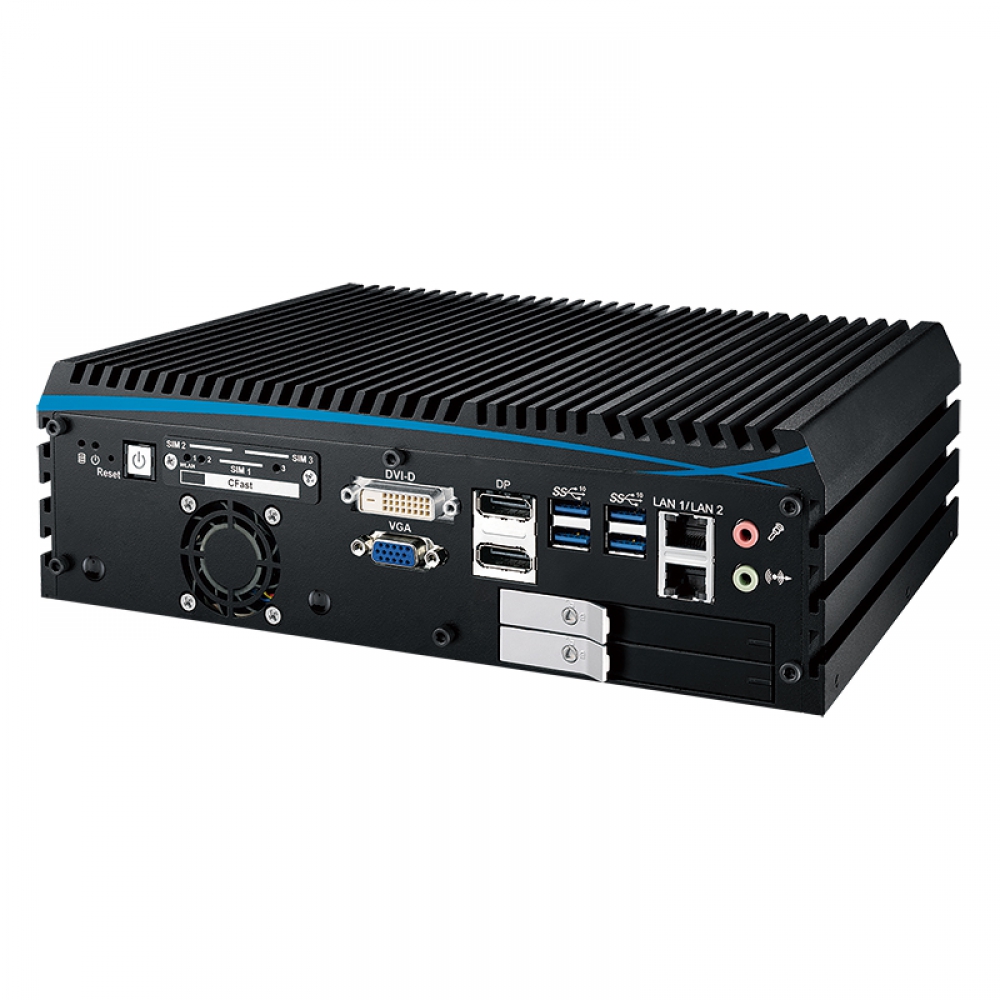

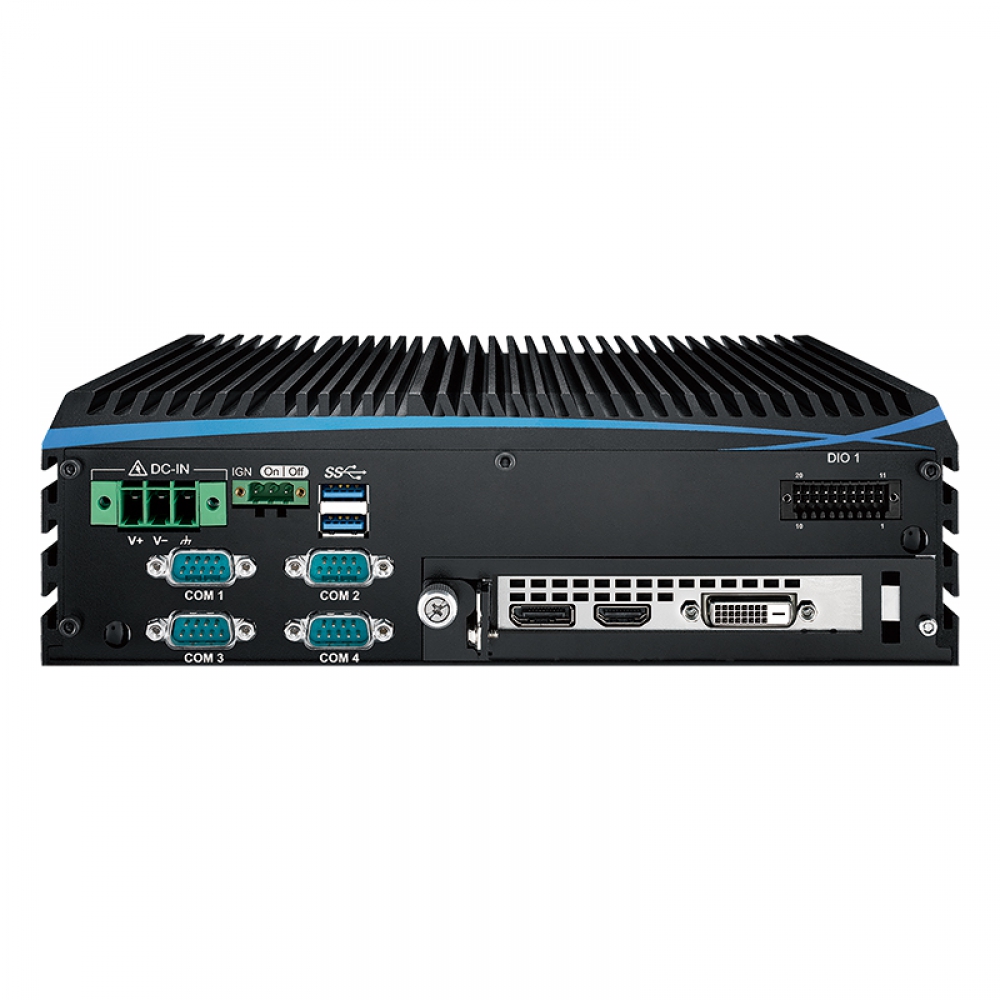

Vecow ECX-1100 GTX1050

Intel® Xeon® /Core™ i7/i5/i3 GPU Computing System with Intel® C246 & NVIDIA® GeForce® GTX 1050 Ti/GTX 1050, NVIDIA® Pascal™ architecture, 2 GigE LAN, 2 Front-access SSD Tray, 6 USB 3.1, 3 M.2 Socket, 3 SIM, 16 GPIO, High Performance, Independent Graphics.

8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
2 DDR4 2666MHz memory, up to 64GB (ECC/Non-ECC)
NVIDIA® GeForce® GTX 1050 graphics engine, NVIDIA Pascal™ GPU architecture, up to 8K resolution
1 VGA, 1 HDMI, 2 DVI and 3 DisplayPort interfaces, up to 6 independent HD displays
Multiple external USB 3.1 Gen 2, up to 10Gbps data transfer
6 USB 3.1, 2 independent GigE LAN, 4 COM RS-232/422/485
Storage : 2 2.5" SSD trays, 1 CFast, 2 M.2, 2 SATA III
Expansion : 2 Mini PCIe/mSATA, 1 M.2
3 external SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
12V to 36V DC Power Input with 80V Surge Protection
Configurable Ignition Control

Industria / Sistemas
Smart City
Transporte

3G
4G
DC
Display Port
DVI
HDD
HDMI
Intel
Interfaz
LAN
Linux
Lte
Serie
SSD
USB
VGA
Wifi
Windows

Specifications

Processor

8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)

Chipset

Intel® C246

BIOS

AMI

SIO

IT8786E

Memory

2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC)

Serial

4 COM RS-232/422/485 (ESD 8KV)

USB

- 6 USB 3.1 (External)- 1 USB 2.0 (Internal)

GPIO

16 GPIO

LED

Power, HDD, Wireless

SIM Card

3 external SIM sockets

Mini PCIe

2 Full-size for PCIe/USB/external SIM/mSATA

M.2

- 1 M.2 Key M socket - 1 M.2 Key B socket

Graphics Processor

- Intel® UHD Graphics 630- NVIDIA® GeForce® GTX 1050 Ti/GTX 1050

Interface

- 1 VGA : Up to 1920 x 1200 @60Hz- 1 HDMI : Up to 4096 x 2304 @60Hz- 2 DVI : Up to 1920 x 1200 @60Hz - 1 DisplayPort : Up to 7680 x 3840 @60H- 2 DisplayPort : Up to 4096 x 2304 @60Hz

SATA

2 SATA III (6Gbps) support S/W RAID 0, 1

mSATA

2 SATA III (Mini PCIe type, 6Gbps)

Storage Device

- 1 CFast socket, Push-in/Push-out ejector - 2 front-access 2.5" SSD/HDD trays

Audio Codec

Realtek ALC892, 5.1 Channel HD Audio

Audio Interface

1 Mic-in, 1 Line-out

LAN 1

Intel® I219LM GigE LAN supports iAMT 12.0

LAN 2

Intel® I210 GigE LAN

Power Input

12V to 36V, DC-in

Power Interface

3-pin Terminal Block : V+, V-, Frame Ground

Ignition Control

16 mode (Internal)

Remote Switch

3-pin Terminal Block

Surge Protection

Up to 80V/1ms Transient Power

TPM

Optional Infineon SLB9665 supports TPM 2.0, LPC interface

Watchdog Timer

Reset : 1 to 255 sec./min. per step

Smart Management

Wake on LAN, PXE supported

HW Monitor

Monitoring temperature, voltages. Auto throttling control when CPU overheats.

OS

Windows 10, Linux

Dimension

260mm x 215mm x 79mm (10.24" x 8.46" x 3.11")

Weight

4.8 kg (10.58 lb)

Mounting

- Wallmount by mounting bracket - DIN Rail mount (optional)- 2U Rackmount (optional)

Operating Temperature

35W TDP CPU : -20°C to 60°C (-4°F to 140°F) 65W TDP CPU : -20°C to 55°C (-4°F to 131°F)80W TDP CPU : -20°C to 45°C (-4°F to 113°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% to 95% Humidity, non-condensing

Relative Humidity

95% at 60°C

Shock

- IEC 60068-2-27- SSD : 50G @ wallmount, Half-sine, 11ms

Vibration

- IEC 60068-2-64- SSD : 5Grms, 5Hz to 500Hz, 3 Axis

EMC

CE, FCC, EN50155, EN50121-3-2
