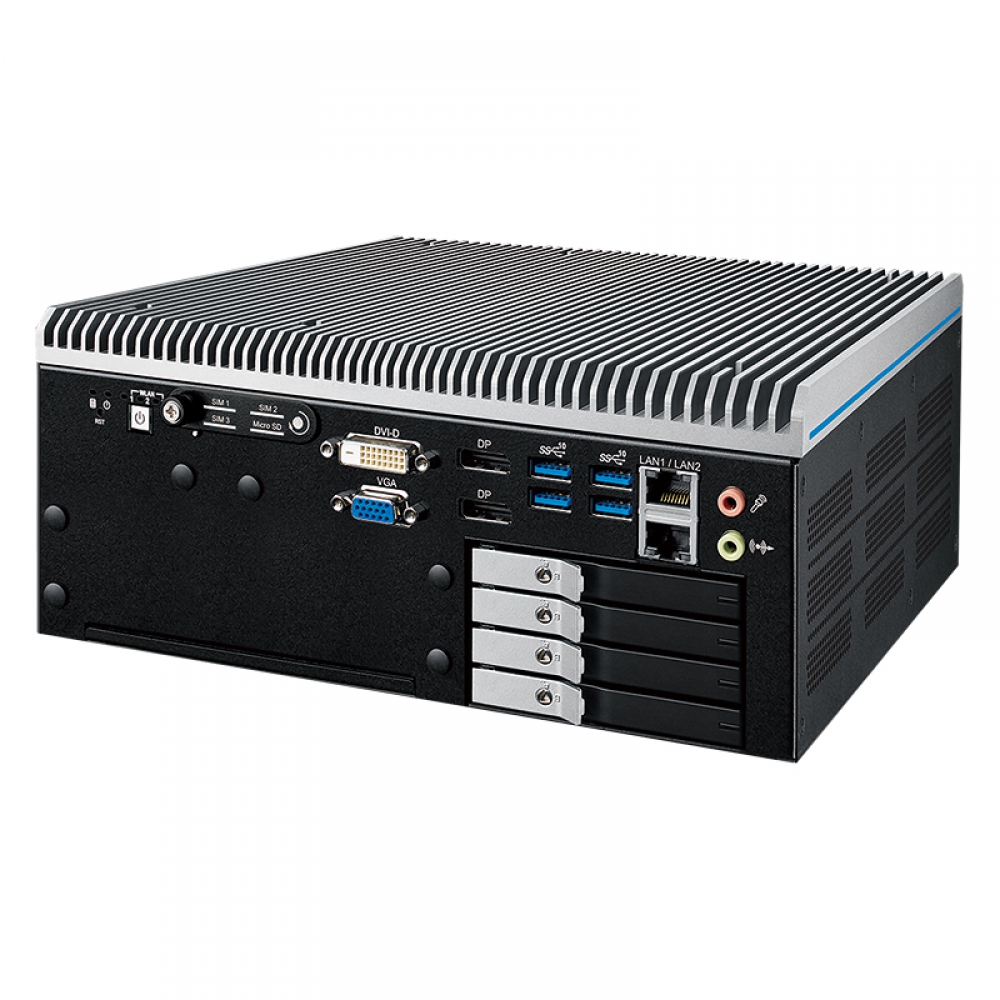

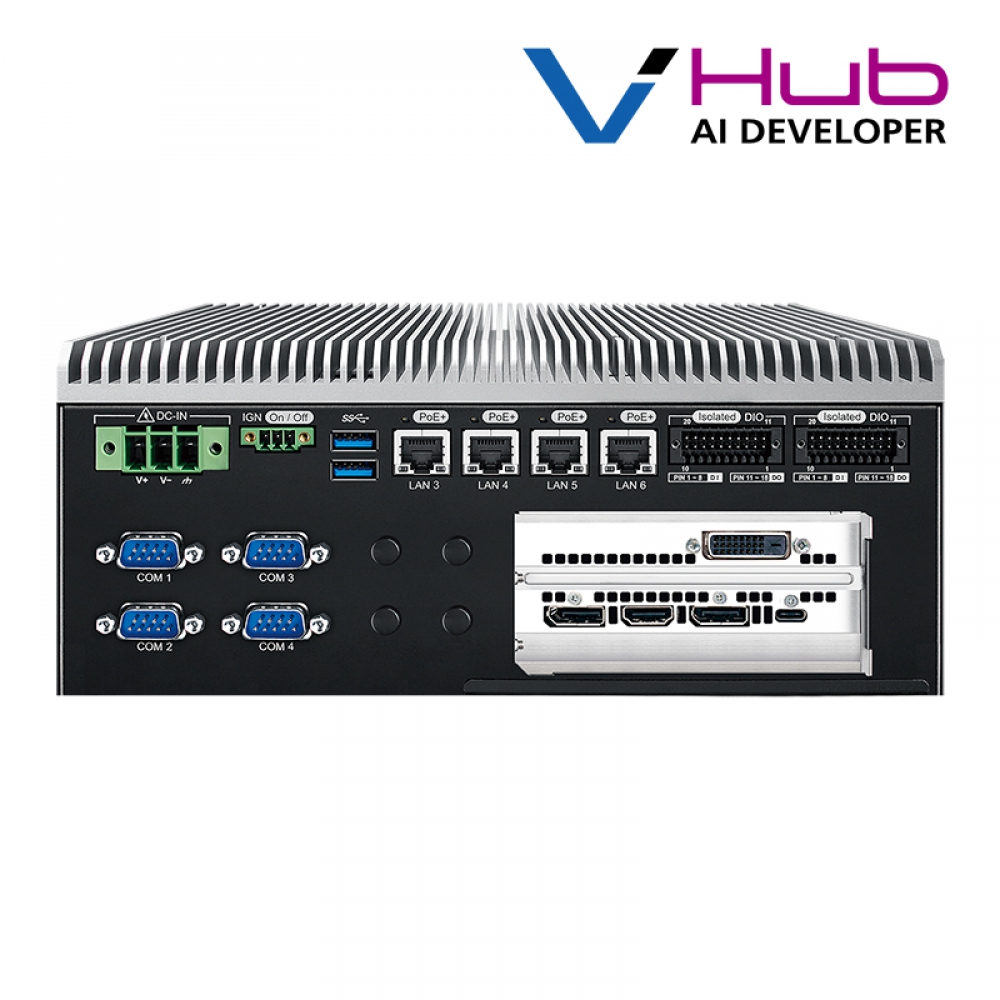

Vecow ECX-2400 PEG (I350)

Powered by 10-core 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor (Comet Lake), Vecow ECX-2400/2300 PEG integrated with independent NVIDIA® Tesla®/Quadro®/GeForce® graphics card and supported advanced NVIDIA® CUDA® cores, delivering leading AI computing productivity. It features up to 6 GigE LAN with 4 PoE+, multiple USB 3.2 connections providing up to 10Gbps data transfer rate, and max 7 independent display up to 8K resolution. With smart manageability and industrial-grade reliability, Vecow ECX-2400/2300 PEG AI Computing System is ideal for Robotic Control, Traffic Vision, Public Surveillance and In-vehicle Computing applications.

Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset supports max 95W TDP CPU
Supports up to 250W NVIDIA® or AMD Graphics card
NVIDIA® Tesla®/Quadro®/GeForce® graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
12V to 50V wide range DC Power Input with 80V Surge Protection
6 Independent GigE LAN with 4 IEEE 802.3at PoE+
6-port USB 3.2 support up to 10Gbps data transfer
Storage : 4 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 4 SATA III
Expansion : 2 PCIe, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe
Multiple VGA, DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
32 Isolated DIO, 4 COM RS-232/422/485
3 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
Supports Configurable Software Ignition Power Control and TPM 2.0
Optimized user-friendly design for easier system maintenance
Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Industria / Sistemas
Seguridad
Smart City
Transporte

3G
4G
5G
DC
Display Port
DVI
HDD
HDMI
Intel
Interfaz
LAN
Linux
Lte
POE
Serie
SSD
USB
VGA
Rango extendido de temperatura
Wifi
Windows

Specifications

System
Processor	10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S)
Chipset	Intel® W480E
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC)
I/O Interface
Serial	4 COM RS-232/422/485 (ESD 8KV)
USB	- 6 USB 3.2 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD, PoE, Wireless
SIM Card	3 External Nano SIM Card Sockets
Expansion
Mini PCIe	2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
PCI/PCIe	- 1 PCIe x16 Slot with x16 signal - 1 PCIe x16 Slot with x4 signal
M.2	- 1 M.2 Key B Socket (3042/3052) - 1 M.2 Key E Socket (2230)
Graphics
Graphics Processor	- Intel® UHD Graphics 630 - Independent Graphics : By request
Interface	Up to 7 independent displays : - 1 VGA : Up to 1920 x 1080 @60Hz - 1 DVI-D : Up to 1920 x 1080 @60Hz - 2 DisplayPort : Up to 4096 x 2304 @60Hz - By requested graphic card
Storage
SATA	4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10
mSATA	2 SATA III (Mini PCIe type, 6Gbps)
M.2	- 1 M.2 Key M Socket (2280, PCIe x2)
Storage Device	- 1 Micro SD Card, Push-in/Push-out ejector - 4 Front-access 2.5" SSD/HDD Tray
Audio
Audio Codec	Realtek ALC888S, 7.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT 14.0
LAN 2	Intel® I210 GigE LAN

PoE
LAN 3	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 4	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 5	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
LAN 6	GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350
Power
Power Input	12V to 50V, DC-in
Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
Ignition Control	16-mode Software Ignition Control
Remote Switch	3-pin Terminal Block
Surge Protection	Up to 80V/1ms Transient Power
Others
TPM	Infineon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Software Support
OS	Windows 10, Linux
Mechanical
Dimension	260mm x 240mm x 104mm (10.2" x 9.45" x 4.1")
Weight	5.5 kg (12.13 lb)
Mounting	- Wallmount by mounting bracket - DIN Rail mount (Optional)
Environment
Operating Temperature	35W & 65W TDP CPU : -20°C to 45°C (-4°F to 113°F), with System Fan 80W & 95W TDP CPU : -20°C to 45°C (-4°F to 113°F), with Fan Sink and System Fan
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative humidity	95% at 45°C
Shock/Vibration	- IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC	CE, FCC, EN50155, EN50121-3-2
