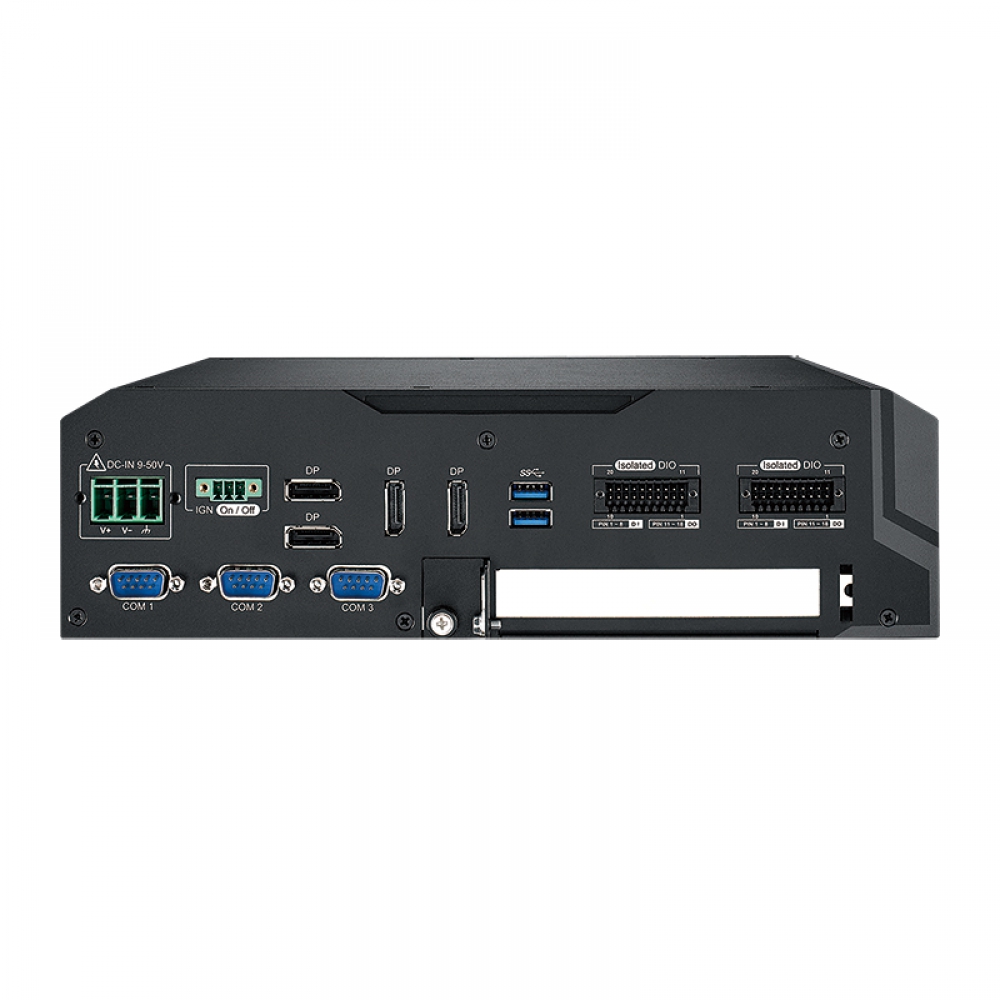

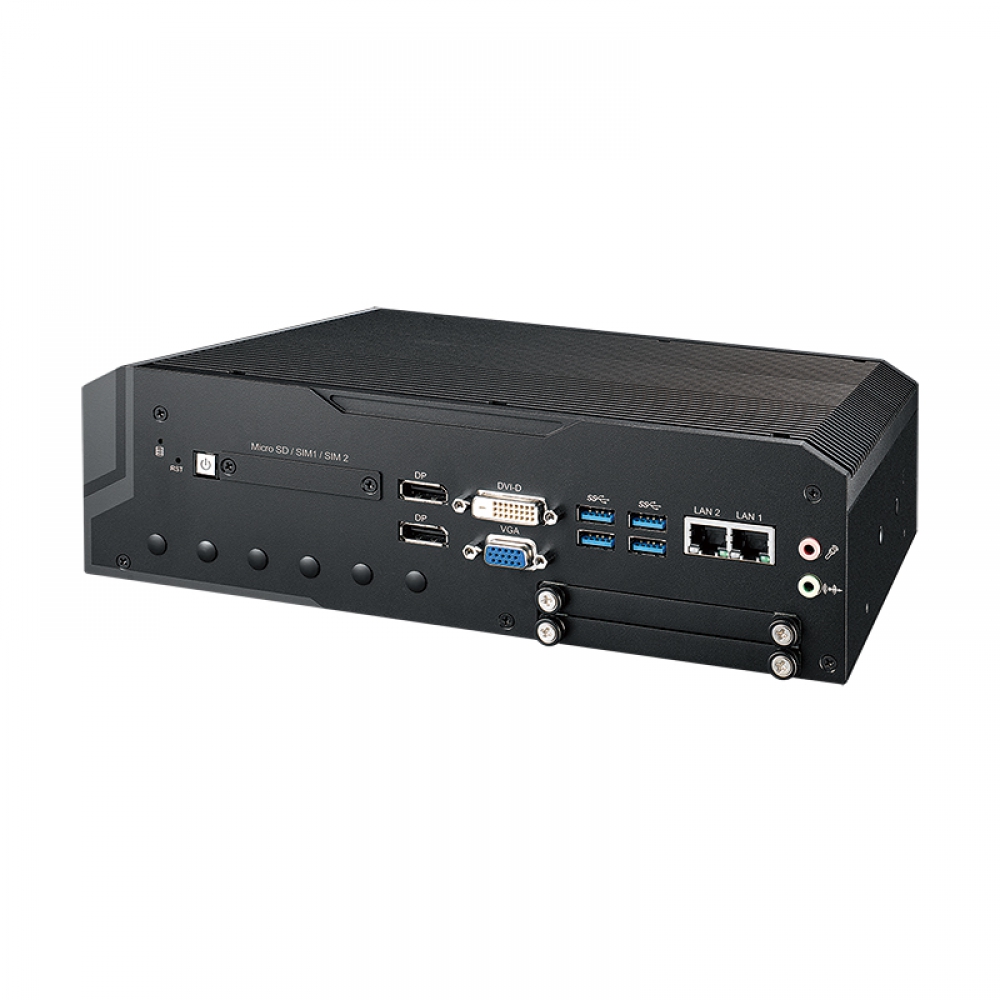

Vecow EVS-2000
Workstation-grade 10th generation Intel® Xeon®/Core™ i9/i7/i5/i3 processor, compact NVIDIA® or AMD MXM graphics engine, supports NVIDIA® CUDA cores, up to 8 display interfaces, all-in-one integrated features, multiple I/O connection, 2 SIM sockets for remarkable mobile availability, PCI/PCIe slot, 6 USB 3.2, Isolated DIO, smart manageability, 9V to 50V power input with 80V surge protection, ignition control. Vecow EVS-2000 Series Fanless AI Computing System makes versatile function possible for Facial Recognition, Factory Automation, Smart Retail, Machine Vision and any AI oriented embedded applications.- LGA 1200 Socket Type 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) with Intel® W480E chipset
- Dual 260-pin SO-DIMM support up to 64GB DDR4 memory
- Compact NVIDIA® Quadro®/GeForce® MXM graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
- Fanless, -25°C to 55°C Operating Temperature
- Nano SIM Sockets for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
- Expansion : 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe, optional SUMIT A, B
- Storage : 2 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 1 M.2 Key B
- 9V to 50V wide range DC Power Input with 80V Surge Protection
- Supports Configurable Software Ignition Power Control and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Industria / SistemasSeguridad
Smart City
Transporte
-
3G
-
4G
-
5G
-
DC
-
Display Port
-
DVI
-
Sin ventilación
-
HDD
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Lte
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
| System | |
| Processor | LGA 1200 Socket supports10th Gen Intel®Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) |
| Chipset | Intel® W480E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 3 COM RS-232/422/485 (ESD 8kV) |
| USB | 6 USB 3.2 (External) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD |
| SIM Card | 2 External Nano SIM Card Socket |
| SD Card | 1 External Micro SD Card Socket |
| Expansion | |
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/mSATA/SIM Card |
| PCI/PICe | 1 PCI/PCIe x4 Slot |
| M.2 |
- 1 M.2 Key B Socket (3042/3052, PCIe x2/USB 3, Default/USB 2)
- 1 M.2 Key B Socket (2280, PCIe x2/USB 3, Default/USB 2)
- 1 M.2 Key E Socket (2230, PCIe/USB)
|
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor |
Intel® UHD Graphics 630
Independent MXM Graphics：By request
|
| Interface |
Up to 7 Display Interfaces：
- 1 VGA : Up to 1920 x 1200 @60Hz
- 1 DVI-D : Up to 1920 x 1200 @60Hz
- 2 DisplayPort : Up to 4096 x 2304 @60Hz
- 4 DisplayPort : Up to 7680 x 4320 @60Hz (By requested MXM)
|
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| M.2 | 1 M.2 Key M socket (2280, PCIe x4) |
| Storage Device |
- 1 Micro SD Card, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
|
| Audio | |
| Audio Codec | Realtek ALC888S, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 14.0 |
| LAN 2 | Intel® I210 GigE LAN |
| Power | |
| Power Input | 9V to 50V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension (W x L x H) |
EVS-2000 Series :
280.0mm x 215.0mm x 79.1mm (11.02" x 8.46" x 3.11")
EVS-2000F Series :
280.0mm x 215.0mm x 86.5mm (11.02" x 8.46" x 3.41")
|
| Weight |
EVS-2000 Series : 4.9 kg (10.80 lbs)
EVS-2000F Series：5 kg (11.02 lbs)
|
| Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
|
| Environment | |
| Operating Temperature |
35W TDP CPU : -25°C to 55°C (-13°F to 131°F)
65W TDP CPU : -25°C to 45°C (-13°F to 113°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 55°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
