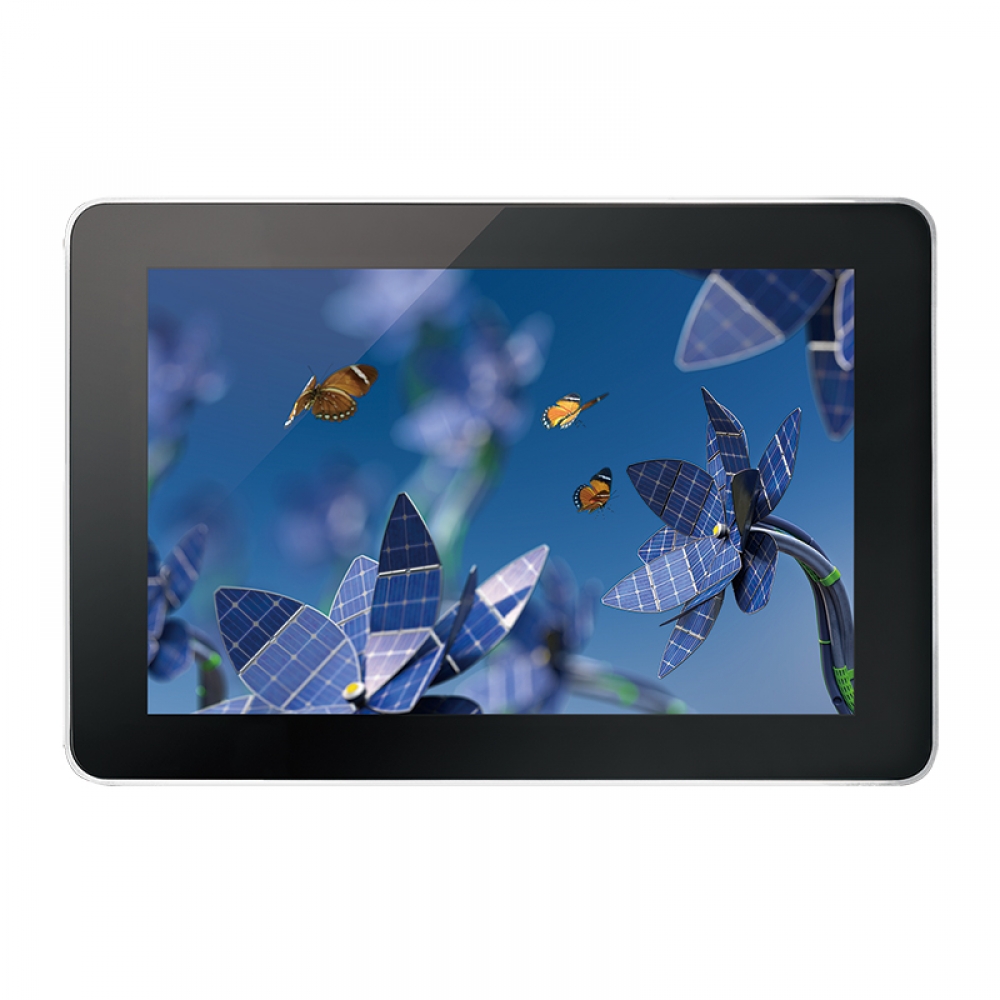

Vecow MTA-1010W
The Vecow MTA-1010W is a 10.1” Panel PC with NXP i.MX 8M Plus processor, delivering up to 2.3 TOPS of AI performance. It features a true flat panel, a 10-point projected capacitive multi-touch screen. It features a true flat panel, a 10-point projected capacitive multi-touch screen, fanless design with IP65 front panel waterproof compliant and allows for operation in harsh environments ranging from -20°C to 60°C. For easy industrial deployments, it includes 2 GigE LAN, 2 SIM card sockets, 2 USB ports, 2 COM ports, 1 Micro SD slot, and 1 DP for 4K60 resolution. Providing Panel mount and VESA mount options, the MTA-1010W is well-suited for In-vehicle, Smart Factory, Self-Service, Medical Chart, and any AIoT/Industry 4.0 applications.- NXP i.MX8M Plus Arm Quad Cortex-A53 Processor
- 10.1" 1280 x 800 TFT LCD, 350 nits Luminance
- 10-point Projected Capacitive Multi-touch Screen
- 2.3 TOPS AI, Ubuntu 22.04 Supported
- 1 4K60 Digital Display, Audio Mic-in & Line-out

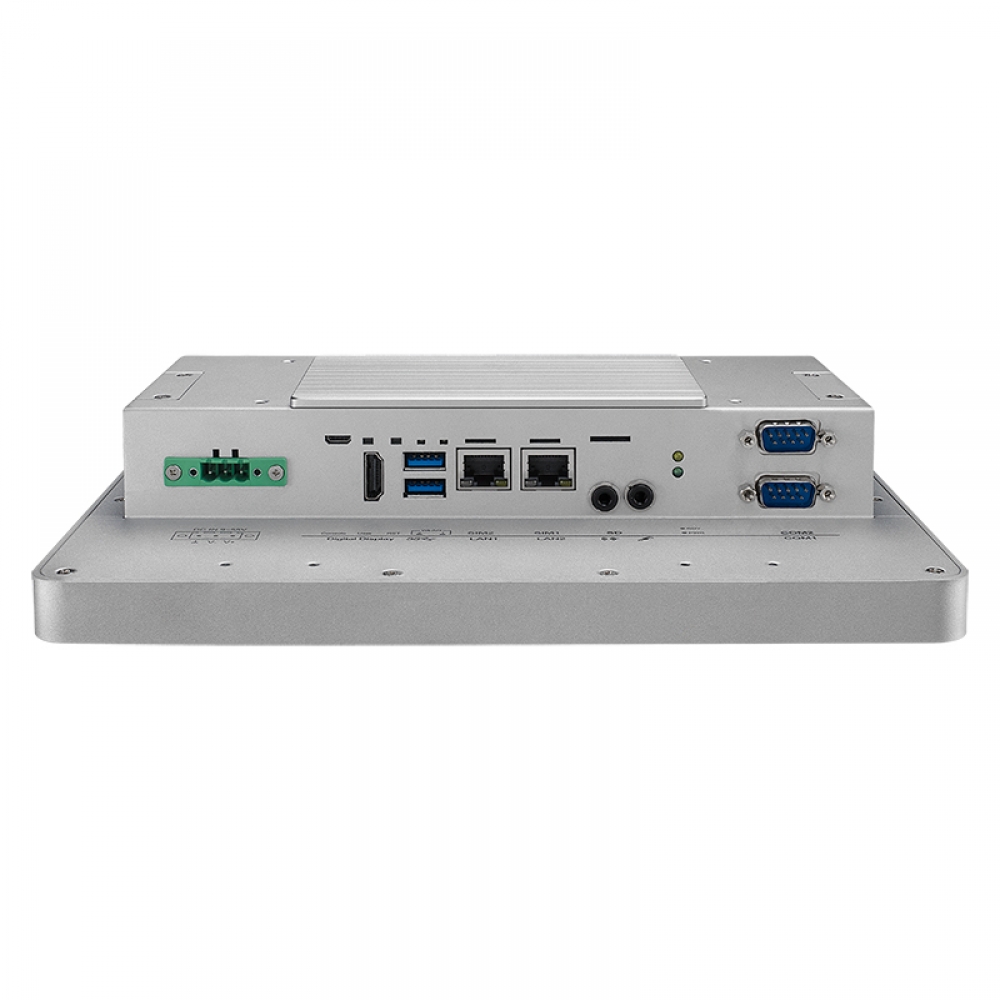

- 2 GigE LAN, 2 USB 3.1, 2 RS-232/422/485
- M.2 Key B, Mini PCIe support dual 5G/4G/Wi-Fi/BT
- Optional 2 CAN-FD and 4 GPIO expansion
- IP65 Front Panel Protection
- Fanless Design, -20°C to 60°C operating temperature
- 9V to 55V wide range DC power input
Industria / Display
-
Android
-
ARM
-
DC
-
Interfaz
-
IP6X
-
LAN
-
Linux
-
Serie
-
USB
Specifications
| Panel | |
| Panel type | WSVGA TFT LED LCD |
| Size | 10.1" |
| Max. Resolution | 1280 x 800 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 350 |
| Viewing Angles (H/V) | 170/170 |
| Contrast Ratio | 800:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Control Interface | USB Type |
| System | |
| Processor | NXP i.MX8M Plus Arm® Quad-core Cortex®-A53 |
| Memory | 4GB LPDDR4 SDRAM |
| I/O Interface | |
| Serial | 2 RS-232/422/482 |
| USB | - 2 USB 3.0 |
| LED | Power, RDY, 2 WLAN |
| Display | 1 Digital Display, up to 3840 x 2160 @30Hz |
| Micro USB | Micro USB console debug port |
| Button |
- 1 User-define Button
- 1 Reset Button
|
| Audio | Mic-in, Line-out |
| GPIO | 4-bit GPIO (Optional) |
| SIM | 2 Nano SIM (External) |
| Expansion | |
| Mini PCIe | 1 Full-size Mini-PCIe Socket |
| M.2 | 1 M.2 Key B Socket |
| Storage | |
| eMMC | 1 eMMC, 32GB |
| SD | 1 Micro SD, supports SDHC (External) |
| Ethernet | |
| LAN 1 | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector |
| LAN 2 |
10/100/1000 Base-T Ethernet GigE LAN supports TSN,
RJ45 Connector
|
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
| Software Support | |
| OS |
- Ubuntu 22.04 LTS
- Android 13
|
| Mechanical | |
| Dimensions (W x H x D) | 256.5mm x 178.3mm x 69.1mm (10.10" x 7.02" x 2.72") |
| Weight | 1.5 kg (3.3 lb) |
| Mounting |
- Panel Mount (Default)
- VESA Mount (Optional)
|
| IP Rating | Front panel IP65 dust and waterproof compliant |
| Environment | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -30°C to 80°C (-4°F to 176°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @70°C |
| Shock | - IEC 60068-2-27 |
| Vibration | - IEC 60068-2-64 |
| EMC | CE, FCC |
