Vecow MTC-7015

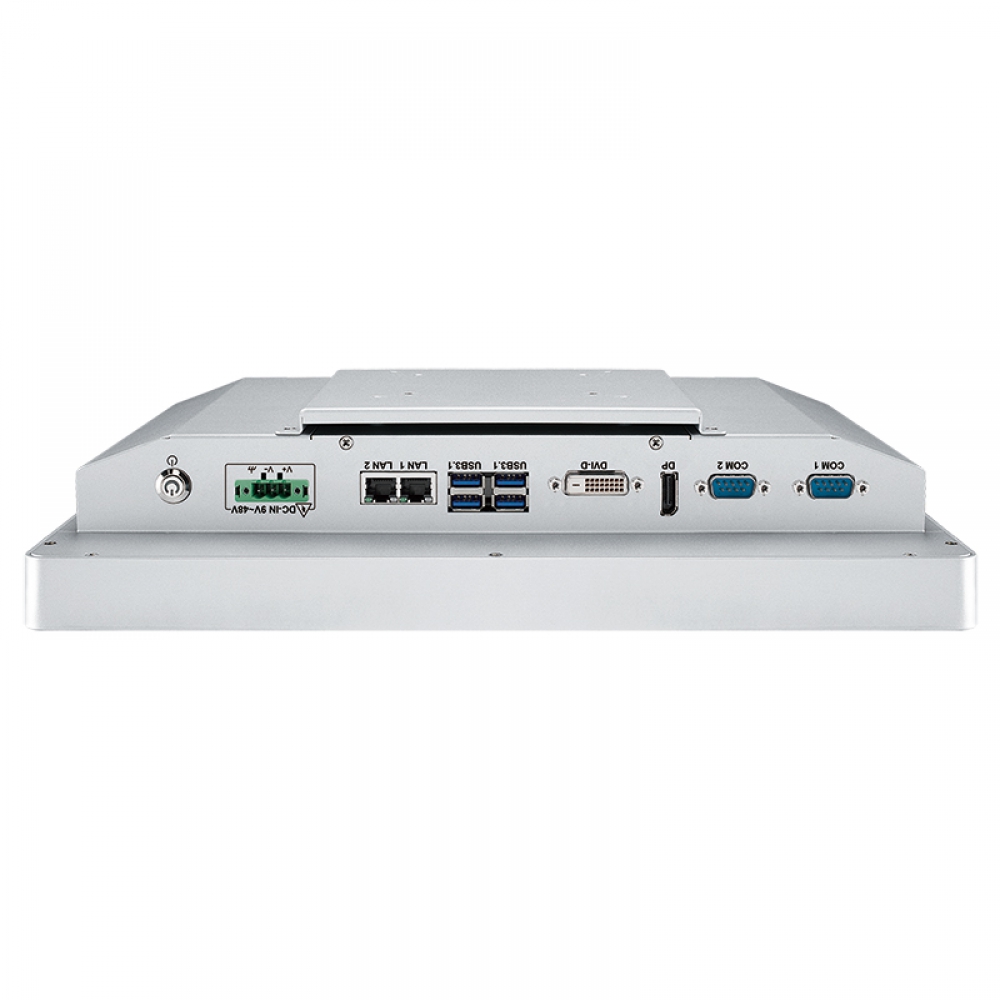

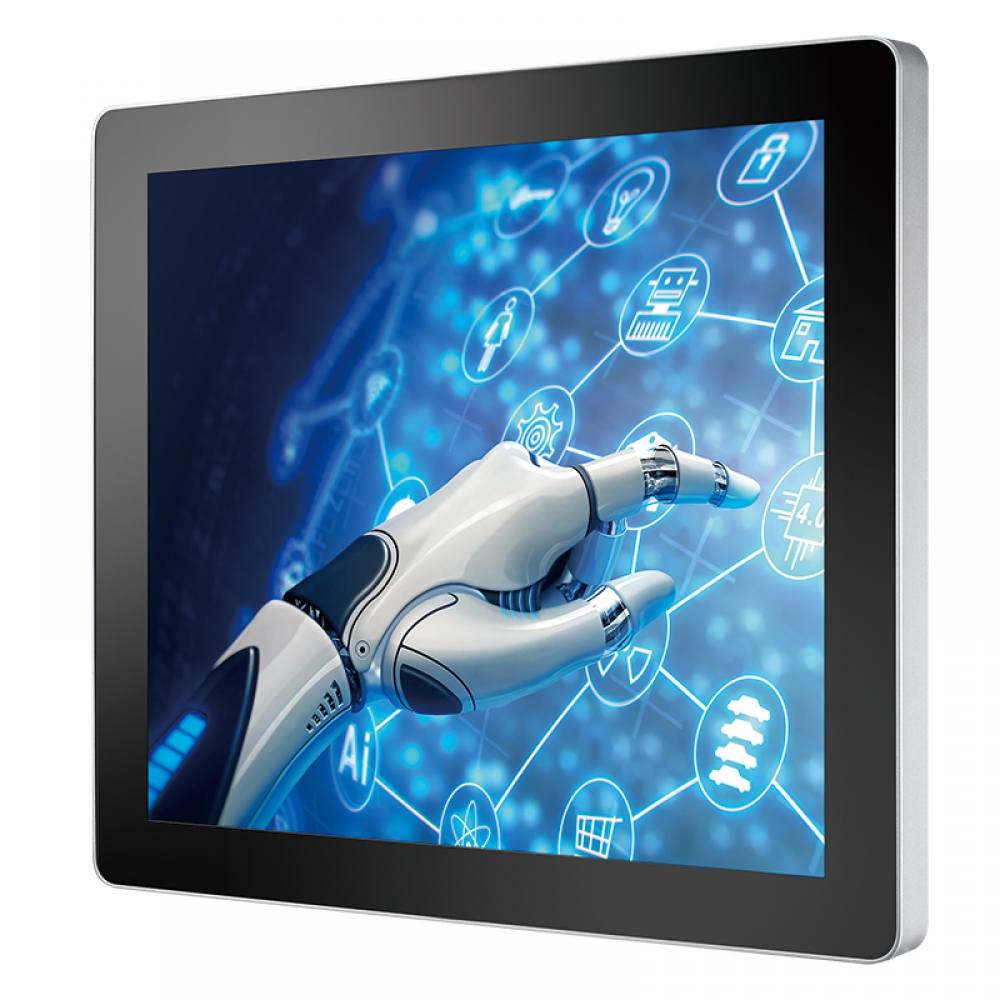

MTC-7000 Series is powered by 8th generation Intel® Core™ i7/i5/i3 processor (Whiskey Lake) and features leading performance and innovative power management functions. It supports projected capacitive multi-touch screen, fanless design, -5°C to 55°C operating temperature, IP65 certified panel protection, 9V to 48V wide range DC-in power input. MTC-7000 Series is outfitted with 2 GigE LAN, 4 10G USB, 2 COM for flexible connectivity.- 15" 1024 x 768 (4:3) XGA TFT LED LCD
- 10-point Projected Capacitive Multi-touch Screen
- 8th Generation Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
- Fanless design supports -5°C to 55°C operating temperature
- 4-port 10G USB 3.1 Gen 2
- Easy-access external SSD/HDD kit
- DC 9V to 48V wide range power input
- Supports Panel Mount and VESA Mount (75 x 75, 100 x 100)
- IP65 Front Panel Protection
- 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
Industria / SistemasSeguridad
Smart City
Transporte
-
3G
-
4G
-
DC
-
Display Port
-
DVI
-
Sin ventilación
-
HDD
-
Intel
-
Interfaz
-
IP6X
-
IPX5
-
Linux
-
Lte
-
Multi-táctil 10 puntos
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
| Panel | |
| Panel type | XGA TFT LED Type LCD |
| Size | 15" |
| Max. Resolution | 1024 x 768 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 250 nits |
| Viewing Angles (H/V) | 160/140 |
| Contrast Ratio | 700:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
| System | |
| Processor | Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake) |
| Chipset | Intel® Cannon Lake PCH-LP |
| Memory | 1 DDR4 2400MHz SO-DIMM, up to 32GB |
| Graphics Processor | Intel® UHD Graphics 620 |
| I/O Interface | |
| Serial | 2 RS-232/422/482 (ESD 8kV, DB9 Type) |
| USB | 4 USB 3.1 Gen 2, Type A |
| LED | Power, HDD |
| Display |
- DVI-D：Up to 1920 x 1200 @60Hz
- DisplayPort：Up to 4096 x 2304 @60Hz |
| Expansion | |
| Mini PCIe |
2 Mini PCIe Socket：
- 1 Full-size for PCIe/USB/SIM Socket
- 1 Full-size for PCIe/USB/SATA
|
| Storage | |
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA II (Full Size Mini PCIe, 6Gbps) |
| Storage Device | 1 2.5" SSD/HDD Kit |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type |
| LAN 2 | Intel® I210LM GigE LAN, RJ45 Type |
| Power | |
| Power Input | 9V to 48V DC-in |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimensions | 360.9mm x 277.8mm x 77.1mm (14.21" x 10.21" x 3.04") |
| Weight | 4.1kg (9.04 lb) |
| Mounting |
- Panel mount
- VESA mount (75 x 75, 100 x 100)
|
| Environment | |
| Operating Temperature | -5°C to 55°C (-23°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
- IEC 60068-2-27
- 20G, Half-sine, 11ms
|
| Shock |
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis
|
| EMC | CE, FCC |
