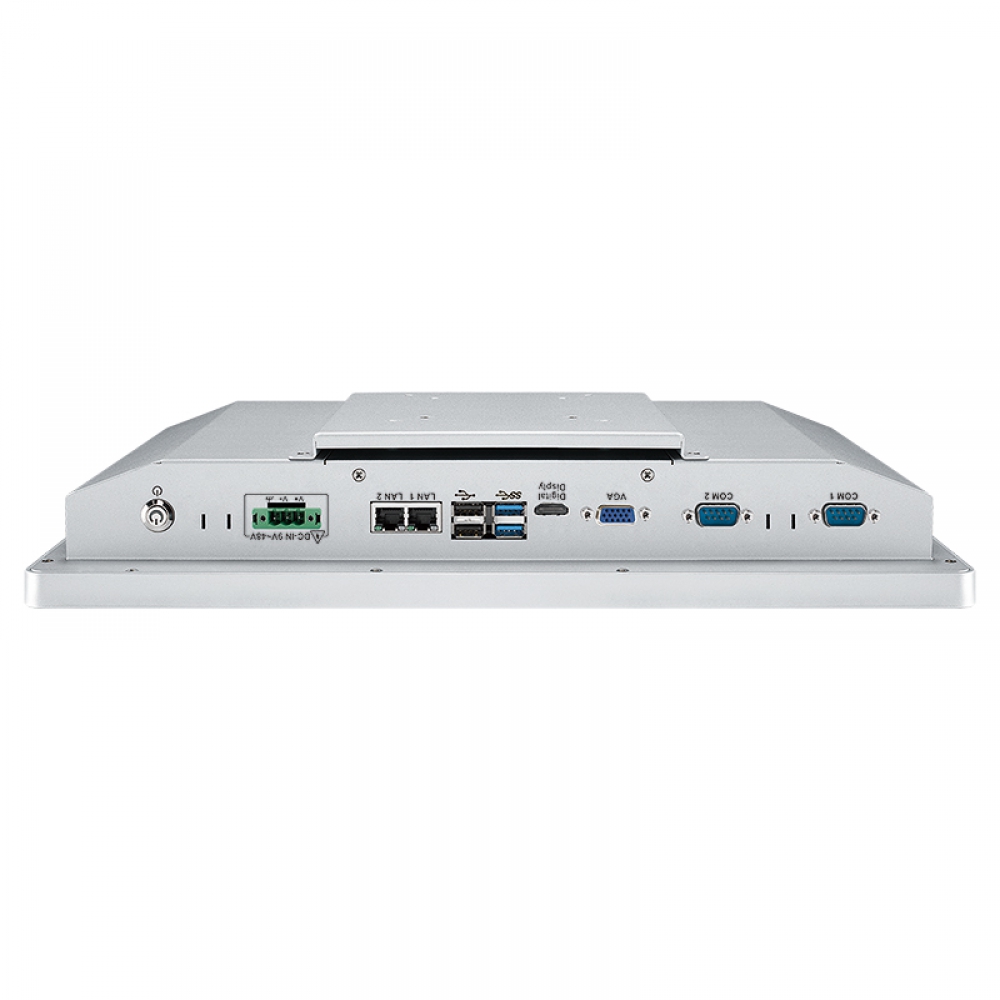

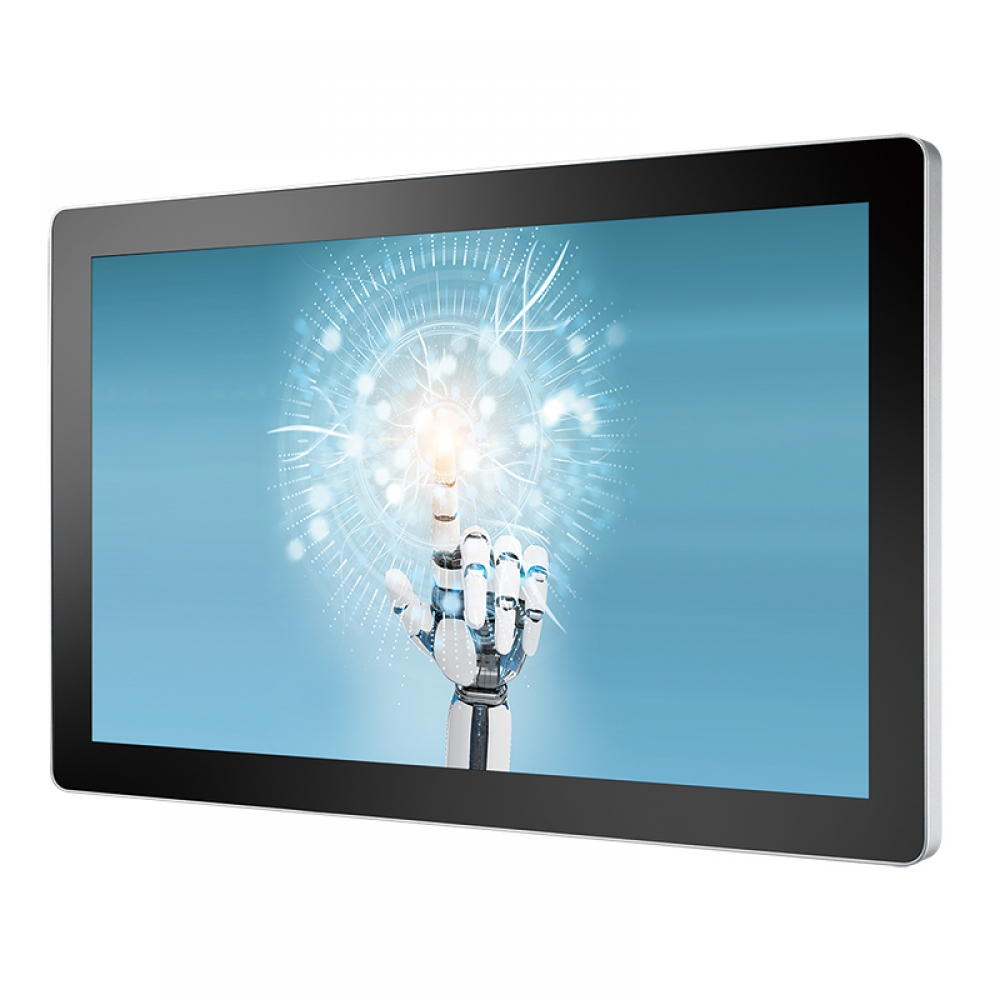

Vecow MTC-8015W
15.6" Fanless Multi-Touch Computer with Intel Atom® x7-E3950 Processor, 2 GigE LAN, 4 USB, 2 COM, DC 9 to 36V.- 15.6" 1366 x 768 (16:9) WXGA TFT LED LCD
- 10-point projected capacitive multi-touch screen
- Intel Atom® x7-E3950 Processor
- Fanless design supports -10°C to 60°C operating temperature
- Easy-access external SSD/HDD kit
- DC 9V to 36V wide range power input
- Supports Panel Mount and VESA Mount (75 x 75, 100 x 100)
- IP65 Front Panel Protection
- 2 Mini PCIe for WiFi/4G/3G/LTE/GPRS/UMTS
Industria / SistemasSeguridad
Smart City
Transporte
-
3G
-
4G
-
DC
-
Display Port
-
Sin ventilación
-
HDD
-
Intel
-
IP6X
-
IPX5
-
LAN
-
Linux
-
Lte
-
Multi-táctil 10 puntos
-
Serie
-
SSD
-
USB
-
VGA
-
Gran angulo de visión
-
Wifi
-
Windows
Specifications
| Panel | |
| Panel type | WXGA TFT LED Type LCD |
| Size | 15.6" |
| Max. Resolution | 1366 x 768 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 400 |
| Viewing Angles (H/V) | 170/160 |
| Contrast Ratio | 500:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
| System | |
| Processor | Intel Atom® x7-E3950 Processor |
| Chipset | Intel® Apollo Lake PCH-LP |
| Memory | 1 DDR3L 1866MHz SO-DIMM, up to 8GB |
| Graphics Processor | Intel® HD Graphics 505 |
| I/O Interface | |
| Serial | 2 RS-232/422/482 (DB9 Type) |
| USB |
- 2 USB 3.0 Type A
- 2 USB 2.0 Type A
|
| LED | Power |
| Display |
- VGA：Up to 1920 x 1440 @60Hz
- Digital Display：Up to 3840 x 2160 @60Hz |
| Expansion | |
| Mini PCIe |
2 Mini PCIe Socket：
- 1 Full-size for PCIe/USB/SIM Socket
- 1 Full-size for PCIe/USB/SATA
|
| Storage | |
| SATA | 1 SATA III (6Gbps) |
| mSATA | 1 SATA III (Full Size Mini PCIe, 6Gbps) |
| Storage Device | 1 2.5" SSD/HDD Kit |
| Ethernet | |
| LAN 1 | Intel® I210 GigE LAN, RJ45 Type |
| LAN 2 | Intel® I210 GigE LAN, RJ45 Type |
| Power | |
| Power Input | 9V to 36V DC-in |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimensions | 391.5mm x 242.0mm x 66.1mm (15.41" x 9.53" x 2.60") |
| Weight | 3.6 kg (7.94 lb) |
| Mounting |
- Panel mount
- VESA mount (75 x 75, 100 x 100)
|
| Environment | |
| Operating Temperature | -10°C to 60°C (-14°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
- IEC 60068-2-27
- 20G, Half-sine, 11ms
|
| Shock |
- IEC 60068-2-64
- Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis
|
| EMC | CE, FCC |
