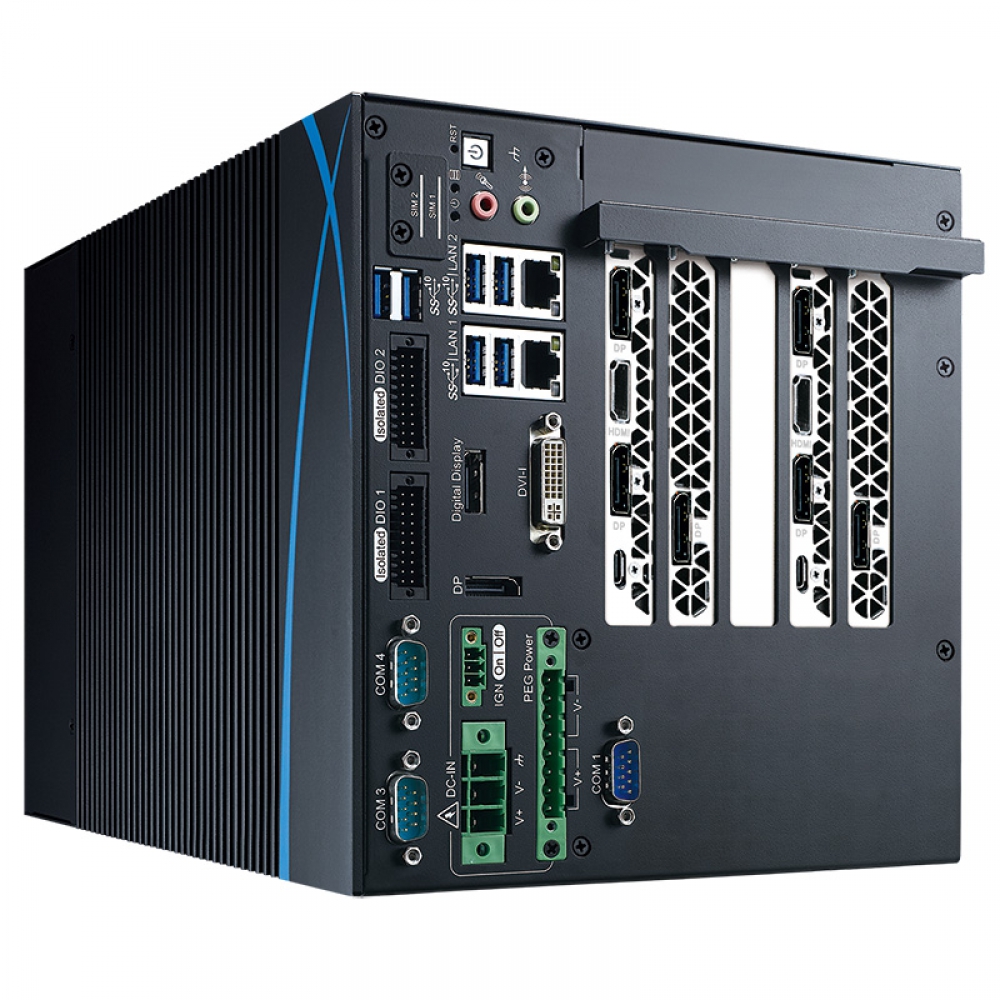

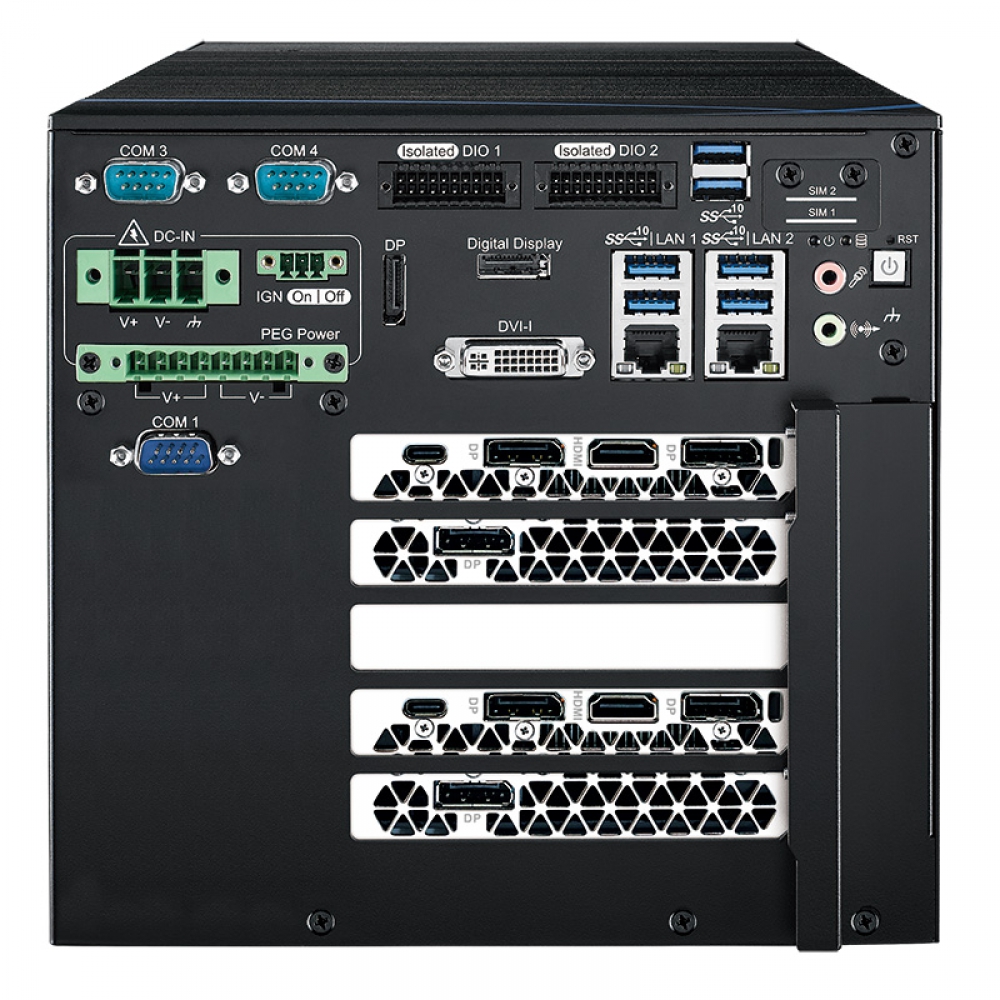

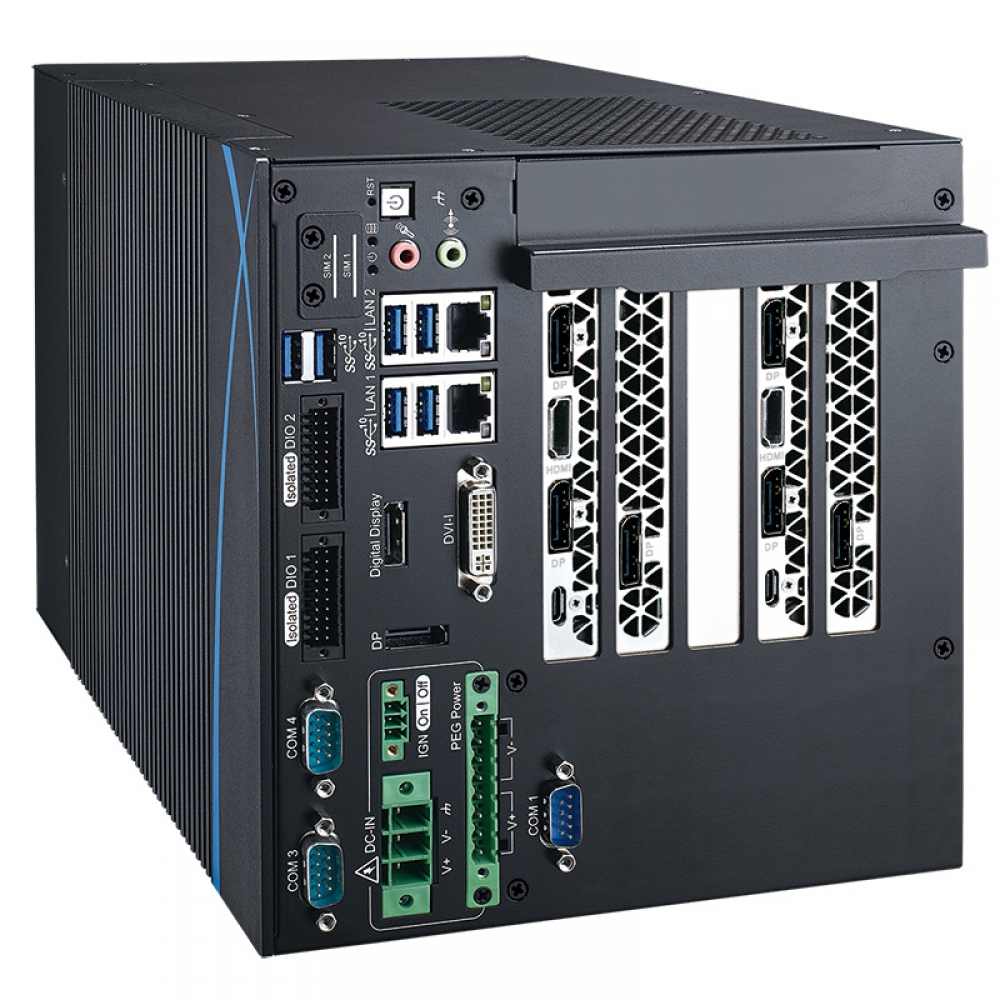

Vecow RCX-1520 PEG

Workstation-grade 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 processor (Coffee Lake) Dual GPU AI Computing System with Intel® C246 & NVIDIA® Tesla®/Quadro®/GeForce® Graphics Card, NVIDIA Turing™ architecture, 11 displays, 8K resolution, 2 GigE LAN, 6 10G USB 3.1 Gen 2, 3 COM RS-232/422/485, 2 SIM, 2 M.2, 32 Isolated DIO, High Performance, Flexible, Expandable

8 Cores 9th/8th Gen Intel® Xeon®/Core™ i7/i5/i3 (Coffee Lake) with Workstation-grade Intel® C246 chipset
4 DDR4 2666MHz memory, up to 128GB (ECC/Non-ECC)
Supports up to dual 350W NVIDIA® or AMD Graphics card
Dual NVIDIA® Tesla®/Quadro®/GeForce® graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
Multiple DVI, HDMI and DisplayPort display interfaces support max 11 independent displays, up to 8K resolution
6 External 10G USB 3.1 Gen 2, support up to 10Gbps data transfer
2 Independent GigE LAN support iAMT 12.0
2 External SIM Socket for WiFi/4G/3G/LTE/GPRS/UMTS
32 Isolated DIO, 3 COM RS-232/422/485
2 M.2 Socket: 1 M.2 Key M, 1 M.2 Key E
System-oriented power optimization, up to dual 350W independent graphics card
6V to 36V Wide range power input with 80V Surge Protection
12V Power Input for dual independent graphics card
Configurable Ignition Power Control

Digital Signage / Sistemas
Industria
Seguridad
Smart City
Transporte

3G
4G
DC
Display Port
DVI
HDD
HDMI
Intel
Interfaz
LAN
Linux
Lte
Serie
USB
Wifi
Windows

Specifications

Processor

8 Cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R S)

Chipset

Intel® C246 Chipset

BIOS

AMI

SIO

IT8786E

Memory

4 DDR4 2666MHz SO-DIMM, up to 128GB (ECC/Non-ECC)

Serial

3 COM RS-232/422/485 (ESD 8KV)

USB

- 6 USB 3.1 Gen 2 (External)- 1 USB 2.0 (Internal)

Isolated DIO

32 Isolated DIO : 16 DI, 16 DO

LED

Power, HDD, Wireless

SIM Card

2 External SIM Socket

Mini PCIe

2 Full-size for PCIe/USB/External SIM Card/mSATA

M.2

1 M.2 Key E Socket

Graphics Processor

- Intel® UHD graphics 630- Independent Graphics 1：By request- Independent Graphics 2：By request

Interface

Up to 11 independent displays : - 1 DVI : Up to 1920 x 1200 @60Hz - 1 DisplayPort : Up to 4096 x 2304 @60Hz - 1 Digital Display : Up to 4096 x 2304 @60Hz - By requested Graphics Card

SATA

4 SATA III (6Gbps) support S/W RAID 0, 1, 5, 10

mSATA

2 SATA III (Mini PCIe type, 6Gbps)

Storage Device

- 4 2.5" SSD/HDD Bracket (Internal) - 1 M.2 Key M Socket

Audio Codec

Realtek ALC892, 5.1 Channel HD Audio

Audio Interface

1 Mic-in, 1 Line-out

LAN 1

Intel® I219LM GigE LAN supports iAMT 12.0

LAN 2

Intel® I210 GigE LAN

Power Input

- 6V to 36V DC-in - 12V PEG Power

Power Interface

DC-in: 3-pin Terminal Block: V+, V-, Frame GroundPEG Power: 8-pin Terminal Block: 4V+, 4V-

Ignition Control

16 mode (Internal)

Remote Switch

3-pin Terminal Block

Surge Protection

Up to 80V/1ms Transient Power

TPM

Optional Infineon SLB9665 supports TPM 2.0, LPC interface

Watchdog Timer

Reset : 1 to 255 sec./min. per step

Smart Management

Wake on LAN, PXE supported

HW Monitor

Monitoring temperature, voltages. Auto throttling control when CPU overheats.

OS

Windows 10, Linux

Dimension (W x L x H)

350mm x 210mm x 198.2mm (13.78" x 8.27" x 7.80")

Weight (w/o Graphics Card)

6.9 kg (15.19 lb)

Mounting

Wallmount by mounting bracket

Operating Temperature

-25°C to 45°C (-13°F to 113°F) Depends on Graphics Card

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% to 95% Humidity, non-condensing

Relative Humidity

95% at 45°C

Shock/Vibration

- IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Test

EMC

CE, FCC, EN50155, EN50121-3-2
