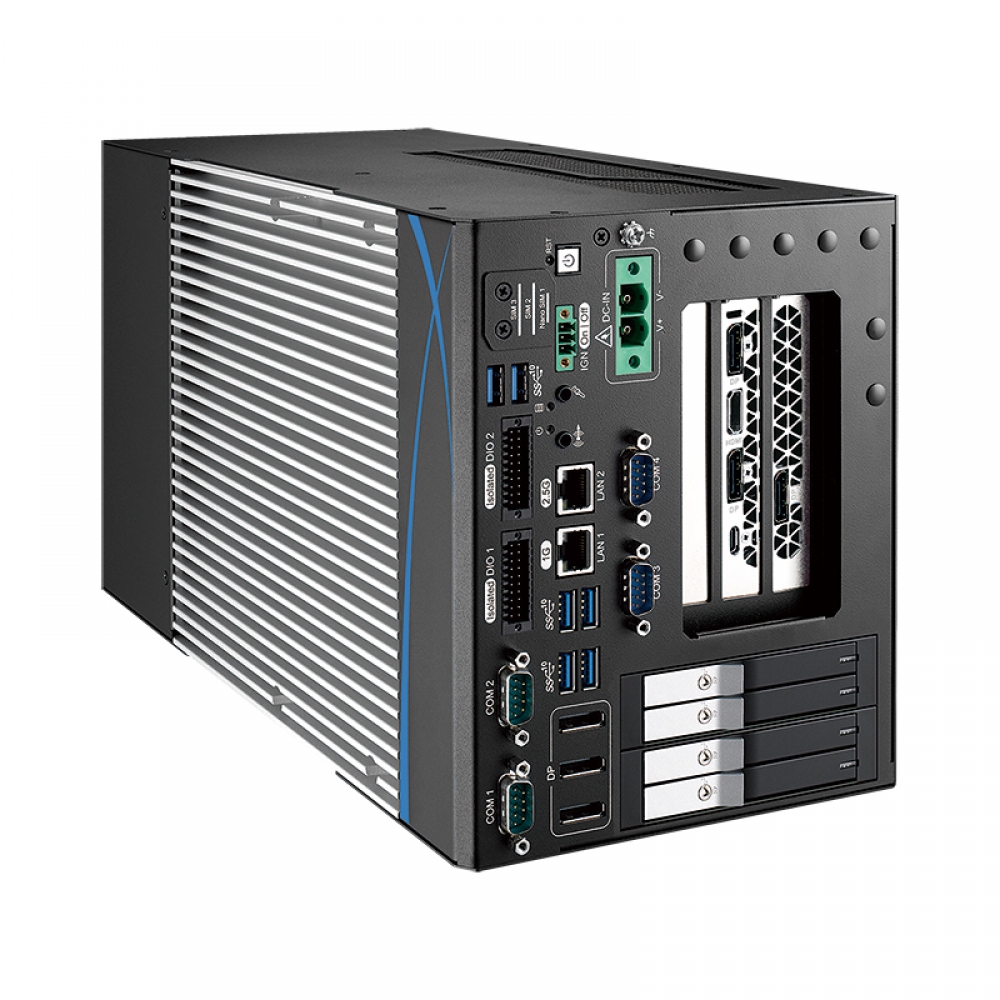

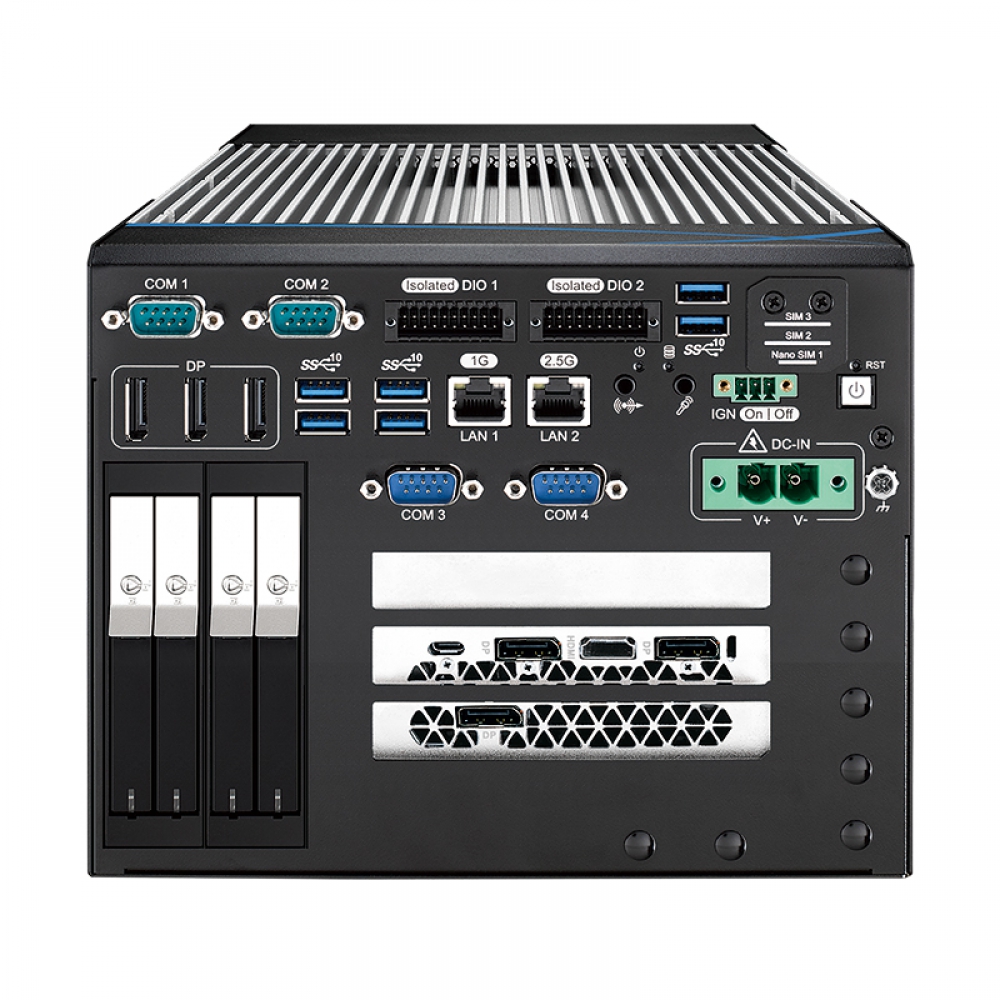

Vecow RCX-2330R PEG

Featuring workstation-grade platform: powered by 11th Generation Intel® Xeon®/Core™ i7/i5 processor (Rocket Lake-S) and running with W580 chipset, Vecow RCX-2000 PEG delivers high-performance computing capability with up to 19% CPU productivity improved. The system is equipped with PCIe x16 slot that supports max 750W power for NVIDIA® or AMD graphics engine and allows for scalability of expansion with 3 PCIe, 2 Mini PCIe, 4 M.2. Vecow RCX-2000 supports 4 DDR4 memory up to 128GB and features max. 7 independent displays with 8K resolution. The brand new RCX-2000 PEG offers a variety of connectivity and supports 9V to 55V DC-in to meet industrial requirements and is ideally suited for High-Speed AOI, 3D Mapping, Rolling Stock and any AIoT/Industry 4.0 applications.

Workstation-grade Platform : 8-core 11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S) running with Intel® W580 chipset, up to 19% CPU productivity improved
PCIe x16 Gen 4 Slot supports max 750W power for NVIDIA® or AMD 3-slot graphics card
DDR4 Memory supports up to 3200MHz, optional with ECC
Expansion : 3 PCIe, 2 Mini PCIe, 1 M.2 Key E, 1 M.2 Key B
Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS, TPM 2.0, vPRO
DC 9V to 55V Power Input, Software Ignition Control
Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Industria / Sistemas
Seguridad
Smart City
Transporte

4G
5G
Bluetooth
DC
Display Port
HDD
HDMI
Intel
Interfaz
LAN
Linux
Lte
Serie
SSD
USB
Rango extendido de temperatura
Wifi
Windows

Specifications

System
Processor	11th Gen Intel® Xeon®/Core™ i7/i5 Processor (Rocket Lake-S)
Chipset	Intel® W580
BIOS	AMI
SIO	IT8786E
Memory	4 DDR4 SO-DIMM, up to 128GB (ECC/Non-ECC)
OS	Windows 10, Linux
I/O Interface
Serial	4 COM RS-232/422/485
USB	- 6 USB 3.2 Gen2 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	HDD, Power
SIM Card	3 External SIM Card Socket
Expansion
Mini PCIe	2 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA
PCIe	3 PCIe x16 Slot : - 1 PCIe x16 slot with PCIe Gen 4 signal - 2 PCIe x16 slot with PCIe Gen 3 x4 signal
M.2	- 1 M.2 Key B Socket (2280/3042/3052, PCIe x2/USB3(Default)/USB2) - 1 M.2 Key E Socket (2230, PCIe x2/USB)
Graphics
Graphics Processor	Intel® UHD Graphics P750/750 supports Intel® Iris® Xe Graphics architecture
Interface	Up to 7 independent displays : - 3 DisplayPort : Up to 4096 x 2304 @60Hz - By requested Graphics Card
Storage
SATA	4 SATA III (6Gbps) support software RAID 0, 1, 5, 10
M.2	- 1 M.2 Key M Socket (2280, PCIe x4) - 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
Storage Device	- 4 Front-access 2.5"SSD/HDD Tray - 1 M.2 Key M Socket

Audio
Audio Codec	Realtek® ALC888S-VD, 7.1 Channel HD Audio
Audio Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM GigE LAN supports iAMT
LAN 2	Intel® I225IT 2.5G LAN
Power
Power Input	9V to 55V, DC-in
Power Interface	2-pin Terminal Block : V+, V-
Ignition Control	16-mode Software Ignition Control
Remote Switch	3-pin Terminal Block
Others
TPM	Infineon SLB9670 supports TPM 2.0, SPI Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Mgmt.	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimension	166.4mm x 208.5mm x 375.0mm (6.55" x 8.21" x 14.76")
Weight	8.1 kg (17.85 lb)
Mounting	Wallmount by mounting bracket
Environment
Operating Temp.	-25°C to 60°C (-13°F to 147°F)
Storage Temp.	-25°C to 85°C (-13°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative humidity	95% @60°C
Shock/Vibration	- IEC 61373 : 2010 - Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
EMC	CE, FCC, EN50155, EN50121-3-2
